YACS::ENGINE::InputPort Class Reference

Base class for Input Ports. More...

#include <InputPort.hxx>

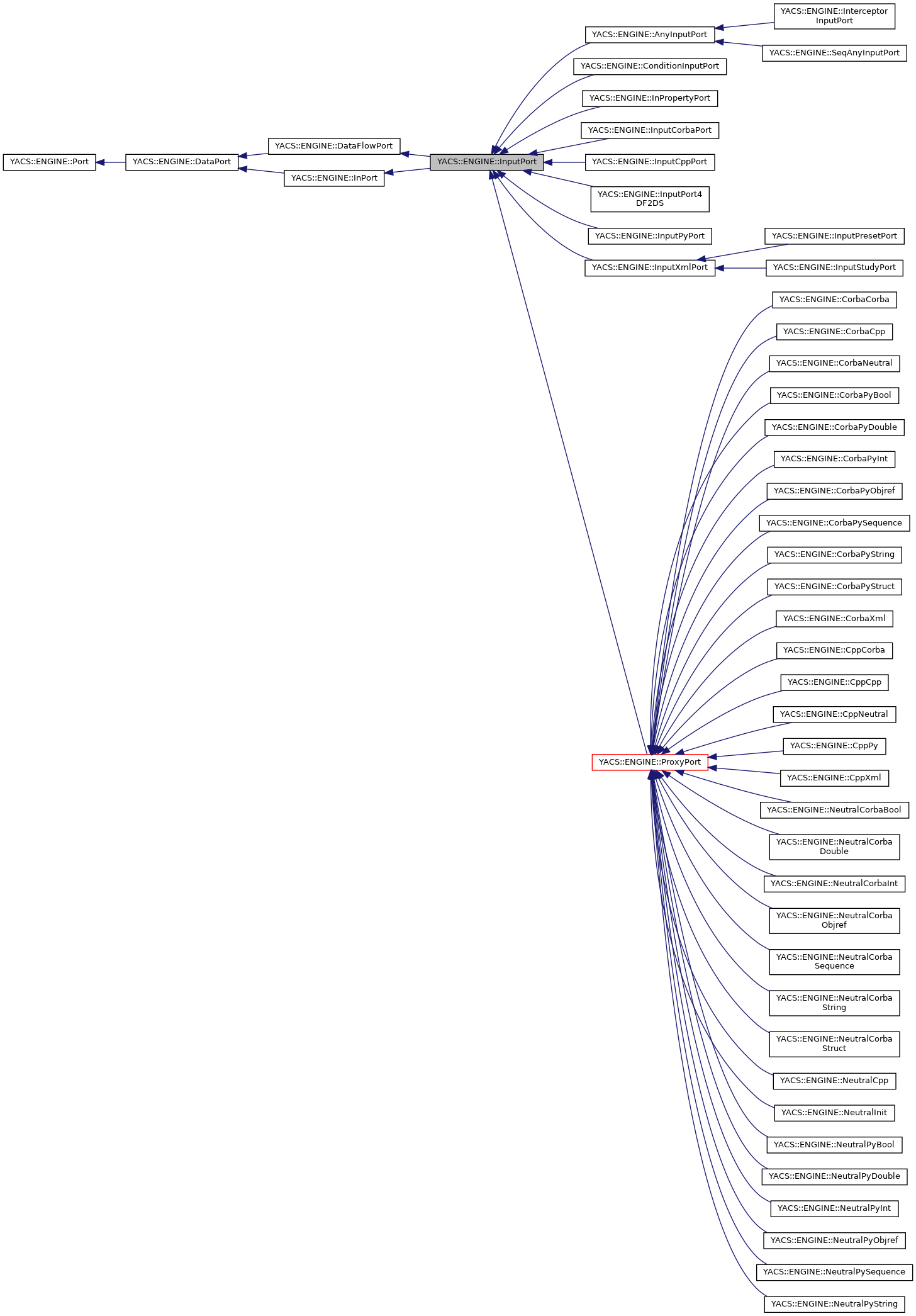

Inheritance diagram for YACS::ENGINE::InputPort:

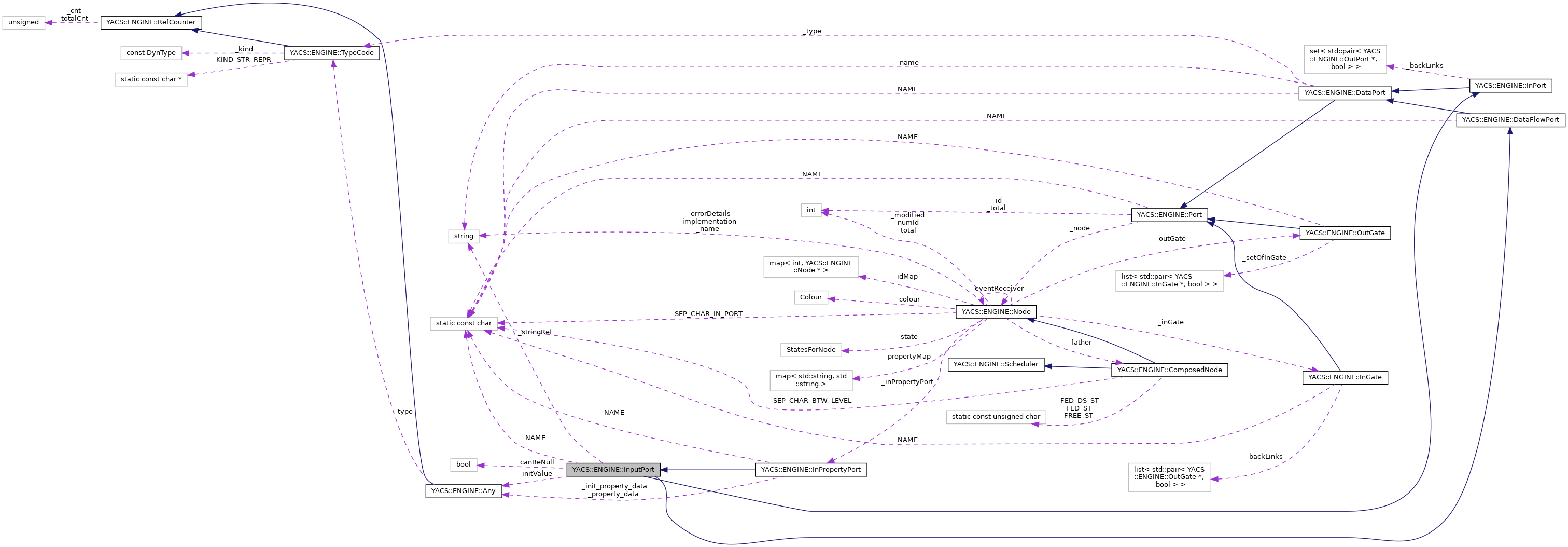

Collaboration diagram for YACS::ENGINE::InputPort:

Public Member Functions
virtual	~InputPort ()
std::string	getNameOfTypeOfCurrentInstance () const
virtual InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...
virtual bool	isIntermediate () const
virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...
bool	edIsInitialized () const
	soon deprecated More...
template<class T >
void	edInit (T value)
void	edInit (Any *value)
void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...
virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...
virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...
virtual void	exInit (bool start)
virtual void	exSaveInit ()=0
virtual void	exRestoreInit ()=0
virtual InputPort *	clone (Node *newHelder) const =0
virtual bool	isEmpty ()
virtual void *	get () const =0
virtual void	releaseData ()=0
virtual void	put (const void *data)=0
virtual std::string	dump ()
virtual std::string	getHumanRepr ()
virtual void	setStringRef (std::string strRef)
virtual std::string	typeName ()
bool	canBeNull () const
Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...
virtual	~DataFlowPort ()
virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...
virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...
Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const
void	edSetType (TypeCode *type)
std::string	getName () const
void	setName (std::string theName)
bool	isDifferentTypeOf (const DataPort *other) const
virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...
Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()
Node *	getNode () const
int	getNumId () const
void	modified ()
Public Member Functions inherited from YACS::ENGINE::InPort
virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...
virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...
bool	canSafelySqueezeMemory () const
bool	isBackLinked () const
virtual	~InPort ()

Static Public Attributes
static const char	NAME [] ="InputPort"
Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"
Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions
	InputPort (const InputPort &other, Node *newHelder)
	InputPort (const std::string &name, Node *node, TypeCode *type, bool canBeNull=false)
void	releaseDataUnsafe ()
Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)
	DataFlowPort (const std::string &name, Node *node, TypeCode *type)
Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()
	DataPort (const DataPort &other, Node *newHelder)
	DataPort (const std::string &name, Node *node, TypeCode *type)
Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)
	Port (const Port &other, Node *newHelder)
Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)
	InPort (const std::string &name, Node *node, TypeCode *type)
void	edRemoveAllLinksLinkedWithMe ()
virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)
virtual void	edNotifyDereferencedBy (OutPort *fromPort)
virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Protected Attributes
Any *	_initValue
std::string	_stringRef
bool	_canBeNull
Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type
std::string	_name
Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node
int	_id
Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Friends
class	Runtime
class	OutPort

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)
Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0
static const char	NAME [] ="Port"

Detailed Description

Base class for Input Ports.

Definition at line 43 of file InputPort.hxx.

Constructor & Destructor Documentation

~InputPort()

InputPort::~InputPort ( )

virtual

Definition at line 89 of file InputPort.cxx.

{
  if(_initValue)
    _initValue->decrRef();
}

References _initValue, and YACS::ENGINE::RefCounter::decrRef().

InputPort() [1/2]

InputPort::InputPort ( const InputPort &  other, Node *  newHelder  )

protected

Definition at line 36 of file InputPort.cxx.

  : DataFlowPort(other, newHelder),
    InPort(other, newHelder),
    DataPort(other, newHelder),
    Port(other, newHelder),
    _initValue(0),
    _canBeNull(other._canBeNull)
{
  if(other._initValue)
    _initValue=other._initValue->clone();
}

References _initValue, and YACS::ENGINE::Any::clone().

InputPort() [2/2]

InputPort::InputPort ( const std::string &  name, Node *  node, TypeCode *  type, bool  canBeNull = false  )

protected

Definition at line 48 of file InputPort.cxx.

  : DataFlowPort(name, node, type),
    InPort(name, node, type),
    DataPort(name, node, type),
    Port(node),
    _initValue(0),
    _canBeNull(canBeNull)
{
}

Member Function Documentation

canBeNull()

bool InputPort::canBeNull

(

)

const

Definition at line 174 of file InputPort.cxx.

{
  return _canBeNull;
}

References _canBeNull.

checkBasicConsistency()

void InputPort::checkBasicConsistency ( ) const

virtual

Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all.

Definition at line 148 of file InputPort.cxx.

{
  if(!_canBeNull && !edIsManuallyInitialized() && _backLinks.size()==0 )
    {
      ostringstream stream;
      stream << "InputPort::checkBasicConsistency : Port " << _name << " of node with name " << _node->getName() << " neither initialized nor linked back";
      throw Exception(stream.str());
    }
}

References YACS::ENGINE::InPort::_backLinks, _canBeNull, YACS::ENGINE::DataPort::_name, YACS::ENGINE::Port::_node, edIsManuallyInitialized(), and YACS::ENGINE::Node::getName().

Referenced by YACS::ENGINE::OutNode::checkBasicConsistency(), YACS::ENGINE::StudyOutNode::checkBasicConsistency(), and exInit().

clone()

virtual InputPort* YACS::ENGINE::InputPort::clone ( Node *  newHelder ) const

pure virtual

Implemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputStudyPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputPresetPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::InputPort4DF2DS, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::SeqAnyInputPort, YACS::ENGINE::InterceptorInputPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Referenced by YACS::ENGINE::OptimizerLoop::initInterceptors().

dump()

std::string InputPort::dump ( )

virtual

Reimplemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputStudyPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputPresetPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::SeqAnyInputPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Definition at line 158 of file InputPort.cxx.

{
  string xmldump = "<value><error> NO_SERIALISATION_AVAILABLE </error></value>";
  return xmldump;
}

Referenced by getHumanRepr().

edInit() [1/3]

void InputPort::edInit

(

Any *

value

)

Definition at line 95 of file InputPort.cxx.

{
  InputPort *manuallySet=getRuntime()->adapt(this,
                                             Runtime::RUNTIME_ENGINE_INTERACTION_IMPL_NAME,_type,true);
  try
    {
      manuallySet->put((const void *) value);
      if(manuallySet!=this)
        delete manuallySet;
    }
  catch(ConversionException&)
    {
      if(manuallySet!=this)
        delete manuallySet;
      throw;
    }
  exSaveInit();
  modified();
}

References YACS::ENGINE::DataPort::_type, YACS::ENGINE::Runtime::adapt(), exSaveInit(), YACS::ENGINE::getRuntime(), YACS::ENGINE::Port::modified(), put(), and YACS::ENGINE::Runtime::RUNTIME_ENGINE_INTERACTION_IMPL_NAME.

edInit() [2/3]

void InputPort::edInit	(	const std::string &	impl,
		const void *	value
	)

Initialize the port with an object (value) coming from a world with implementation impl.

You should be careful when using this method : the caller must set the context according to implementation For instance, if implementation is Python, the caller must hold the Global Interpreter Lock (also known as GIL).

Definition at line 120 of file InputPort.cxx.

{
  InputPort *manuallySet=getRuntime()->adapt(this,impl,_type,true);
  try
    {
      manuallySet->put(value);
      if(manuallySet!=this)
        delete manuallySet;
    }
  catch(ConversionException&)
    {
      if(manuallySet!=this)
        delete manuallySet;
      throw;
    }
  exSaveInit();
  modified();
}

References YACS::ENGINE::DataPort::_type, YACS::ENGINE::Runtime::adapt(), exSaveInit(), YACS::ENGINE::getRuntime(), YACS::ENGINE::Port::modified(), and put().

edInit() [3/3]

template<class T >

void YACS::ENGINE::InputPort::edInit

(

T

value

)

Definition at line 129 of file InputPort.hxx.

    {
      Any* any=AtomAny::New(value);
      try
      {
        edInit(any);
        any->decrRef();
      }
      catch(ConversionException&)
      {
        any->decrRef();
        throw;
      }
    }

References YACS::ENGINE::RefCounter::decrRef(), and YACS::ENGINE::AtomAny::New().

Referenced by YACS::ENGINE::Runtime::createForEachLoop(), YACS::ENGINE::RuntimeSALOME::createOptimizerLoop(), YACS::ENGINE::Bloc::fitToPlayGround(), YACS::ENGINE::NbBranches::forceMultiplicity(), YACS::HMI::CommandSetInPortValue::localExecute(), YACS::HMI::CommandSetSwitchSelect::localExecute(), YACS::HMI::CommandSetForLoopSteps::localExecute(), YACS::HMI::CommandSetWhileCondition::localExecute(), YACS::HMI::CommandSetForEachBranch::localExecute(), YACS::HMI::CommandSetInPortValue::localReverse(), YACS::HMI::CommandSetSwitchSelect::localReverse(), YACS::HMI::CommandSetForLoopSteps::localReverse(), YACS::HMI::CommandSetWhileCondition::localReverse(), YACS::HMI::CommandSetForEachBranch::localReverse(), YACS::forlooptypeParser< T >::nsteps(), YACS::ENGINE::nodeParser::onEnd(), YACS::ENGINE::portParser::onEnd(), YACS::bloctypeParser< T >::parameter(), YACS::whilelooptypeParser< T >::post(), and YACS::ENGINE::Proc::setInPortValue().

edIsInitialized()

bool InputPort::edIsInitialized

(

)

const

soon deprecated

Perform a quick and not complete check. Use ComposedNode::CheckConsistency instead.

Definition at line 84 of file InputPort.cxx.

{
  return (edIsManuallyInitialized() || _backLinks.size()!=0 );
}

References YACS::ENGINE::InPort::_backLinks, and edIsManuallyInitialized().

edIsManuallyInitialized()

bool InputPort::edIsManuallyInitialized ( ) const

virtual

Specifies if this port has been manually set by the call of InputPort::edInit.

Reimplemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, and YACS::ENGINE::InputCorbaPort.

Definition at line 76 of file InputPort.cxx.

{
  return _initValue!=0;
}

References _initValue.

Referenced by checkBasicConsistency(), YACS::ENGINE::ComposedNode::checkLinksCoherenceRegardingControl(), edIsInitialized(), YACS::ENGINE::NbBranches::isMultiplicitySpecified(), YACS::HMI::SchemaInPortItem::SchemaInPortItem(), and YACS::HMI::SchemaInPortItem::update().

edRemoveManInit()

void InputPort::edRemoveManInit ( )

virtual

Removes eventually previous manual initialisation.

Reimplemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, and YACS::ENGINE::InputCorbaPort.

Definition at line 140 of file InputPort.cxx.

{
  if(_initValue)
    _initValue->decrRef();
  _initValue=0;
}

References _initValue, and YACS::ENGINE::RefCounter::decrRef().

Referenced by YACS::ENGINE::InputCorbaPort::edRemoveManInit(), YACS::ENGINE::InputCppPort::edRemoveManInit(), YACS::ENGINE::InputPyPort::edRemoveManInit(), and YACS::ENGINE::InputXmlPort::edRemoveManInit().

exInit()

void InputPort::exInit ( bool  start )

virtual

Definition at line 63 of file InputPort.cxx.

{
  checkBasicConsistency();
  if(start)
    exRestoreInit();
}

References checkBasicConsistency(), and exRestoreInit().

Referenced by YACS::ENGINE::NbBranches::exInit(), YACS::ENGINE::SplitterNode::init(), YACS::ENGINE::ForLoop::init(), YACS::ENGINE::OptimizerLoop::init(), and YACS::ENGINE::WhileLoop::init().

exRestoreInit()

virtual void YACS::ENGINE::InputPort::exRestoreInit ( )

pure virtual

Implemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::InputPort4DF2DS, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Referenced by exInit(), and YACS::ENGINE::ProxyPort::exRestoreInit().

exSaveInit()

virtual void YACS::ENGINE::InputPort::exSaveInit ( )

pure virtual

Implemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::InputPort4DF2DS, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Referenced by edInit(), and YACS::ENGINE::ProxyPort::exSaveInit().

get()

virtual void* YACS::ENGINE::InputPort::get ( ) const

pure virtual

Implemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::InputPort4DF2DS, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Referenced by YACS::ENGINE::ProxyPort::get(), isEmpty(), YACS::ENGINE::DynParaLoop::prepareInputsFromOutOfScope(), YACS::ENGINE::VisitorSaveState::visitForLoop(), and YACS::ENGINE::VisitorSaveState::visitSwitch().

getHumanRepr()

std::string InputPort::getHumanRepr ( )

virtual

Reimplemented in YACS::ENGINE::InputPyPort.

Definition at line 164 of file InputPort.cxx.

{
  return dump();
}

References dump().

getNameOfTypeOfCurrentInstance()

string InputPort::getNameOfTypeOfCurrentInstance ( ) const

virtual

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 58 of file InputPort.cxx.

{
  return NAME;
}

References NAME.

getPublicRepresentant()

virtual InputPort* YACS::ENGINE::InputPort::getPublicRepresentant ( )

inlinevirtual

returns the final physical port behind 'this'.

Reimplemented from YACS::ENGINE::InPort.

Reimplemented in YACS::ENGINE::ProxyPort, and YACS::ENGINE::InPropertyPort.

Definition at line 57 of file InputPort.hxx.

{ return this; }

Referenced by YACS::ENGINE::OutputPort::edRemoveInputPort(), YACS::ENGINE::ProxyPort::getPublicRepresentant(), YACS::ENGINE::OptimizerLoop::initInterceptors(), and YACS::ENGINE::OutputPort::isAlreadyInSet().

isEmpty()

bool InputPort::isEmpty ( )

virtual

Reimplemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, and YACS::ENGINE::AnyInputPort.

Definition at line 70 of file InputPort.cxx.

{
  return get()==0;
}

References get().

Referenced by YACS::ENGINE::WhileLoop::exUpdateState(), YACS::ENGINE::VisitorSaveState::visitForLoop(), YACS::ENGINE::VisitorSaveState::visitSwitch(), and YACS::ENGINE::VisitorSaveState::visitWhileLoop().

isIntermediate()

virtual bool YACS::ENGINE::InputPort::isIntermediate ( ) const

inlinevirtual

Reimplemented in YACS::ENGINE::ProxyPort.

Definition at line 59 of file InputPort.hxx.

{ return false; }

put()

virtual void YACS::ENGINE::InputPort::put ( const void *  data )

pure virtual

Implemented in YACS::ENGINE::XmlPython, YACS::ENGINE::InputXmlPort, YACS::ENGINE::XmlNeutral, YACS::ENGINE::XmlCpp, YACS::ENGINE::XmlCorba, YACS::ENGINE::PyXml, YACS::ENGINE::InputPyPort, YACS::ENGINE::PyNeutral, YACS::ENGINE::PyInit, YACS::ENGINE::PyCpp, YACS::ENGINE::PyCorbaStruct, YACS::ENGINE::PyCorbaSequence, YACS::ENGINE::PyCorbaObjref, YACS::ENGINE::PyCorbaBool, YACS::ENGINE::PyCorbaString, YACS::ENGINE::PyCorbaDouble, YACS::ENGINE::PyCorbaInt, YACS::ENGINE::NeutralXml, YACS::ENGINE::NeutralPyStruct, YACS::ENGINE::NeutralPySequence, YACS::ENGINE::NeutralPyObjref, YACS::ENGINE::NeutralPyBool, YACS::ENGINE::NeutralPyString, YACS::ENGINE::NeutralPyInt, YACS::ENGINE::NeutralPyDouble, YACS::ENGINE::NeutralInit, YACS::ENGINE::NeutralCpp, YACS::ENGINE::NeutralCorbaStruct, YACS::ENGINE::NeutralCorbaObjref, YACS::ENGINE::NeutralCorbaString, YACS::ENGINE::NeutralCorbaSequence, YACS::ENGINE::NeutralCorbaBool, YACS::ENGINE::NeutralCorbaDouble, YACS::ENGINE::NeutralCorbaInt, YACS::ENGINE::CppXml, YACS::ENGINE::CppPy, YACS::ENGINE::InputCppPort, YACS::ENGINE::CppNeutral, YACS::ENGINE::CppCpp, YACS::ENGINE::CppCorba, YACS::ENGINE::CorbaXml, YACS::ENGINE::CorbaPyStruct, YACS::ENGINE::CorbaPySequence, YACS::ENGINE::CorbaPyObjref, YACS::ENGINE::CorbaPyBool, YACS::ENGINE::CorbaPyString, YACS::ENGINE::CorbaPyInt, YACS::ENGINE::CorbaPyDouble, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::CorbaNeutral, YACS::ENGINE::CorbaCpp, YACS::ENGINE::CorbaCorba, YACS::ENGINE::InputPort4DF2DS, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Referenced by edInit(), YACS::ENGINE::DynParaLoop::prepareInputsFromOutOfScope(), YACS::ENGINE::CppPy::put(), YACS::ENGINE::CppCpp::put(), YACS::ENGINE::CppNeutral::put(), YACS::ENGINE::XmlCorba::put(), YACS::ENGINE::XmlCpp::put(), YACS::ENGINE::XmlNeutral::put(), YACS::ENGINE::XmlPython::put(), YACS::ENGINE::ProxyPort::put(), YACS::ENGINE::CorbaCorba::put(), YACS::ENGINE::CorbaCpp::put(), YACS::ENGINE::CorbaNeutral::put(), YACS::ENGINE::CorbaPyDouble::put(), YACS::ENGINE::CorbaPyInt::put(), YACS::ENGINE::CorbaPyString::put(), YACS::ENGINE::CorbaPyBool::put(), YACS::ENGINE::CorbaPyObjref::put(), YACS::ENGINE::CorbaPySequence::put(), YACS::ENGINE::CorbaPyStruct::put(), YACS::ENGINE::PyCorbaObjref::put(), YACS::ENGINE::PyCorbaSequence::put(), YACS::ENGINE::PyCorbaStruct::put(), YACS::ENGINE::PyInit::put(), YACS::ENGINE::PyNeutral::put(), YACS::ENGINE::NeutralCorbaString::put(), YACS::ENGINE::NeutralCorbaObjref::put(), YACS::ENGINE::NeutralCorbaStruct::put(), YACS::ENGINE::NeutralCpp::put(), YACS::ENGINE::NeutralInit::put(), and YACS::ENGINE::DynParaLoop::putValueOnBranch().

releaseData()

virtual void YACS::ENGINE::InputPort::releaseData ( )

pure virtual

Implemented in YACS::ENGINE::InputXmlPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputCppPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::InputPort4DF2DS, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Referenced by YACS::ENGINE::ForEachLoopGen::exUpdateState(), and YACS::ENGINE::ProxyPort::releaseData().

releaseDataUnsafe()

void YACS::ENGINE::InputPort::releaseDataUnsafe ( )

protected

setStringRef()

void InputPort::setStringRef ( std::string  strRef )

virtual

Definition at line 169 of file InputPort.cxx.

{
  _stringRef = strRef;
}

References _stringRef.

Referenced by YACS::ENGINE::XmlCorba::put(), and YACS::ENGINE::XmlPython::put().

typeName()

virtual std::string YACS::ENGINE::InputPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::DataFlowPort.

Reimplemented in YACS::ENGINE::InputStudyPort, YACS::ENGINE::InputPyPort, YACS::ENGINE::InputPresetPort, YACS::ENGINE::InputCorbaPort, YACS::ENGINE::ProxyPort, YACS::ENGINE::InPropertyPort, YACS::ENGINE::ConditionInputPort, and YACS::ENGINE::AnyInputPort.

Definition at line 82 of file InputPort.hxx.

{return "YACS__ENGINE__InputPort";}

Friends And Related Function Documentation

OutPort

friend class OutPort

friend

Definition at line 46 of file InputPort.hxx.

Runtime

friend class Runtime

friend

Definition at line 45 of file InputPort.hxx.

Member Data Documentation

_canBeNull

bool YACS::ENGINE::InputPort::_canBeNull

protected

Definition at line 91 of file InputPort.hxx.

Referenced by canBeNull(), and checkBasicConsistency().

_initValue

Any* YACS::ENGINE::InputPort::_initValue

protected

Definition at line 89 of file InputPort.hxx.

Referenced by edIsManuallyInitialized(), edRemoveManInit(), YACS::ENGINE::AnyInputPort::exRestoreInit(), YACS::ENGINE::ConditionInputPort::exRestoreInit(), YACS::ENGINE::InputPort4DF2DS::exRestoreInit(), YACS::ENGINE::AnyInputPort::exSaveInit(), YACS::ENGINE::ConditionInputPort::exSaveInit(), YACS::ENGINE::InputPort4DF2DS::exSaveInit(), InputPort(), and ~InputPort().

_stringRef

std::string YACS::ENGINE::InputPort::_stringRef

protected

Definition at line 90 of file InputPort.hxx.

Referenced by YACS::ENGINE::InputCorbaPort::dump(), YACS::ENGINE::InputCppPort::dump(), YACS::ENGINE::InputCorbaPort::put(), YACS::ENGINE::InputPyPort::put(), and setStringRef().

NAME

const char InputPort::NAME ="InputPort"

static

Definition at line 48 of file InputPort.hxx.

Referenced by YACS::ENGINE::OutputPort::addInPort(), YACS::ENGINE::DynParaLoop::buildDelegateOf(), YACS::ENGINE::Loop::buildDelegateOf(), YACS::ENGINE::Loop::getDelegateOf(), getNameOfTypeOfCurrentInstance(), YACS::ENGINE::Loop::releaseDelegateOf(), and YACS::ENGINE::OutputPort::removeInPort().

---

The documentation for this class was generated from the following files:

• src/engine/InputPort.hxx
• src/engine/InputPort.cxx
