Class for XML Input Ports. More...

#include <XMLPorts.hxx>

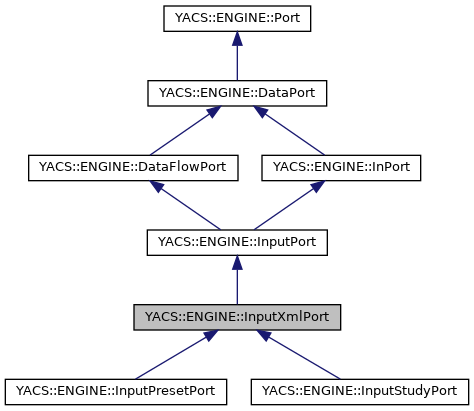

Inheritance diagram for YACS::ENGINE::InputXmlPort:

[legend]

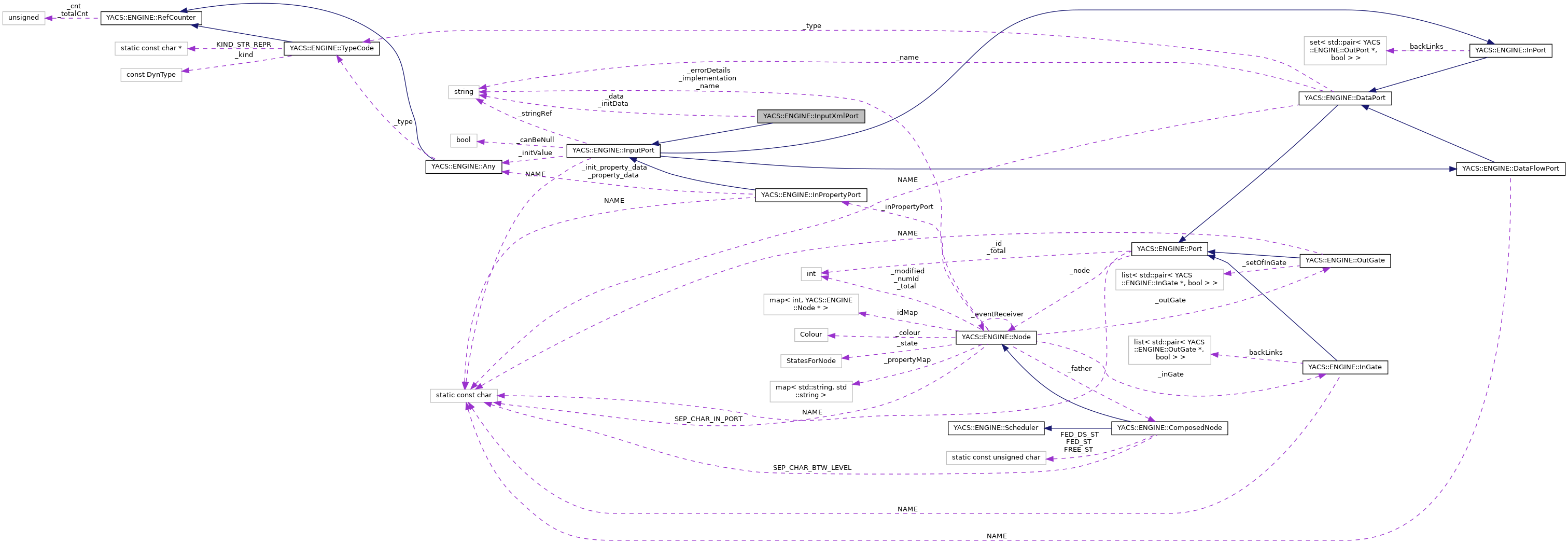

Collaboration diagram for YACS::ENGINE::InputXmlPort:

[legend]

Public Member Functions
	InputXmlPort (const std::string &name, Node node, TypeCode type)

	InputXmlPort (const InputXmlPort &other, Node *newHelder)

bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	put (const void *data)

void	put (const char *data)

void	releaseData () override

InputPort *	clone (Node *newHelder) const

virtual const char *	getXml () const

void *	get () const

bool	isEmpty ()

virtual void	exSaveInit ()
	Save the current data value for further reinitialization of the port. More...

virtual void	exRestoreInit ()
	Restore the saved data value to current data value. More...

virtual std::string	dump ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

virtual bool	isIntermediate () const

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

virtual std::string	typeName ()

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

Protected Attributes
std::string	_data

std::string	_initData

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Class for XML Input Ports.

See also: XmlNode

Definition at line 37 of file XMLPorts.hxx.

Constructor & Destructor Documentation

◆ InputXmlPort() [1/2]

InputXmlPort::InputXmlPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 30 of file XMLPorts.cxx.

   : InputPort(name, node, type), DataPort(name, node, type), Port(node), _initData(""), _data("")
 {
 }

Referenced by clone().

◆ InputXmlPort() [2/2]

InputXmlPort::InputXmlPort	(	const InputXmlPort &	other,
		Node *	newHelder
	)

Definition at line 35 of file XMLPorts.cxx.

                                                                     :InputPort(other,newHelder),DataPort(other,newHelder),Port(other,newHelder),_initData(other._initData),_data(other._data)
 {
 }

Member Function Documentation

◆ clone()

InputPort * InputXmlPort::clone ( Node * newHelder ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 82 of file XMLPorts.cxx.

 {
   return new InputXmlPort(*this,newHelder);
 }

References InputXmlPort().

◆ dump()

std::string InputXmlPort::dump ( )

virtual

Reimplemented from YACS::ENGINE::InputPort.

Reimplemented in YACS::ENGINE::InputStudyPort, and YACS::ENGINE::InputPresetPort.

Definition at line 106 of file XMLPorts.cxx.

 {
   return _data;
 }

References _data.

◆ edIsManuallyInitialized()

bool InputXmlPort::edIsManuallyInitialized ( ) const

virtual

Specifies if this port has been manually set by the call of InputPort::edInit.

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 39 of file XMLPorts.cxx.

 {
   return _initData != "";
 }

References _initData.

◆ edRemoveManInit()

void InputXmlPort::edRemoveManInit ( )

virtual

Removes eventually previous manual initialisation.

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 44 of file XMLPorts.cxx.

 {
   _initData="";
   InputPort::edRemoveManInit();
 }

References _initData, and YACS::ENGINE::InputPort::edRemoveManInit().

◆ exRestoreInit()

void InputXmlPort::exRestoreInit ( )

virtual

Restore the saved data value to current data value.

If no data has been saved (_initData == 0) don't restore

Implements YACS::ENGINE::InputPort.

Definition at line 100 of file XMLPorts.cxx.

 {
   if(_initData!="")return;
   _data=_initData;
 }

References _data, and _initData.

◆ exSaveInit()

void InputXmlPort::exSaveInit ( )

virtual

Save the current data value for further reinitialization of the port.

Implements YACS::ENGINE::InputPort.

Definition at line 91 of file XMLPorts.cxx.

 {
   _initData=_data;
 }

References _data, and _initData.

◆ get()

void * InputXmlPort::get ( ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 56 of file XMLPorts.cxx.

 {
   return (void *) _data.c_str();
 }

References _data.

◆ getXml()

const char * InputXmlPort::getXml ( ) const

virtual

Definition at line 50 of file XMLPorts.cxx.

 {
   DEBTRACE(_data);
   return _data.c_str();
 }

References _data, and DEBTRACE.

◆ isEmpty()

bool InputXmlPort::isEmpty ( )

virtual

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 77 of file XMLPorts.cxx.

 {
   return _data.empty();
 }

References _data.

◆ put() [1/2]

void InputXmlPort::put ( const char * data )

Definition at line 67 of file XMLPorts.cxx.

 {
   DEBTRACE(data);
   _data = data;
 }

References _data, and DEBTRACE.

◆ put() [2/2]

void InputXmlPort::put ( const void * data )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 61 of file XMLPorts.cxx.

 {
   DEBTRACE("put(void *)");
   put((const char*)data);
 }

References DEBTRACE.

◆ releaseData()

void InputXmlPort::releaseData ( )

overridevirtual

Implements YACS::ENGINE::InputPort.

Definition at line 73 of file XMLPorts.cxx.

74 {//nothing because _data has no ref counter

75 }

◆ valFromStr()

void InputXmlPort::valFromStr ( std::string valstr )

virtual

Allows to set data from a string representation used in user interface.

Implemented in derived classes, depending on runtime, to set the data from its user interface representation. Typical use, a Python string representation that can be used in edition or restitution.

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 116 of file XMLPorts.cxx.

 {
   _data = valstr;
 }

References _data.

◆ valToStr()

std::string InputXmlPort::valToStr ( )

virtual

Gives a string representation of the data, for user interfaces.

Implemented in derived classes, depending on runtime, to provide the data representation for user interfaces. Typical use, a Python string representation that can be used in edition or restitution.

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 111 of file XMLPorts.cxx.

 {
   return _data;
 }

References _data.

Member Data Documentation

◆ _data

std::string YACS::ENGINE::InputXmlPort::_data

protected

Definition at line 57 of file XMLPorts.hxx.

Referenced by YACS::ENGINE::InputPresetPort::dump(), YACS::ENGINE::InputStudyPort::dump(), dump(), exRestoreInit(), exSaveInit(), get(), YACS::ENGINE::InputStudyPort::getIOR(), YACS::ENGINE::InputPresetPort::getPyObj(), getXml(), isEmpty(), put(), valFromStr(), and valToStr().

◆ _initData

std::string YACS::ENGINE::InputXmlPort::_initData

protected

Definition at line 58 of file XMLPorts.hxx.

Referenced by edIsManuallyInitialized(), edRemoveManInit(), exRestoreInit(), and exSaveInit().

The documentation for this class was generated from the following files:

src/runtime/XMLPorts.hxx
src/runtime/XMLPorts.cxx
