class for Input Property Ports More...

#include <InPropertyPort.hxx>

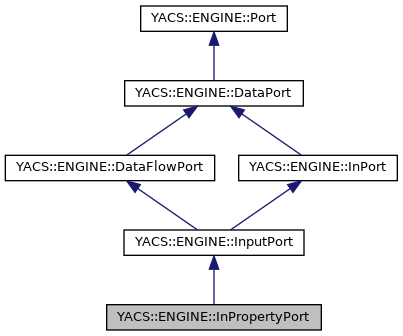

Inheritance diagram for YACS::ENGINE::InPropertyPort:

[legend]

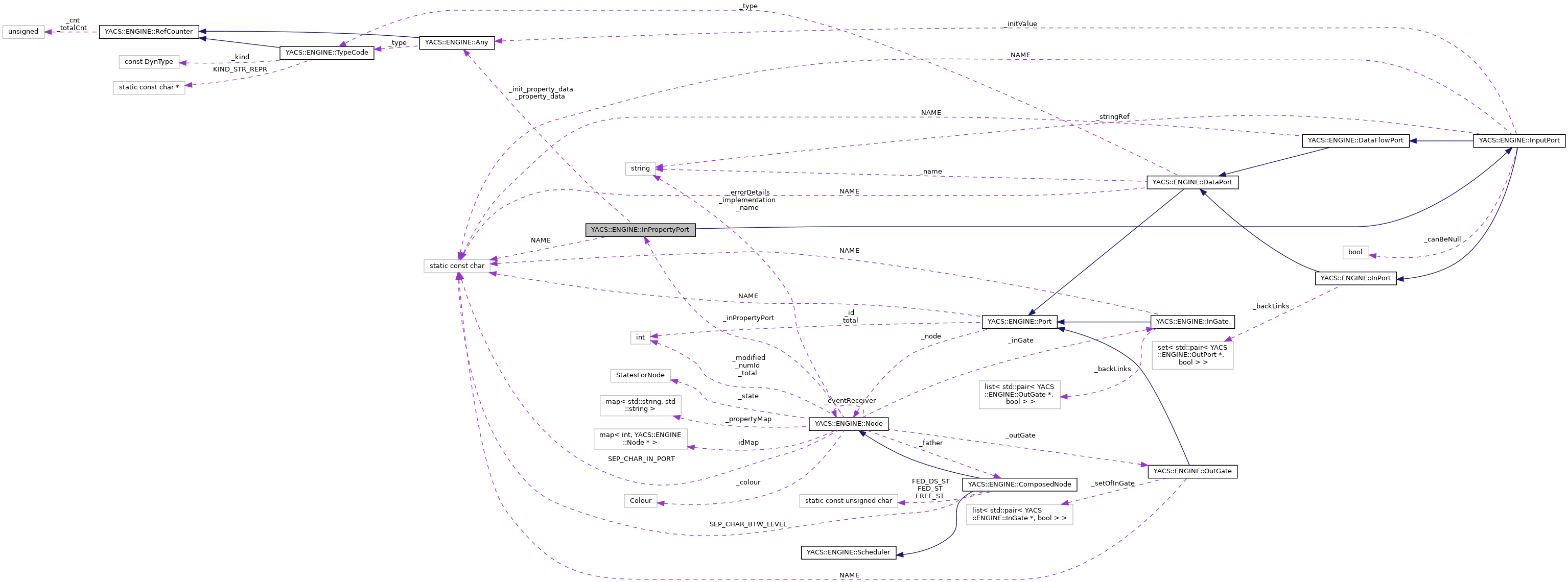

Collaboration diagram for YACS::ENGINE::InPropertyPort:

[legend]

Public Member Functions
virtual	~InPropertyPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual InPropertyPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

virtual std::string	typeName ()

virtual void	exNewPropertyValue (const std::string &name, const std::string &value)

virtual void	exSaveInit ()

virtual void	exRestoreInit ()

virtual InPropertyPort *	clone (Node *newHelder) const

virtual void *	get () const

virtual void	put (const void *data)

virtual void	put (YACS::ENGINE::Any *data)

void	releaseData () override

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual bool	isIntermediate () const

virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual bool	isEmpty ()

virtual std::string	dump ()

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

Static Public Attributes
static const char	NAME [] ="InPropertyPort"

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions
	InPropertyPort (const InPropertyPort &other, Node *newHelder)

	InPropertyPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Protected Attributes
YACS::ENGINE::Any *	_property_data

YACS::ENGINE::Any *	_init_property_data

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Friends
class	Runtime

class	OutPort

class	Node

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

class for Input Property Ports

Definition at line 37 of file InPropertyPort.hxx.

Constructor & Destructor Documentation

◆ ~InPropertyPort()

InPropertyPort::~InPropertyPort ( )

virtual

Definition at line 47 of file InPropertyPort.cxx.

47 {}

◆ InPropertyPort() [1/2]

InPropertyPort::InPropertyPort	(	const InPropertyPort &	other,
		Node *	newHelder
	)

protected

Definition at line 32 of file InPropertyPort.cxx.

   : InputPort(other, newHelder),
     DataPort(other, newHelder),
     Port(other, newHelder),
     _property_data(NULL), _init_property_data(NULL)
 {}

Referenced by clone().

◆ InPropertyPort() [2/2]

InPropertyPort::InPropertyPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type,
		bool	canBeNull = `false`
	)

protected

Definition at line 39 of file InPropertyPort.cxx.

   : InputPort(name, node, type, canBeNull),
     DataPort(name, node, type),
     Port(node),
     _property_data(NULL), _init_property_data(NULL)
 {
 }

Member Function Documentation

◆ clone()

InPropertyPort * InPropertyPort::clone ( Node * newHelder ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 75 of file InPropertyPort.cxx.

 {
   return new InPropertyPort(*this,newHelder);
 }

References InPropertyPort().

◆ exNewPropertyValue()

void InPropertyPort::exNewPropertyValue	(	const std::string &	name,
		const std::string &	value
	)

virtual

Definition at line 55 of file InPropertyPort.cxx.

 {
   DEBTRACE("Adding new Property to the node " << name << " " << value);
   _node->setProperty(name, value);
 }

References YACS::ENGINE::Port::_node, DEBTRACE, and YACS::ENGINE::Node::setProperty().

Referenced by put().

◆ exRestoreInit()

void InPropertyPort::exRestoreInit ( )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 68 of file InPropertyPort.cxx.

 {
   if(!_init_property_data)return;
   _property_data = _init_property_data;
 }

References _init_property_data, and _property_data.

◆ exSaveInit()

void InPropertyPort::exSaveInit ( )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 62 of file InPropertyPort.cxx.

 {
   _init_property_data = _property_data;
 }

References _init_property_data, and _property_data.

◆ get()

void * InPropertyPort::get ( ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 81 of file InPropertyPort.cxx.

 {
   return (void*) _property_data;
 }

References _property_data.

◆ getNameOfTypeOfCurrentInstance()

string InPropertyPort::getNameOfTypeOfCurrentInstance ( ) const

virtual

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 49 of file InPropertyPort.cxx.

 {
   return NAME;
 }

References NAME.

◆ getPublicRepresentant()

virtual InPropertyPort* YACS::ENGINE::InPropertyPort::getPublicRepresentant ( )

inlinevirtual

returns the final physical port behind 'this'.

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 53 of file InPropertyPort.hxx.

53 { return this; }

◆ put() [1/2]

void InPropertyPort::put ( const void * data )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 87 of file InPropertyPort.cxx.

 {
   put((YACS::ENGINE::Any *)data);
 }

◆ put() [2/2]

void InPropertyPort::put ( YACS::ENGINE::Any * data )

virtual

Definition at line 100 of file InPropertyPort.cxx.

 {
   // Add new properties to the node
   YACS::ENGINE::SequenceAny * seq_data = static_cast<YACS::ENGINE::SequenceAny*>(data);
   for (int i = 0; i < seq_data->size(); i++)
   {
     std::string key = ((*seq_data)[i]["name"])->getStringValue();
     std::string value = ((*seq_data)[i]["value"])->getStringValue();
     exNewPropertyValue(key, value);
   }
   InPropertyPort::releaseData();
   _property_data = data;
   _property_data->incrRef();
   DEBTRACE("value ref count: " << _property_data->getRefCnt());
 }

References _property_data, DEBTRACE, exNewPropertyValue(), YACS::ENGINE::RefCounter::getRefCnt(), yacsorb.CORBAEngineTest::i, YACS::ENGINE::RefCounter::incrRef(), releaseData(), and YACS::ENGINE::SequenceAny::size().

◆ releaseData()

void InPropertyPort::releaseData ( )

overridevirtual

Implements YACS::ENGINE::InputPort.

Definition at line 92 of file InPropertyPort.cxx.

 {
   if(_property_data)
     _property_data->decrRef();
   _property_data = nullptr;
 }

References _property_data, and YACS::ENGINE::RefCounter::decrRef().

Referenced by put().

◆ typeName()

virtual std::string YACS::ENGINE::InPropertyPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 55 of file InPropertyPort.hxx.

55 {return "YACS__ENGINE__InPropertyPort";}

Friends And Related Function Documentation

◆ Node

friend class Node

friend

Definition at line 41 of file InPropertyPort.hxx.

◆ OutPort

friend class OutPort

friend

Definition at line 40 of file InPropertyPort.hxx.

◆ Runtime

friend class Runtime

friend

Definition at line 39 of file InPropertyPort.hxx.

Member Data Documentation

◆ _init_property_data

YACS::ENGINE::Any* YACS::ENGINE::InPropertyPort::_init_property_data

protected

Definition at line 70 of file InPropertyPort.hxx.

Referenced by exRestoreInit(), and exSaveInit().

◆ _property_data

YACS::ENGINE::Any* YACS::ENGINE::InPropertyPort::_property_data

protected

Definition at line 69 of file InPropertyPort.hxx.

Referenced by exRestoreInit(), exSaveInit(), get(), put(), and releaseData().

◆ NAME

const char InPropertyPort::NAME ="InPropertyPort"

static

Definition at line 44 of file InPropertyPort.hxx.

Referenced by YACS::ENGINE::OutputPort::addInPort(), and getNameOfTypeOfCurrentInstance().

The documentation for this class was generated from the following files:

src/engine/InPropertyPort.hxx
src/engine/InPropertyPort.cxx

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~InPropertyPort()

◆ InPropertyPort() [1/2]

◆ InPropertyPort() [2/2]

Member Function Documentation

◆ clone()

◆ exNewPropertyValue()

◆ exRestoreInit()

◆ exSaveInit()

◆ get()

◆ getNameOfTypeOfCurrentInstance()

◆ getPublicRepresentant()

◆ put() [1/2]

◆ put() [2/2]

◆ releaseData()

◆ typeName()

Friends And Related Function Documentation

◆ Node

◆ OutPort

◆ Runtime

Member Data Documentation

◆ _init_property_data

◆ _property_data

◆ NAME
