#include <ForEachLoop.hxx>

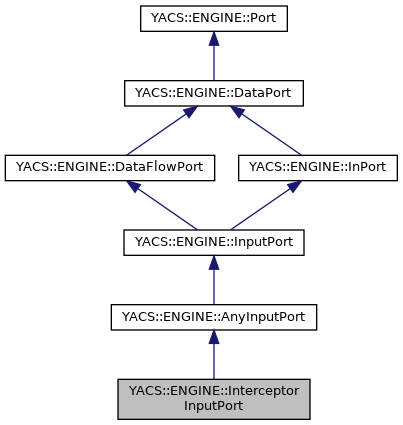

Inheritance diagram for YACS::ENGINE::InterceptorInputPort:

[legend]

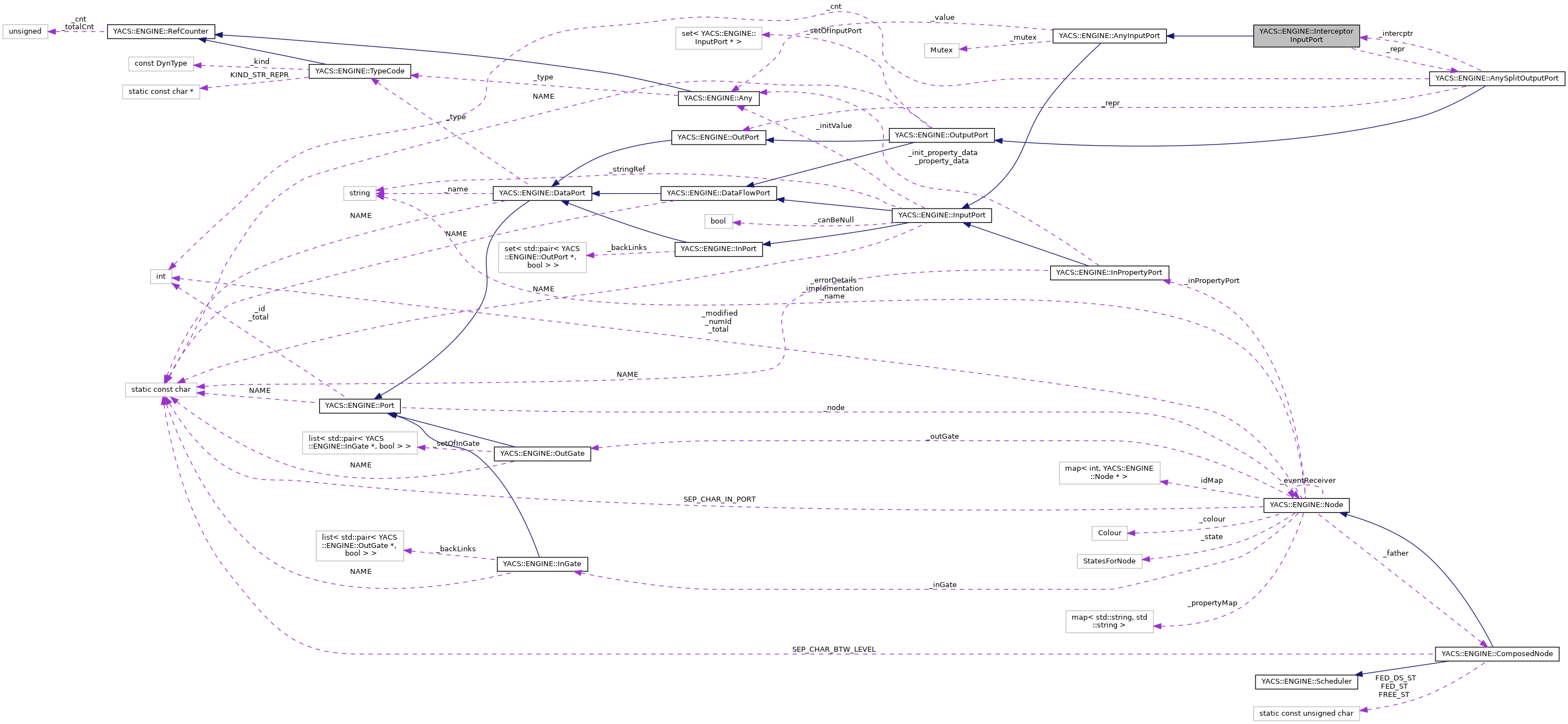

Collaboration diagram for YACS::ENGINE::InterceptorInputPort:

[legend]

Private Member Functions
	InterceptorInputPort (const std::string &name, Node node, TypeCode type)

	InterceptorInputPort (const InterceptorInputPort &other, Node *newHelder)

void	getAllRepresentants (std::set< InPort * > &repr) const

InputPort *	clone (Node *newHelder) const

void	setRepr (AnySplitOutputPort *repr)

Private Attributes
AnySplitOutputPort *	_repr

Friends
class	ForEachLoopGen

class	SplitterNode

Additional Inherited Members
Public Member Functions inherited from YACS::ENGINE::AnyInputPort
	AnyInputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

	AnyInputPort (const AnyInputPort &other, Node *newHelder)

virtual	~AnyInputPort ()

void	exSaveInit ()
	Save the current data value for further reinitialization of the port. More...

void	exRestoreInit ()
	Restore the saved data value to current data value. More...

Any *	getValue () const

int	getIntValue () const

void	releaseData () override

void	put (Any *data)

void *	get () const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

virtual bool	isEmpty ()

void	put (const void *data)

std::string	dump ()

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

virtual bool	isIntermediate () const

virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::AnyInputPort
void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

Protected Attributes inherited from YACS::ENGINE::AnyInputPort
Any *	_value

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 40 of file ForEachLoop.hxx.

Constructor & Destructor Documentation

◆ InterceptorInputPort() [1/2]

InterceptorInputPort::InterceptorInputPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

private

Definition at line 59 of file ForEachLoop.cxx.

                                                                                            :AnyInputPort(name,node,type),
                                                                                                 DataPort(name,node,type),Port(node),
                                                                                                 _repr(0)
 {
 }

◆ InterceptorInputPort() [2/2]

InterceptorInputPort::InterceptorInputPort	(	const InterceptorInputPort &	other,
		Node *	newHelder
	)

private

Definition at line 65 of file ForEachLoop.cxx.

                                                                                              :AnyInputPort(other,newHelder),DataPort(other,newHelder),
                                                                                                 Port(other,newHelder),
                                                                                                 _repr(0)
 {
 }

Member Function Documentation

◆ clone()

InputPort * InterceptorInputPort::clone ( Node * newHelder ) const

privatevirtual

Reimplemented from YACS::ENGINE::AnyInputPort.

Definition at line 78 of file ForEachLoop.cxx.

 {
   return new InterceptorInputPort(*this,newHelder);
 }

References YACS::ENGINE::InPort::InterceptorInputPort.

◆ getAllRepresentants()

void InterceptorInputPort::getAllRepresentants ( std::set< InPort * > & repr ) const

privatevirtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 71 of file ForEachLoop.cxx.

 {
   set<InPort *> ports=_repr->edSetInPort();
   for(set<InPort *>::iterator iter=ports.begin();iter!=ports.end();iter++)
     (*iter)->getAllRepresentants(repr);
 }

References _repr, and YACS::ENGINE::OutputPort::edSetInPort().

◆ setRepr()

void InterceptorInputPort::setRepr ( AnySplitOutputPort * repr )

private

Definition at line 83 of file ForEachLoop.cxx.

 {
   _repr=repr;
 }

References _repr.

Referenced by YACS::ENGINE::ForEachLoopGen::buildDelegateOf(), and YACS::ENGINE::ForEachLoopGen::ForEachLoopGen().

Friends And Related Function Documentation

◆ ForEachLoopGen

friend class ForEachLoopGen

friend

Definition at line 42 of file ForEachLoop.hxx.

◆ SplitterNode

friend class SplitterNode

friend

Definition at line 43 of file ForEachLoop.hxx.

Member Data Documentation

◆ _repr

AnySplitOutputPort* YACS::ENGINE::InterceptorInputPort::_repr

private

Definition at line 45 of file ForEachLoop.hxx.

Referenced by getAllRepresentants(), and setRepr().

The documentation for this class was generated from the following files:

src/engine/ForEachLoop.hxx
src/engine/ForEachLoop.cxx
