#include <ForEachLoop.hxx>

Inheritance diagram for YACS::ENGINE::AnySplitOutputPort:

[legend]

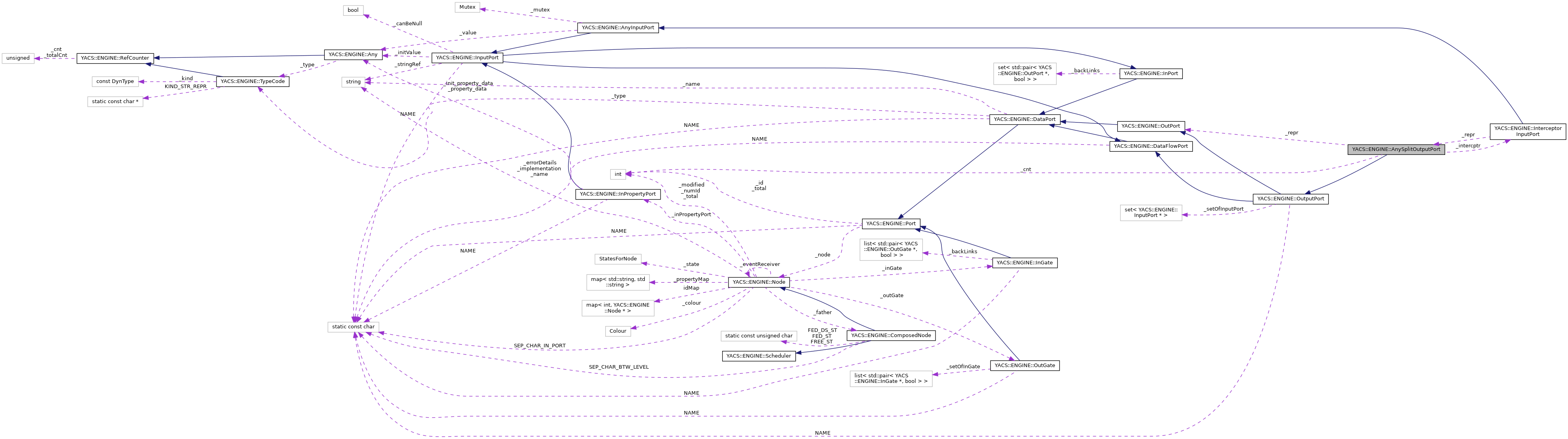

Collaboration diagram for YACS::ENGINE::AnySplitOutputPort:

[legend]

Private Member Functions
bool	decrRef ()

void	incrRef () const

	AnySplitOutputPort (const std::string &name, Node node, TypeCode type)

	AnySplitOutputPort (const AnySplitOutputPort &other, Node *newHelder)

bool	addInPort (InPort *inPort)

void	getAllRepresented (std::set< OutPort * > &represented) const

int	removeInPort (InPort *inPort, bool forward)

void	addRepr (OutPort repr, InterceptorInputPort intercptr)

OutPort *	getRepr () const

OutputPort *	clone (Node *newHelder) const

Private Attributes
OutPort *	_repr

InterceptorInputPort *	_intercptr

unsigned int	_cnt

Friends
class	ForEachLoopGen

class	SplitterNode

Additional Inherited Members
Public Member Functions inherited from YACS::ENGINE::OutputPort
virtual	~OutputPort ()

std::set< InPort * >	edSetInPort () const

bool	isAlreadyLinkedWith (InPort *withp) const

bool	isAlreadyInSet (InputPort *inputPort) const

bool	isConnected () const

std::string	getNameOfTypeOfCurrentInstance () const

int	removeInPort (InPort *inPort, bool forward)

virtual bool	edAddInputPort (InputPort *phyPort)

virtual bool	edAddInPropertyPort (InPropertyPort *phyPort)

virtual int	edRemoveInputPort (InputPort *inputPort, bool forward)

bool	addInPort (InPort *inPort)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	exInit ()

virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...

virtual OutputPort *	clone (Node *newHelder) const =0

virtual std::string	dump ()

virtual void	put (const void *data)

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
std::string	getNameOfTypeOfCurrentInstance () const

TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	typeName ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

std::string	getNameOfTypeOfCurrentInstance () const

virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

bool	isDifferentTypeOf (const DataPort *other) const

virtual void	edRemoveAllLinksLinkedWithMe ()=0

virtual std::string	typeName ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

virtual std::string	getNameOfTypeOfCurrentInstance () const

int	getNumId () const

virtual std::string	typeName ()

void	modified ()

Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const

virtual int	edGetNumberOfOutLinks () const

virtual std::set< InPort * >	edSetInPort () const =0

virtual bool	isAlreadyLinkedWith (InPort *withp) const =0

virtual void	getAllRepresented (std::set< OutPort * > &represented) const

virtual bool	addInPort (InPort *inPort)=0

virtual int	removeInPort (InPort *inPort, bool forward)=0

virtual	~OutPort ()

std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)

virtual std::string	typeName ()

Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::OutputPort
static const char	NAME [] ="OutputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::OutputPort
	OutputPort (const OutputPort &other, Node *newHelder)

	OutputPort (const std::string &name, Node node, TypeCode type)

const std::set< InputPort * > &	getSetOfPhyLinks () const
	Returns physical links linked to this. Contrary to edSetInPort that returns semantic links. More...

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)

	OutPort (const std::string &name, Node node, TypeCode type)

Protected Attributes inherited from YACS::ENGINE::OutputPort
std::set< InputPort * >	_setOfInputPort

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 54 of file ForEachLoop.hxx.

Constructor & Destructor Documentation

◆ AnySplitOutputPort() [1/2]

AnySplitOutputPort::AnySplitOutputPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

private

Definition at line 98 of file ForEachLoop.cxx.

                                                                                       :OutputPort(name,node,type),
                                                                                            DataPort(name,node,type),Port(node),
                                                                                            _repr(0),_intercptr(0),_cnt(1)
{
}

Referenced by clone().

◆ AnySplitOutputPort() [2/2]

AnySplitOutputPort::AnySplitOutputPort	(	const AnySplitOutputPort &	other,
		Node *	newHelder
	)

private

Definition at line 104 of file ForEachLoop.cxx.

                                                                                      :OutputPort(other,newHelder),
                                                                                         DataPort(other,newHelder),
                                                                                         Port(other,newHelder),
                                                                                         _repr(0),_intercptr(0),_cnt(1)
{
}

Member Function Documentation

◆ addInPort()

bool AnySplitOutputPort::addInPort ( InPort * inPort )

privatevirtual

Implements YACS::ENGINE::OutPort.

Definition at line 111 of file ForEachLoop.cxx.

{
  bool ret=OutputPort::addInPort(inPort);
  if(_repr)
    _repr->addInPort(_intercptr);
  return ret;
}

References _intercptr, _repr, YACS::ENGINE::OutputPort::addInPort(), and YACS::ENGINE::OutPort::addInPort().

◆ addRepr()

void AnySplitOutputPort::addRepr	(	OutPort *	repr,
		InterceptorInputPort *	intercptr
	)

private

Definition at line 136 of file ForEachLoop.cxx.

{
  _repr=repr;
  _intercptr=intercptr;
}

References _intercptr, and _repr.

Referenced by YACS::ENGINE::ForEachLoopGen::buildDelegateOf(), and YACS::ENGINE::ForEachLoopGen::ForEachLoopGen().

◆ clone()

OutputPort * AnySplitOutputPort::clone ( Node * newHelder ) const

privatevirtual

Implements YACS::ENGINE::OutputPort.

Definition at line 142 of file ForEachLoop.cxx.

{
  return new AnySplitOutputPort(*this,newHelder);
}

References AnySplitOutputPort().

◆ decrRef()

bool AnySplitOutputPort::decrRef ( )

private

Definition at line 88 of file ForEachLoop.cxx.

{
  return (--_cnt==0);
}

References _cnt.

◆ getAllRepresented()

void AnySplitOutputPort::getAllRepresented ( std::set< OutPort * > & represented ) const

privatevirtual

Reimplemented from YACS::ENGINE::OutPort.

Definition at line 119 of file ForEachLoop.cxx.

{
  if(!_repr)
    OutPort::getAllRepresented(represented);
  else
    _repr->getAllRepresented(represented);
}

References _repr, and YACS::ENGINE::OutPort::getAllRepresented().

◆ getRepr()

OutPort * YACS::ENGINE::AnySplitOutputPort::getRepr ( ) const

inlineprivate

Definition at line 71 of file ForEachLoop.hxx.

71{ return _repr; }

References _repr.

◆ incrRef()

void AnySplitOutputPort::incrRef ( ) const

private

Definition at line 93 of file ForEachLoop.cxx.

{
  _cnt++;
}

References _cnt.

◆ removeInPort()

int AnySplitOutputPort::removeInPort	(	InPort *	inPort,
		bool	forward
	)

privatevirtual

Implements YACS::ENGINE::OutPort.

Definition at line 127 of file ForEachLoop.cxx.

{
  bool ret=OutputPort::removeInPort(inPort,forward);
  if(_repr)
    if(_setOfInputPort.empty())
      _repr->removeInPort(_intercptr,forward);
  return ret;
}

References _intercptr, _repr, YACS::ENGINE::OutputPort::_setOfInputPort, YACS::ENGINE::OutputPort::removeInPort(), and YACS::ENGINE::OutPort::removeInPort().

Friends And Related Function Documentation

◆ ForEachLoopGen

friend class ForEachLoopGen

friend

Definition at line 56 of file ForEachLoop.hxx.

◆ SplitterNode

friend class SplitterNode

friend

Definition at line 57 of file ForEachLoop.hxx.

Member Data Documentation

◆ _cnt

unsigned int YACS::ENGINE::AnySplitOutputPort::_cnt

mutableprivate

Definition at line 61 of file ForEachLoop.hxx.

Referenced by decrRef(), and incrRef().

◆ _intercptr

InterceptorInputPort* YACS::ENGINE::AnySplitOutputPort::_intercptr

private

Definition at line 60 of file ForEachLoop.hxx.

Referenced by addInPort(), addRepr(), and removeInPort().

◆ _repr

OutPort* YACS::ENGINE::AnySplitOutputPort::_repr

private

Definition at line 59 of file ForEachLoop.hxx.

Referenced by addInPort(), addRepr(), getAllRepresented(), getRepr(), and removeInPort().

The documentation for this class was generated from the following files:

src/engine/ForEachLoop.hxx
src/engine/ForEachLoop.cxx
