Version: 9.15.0
Public Member Functions | Protected Attributes | List of all members
YACS::ENGINE::ProxyPort Class Reference
Ports

Base class for Proxy Input Ports. More...

#include <InputPort.hxx>

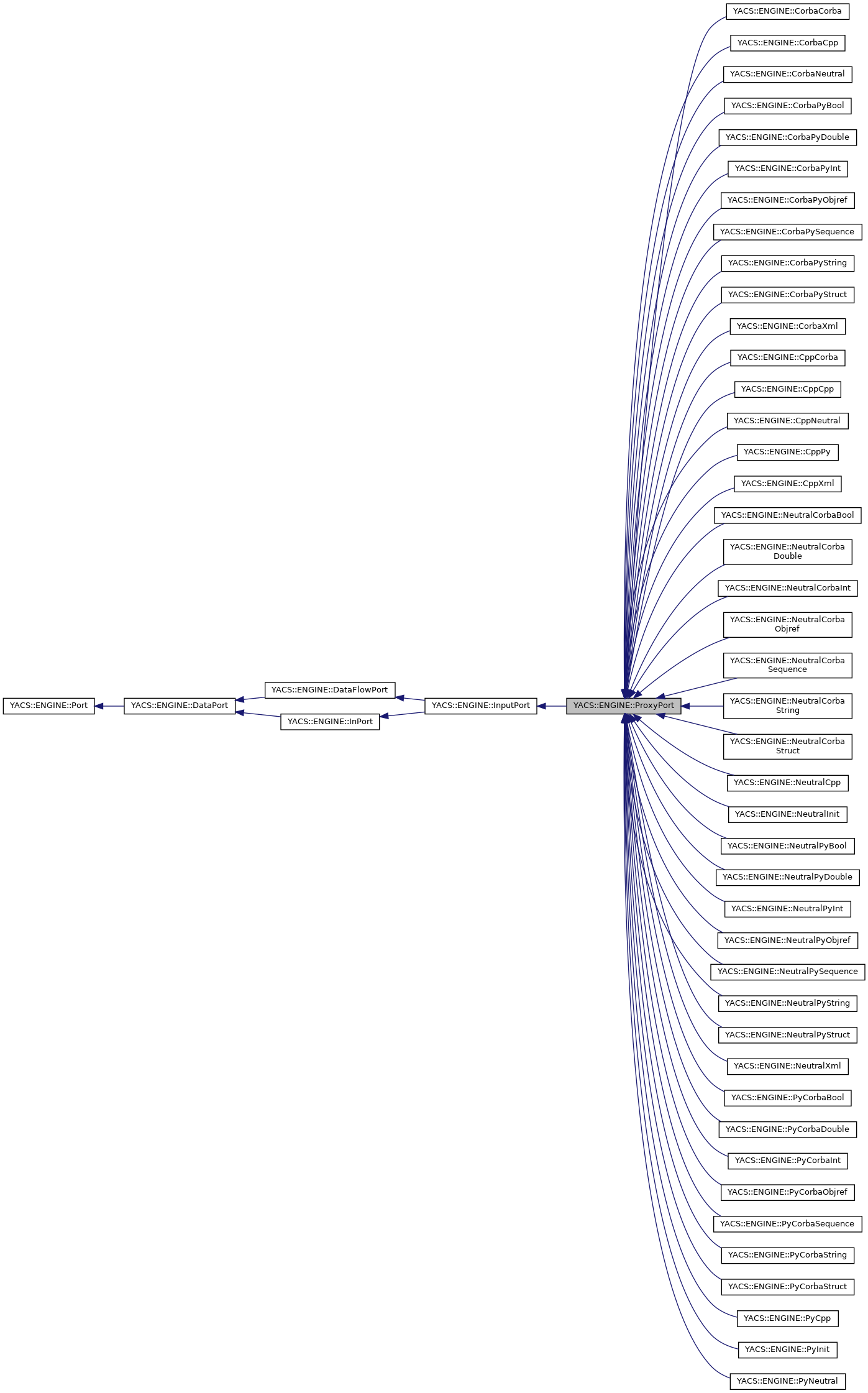

Inheritance diagram for YACS::ENGINE::ProxyPort:
Inheritance graph
[legend]

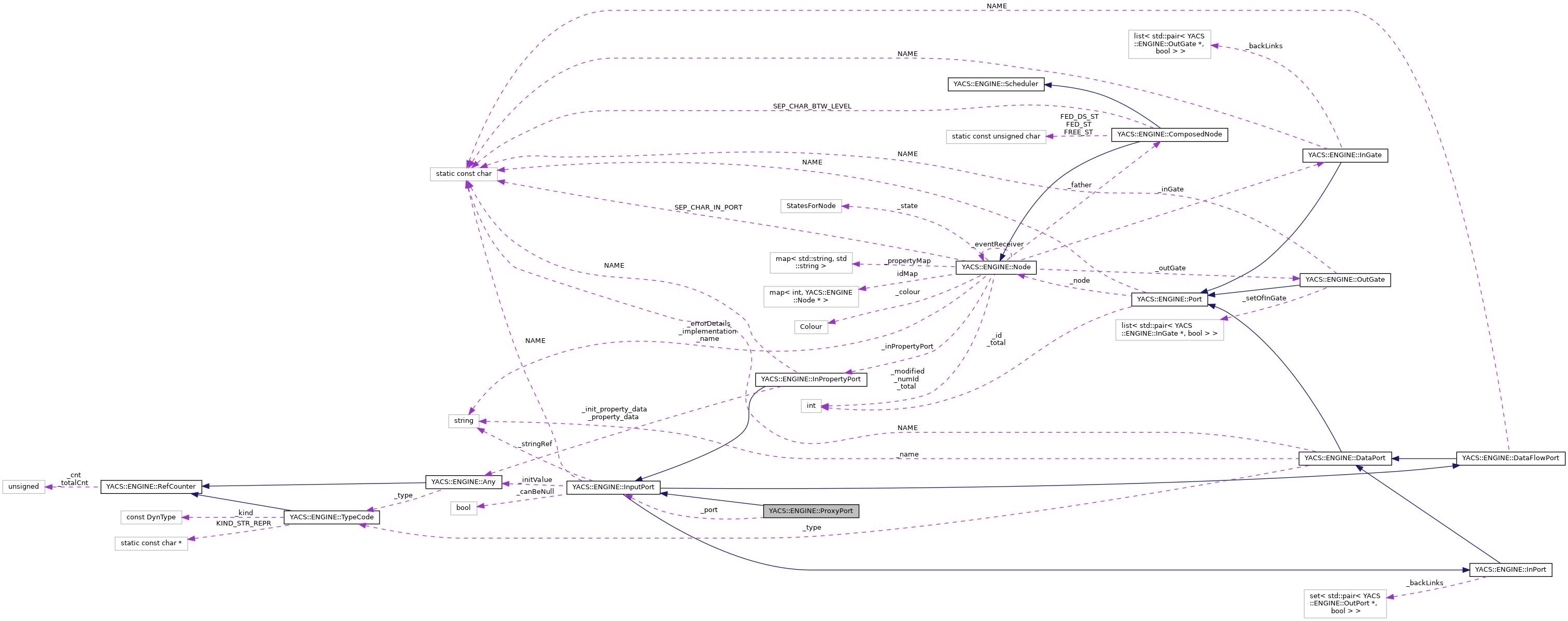

Collaboration diagram for YACS::ENGINE::ProxyPort:
Collaboration graph
[legend]

Public Member Functions

 ProxyPort (InputPort *p)

 ~ProxyPort ()

void edRemoveAllLinksLinkedWithMe ()

InputPort * clone (Node *newHelder) const

void edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true) override

void edNotifyDereferencedBy (OutPort *fromPort)

std::set< OutPort * > edSetOutPort () const
 Returns physical backlinks NOT user backlinks. More...

InputPort * getPublicRepresentant ()
 returns the final physical port behind 'this'. More...

void * get () const

virtual void put (const void *data)

void releaseData () override

int edGetNumberOfLinks () const
 Returns number of physical backlinks NOT number of user backlinks. More...

bool isIntermediate () const

void exRestoreInit ()

void exSaveInit ()

void getAllRepresentants (std::set< InPort * > &repr) const

virtual std::string typeName ()

- Public Member Functions inherited from YACS::ENGINE::InputPort
virtual ~InputPort ()

std::string getNameOfTypeOfCurrentInstance () const

virtual bool edIsManuallyInitialized () const
 Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool edIsInitialized () const
 soon deprecated More...

template<class T >
void edInit (T value)

void edInit (Any *value)

void edInit (const std::string &impl, const void *value)
 Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void edRemoveManInit ()
 Removes eventually previous manual initialisation. More...

virtual void checkBasicConsistency () const
 Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void exInit (bool start)

virtual bool isEmpty ()

virtual std::string dump ()

virtual std::string getHumanRepr ()

virtual void setStringRef (std::string strRef)

bool canBeNull () const

- Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel getTypeOfChannel () const
 returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual ~DataFlowPort ()

virtual std::string valToStr ()
 Gives a string representation of the data, for user interfaces. More...

virtual void valFromStr (std::string valstr)
 Allows to set data from a string representation used in user interface. More...

- Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode * edGetType () const

void edSetType (TypeCode *type)

std::string getName () const

void setName (std::string theName)

bool isDifferentTypeOf (const DataPort *other) const

virtual std::string getAsString ()
 returns port value as a string that can be used in a GUI for example More...

- Public Member Functions inherited from YACS::ENGINE::Port
virtual ~Port ()

Node * getNode () const

int getNumId () const

void modified ()

- Public Member Functions inherited from YACS::ENGINE::InPort
bool canSafelySqueezeMemory () const

bool isBackLinked () const

virtual ~InPort ()


Protected Attributes

InputPort * _port

- Protected Attributes inherited from YACS::ENGINE::InputPort
Any * _initValue

std::string _stringRef

bool _canBeNull

- Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode * _type

std::string _name

- Protected Attributes inherited from YACS::ENGINE::Port
Node * _node

int _id

- Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > > _backLinks


Additional Inherited Members

- Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort * isCrossingType (const std::vector< DataPort * > &historyOfLink)

- Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char NAME [] ="InputPort"

- Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char NAME [] ="DataFlowPort"

- Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char NAME [] ="DataPort"

- Protected Member Functions inherited from YACS::ENGINE::InputPort
 InputPort (const InputPort &other, Node *newHelder)

 InputPort (const std::string &name, Node *node, TypeCode *type, bool canBeNull=false)

void releaseDataUnsafe ()

- Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
 DataFlowPort (const DataFlowPort &other, Node *newHelder)

 DataFlowPort (const std::string &name, Node *node, TypeCode *type)

- Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual ~DataPort ()

 DataPort (const DataPort &other, Node *newHelder)

 DataPort (const std::string &name, Node *node, TypeCode *type)

- Protected Member Functions inherited from YACS::ENGINE::Port
 Port (Node *node)

 Port (const Port &other, Node *newHelder)

- Protected Member Functions inherited from YACS::ENGINE::InPort
 InPort (const InPort &other, Node *newHelder)

 InPort (const std::string &name, Node *node, TypeCode *type)

- Static Protected Attributes inherited from YACS::ENGINE::Port
static int _total = 0

static const char NAME [] ="Port"


Detailed Description

Base class for Proxy Input Ports.

Definition at line 99 of file InputPort.hxx.

Constructor & Destructor Documentation

◆ ProxyPort()

ProxyPort::ProxyPort ( InputPort *  p)

Definition at line 179 of file InputPort.cxx.

179  :InputPort("Convertor", p->getNode(), p->edGetType()),DataPort("Convertor", p->getNode(), p->edGetType()),
180  Port( p->getNode())
181 {
182  _port = p;
183 }
YACS::ENGINE::DataPort::DataPort
DataPort(const DataPort &other, Node *newHelder)
Definition: DataPort.cxx:41
YACS::ENGINE::InputPort::InputPort
InputPort(const InputPort &other, Node *newHelder)
Definition: InputPort.cxx:36
YACS::ENGINE::Port::Port
Port(Node *node)
Definition: Port.cxx:34
p
Proc * p
Definition: driver.cxx:216

References _port, and p.

◆ ~ProxyPort()

ProxyPort::~ProxyPort ( )

Definition at line 185 of file InputPort.cxx.

186 {
187  //For the moment, there is no case in YACS we have a proxy port in a proxy port
188  //So don't test that. _port may be already deleted. The test is not sure.
189  /*
190  if(_port->isIntermediate())
191  delete _port;
192  */
193 }

Member Function Documentation

◆ clone()

InputPort * ProxyPort::clone ( Node *  newHelder) const
virtual
Note
: Should never been called because Node clone process does not duplicate data attributes relative to links. This part is done afterwards on relink process.

Implements YACS::ENGINE::InputPort.

Definition at line 204 of file InputPort.cxx.

205 {
206  throw Exception("ProxyPort::clone : internal error - should never happened");
207 }

◆ edGetNumberOfLinks()

int ProxyPort::edGetNumberOfLinks ( ) const
virtual

Returns number of physical backlinks NOT number of user backlinks.

Reimplemented from YACS::ENGINE::InPort.

Definition at line 224 of file InputPort.cxx.

225 {
226  return _port->edGetNumberOfLinks();
227 }
YACS::ENGINE::InPort::edGetNumberOfLinks
virtual int edGetNumberOfLinks() const
Returns number of physical backlinks NOT number of user backlinks.
Definition: InPort.cxx:45

References _port, and YACS::ENGINE::InPort::edGetNumberOfLinks().

◆ edNotifyDereferencedBy()

void ProxyPort::edNotifyDereferencedBy ( OutPort *  fromPort)
virtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 214 of file InputPort.cxx.

215 {
216  _port->edNotifyDereferencedBy(fromPort);
217 }
YACS::ENGINE::InPort::edNotifyDereferencedBy
virtual void edNotifyDereferencedBy(OutPort *fromPort)
Definition: InPort.cxx:102

References _port, and YACS::ENGINE::InPort::edNotifyDereferencedBy().

◆ edNotifyReferencedBy()

void ProxyPort::edNotifyReferencedBy ( OutPort *  fromPort,
bool  isLoopProof = true
)
overridevirtual
Parameters
[in]isLoopProof- Tells if the data coming from fromPort will be send again in case of this is initialized. This value is important if this is an InPort of a Node contained directly or not inside a Loop, ForEachLoop, OptimizerLoop. In this case, to optimize memory consumption (see squeezeMemory method), we need to know if data coming from fromPort will be generated again in case. If true (the default) it means that for that link is a link loop proof so no need to take care. If false, the link is not loop proof so event in the context of agressive memory management the data can't be safely released.

Reimplemented from YACS::ENGINE::InPort.

Definition at line 209 of file InputPort.cxx.

210 {
211  _port->edNotifyReferencedBy(fromPort,isLoopProof);
212 }
YACS::ENGINE::InPort::edNotifyReferencedBy
virtual void edNotifyReferencedBy(OutPort *fromPort, bool isLoopProof=true)
Definition: InPort.cxx:93

References _port, and YACS::ENGINE::InPort::edNotifyReferencedBy().

◆ edRemoveAllLinksLinkedWithMe()

void ProxyPort::edRemoveAllLinksLinkedWithMe ( )
virtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 195 of file InputPort.cxx.

196 {
197  _port->edRemoveAllLinksLinkedWithMe();
198 }
YACS::ENGINE::InPort::edRemoveAllLinksLinkedWithMe
void edRemoveAllLinksLinkedWithMe()
Definition: InPort.cxx:50

References _port, and YACS::ENGINE::InPort::edRemoveAllLinksLinkedWithMe().

◆ edSetOutPort()

std::set< OutPort * > ProxyPort::edSetOutPort ( ) const
virtual

Returns physical backlinks NOT user backlinks.

Reimplemented from YACS::ENGINE::InPort.

Definition at line 219 of file InputPort.cxx.

220 {
221  return _port->edSetOutPort();
222 }
YACS::ENGINE::InPort::edSetOutPort
virtual std::set< OutPort * > edSetOutPort() const
Returns physical backlinks NOT user backlinks.
Definition: InPort.cxx:65

References _port, and YACS::ENGINE::InPort::edSetOutPort().

◆ exRestoreInit()

void ProxyPort::exRestoreInit ( )
virtual

Implements YACS::ENGINE::InputPort.

Definition at line 229 of file InputPort.cxx.

230 {
231  _port->exRestoreInit();
232 }
YACS::ENGINE::InputPort::exRestoreInit
virtual void exRestoreInit()=0

References _port, and YACS::ENGINE::InputPort::exRestoreInit().

◆ exSaveInit()

void ProxyPort::exSaveInit ( )
virtual

Implements YACS::ENGINE::InputPort.

Definition at line 234 of file InputPort.cxx.

235 {
236  _port->exSaveInit();
237 }
YACS::ENGINE::InputPort::exSaveInit
virtual void exSaveInit()=0

References _port, and YACS::ENGINE::InputPort::exSaveInit().

◆ get()

void * ProxyPort::get ( ) const
virtual

Implements YACS::ENGINE::InputPort.

Definition at line 248 of file InputPort.cxx.

249 {
250  return _port->get();
251 }
YACS::ENGINE::InputPort::get
virtual void * get() const =0

References _port, and YACS::ENGINE::InputPort::get().

◆ getAllRepresentants()

void ProxyPort::getAllRepresentants ( std::set< InPort * > &  repr) const
virtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 263 of file InputPort.cxx.

264 {
265  DEBTRACE("ProxyPort::getAllRepresentants");
266  _port->getAllRepresentants(repr);
267 }
DEBTRACE
#define DEBTRACE(msg)
Definition: YacsTrace.hxx:31
YACS::ENGINE::InPort::getAllRepresentants
virtual void getAllRepresentants(std::set< InPort * > &repr) const
Definition: InPort.cxx:110

References _port, DEBTRACE, and YACS::ENGINE::InPort::getAllRepresentants().

◆ getPublicRepresentant()

InputPort * ProxyPort::getPublicRepresentant ( )
virtual

returns the final physical port behind 'this'.

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 242 of file InputPort.cxx.

244 {
245  return _port->getPublicRepresentant();
246 }
YACS::ENGINE::InputPort::getPublicRepresentant
virtual InputPort * getPublicRepresentant()
returns the final physical port behind 'this'.
Definition: InputPort.hxx:57

References YACS::ENGINE::InputPort::getPublicRepresentant().

◆ isIntermediate()

bool YACS::ENGINE::ProxyPort::isIntermediate ( ) const
inlinevirtual

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 119 of file InputPort.hxx.

119 { return true; }

◆ put()

void ProxyPort::put ( const void *  data)
virtual

Implements YACS::ENGINE::InputPort.

Reimplemented in YACS::ENGINE::XmlPython, YACS::ENGINE::XmlNeutral, YACS::ENGINE::XmlCpp, YACS::ENGINE::XmlCorba, YACS::ENGINE::PyXml, YACS::ENGINE::PyNeutral, YACS::ENGINE::PyInit, YACS::ENGINE::PyCpp, YACS::ENGINE::PyCorbaStruct, YACS::ENGINE::PyCorbaSequence, YACS::ENGINE::PyCorbaObjref, YACS::ENGINE::PyCorbaBool, YACS::ENGINE::PyCorbaString, YACS::ENGINE::PyCorbaDouble, YACS::ENGINE::PyCorbaInt, YACS::ENGINE::NeutralXml, YACS::ENGINE::NeutralPyStruct, YACS::ENGINE::NeutralPySequence, YACS::ENGINE::NeutralPyObjref, YACS::ENGINE::NeutralPyBool, YACS::ENGINE::NeutralPyString, YACS::ENGINE::NeutralPyInt, YACS::ENGINE::NeutralPyDouble, YACS::ENGINE::NeutralInit, YACS::ENGINE::NeutralCpp, YACS::ENGINE::NeutralCorbaStruct, YACS::ENGINE::NeutralCorbaObjref, YACS::ENGINE::NeutralCorbaString, YACS::ENGINE::NeutralCorbaSequence, YACS::ENGINE::NeutralCorbaBool, YACS::ENGINE::NeutralCorbaDouble, YACS::ENGINE::NeutralCorbaInt, YACS::ENGINE::CppXml, YACS::ENGINE::CppPy, YACS::ENGINE::CppNeutral, YACS::ENGINE::CppCpp, YACS::ENGINE::CppCorba, YACS::ENGINE::CorbaXml, YACS::ENGINE::CorbaPyStruct, YACS::ENGINE::CorbaPySequence, YACS::ENGINE::CorbaPyObjref, YACS::ENGINE::CorbaPyBool, YACS::ENGINE::CorbaPyString, YACS::ENGINE::CorbaPyInt, YACS::ENGINE::CorbaPyDouble, YACS::ENGINE::CorbaNeutral, YACS::ENGINE::CorbaCpp, and YACS::ENGINE::CorbaCorba.

Definition at line 258 of file InputPort.cxx.

259 {
260  _port->put(data);
261 }
YACS::ENGINE::InputPort::put
virtual void put(const void *data)=0

References _port, and YACS::ENGINE::InputPort::put().

◆ releaseData()

void ProxyPort::releaseData ( )
overridevirtual

Implements YACS::ENGINE::InputPort.

Definition at line 253 of file InputPort.cxx.

254 {
255  _port->releaseData();
256 }
YACS::ENGINE::InputPort::releaseData
virtual void releaseData()=0

References _port, and YACS::ENGINE::InputPort::releaseData().

◆ typeName()

virtual std::string YACS::ENGINE::ProxyPort::typeName ( )
inlinevirtual

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 123 of file InputPort.hxx.

123 {return "YACS__ENGINE__ProxyPort";}

Member Data Documentation

◆ _port

InputPort* YACS::ENGINE::ProxyPort::_port
protected

Definition at line 125 of file InputPort.hxx.

Referenced by edGetNumberOfLinks(), edNotifyDereferencedBy(), edNotifyReferencedBy(), edRemoveAllLinksLinkedWithMe(), edSetOutPort(), exRestoreInit(), exSaveInit(), get(), getAllRepresentants(), ProxyPort(), YACS::ENGINE::CppPy::put(), YACS::ENGINE::CppCpp::put(), YACS::ENGINE::CppNeutral::put(), YACS::ENGINE::XmlCorba::put(), YACS::ENGINE::XmlCpp::put(), YACS::ENGINE::XmlNeutral::put(), YACS::ENGINE::XmlPython::put(), put(), YACS::ENGINE::CorbaCorba::put(), YACS::ENGINE::CorbaCpp::put(), YACS::ENGINE::CorbaNeutral::put(), YACS::ENGINE::CorbaPyDouble::put(), YACS::ENGINE::CorbaPyInt::put(), YACS::ENGINE::CorbaPyString::put(), YACS::ENGINE::CorbaPyBool::put(), YACS::ENGINE::CorbaPyObjref::put(), YACS::ENGINE::CorbaPySequence::put(), YACS::ENGINE::CorbaPyStruct::put(), YACS::ENGINE::CorbaXml::put(), YACS::ENGINE::PyCorbaObjref::put(), YACS::ENGINE::PyCorbaSequence::put(), YACS::ENGINE::PyCorbaStruct::put(), YACS::ENGINE::PyInit::put(), YACS::ENGINE::PyNeutral::put(), YACS::ENGINE::PyXml::put(), YACS::ENGINE::CppXml::put(), YACS::ENGINE::NeutralCorbaString::put(), YACS::ENGINE::NeutralCorbaObjref::put(), YACS::ENGINE::NeutralCorbaStruct::put(), YACS::ENGINE::NeutralCpp::put(), YACS::ENGINE::NeutralInit::put(), YACS::ENGINE::NeutralXml::put(), and releaseData().

The documentation for this class was generated from the following files:
