Loop node for parametric calculation. More...

#include <ForEachLoop.hxx>

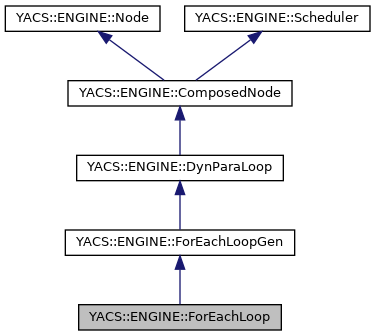

Inheritance diagram for YACS::ENGINE::ForEachLoop:

[legend]

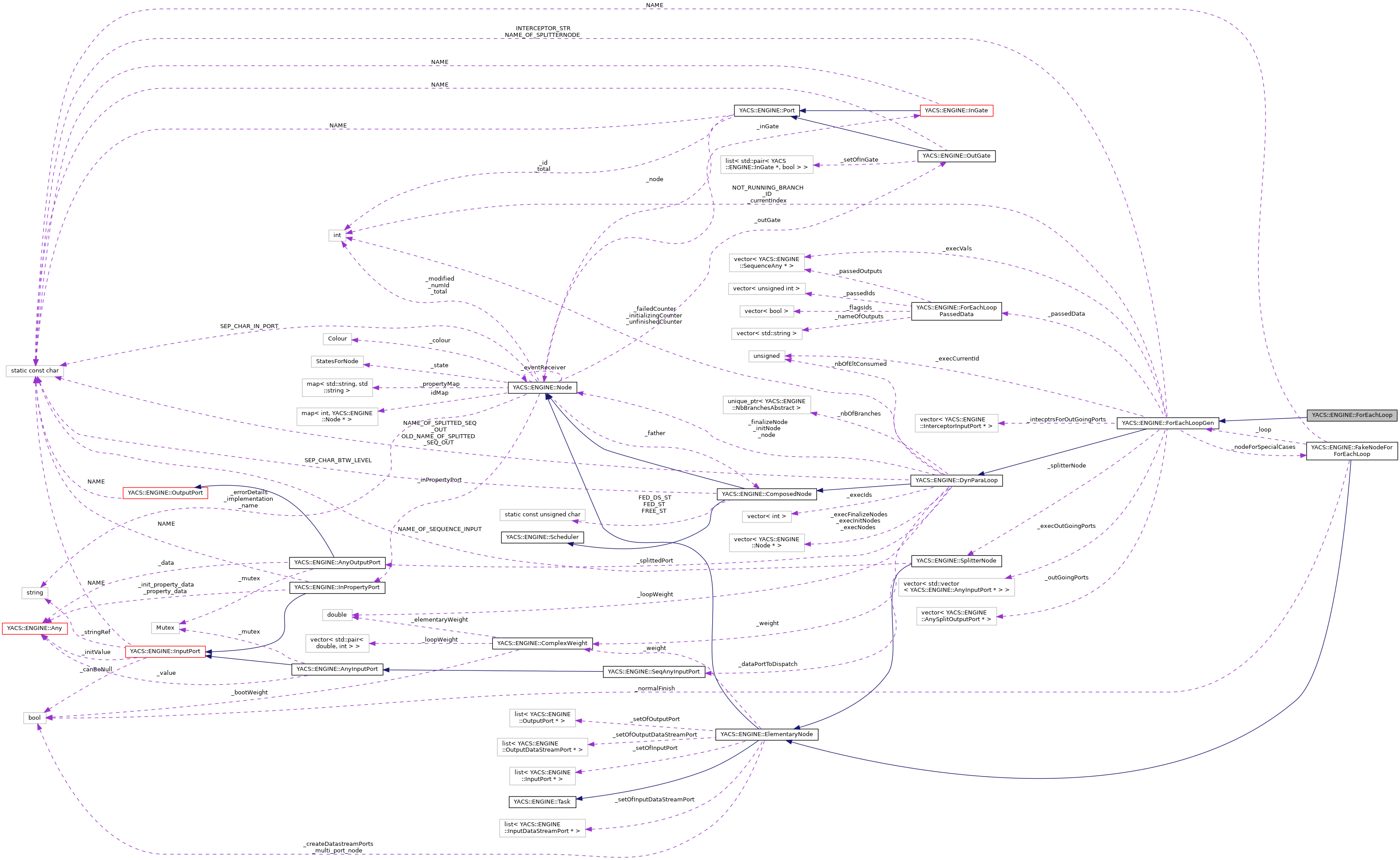

Collaboration diagram for YACS::ENGINE::ForEachLoop:

[legend]

Public Member Functions
	ForEachLoop (const std::string &name, TypeCode *typeOfDataSplitted)

	ForEachLoop (const ForEachLoop &other, ComposedNode *father, bool editionOnly)

	~ForEachLoop ()

void	accept (Visitor *visitor)

Public Member Functions inherited from YACS::ENGINE::ForEachLoopGen
	ForEachLoopGen (const std::string &name, TypeCode *typeOfDataSplitted, std::unique_ptr< NbBranchesAbstract > &&branchManager)

	ForEachLoopGen (const ForEachLoopGen &other, ComposedNode *father, bool editionOnly)

	~ForEachLoopGen ()

void	init (bool start=true)

void	exUpdateState ()
	Update the node state. More...

void	exUpdateProgress ()

void	getReadyTasks (std::vector< Task * > &tasks)

int	getNumberOfInputPorts () const

void	checkNoCyclePassingThrough (Node *node)

void	selectRunnableTasks (std::vector< Task * > &tasks)

unsigned	getExecCurrentId () const

std::list< InputPort * >	getSetOfInputPort () const

std::list< InputPort * >	getLocalInputPorts () const
	redefined on derived class of ComposedNode. by default a ComposedNode has no port by itself More...

InputPort *	edGetSeqOfSamplesPort ()

InputPort *	getInputPort (const std::string &name) const
	Get an input port given its name. More...

OutPort *	getOutPort (const std::string &name) const

OutputPort *	getOutputPort (const std::string &name) const
	Get an output port given its name. More...

Node *	getChildByShortName (const std::string &name) const

std::list< OutputPort * >	getLocalOutputPorts () const
	redefined on derived class of ComposedNode. by default a ComposedNode has no port by itself More...

void	writeDot (std::ostream &os) const
	Dump the node state to a stream. More...

virtual std::string	typeName ()

virtual void	resetState (int level)
	Reset the state of the node and its children depending on the parameter level. More...

std::string	getProgress () const

std::list< ProgressWeight >	getProgressWeight () const
	Get the progress weight for all elementary nodes. More...

int	getCurrentIndex () const

int	getNbOfElementsToBeProcessed () const

ForEachLoopPassedData *	getProcessedData () const

void	setProcessedData (ForEachLoopPassedData *processedData)

std::vector< unsigned int >	getPassedResults (Executor execut, std::vector< SequenceAny > &outputs, std::vector< std::string > &nameOfOutputs) const

void	assignPassedResults (const std::vector< unsigned int > &passedIds, const std::vector< SequenceAny * > &passedOutputs, const std::vector< std::string > &nameOfOutputs)

const TypeCode *	getOutputPortType (const std::string &portName) const

void	cleanDynGraph () override

Public Member Functions inherited from YACS::ENGINE::DynParaLoop
Node *	edRemoveNode ()

Node *	edRemoveInitNode ()

Node *	edRemoveFinalizeNode ()

Node *	edSetNode (Node *DISOWNnode)

Node *	edSetInitNode (Node *DISOWNnode)

Node *	edSetFinalizeNode (Node *DISOWNnode)

virtual bool	edAddDFLink (OutPort start, InPort end)
	Connect an OutPort to an InPort and add control link if necessary. More...

InputPort *	edGetNbOfBranchesPort ()

int	getNumberOfOutputPorts () const

unsigned	getNumberOfEltsConsumed () const

int	getBranchIDOfNode (Node *node) const

std::list< OutputPort * >	getSetOfOutputPort () const

OutputPort *	edGetSamplePort ()

bool	isPlacementPredictableB4Run () const
	For the moment false is returned : impovement about it coming soon. More...

void	edRemoveChild (Node *node)
	Remove a child node. More...

bool	isLoop () const override

virtual bool	edAddChild (Node *DISOWNnode)

std::list< Node * >	edGetDirectDescendants () const

unsigned	getNumberOfBranchesCreatedDyn () const

Node *	getChildByNameExec (const std::string &name, unsigned id) const

std::vector< Node * >	getNodes () const

ComplexWeight *	getWeight ()

void	setWeight (double loopWeight)

void	getWeightRegardingDPL (ComplexWeight *weight)

bool	isMultiplicitySpecified (unsigned &value) const

void	forceMultiplicity (unsigned value)

virtual void	checkBasicConsistency () const

virtual std::string	getErrorReport ()
	returns a string that contains an error report if the node is in error More...

Node *	getInitNode ()

Node *	getExecNode ()

Node *	getFinalizeNode ()

int	getMaxLevelOfParallelism () const

void	partitionRegardingDPL (const PartDefinition pd, std::map< ComposedNode , YACS::BASES::AutoRefCnt< PartDefinition > > &zeMap)

Public Member Functions inherited from YACS::ENGINE::ComposedNode
virtual	~ComposedNode ()

bool	isFinished ()

std::string	getName () const

std::string	getTaskName (Task *task) const

DeploymentTree	getDeploymentTree () const
	Essentially for test. Use checkDeploymentTree instead to be sure that returned DeploymentTree is consistent. More...

DeploymentTree	checkDeploymentTree (bool deep) const
	Perform check of deployment consistency of the current graph. More...

std::vector< Task * >	getNextTasks (bool &isMore)

void	notifyFrom (const Task sender, YACS::Event event, const Executor execInst)
	Notify the node a task has emitted an event. More...

bool	edAddLink (OutPort start, InPort end)
	Add a dataflow link between two data ports. More...

bool	edAddLink (OutGate start, InGate end)
	Add a controlflow link between two control ports. More...

bool	edAddCFLink (Node nodeS, Node nodeE)
	Add a controlflow link between two nodes. More...

void	edRemoveCFLink (Node nodeS, Node nodeE)
	Remove a controlflow link. More...

void	edRemoveLink (OutPort start, InPort end)
	Remove a dataflow link. More...

void	edRemoveLink (OutGate start, InGate end)
	Remove a controlflow link. More...

virtual bool	isRepeatedUnpredictablySeveralTimes () const

virtual void	removeRecursivelyRedundantCL ()

std::list< ElementaryNode * >	getRecursiveConstituents () const

std::list< Node * >	getAllRecursiveNodes ()
	Get all children nodes elementary and composed including this node. More...

virtual std::list< Node * >	getAllRecursiveConstituents ()
	Idem getAllRecursiveNodes, but this node is NOT included. More...

std::string	getInPortName (const InPort *) const
	Get the input port name. More...

std::string	getOutPortName (const OutPort *) const

std::set< OutPort * >	getAllOutPortsLeavingCurrentScope () const
	List all output ports of children nodes that are linked to out of scope input ports. More...

std::set< InPort * >	getAllInPortsComingFromOutsideOfCurrentScope () const
	List all input ports that are linked to out of scope ports. More...

std::list< InputDataStreamPort * >	getSetOfInputDataStreamPort () const

std::list< OutputDataStreamPort * >	getSetOfOutputDataStreamPort () const

InputDataStreamPort *	getInputDataStreamPort (const std::string &name) const

OutputDataStreamPort *	getOutputDataStreamPort (const std::string &name) const

std::vector< std::pair< OutPort , InPort > >	getSetOfInternalLinks () const

virtual std::vector< std::pair< OutPort , InPort > >	getSetOfLinksLeavingCurrentScope () const

void	checkConsistency (LinkInfo &info) const

virtual std::vector< std::pair< InPort , OutPort > >	getSetOfLinksComingInCurrentScope () const

virtual void	edUpdateState ()
	update the status of the node More...

ComposedNode *	getRootNode () const

bool	isNodeAlreadyAggregated (const Node *node) const
	Check that Node 'node' is already a direct son of this. More...

virtual bool	isNameAlreadyUsed (const std::string &name) const

Node *	isInMyDescendance (Node *nodeToTest) const
	Returns the parent of a node that is the direct child of this node. More...

std::string	getChildName (const Node *node) const

virtual std::string	getMyQualifiedName (const Node *directSon) const

Node *	getChildByName (const std::string &name) const

void	loaded ()

void	connected ()

virtual void	cleanNodes ()
	Clean the composed node in case of not clean exit. More...

void	setProperty (const std::string &name, const std::string &value) override

std::string	getProperty (const std::string &name) override

Public Member Functions inherited from YACS::ENGINE::Node
virtual	~Node ()

Node *	clone (ComposedNode *father, bool editionOnly=true) const
	This method MUST NEVER BE VIRTUAL More...

Node *	cloneWithoutCompAndContDeepCpy (ComposedNode *father, bool editionOnly=true) const
	This method MUST NEVER BE VIRTUAL More...

void	setState (YACS::StatesForNode theState)
	Sets the given state for node. More...

virtual YACS::StatesForNode	getState () const

virtual YACS::StatesForNode	getEffectiveState () const
	Return the node state in the context of its father. More...

virtual YACS::StatesForNode	getEffectiveState (const Node *) const
	Return the effective state of a node in the context of this one (its father) More...

std::string	getColorState (YACS::StatesForNode state) const
	Return the color associated to a state. More...

InGate *	getInGate ()

OutGate *	getOutGate ()

const std::string &	getName () const

void	setName (const std::string &name)
	Change the name of the node. More...

ComposedNode *	getFather () const

const std::string	getId () const

bool	exIsControlReady () const

std::list< Node * >	getOutNodes () const

void	writeDotInFile (const std::string &fileName) const

virtual void	exFailedState ()
	Notify this node that its execution has failed. More...

virtual void	exDisabledState ()
	Notify this node that it has been disabled. More...

std::list< InPort * >	getSetOfInPort () const

std::list< OutPort * >	getSetOfOutPort () const

virtual std::set< InputPort * >	edGetSetOfUnitializedInputPort () const
	Becomes deprecated soon. Replaced by ComposedNode::CheckConsistency. More...

virtual bool	edAreAllInputPortInitialized () const
	Becomes deprecated soon. Replaced by ComposedNode::CheckConsistency. More...

InPort *	getInPort (const std::string &name) const

InPropertyPort *	getInPropertyPort () const

std::list< ComposedNode * >	getAllAscendanceOf (ComposedNode *levelToStop=0) const

bool	operator> (const Node &other) const

bool	operator< (const Node &other) const

std::string	getImplementation () const

DynParaLoop *	getClosestDPLAmongAncestors () const

std::map< std::string, std::string >	getProperties ()

std::map< std::string, std::string >	getPropertyMap ()

virtual void	setProperties (std::map< std::string, std::string > properties)

virtual Proc *	getProc ()

virtual const Proc *	getProc () const

std::string	getQualifiedName () const
	same as Node::getName() in most cases, but differs for children of switch More...

int	getNumId ()
	return node instance identifiant, unique for each node instance More...

std::vector< std::pair< std::string, int > >	getDPLScopeInfo (ComposedNode *gfn)

virtual void	applyDPLScope (ComposedNode *gfn)

virtual void	sendEvent (const std::string &event)
	emit notification to all observers registered with the dispatcher More...

virtual void	sendEvent2 (const std::string &event, void *something)
	emit notification to all observers registered with the dispatcher More...

virtual std::string	getErrorDetails () const

virtual void	setErrorDetails (const std::string &error)

virtual void	modified ()
	Sets Node in modified state and its father if it exists. More...

virtual int	isModified ()

virtual int	isValid ()
	indicates if the node is valid (returns 1) or not (returns 0) More...

virtual std::string	getContainerLog ()
	returns a string that contains the name of the container log file if it exists More...

virtual void	ensureLoading ()
	Put this node into TOLOAD state when possible. More...

virtual void	getCoupledNodes (std::set< Task * > &coupledNodes)

Public Member Functions inherited from YACS::ENGINE::Scheduler
virtual	~Scheduler ()

Protected Member Functions
Node *	simpleClone (ComposedNode *father, bool editionOnly=true) const

Protected Member Functions inherited from YACS::ENGINE::ForEachLoopGen
void	checkLinkPossibility (OutPort start, const std::list< ComposedNode > &pointsOfViewStart, InPort end, const std::list< ComposedNode > &pointsOfViewEnd)

YACS::Event	updateStateOnFinishedEventFrom (Node *node)
	Method used to notify the node that a child node has finished. More...

YACS::Event	updateStateForInitNodeOnFinishedEventFrom (Node *node, unsigned int id)

YACS::Event	updateStateForWorkNodeOnFinishedEventFrom (Node *node, unsigned int id, bool isNormalFinish)

YACS::Event	updateStateForFinalizeNodeOnFinishedEventFrom (Node *node, unsigned int id)

YACS::Event	updateStateOnFailedEventFrom (Node node, const Executor execInst)
	Method used to notify the node that a child node has failed. More...

void	buildDelegateOf (std::pair< OutPort , OutPort > &port, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

void	getDelegateOf (std::pair< OutPort , OutPort > &port, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

void	releaseDelegateOf (OutPort portDwn, OutPort portUp, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

void	pushAllSequenceValues ()

void	createOutputOutOfScopeInterceptors (int branchNb)

void	prepareSequenceValues (int sizeOfSamples)

OutPort *	getDynOutPortByAbsName (int branchNb, const std::string &name)

void	storeOutValsInSeqForOutOfScopeUse (int rank, int branchNb)

Protected Member Functions inherited from YACS::ENGINE::DynParaLoop
	DynParaLoop (const std::string &name, TypeCode *typeOfDataSplitted, std::unique_ptr< NbBranchesAbstract > &&branchManager)

virtual	~DynParaLoop ()

	DynParaLoop (const DynParaLoop &other, ComposedNode *father, bool editionOnly)

void	buildDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

void	checkCFLinks (const std::list< OutPort * > &starts, InputPort *end, unsigned char &alreadyFed, bool direction, LinkInfo &info) const
	check control flow links More...

void	checkControlDependancy (OutPort start, InPort end, bool cross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &fw, std::vector< OutPort * > &fwCross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &bw, LinkInfo &info) const

void	prepareInputsFromOutOfScope (int branchNb)

void	putValueOnBranch (Any *val, unsigned branchId, bool first)

TypeOfNode	getIdentityOfNotifyerNode (const Node *node, unsigned &id)

InputPort *	getDynInputPortByAbsName (int branchNb, const std::string &name, bool initNodeAdmitted)

virtual void	forwardExecStateToOriginalBody (Node *execNode)

std::vector< Node * >	cloneAndPlaceNodesCoherently (const std::vector< Node * > &origNodes)
	Clone nodes and make their placement consistent with the placement of the original ones. More...

Node *	checkConsistencyAndSetNode (Node &nodeToReplace, Node DISOWNnode)
	This method is used to factorize methods edSetNode, edSetInitNode and edSetFinalizeNode. More...

Node *	removeNode (Node *&nodeToRemove)
	This method is used to factorize methods edRemoveNode, edRemoveInitNode and edRemoveFinalizeNode. More...

virtual void	shutdown (int level)
	Stop all pending activities of the composed node. More...

Protected Member Functions inherited from YACS::ENGINE::ComposedNode
	ComposedNode (const std::string &name)

	ComposedNode (const ComposedNode &other, ComposedNode *father)

void	performDuplicationOfPlacement (const Node &other)
	performs a duplication of placement using clone method of containers and components. clone behaviour is driven by attachOnCloning attribute. More...

void	performShallowDuplicationOfPlacement (const Node &other)
	performs a also duplication of placement but here containers and components are not copied at all whatever the value of attachedOnCloning. More...

void	edDisconnectAllLinksWithMe ()

YACS::Event	updateStateFrom (Node node, YACS::Event event, const Executor execInst)
	Update node state on receiving event from a node. More...

virtual YACS::Event	updateStateOnStartEventFrom (Node *node)
	Method used to notify the node that a child node has started. More...

virtual void	getDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

virtual void	releaseDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

void	checkInMyDescendance (Node *nodeToTest) const
	Check if a node is in the descendance of this node. More...

template<class PORT >
std::string	getPortName (const PORT *port) const

void	checkNoCrossHierachyWith (Node *node) const

virtual void	performCFComputations (LinkInfo &info) const
	perform recursively all CF computations. More...

virtual void	destructCFComputations (LinkInfo &info) const
	destroy recursively all results of initial computations. More...

Node *	getLowestNodeDealingAll (const std::list< OutPort * > &ports) const

void	checkLinksCoherenceRegardingControl (const std::vector< OutPort * > &starts, InputPort *end, LinkInfo &info) const

void	solveObviousOrDelegateCFLinks (const std::list< OutPort * > &starts, InputPort *end, unsigned char &alreadyFed, bool direction, LinkInfo &info) const

Protected Member Functions inherited from YACS::ENGINE::Node
	Node (const std::string &name)

	Node (const Node &other, ComposedNode *father)

virtual void	exForwardFailed ()

virtual void	exForwardFinished ()

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::ForEachLoopGen
static int	getFEDeltaBetween (OutPort start, InPort end)

static void	InterceptorizeNameOfPort (std::string &portName)

Static Public Member Functions inherited from YACS::ENGINE::ComposedNode
static ComposedNode *	getLowestCommonAncestor (Node node1, Node node2)
	Retrieves the lowest common ancestor of 2 nodes. More...

static std::string	getLowestCommonAncestorStr (const std::string &node1, const std::string &node2)

Static Public Member Functions inherited from YACS::ENGINE::Node
static std::string	getStateName (YACS::StatesForNode state)
	Return the name of a state. More...

static void	checkValidityOfNodeName (const std::string &name)

Public Attributes inherited from YACS::ENGINE::Node
YACS::Colour	_colour

Static Public Attributes inherited from YACS::ENGINE::ForEachLoopGen
static const char	NAME_OF_SPLITTERNODE [] ="splitter"

static const char	INTERCEPTOR_STR [] ="_interceptor"

Static Public Attributes inherited from YACS::ENGINE::ComposedNode
static const char	SEP_CHAR_BTW_LEVEL [] ="."

Static Public Attributes inherited from YACS::ENGINE::Node
static std::map< int, Node * >	idMap

Protected Types inherited from YACS::ENGINE::DynParaLoop
enum	TypeOfNode { INIT_NODE = 5 , WORK_NODE = 6 , FINALIZE_NODE = 7 }

Static Protected Member Functions inherited from YACS::ENGINE::ComposedNode
static bool	splitNamesBySep (const std::string &globalName, const char separator[], std::string &firstPart, std::string &lastPart, bool priority)
	Splits name globalName in 2 parts using separator. More...

Static Protected Member Functions inherited from YACS::ENGINE::Node
static void	checkValidityOfPortName (const std::string &name)

static ComposedNode *	checkHavingCommonFather (Node node1, Node node2)

Protected Attributes inherited from YACS::ENGINE::ForEachLoopGen
int	_currentIndex

SplitterNode	_splitterNode

FakeNodeForForEachLoop *	_nodeForSpecialCases

std::vector< AnySplitOutputPort * >	_outGoingPorts

std::vector< InterceptorInputPort * >	_intecptrsForOutGoingPorts
	ports linked to node outside the current scope More...

unsigned	_execCurrentId
	ports created for TypeCodes correctness More...

std::vector< SequenceAny * >	_execVals

std::vector< std::vector< AnyInputPort * > >	_execOutGoingPorts

ForEachLoopPassedData *	_passedData

Protected Attributes inherited from YACS::ENGINE::DynParaLoop
Node *	_node

Node *	_initNode

Node *	_finalizeNode

unsigned	_nbOfEltConsumed

std::vector< int >	_execIds

std::unique_ptr< NbBranchesAbstract >	_nbOfBranches

AnyOutputPort	_splittedPort

std::vector< Node * >	_execNodes

std::vector< Node * >	_execInitNodes

std::vector< Node * >	_execFinalizeNodes

int	_initializingCounter

int	_unfinishedCounter

int	_failedCounter

ComplexWeight	_weight

double	_loopWeight

Protected Attributes inherited from YACS::ENGINE::Node
InGate	_inGate

OutGate	_outGate

InPropertyPort *	_inPropertyPort

std::string	_name

ComposedNode *	_father

YACS::StatesForNode	_state

int	_modified

std::string	_errorDetails

int	_numId

std::string	_implementation

std::map< std::string, std::string >	_propertyMap

Node *	_eventReceiver =nullptr

Static Protected Attributes inherited from YACS::ENGINE::ForEachLoopGen
static const int	NOT_RUNNING_BRANCH_ID =-1

Static Protected Attributes inherited from YACS::ENGINE::DynParaLoop
static const char	NAME_OF_SPLITTED_SEQ_OUT [] = "evalSamples"

static const char	OLD_NAME_OF_SPLITTED_SEQ_OUT [] = "SmplPrt"

Static Protected Attributes inherited from YACS::ENGINE::ComposedNode
static const unsigned char	FED_ST = 2

static const unsigned char	FREE_ST = 0

static const unsigned char	FED_DS_ST = 1

Static Protected Attributes inherited from YACS::ENGINE::Node
static const char	SEP_CHAR_IN_PORT [] ="."

static int	_total = 0

Detailed Description

Loop node for parametric calculation.

Definition at line 235 of file ForEachLoop.hxx.

Constructor & Destructor Documentation

◆ ForEachLoop() [1/2]

YACS::ENGINE::ForEachLoop::ForEachLoop	(	const std::string &	name,
		TypeCode *	typeOfDataSplitted
	)

inline

Definition at line 238 of file ForEachLoop.hxx.

238 :ForEachLoopGen(name,typeOfDataSplitted,std::unique_ptr<NbBranchesAbstract>(new NbBranches(this))) { }

YACS::ENGINE::ForEachLoopGen::ForEachLoopGen

ForEachLoopGen(const std::string &name, TypeCode *typeOfDataSplitted, std::unique_ptr< NbBranchesAbstract > &&branchManager)

Definition: ForEachLoop.cxx:469

◆ ForEachLoop() [2/2]

YACS::ENGINE::ForEachLoop::ForEachLoop	(	const ForEachLoop &	other,
		ComposedNode *	father,
		bool	editionOnly
	)

inline

Definition at line 239 of file ForEachLoop.hxx.

239 :ForEachLoopGen(other,father,editionOnly) { }

◆ ~ForEachLoop()

YACS::ENGINE::ForEachLoop::~ForEachLoop ( )

inline

Definition at line 240 of file ForEachLoop.hxx.

240 { }

Member Function Documentation

◆ accept()

void ForEachLoop::accept ( Visitor * visitor )

virtual

Reimplemented from YACS::ENGINE::DynParaLoop.

Definition at line 1288 of file ForEachLoop.cxx.

 {
   visitor->visitForEachLoop(this);
 }

References YACS::ENGINE::Visitor::visitForEachLoop().

◆ simpleClone()

Node * ForEachLoop::simpleClone	(	ComposedNode *	father,
		bool	editionOnly = `true`
	)		const

protectedvirtual

Implements YACS::ENGINE::Node.

Definition at line 1283 of file ForEachLoop.cxx.

 {
   return new ForEachLoop(*this,father,editionOnly);
 }

References YACS::ENGINE::Node::ForEachLoop.

The documentation for this class was generated from the following files:

src/engine/ForEachLoop.hxx
src/engine/ForEachLoop.cxx

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ForEachLoop() [1/2]

◆ ForEachLoop() [2/2]

◆ ~ForEachLoop()

Member Function Documentation

◆ accept()

◆ simpleClone()
