#include <InputDataStreamPort.hxx>

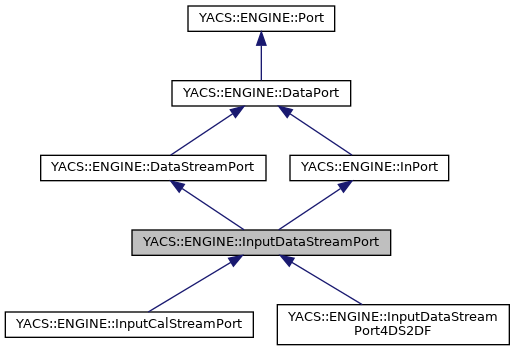

Inheritance diagram for YACS::ENGINE::InputDataStreamPort:

[legend]

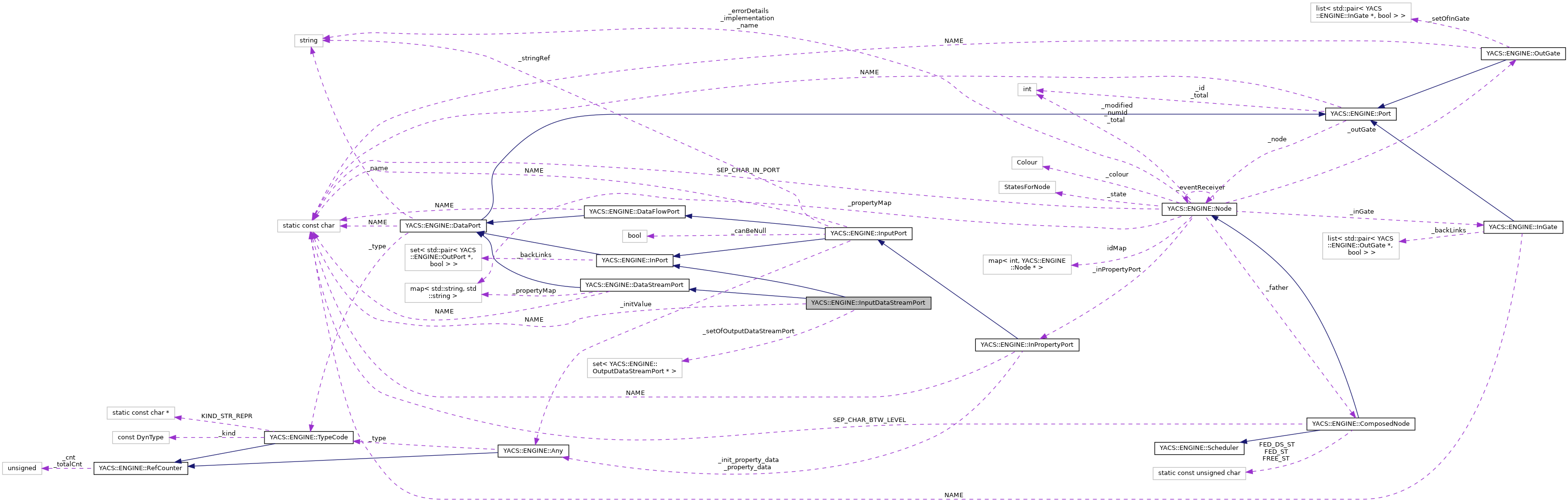

Collaboration diagram for YACS::ENGINE::InputDataStreamPort:

[legend]

Public Member Functions
	InputDataStreamPort (const InputDataStreamPort &other, Node *newHelder)

	InputDataStreamPort (const std::string &name, Node node, TypeCode type)

virtual	~InputDataStreamPort ()

virtual std::string	getNameOfTypeOfCurrentInstance () const

virtual InputDataStreamPort *	clone (Node *newHelder) const

virtual std::string	typeName ()

virtual void	edAddOutputDataStreamPort (OutputDataStreamPort *port)

std::set< OutputDataStreamPort * >	getConnectedOutputDataStreamPort ()

Public Member Functions inherited from YACS::ENGINE::DataStreamPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual void	setProperty (const std::string &name, const std::string &value)
	Set a new value for a property of the port. More...

virtual void	setProperties (std::map< std::string, std::string > properties)
	Set the values of all properties of the port. More...

virtual std::string	getProperty (const std::string &name)
	Get the value of a property of the port. More...

std::map< std::string, std::string >	getProperties () const

virtual void	initPortProperties ()
	Initialize port properties at the start of calculation phase. More...

virtual	~DataStreamPort ()

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual InPort *	getPublicRepresentant ()

virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

Static Public Attributes
static const char	NAME [] ="InputDataStreamPort"

Static Public Attributes inherited from YACS::ENGINE::DataStreamPort
static const char	NAME [] ="DataStreamPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Attributes
std::set< OutputDataStreamPort * >	_setOfOutputDataStreamPort

Protected Attributes inherited from YACS::ENGINE::DataStreamPort
std::map< std::string, std::string >	_propertyMap

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Private Member Functions
bool	isAlreadyInSet (OutputDataStreamPort *inPort) const

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Protected Member Functions inherited from YACS::ENGINE::DataStreamPort
	DataStreamPort (const DataStreamPort &other, Node *newHelder)

	DataStreamPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 37 of file InputDataStreamPort.hxx.

Constructor & Destructor Documentation

◆ InputDataStreamPort() [1/2]

InputDataStreamPort::InputDataStreamPort	(	const InputDataStreamPort &	other,
		Node *	newHelder
	)

Definition at line 32 of file InputDataStreamPort.cxx.

                                                                                          :
     DataStreamPort(other,newHelder),
     InPort(other,newHelder),
     DataPort(other,newHelder),
     Port(other,newHelder)
 {
 }

Referenced by clone().

◆ InputDataStreamPort() [2/2]

InputDataStreamPort::InputDataStreamPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 40 of file InputDataStreamPort.cxx.

                                                                                          :
     DataStreamPort(name,node,type),
     InPort(name,node,type),
     DataPort(name,node,type),
     Port(node)
 {
 }

◆ ~InputDataStreamPort()

InputDataStreamPort::~InputDataStreamPort ( )

virtual

Definition at line 48 of file InputDataStreamPort.cxx.

49 {

50 }

Member Function Documentation

◆ clone()

InputDataStreamPort * InputDataStreamPort::clone ( Node * newHelder ) const

virtual

Reimplemented in YACS::ENGINE::InputCalStreamPort.

Definition at line 57 of file InputDataStreamPort.cxx.

 {
   return new InputDataStreamPort(*this,newHelder);
 }

References InputDataStreamPort().

Referenced by YACS::ENGINE::ElementaryNode::createMultiDatastreamPorts().

◆ edAddOutputDataStreamPort()

void InputDataStreamPort::edAddOutputDataStreamPort ( OutputDataStreamPort * port )

virtual

Definition at line 62 of file InputDataStreamPort.cxx.

 {
   DEBTRACE("InputDataStreamPort::edAddOutputDataStreamPort");
   if(!isAlreadyInSet(port))
     _setOfOutputDataStreamPort.insert(port);
 }

References _setOfOutputDataStreamPort, DEBTRACE, and isAlreadyInSet().

Referenced by YACS::ENGINE::OutputDataStreamPort::edAddInputDataStreamPort().

◆ getConnectedOutputDataStreamPort()

std::set<OutputDataStreamPort *> YACS::ENGINE::InputDataStreamPort::getConnectedOutputDataStreamPort ( )

inline

Definition at line 52 of file InputDataStreamPort.hxx.

52 {return _setOfOutputDataStreamPort;}

Referenced by YACS::ENGINE::ElementaryNode::getReadyTasks().

◆ getNameOfTypeOfCurrentInstance()

string InputDataStreamPort::getNameOfTypeOfCurrentInstance ( ) const

virtual

Reimplemented from YACS::ENGINE::DataStreamPort.

Reimplemented in YACS::ENGINE::InputCalStreamPort.

Definition at line 52 of file InputDataStreamPort.cxx.

 {
   return NAME;
 }

References NAME.

◆ isAlreadyInSet()

bool InputDataStreamPort::isAlreadyInSet ( OutputDataStreamPort * inPort ) const

private

Definition at line 69 of file InputDataStreamPort.cxx.

 {
   return _setOfOutputDataStreamPort.find(outPort)!=_setOfOutputDataStreamPort.end();
 }

References _setOfOutputDataStreamPort.

Referenced by edAddOutputDataStreamPort().

◆ typeName()

virtual std::string YACS::ENGINE::InputDataStreamPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::DataStreamPort.

Definition at line 49 of file InputDataStreamPort.hxx.

49 {return "YACS__ENGINE__InputDataStreamPort";}

Member Data Documentation

◆ _setOfOutputDataStreamPort

std::set<OutputDataStreamPort *> YACS::ENGINE::InputDataStreamPort::_setOfOutputDataStreamPort

protected

Definition at line 42 of file InputDataStreamPort.hxx.

Referenced by edAddOutputDataStreamPort(), and isAlreadyInSet().

◆ NAME

const char InputDataStreamPort::NAME ="InputDataStreamPort"

static

Definition at line 40 of file InputDataStreamPort.hxx.

Referenced by YACS::ENGINE::OutputDataStreamPort::addInPort(), getNameOfTypeOfCurrentInstance(), and YACS::ENGINE::OutputDataStreamPort::removeInPort().

The documentation for this class was generated from the following files:

src/engine/InputDataStreamPort.hxx
src/engine/InputDataStreamPort.cxx
