Class for Input Calcium DataStream Ports. More...

#include <CalStreamPort.hxx>

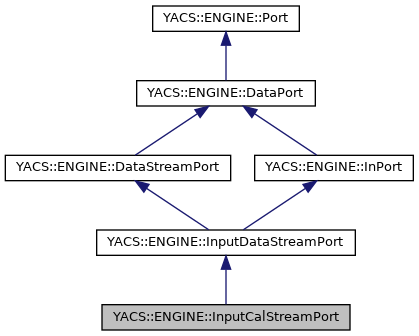

Inheritance diagram for YACS::ENGINE::InputCalStreamPort:

[legend]

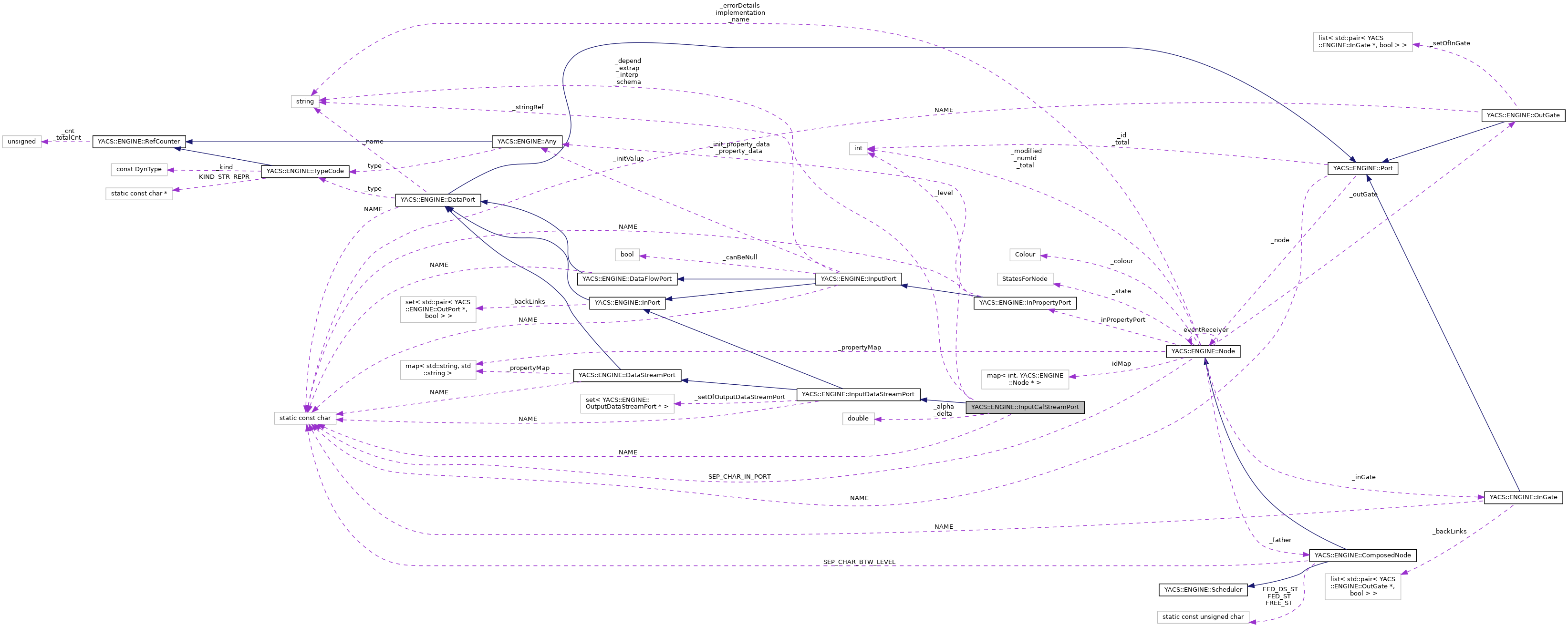

Collaboration diagram for YACS::ENGINE::InputCalStreamPort:

[legend]

Public Member Functions
	InputCalStreamPort (const std::string &name, Node node, TypeCode type)

	InputCalStreamPort (const InputCalStreamPort &other, Node *newHelder)

virtual	~InputCalStreamPort ()

void	setProperty (const std::string &name, const std::string &value)
	Set a new value for a property of the port. More...

std::string	getNameOfTypeOfCurrentInstance () const

InputCalStreamPort *	clone (Node *newHelder) const

void	setSchema (const std::string &value)

std::string	getSchema ()

void	setLevel (const std::string &value)

int	getLevel ()

void	setDepend (const std::string &value)

std::string	getDepend ()

void	setDelta (const std::string &value)

double	getDelta ()

void	setAlpha (const std::string &value)

double	getAlpha ()

void	setInterp (const std::string &value)

std::string	getInterp ()

void	setExtrap (const std::string &value)

std::string	getExtrap ()

Public Member Functions inherited from YACS::ENGINE::InputDataStreamPort
	InputDataStreamPort (const InputDataStreamPort &other, Node *newHelder)

	InputDataStreamPort (const std::string &name, Node node, TypeCode type)

virtual	~InputDataStreamPort ()

virtual std::string	getNameOfTypeOfCurrentInstance () const

virtual InputDataStreamPort *	clone (Node *newHelder) const

virtual std::string	typeName ()

virtual void	edAddOutputDataStreamPort (OutputDataStreamPort *port)

std::set< OutputDataStreamPort * >	getConnectedOutputDataStreamPort ()

Public Member Functions inherited from YACS::ENGINE::DataStreamPort
std::string	getNameOfTypeOfCurrentInstance () const

TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual void	setProperty (const std::string &name, const std::string &value)
	Set a new value for a property of the port. More...

virtual void	setProperties (std::map< std::string, std::string > properties)
	Set the values of all properties of the port. More...

virtual std::string	getProperty (const std::string &name)
	Get the value of a property of the port. More...

std::map< std::string, std::string >	getProperties () const

virtual void	initPortProperties ()
	Initialize port properties at the start of calculation phase. More...

virtual	~DataStreamPort ()

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

std::string	getNameOfTypeOfCurrentInstance () const

virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

bool	isDifferentTypeOf (const DataPort *other) const

virtual void	edRemoveAllLinksLinkedWithMe ()=0

virtual std::string	typeName ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

virtual std::string	getNameOfTypeOfCurrentInstance () const

int	getNumId () const

virtual std::string	typeName ()

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual InPort *	getPublicRepresentant ()

virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

virtual std::string	typeName ()

Static Public Attributes
static const char	NAME [] ="InputCalStreamPort"

Static Public Attributes inherited from YACS::ENGINE::InputDataStreamPort
static const char	NAME [] ="InputDataStreamPort"

Static Public Attributes inherited from YACS::ENGINE::DataStreamPort
static const char	NAME [] ="DataStreamPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Attributes
std::string	_depend

std::string	_schema

std::string	_interp

std::string	_extrap

int	_level

double	_delta

double	_alpha

Protected Attributes inherited from YACS::ENGINE::InputDataStreamPort
std::set< OutputDataStreamPort * >	_setOfOutputDataStreamPort

Protected Attributes inherited from YACS::ENGINE::DataStreamPort
std::map< std::string, std::string >	_propertyMap

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Protected Member Functions inherited from YACS::ENGINE::DataStreamPort
	DataStreamPort (const DataStreamPort &other, Node *newHelder)

	DataStreamPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Class for Input Calcium DataStream Ports.

Definition at line 40 of file CalStreamPort.hxx.

Constructor & Destructor Documentation

◆ InputCalStreamPort() [1/2]

InputCalStreamPort::InputCalStreamPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 34 of file CalStreamPort.cxx.

                                                                                       :
  InputDataStreamPort(name, node, type),
  DataPort(name, node, type),
  Port(node),_depend("TIME_DEPENDENCY"),_schema("TI_SCHEM"),_delta(-1.),_level(-1),_alpha(0.),
    _interp("L1_SCHEM"),_extrap("UNDEFINED_EXTRA_SCHEM")
{
}

Referenced by clone().

◆ InputCalStreamPort() [2/2]

InputCalStreamPort::InputCalStreamPort	(	const InputCalStreamPort &	other,
		Node *	newHelder
	)

Definition at line 41 of file CalStreamPort.cxx.

                                                                                      :
  InputDataStreamPort(other,newHelder),
  DataPort(other,newHelder),
  Port(other,newHelder),_depend(other._depend),_schema(other._schema),_delta(other._delta),_level(other._level),
    _alpha(other._alpha),_interp(other._interp),_extrap(other._extrap)
{
}

◆ ~InputCalStreamPort()

InputCalStreamPort::~InputCalStreamPort ( )

virtual

Definition at line 49 of file CalStreamPort.cxx.

50{

51}

Member Function Documentation

◆ clone()

InputCalStreamPort * InputCalStreamPort::clone ( Node * newHelder ) const

virtual

Reimplemented from YACS::ENGINE::InputDataStreamPort.

Definition at line 207 of file CalStreamPort.cxx.

{
  return new InputCalStreamPort(*this,newHelder);
}

References InputCalStreamPort().

◆ getAlpha()

double YACS::ENGINE::InputCalStreamPort::getAlpha ( )

inline

Definition at line 62 of file CalStreamPort.hxx.

62{return _alpha;};

References _alpha.

◆ getDelta()

double YACS::ENGINE::InputCalStreamPort::getDelta ( )

inline

Definition at line 60 of file CalStreamPort.hxx.

60{return _delta;};

References _delta.

◆ getDepend()

std::string YACS::ENGINE::InputCalStreamPort::getDepend ( )

inline

Definition at line 58 of file CalStreamPort.hxx.

58{return _depend;};

References _depend.

Referenced by YACS::ENGINE::OutputCalStreamPort::addInPort().

◆ getExtrap()

std::string YACS::ENGINE::InputCalStreamPort::getExtrap ( )

inline

Definition at line 66 of file CalStreamPort.hxx.

66{return _extrap;};

References _extrap.

◆ getInterp()

std::string YACS::ENGINE::InputCalStreamPort::getInterp ( )

inline

Definition at line 64 of file CalStreamPort.hxx.

64{return _interp;};

References _interp.

◆ getLevel()

int YACS::ENGINE::InputCalStreamPort::getLevel ( )

inline

Definition at line 56 of file CalStreamPort.hxx.

56{return _level;};

References _level.

◆ getNameOfTypeOfCurrentInstance()

std::string InputCalStreamPort::getNameOfTypeOfCurrentInstance ( ) const

virtual

Reimplemented from YACS::ENGINE::InputDataStreamPort.

Definition at line 202 of file CalStreamPort.cxx.

{
  return NAME;
}

References NAME.

◆ getSchema()

std::string YACS::ENGINE::InputCalStreamPort::getSchema ( )

inline

Definition at line 54 of file CalStreamPort.hxx.

54{return _schema;};

References _schema.

◆ setAlpha()

void InputCalStreamPort::setAlpha ( const std::string & value )

Definition at line 84 of file CalStreamPort.cxx.

{
  std::istringstream iss(value);
  double temp;
  if (!(iss >> temp)||temp<0. || temp >1.)
    throw Exception("Alpha property must be a float > 0 and < 1");
  _alpha=temp;
}

References _alpha.

Referenced by setProperty().

◆ setDelta()

void InputCalStreamPort::setDelta ( const std::string & value )

Definition at line 92 of file CalStreamPort.cxx.

{
  std::istringstream iss(value);
  double temp;
  if (!(iss >> temp)||temp<0. || temp >1.)
    throw Exception("DeltaT property must be > 0 and < 1");
  _delta=temp;
}

References _delta.

Referenced by setProperty().

◆ setDepend()

void InputCalStreamPort::setDepend ( const std::string & value )

Definition at line 53 of file CalStreamPort.cxx.

{
  DEBTRACE("InputCalStreamPort::setDepend: " << edGetNumberOfLinks());
  if(edGetNumberOfLinks() > 0)
    {
      throw Exception("Can not modify DependencyType property on a connected port");
    }
  if(depend != "TIME_DEPENDENCY" && depend != "ITERATION_DEPENDENCY")
    {
      throw Exception("DependencyType property must be TIME_DEPENDENCY or ITERATION_DEPENDENCY");
    }
  _depend=depend;
}

References _depend, DEBTRACE, and YACS::ENGINE::InPort::edGetNumberOfLinks().

Referenced by setProperty().

◆ setExtrap()

void InputCalStreamPort::setExtrap ( const std::string & value )

Definition at line 108 of file CalStreamPort.cxx.

{
  if(value != "E0_SCHEM" && value != "E1_SCHEM")
    {
      throw Exception("ExtrapolationSchem property must be E0_SCHEM or E1_SCHEM");
    }
  _extrap=value;
}

References _extrap.

Referenced by setProperty().

◆ setInterp()

void InputCalStreamPort::setInterp ( const std::string & value )

Definition at line 100 of file CalStreamPort.cxx.

{
  if(value != "L0_SCHEM" && value != "L1_SCHEM")
    {
      throw Exception("InterpolationSchem property must be L0_SCHEM or L1_SCHEM");
    }
  _interp=value;
}

References _interp.

Referenced by setProperty().

◆ setLevel()

void InputCalStreamPort::setLevel ( const std::string & value )

Definition at line 75 of file CalStreamPort.cxx.

{
  DEBTRACE("InputCalStreamPort::setLevel: " << value);
  std::istringstream iss(value);
  int temp;
  if (!(iss >> temp)|| temp<1)
    throw Exception("StorageLevel property must be an integer > 0");
  _level=temp;
}

References _level, and DEBTRACE.

Referenced by setProperty().

◆ setProperty()

void InputCalStreamPort::setProperty	(	const std::string &	name,
		const std::string &	value
	)

virtual

Set a new value for a property of the port.

Parameters

name	: the name property
value	: the value property

Reimplemented from YACS::ENGINE::DataStreamPort.

Definition at line 117 of file CalStreamPort.cxx.

{
  DEBTRACE("InputCalStreamPort::setProperty: " << name << " " << value);
  if(name == "DependencyType")
    setDepend(value);
  else if(name == "DateCalSchem")
    setSchema(value);
  else if(name == "StorageLevel")
    setLevel(value);
  else if(name == "Alpha")
    setAlpha(value);
  else if(name == "DeltaT")
    setDelta(value);
  else if(name == "InterpolationSchem")
    setInterp(value);
  else if(name == "ExtrapolationSchem")
    setExtrap(value);
  InputDataStreamPort::setProperty(name,value);
}

References DEBTRACE, setAlpha(), setDelta(), setDepend(), setExtrap(), setInterp(), setLevel(), YACS::ENGINE::DataStreamPort::setProperty(), and setSchema().

◆ setSchema()

void InputCalStreamPort::setSchema ( const std::string & value )

Definition at line 67 of file CalStreamPort.cxx.

{
  if(schema != "TI_SCHEM" && schema != "TF_SCHEM" && schema != "ALPHA_SCHEM")
    {
      throw Exception("DateCalSchem property must be TI_SCHEM, TF_SCHEM or ALPHA_SCHEM");
    }
  _schema=schema;
}

References _schema.

Referenced by setProperty().

Member Data Documentation

◆ _alpha

double YACS::ENGINE::InputCalStreamPort::_alpha

protected

Definition at line 74 of file CalStreamPort.hxx.

Referenced by getAlpha(), and setAlpha().

◆ _delta

double YACS::ENGINE::InputCalStreamPort::_delta

protected

Definition at line 73 of file CalStreamPort.hxx.

Referenced by getDelta(), and setDelta().

◆ _depend

std::string YACS::ENGINE::InputCalStreamPort::_depend

protected

Definition at line 68 of file CalStreamPort.hxx.

Referenced by getDepend(), and setDepend().

◆ _extrap

std::string YACS::ENGINE::InputCalStreamPort::_extrap

protected

Definition at line 71 of file CalStreamPort.hxx.

Referenced by getExtrap(), and setExtrap().

◆ _interp

std::string YACS::ENGINE::InputCalStreamPort::_interp

protected

Definition at line 70 of file CalStreamPort.hxx.

Referenced by getInterp(), and setInterp().

◆ _level

int YACS::ENGINE::InputCalStreamPort::_level

protected

Definition at line 72 of file CalStreamPort.hxx.

Referenced by getLevel(), and setLevel().

◆ _schema

std::string YACS::ENGINE::InputCalStreamPort::_schema

protected

Definition at line 69 of file CalStreamPort.hxx.

Referenced by getSchema(), and setSchema().

◆ NAME

const char InputCalStreamPort::NAME ="InputCalStreamPort"

static

Definition at line 43 of file CalStreamPort.hxx.

Referenced by YACS::ENGINE::OutputCalStreamPort::addInPort(), getNameOfTypeOfCurrentInstance(), and YACS::ENGINE::OutputCalStreamPort::removeInPort().

The documentation for this class was generated from the following files:

src/runtime/CalStreamPort.hxx
src/runtime/CalStreamPort.cxx

Public Member Functions

Static Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ InputCalStreamPort() [1/2]

◆ InputCalStreamPort() [2/2]

◆ ~InputCalStreamPort()

Member Function Documentation

◆ clone()

◆ getAlpha()

◆ getDelta()

◆ getDepend()

◆ getExtrap()

◆ getInterp()

◆ getLevel()

◆ getNameOfTypeOfCurrentInstance()

◆ getSchema()

◆ setAlpha()

◆ setDelta()

◆ setDepend()

◆ setExtrap()

◆ setInterp()

◆ setLevel()

◆ setProperty()

◆ setSchema()

Member Data Documentation

◆ _alpha

◆ _delta

◆ _depend

◆ _extrap

◆ _interp

◆ _level

◆ _schema

◆ NAME
