Base class for loop node. More...

#include <Loop.hxx>

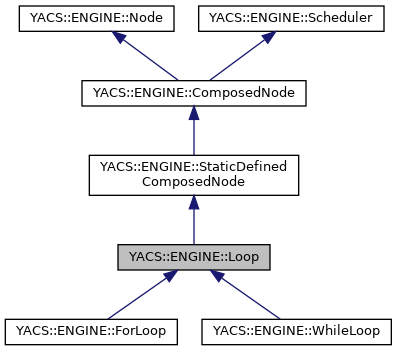

Inheritance diagram for YACS::ENGINE::Loop:

[legend]

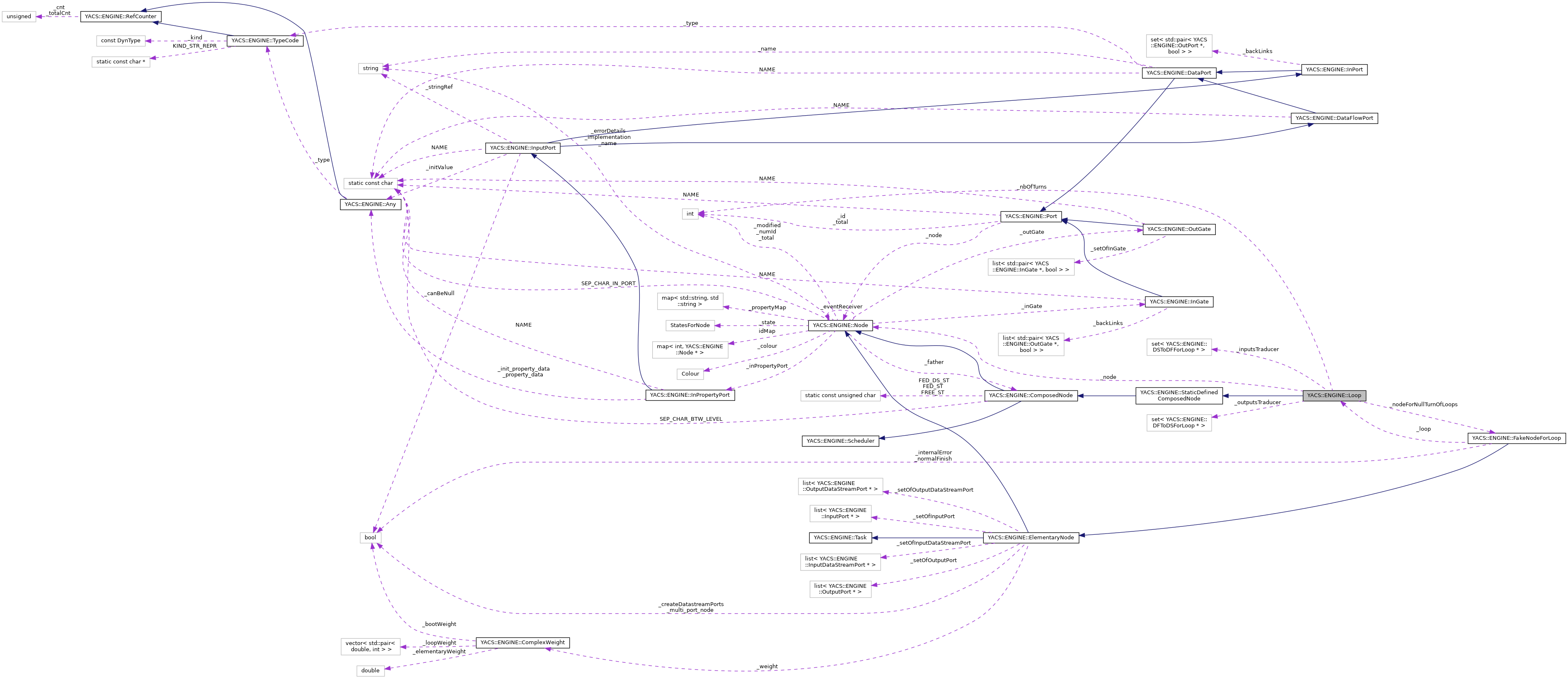

Collaboration diagram for YACS::ENGINE::Loop:

[legend]

Public Member Functions
	Loop (const Loop &other, ComposedNode *father, bool editionOnly)

	Loop (const std::string &name)

	~Loop ()

void	init (bool start=true)

int	getNbOfTurns () const

Node *	edSetNode (Node *DISOWNnode)

virtual bool	edAddChild (Node *DISOWNnode)

bool	isLoop () const override

Node *	edRemoveNode ()

virtual void	checkBasicConsistency () const

virtual InputPort *	getDecisionPort () const =0
	Returns the port which value is used to take decision about the continuation of the loop. More...

void	getReadyTasks (std::vector< Task * > &tasks)
	Collect all the child nodes that are ready. More...

void	edRemoveChild (Node *node)
	Remove a child node. More...

bool	isRepeatedUnpredictablySeveralTimes () const

std::list< Node * >	edGetDirectDescendants () const

std::list< InputPort * >	getSetOfInputPort () const

int	getNumberOfInputPorts () const

int	getMaxLevelOfParallelism () const

void	getWeightRegardingDPL (ComplexWeight *weight)

void	partitionRegardingDPL (const PartDefinition pd, std::map< ComposedNode , YACS::BASES::AutoRefCnt< PartDefinition > > &zeMap)

Node *	getChildByShortName (const std::string &name) const

virtual bool	edAddDFLink (OutPort start, InPort end)
	Connect an OutPort to an InPort and add control link if necessary. More...

void	writeDot (std::ostream &os) const
	Dump the node state to a stream. More...

virtual void	accept (Visitor *visitor)

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::StaticDefinedComposedNode
bool	isPlacementPredictableB4Run () const

bool	isMultiplicitySpecified (unsigned &value) const

void	forceMultiplicity (unsigned value)

void	selectRunnableTasks (std::vector< Task * > &tasks)

Public Member Functions inherited from YACS::ENGINE::ComposedNode
virtual	~ComposedNode ()

bool	isFinished ()

void	init (bool start=true)

virtual void	shutdown (int level)
	Stop all pending activities of the composed node. More...

virtual void	resetState (int level)
	Reset the state of the node and its children depending on the parameter level. More...

std::string	getName () const

std::string	getTaskName (Task *task) const

DeploymentTree	getDeploymentTree () const
	Essentially for test. Use checkDeploymentTree instead to be sure that returned DeploymentTree is consistent. More...

DeploymentTree	checkDeploymentTree (bool deep) const
	Perform check of deployment consistency of the current graph. More...

std::vector< Task * >	getNextTasks (bool &isMore)

virtual bool	isPlacementPredictableB4Run () const =0

void	notifyFrom (const Task sender, YACS::Event event, const Executor execInst)
	Notify the node a task has emitted an event. More...

bool	edAddLink (OutPort start, InPort end)
	Add a dataflow link between two data ports. More...

virtual bool	edAddDFLink (OutPort start, InPort end)
	Connect an OutPort to an InPort and add the necessary control link. More...

virtual bool	edAddChild (Node *DISOWNnode)

virtual void	edRemoveChild (Node *node)
	Remove a child node. More...

bool	edAddLink (OutGate start, InGate end)
	Add a controlflow link between two control ports. More...

bool	edAddCFLink (Node nodeS, Node nodeE)
	Add a controlflow link between two nodes. More...

void	edRemoveCFLink (Node nodeS, Node nodeE)
	Remove a controlflow link. More...

void	edRemoveLink (OutPort start, InPort end)
	Remove a dataflow link. More...

void	edRemoveLink (OutGate start, InGate end)
	Remove a controlflow link. More...

virtual bool	isRepeatedUnpredictablySeveralTimes () const

virtual bool	isLoop () const

virtual std::list< Node * >	edGetDirectDescendants () const =0

virtual void	removeRecursivelyRedundantCL ()

std::list< ElementaryNode * >	getRecursiveConstituents () const

std::list< Node * >	getAllRecursiveNodes ()
	Get all children nodes elementary and composed including this node. More...

virtual std::list< Node * >	getAllRecursiveConstituents ()
	Idem getAllRecursiveNodes, but this node is NOT included. More...

std::list< ProgressWeight >	getProgressWeight () const
	Get the progress weight for all elementary nodes. More...

std::string	getInPortName (const InPort *) const
	Get the input port name. More...

std::string	getOutPortName (const OutPort *) const

int	getNumberOfInputPorts () const

int	getNumberOfOutputPorts () const

std::list< InputPort * >	getSetOfInputPort () const

std::list< OutputPort * >	getSetOfOutputPort () const

std::list< InputPort * >	getLocalInputPorts () const
	redefined on derived class of ComposedNode. by default a ComposedNode has no port by itself More...

std::list< OutputPort * >	getLocalOutputPorts () const
	redefined on derived class of ComposedNode. by default a ComposedNode has no port by itself More...

std::set< OutPort * >	getAllOutPortsLeavingCurrentScope () const
	List all output ports of children nodes that are linked to out of scope input ports. More...

std::set< InPort * >	getAllInPortsComingFromOutsideOfCurrentScope () const
	List all input ports that are linked to out of scope ports. More...

std::list< InputDataStreamPort * >	getSetOfInputDataStreamPort () const

std::list< OutputDataStreamPort * >	getSetOfOutputDataStreamPort () const

OutPort *	getOutPort (const std::string &name) const

InputPort *	getInputPort (const std::string &name) const
	Get an input port given its name. More...

OutputPort *	getOutputPort (const std::string &name) const
	Get an output port given its name. More...

InputDataStreamPort *	getInputDataStreamPort (const std::string &name) const

OutputDataStreamPort *	getOutputDataStreamPort (const std::string &name) const

std::vector< std::pair< OutPort , InPort > >	getSetOfInternalLinks () const

virtual std::vector< std::pair< OutPort , InPort > >	getSetOfLinksLeavingCurrentScope () const

void	checkConsistency (LinkInfo &info) const

virtual std::vector< std::pair< InPort , OutPort > >	getSetOfLinksComingInCurrentScope () const

virtual std::string	typeName ()

virtual void	edUpdateState ()
	update the status of the node More...

virtual void	checkBasicConsistency () const

virtual std::string	getErrorReport ()
	returns a string that contains an error report if the node is in error More...

ComposedNode *	getRootNode () const

bool	isNodeAlreadyAggregated (const Node *node) const
	Check that Node 'node' is already a direct son of this. More...

virtual bool	isNameAlreadyUsed (const std::string &name) const

Node *	isInMyDescendance (Node *nodeToTest) const
	Returns the parent of a node that is the direct child of this node. More...

std::string	getChildName (const Node *node) const

virtual std::string	getMyQualifiedName (const Node *directSon) const

Node *	getChildByName (const std::string &name) const

void	loaded ()

void	connected ()

void	accept (Visitor *visitor)

virtual void	cleanNodes ()
	Clean the composed node in case of not clean exit. More...

virtual std::string	getProgress () const

void	setProperty (const std::string &name, const std::string &value) override

std::string	getProperty (const std::string &name) override

Public Member Functions inherited from YACS::ENGINE::Node
virtual	~Node ()

virtual void	init (bool start=true)

virtual void	shutdown (int level)
	Stop all pending activities of the node. More...

virtual void	resetState (int level)
	Reset the node state depending on the parameter level. More...

Node *	clone (ComposedNode *father, bool editionOnly=true) const
	This method MUST NEVER BE VIRTUAL More...

Node *	cloneWithoutCompAndContDeepCpy (ComposedNode *father, bool editionOnly=true) const
	This method MUST NEVER BE VIRTUAL More...

void	setState (YACS::StatesForNode theState)
	Sets the given state for node. More...

virtual YACS::StatesForNode	getState () const

virtual YACS::StatesForNode	getEffectiveState () const
	Return the node state in the context of its father. More...

virtual YACS::StatesForNode	getEffectiveState (const Node *) const
	Return the effective state of a node in the context of this one (its father) More...

std::string	getColorState (YACS::StatesForNode state) const
	Return the color associated to a state. More...

InGate *	getInGate ()

OutGate *	getOutGate ()

const std::string &	getName () const

void	setName (const std::string &name)
	Change the name of the node. More...

ComposedNode *	getFather () const

const std::string	getId () const

bool	exIsControlReady () const

std::list< Node * >	getOutNodes () const

virtual void	writeDot (std::ostream &os) const
	Dump to the input stream a dot representation of the node. More...

void	writeDotInFile (const std::string &fileName) const

virtual void	exUpdateState ()
	Update the node state. More...

virtual void	exFailedState ()
	Notify this node that its execution has failed. More...

virtual void	exDisabledState ()
	Notify this node that it has been disabled. More...

virtual void	getReadyTasks (std::vector< Task * > &tasks)=0

virtual std::list< ElementaryNode * >	getRecursiveConstituents () const =0

virtual std::list< ProgressWeight >	getProgressWeight () const =0

virtual int	getNumberOfInputPorts () const =0

virtual int	getNumberOfOutputPorts () const =0

std::list< InPort * >	getSetOfInPort () const

std::list< OutPort * >	getSetOfOutPort () const

virtual std::list< InputPort * >	getSetOfInputPort () const =0

virtual std::list< OutputPort * >	getSetOfOutputPort () const =0

virtual std::list< InputPort * >	getLocalInputPorts () const =0

virtual std::list< OutputPort * >	getLocalOutputPorts () const =0

virtual std::set< InputPort * >	edGetSetOfUnitializedInputPort () const
	Becomes deprecated soon. Replaced by ComposedNode::CheckConsistency. More...

virtual bool	edAreAllInputPortInitialized () const
	Becomes deprecated soon. Replaced by ComposedNode::CheckConsistency. More...

virtual std::string	getInPortName (const InPort *) const =0

virtual std::string	getOutPortName (const OutPort *) const =0

virtual std::list< InputDataStreamPort * >	getSetOfInputDataStreamPort () const =0

virtual std::list< OutputDataStreamPort * >	getSetOfOutputDataStreamPort () const =0

InPort *	getInPort (const std::string &name) const

InPropertyPort *	getInPropertyPort () const

virtual OutPort *	getOutPort (const std::string &name) const

virtual std::set< OutPort * >	getAllOutPortsLeavingCurrentScope () const =0

virtual std::set< InPort * >	getAllInPortsComingFromOutsideOfCurrentScope () const =0

virtual std::vector< std::pair< OutPort , InPort > >	getSetOfLinksLeavingCurrentScope () const =0

virtual std::vector< std::pair< InPort , OutPort > >	getSetOfLinksComingInCurrentScope () const =0

virtual InputPort *	getInputPort (const std::string &name) const

virtual OutputPort *	getOutputPort (const std::string &name) const =0

virtual InputDataStreamPort *	getInputDataStreamPort (const std::string &name) const =0

virtual OutputDataStreamPort *	getOutputDataStreamPort (const std::string &name) const =0

std::list< ComposedNode * >	getAllAscendanceOf (ComposedNode *levelToStop=0) const

bool	operator> (const Node &other) const

bool	operator< (const Node &other) const

std::string	getImplementation () const

DynParaLoop *	getClosestDPLAmongAncestors () const

virtual ComposedNode *	getRootNode () const

virtual void	setProperty (const std::string &name, const std::string &value)

virtual std::string	getProperty (const std::string &name)

std::map< std::string, std::string >	getProperties ()

std::map< std::string, std::string >	getPropertyMap ()

virtual void	setProperties (std::map< std::string, std::string > properties)

virtual Node *	getChildByName (const std::string &name) const =0

virtual Proc *	getProc ()

virtual const Proc *	getProc () const

virtual void	accept (Visitor *visitor)=0

virtual int	getMaxLevelOfParallelism () const =0

virtual void	getWeightRegardingDPL (ComplexWeight *weight)=0

virtual void	partitionRegardingDPL (const PartDefinition pd, std::map< ComposedNode , YACS::BASES::AutoRefCnt< PartDefinition > > &zeMap)=0

std::string	getQualifiedName () const
	same as Node::getName() in most cases, but differs for children of switch More...

int	getNumId ()
	return node instance identifiant, unique for each node instance More...

std::vector< std::pair< std::string, int > >	getDPLScopeInfo (ComposedNode *gfn)

virtual void	applyDPLScope (ComposedNode *gfn)

virtual void	sendEvent (const std::string &event)
	emit notification to all observers registered with the dispatcher More...

virtual void	sendEvent2 (const std::string &event, void *something)
	emit notification to all observers registered with the dispatcher More...

virtual std::string	typeName ()

virtual std::string	getErrorDetails () const

virtual void	setErrorDetails (const std::string &error)

virtual void	modified ()
	Sets Node in modified state and its father if it exists. More...

virtual int	isModified ()

virtual int	isValid ()
	indicates if the node is valid (returns 1) or not (returns 0) More...

virtual void	edUpdateState ()
	update the status of the node More...

virtual std::string	getErrorReport ()
	returns a string that contains an error report if the node is in error More...

virtual std::string	getContainerLog ()
	returns a string that contains the name of the container log file if it exists More...

virtual void	ensureLoading ()
	Put this node into TOLOAD state when possible. More...

virtual void	getCoupledNodes (std::set< Task * > &coupledNodes)

virtual void	cleanNodes ()
	Clean the node in case of not clean exit. More...

Public Member Functions inherited from YACS::ENGINE::Scheduler
virtual void	init (bool start=true)=0

virtual bool	isFinished ()=0

virtual void	exUpdateState ()=0

virtual std::string	getName () const =0

virtual std::string	getTaskName (Task *task) const =0

virtual std::vector< Task * >	getNextTasks (bool &isMore)=0

virtual void	selectRunnableTasks (std::vector< Task * > &tasks)=0

virtual void	notifyFrom (const Task sender, YACS::Event event, const Executor execInst)=0

virtual DeploymentTree	getDeploymentTree () const =0

virtual bool	isPlacementPredictableB4Run () const =0

virtual bool	isMultiplicitySpecified (unsigned &value) const =0

virtual void	forceMultiplicity (unsigned value)=0

virtual void	setProperty (const std::string &name, const std::string &value)=0

virtual std::string	getProperty (const std::string &name)=0

virtual	~Scheduler ()

Static Public Member Functions
static TypeCode *	MappingDF2DS (TypeCode *type)

static TypeCode *	MappingDS2DF (TypeCode *type)

Static Public Member Functions inherited from YACS::ENGINE::ComposedNode
static ComposedNode *	getLowestCommonAncestor (Node node1, Node node2)
	Retrieves the lowest common ancestor of 2 nodes. More...

static std::string	getLowestCommonAncestorStr (const std::string &node1, const std::string &node2)

Static Public Member Functions inherited from YACS::ENGINE::Node
static std::string	getStateName (YACS::StatesForNode state)
	Return the name of a state. More...

static void	checkValidityOfNodeName (const std::string &name)

Protected Member Functions
void	buildDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

void	buildDelegateOf (std::pair< OutPort , OutPort > &port, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

void	getDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

void	getDelegateOf (std::pair< OutPort , OutPort > &port, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

void	releaseDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

void	releaseDelegateOf (OutPort portDwn, OutPort portUp, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

void	checkNoCyclePassingThrough (Node *node)

void	checkControlDependancy (OutPort start, InPort end, bool cross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &fw, std::vector< OutPort * > &fwCross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &bw, LinkInfo &info) const

void	checkCFLinks (const std::list< OutPort * > &starts, InputPort *end, unsigned char &alreadyFed, bool direction, LinkInfo &info) const
	check control flow links More...

Protected Member Functions inherited from YACS::ENGINE::StaticDefinedComposedNode
	StaticDefinedComposedNode (const std::string &name)

	StaticDefinedComposedNode (const StaticDefinedComposedNode &other, ComposedNode *father)

void	checkControlDependancy (OutPort start, InPort end, bool cross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &fw, std::vector< OutPort * > &fwCross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &bw, LinkInfo &info) const

Protected Member Functions inherited from YACS::ENGINE::ComposedNode
	ComposedNode (const std::string &name)

	ComposedNode (const ComposedNode &other, ComposedNode *father)

void	performDuplicationOfPlacement (const Node &other)
	performs a duplication of placement using clone method of containers and components. clone behaviour is driven by attachOnCloning attribute. More...

void	performShallowDuplicationOfPlacement (const Node &other)
	performs a also duplication of placement but here containers and components are not copied at all whatever the value of attachedOnCloning. More...

void	edDisconnectAllLinksWithMe ()

virtual Node *	getChildByShortName (const std::string &name) const =0

YACS::Event	updateStateFrom (Node node, YACS::Event event, const Executor execInst)
	Update node state on receiving event from a node. More...

virtual YACS::Event	updateStateOnStartEventFrom (Node *node)
	Method used to notify the node that a child node has started. More...

virtual YACS::Event	updateStateOnFinishedEventFrom (Node *node)=0

virtual YACS::Event	updateStateOnFailedEventFrom (Node node, const Executor execInst)
	Method used to notify the node that a child node has failed. More...

virtual void	checkLinkPossibility (OutPort start, const std::list< ComposedNode > &pointsOfViewStart, InPort end, const std::list< ComposedNode > &pointsOfViewEnd)

virtual void	buildDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

virtual void	buildDelegateOf (std::pair< OutPort , OutPort > &port, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

virtual void	getDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

virtual void	getDelegateOf (std::pair< OutPort , OutPort > &port, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

virtual void	releaseDelegateOf (InPort &port, OutPort initialStart, const std::list< ComposedNode * > &pointsOfView)

virtual void	releaseDelegateOf (OutPort portDwn, OutPort portUp, InPort finalTarget, const std::list< ComposedNode > &pointsOfView)

virtual void	checkNoCyclePassingThrough (Node *node)=0

void	checkInMyDescendance (Node *nodeToTest) const
	Check if a node is in the descendance of this node. More...

template<class PORT >
std::string	getPortName (const PORT *port) const

void	checkNoCrossHierachyWith (Node *node) const

virtual void	performCFComputations (LinkInfo &info) const
	perform recursively all CF computations. More...

virtual void	destructCFComputations (LinkInfo &info) const
	destroy recursively all results of initial computations. More...

Node *	getLowestNodeDealingAll (const std::list< OutPort * > &ports) const

void	checkLinksCoherenceRegardingControl (const std::vector< OutPort * > &starts, InputPort *end, LinkInfo &info) const

virtual void	checkControlDependancy (OutPort start, InPort end, bool cross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &fw, std::vector< OutPort * > &fwCross, std::map< ComposedNode , std::list< OutPort >, SortHierarc > &bw, LinkInfo &info) const =0

void	solveObviousOrDelegateCFLinks (const std::list< OutPort * > &starts, InputPort *end, unsigned char &alreadyFed, bool direction, LinkInfo &info) const

virtual void	checkCFLinks (const std::list< OutPort * > &starts, InputPort *end, unsigned char &alreadyFed, bool direction, LinkInfo &info) const
	check control flow links More...

Protected Member Functions inherited from YACS::ENGINE::Node
	Node (const std::string &name)

	Node (const Node &other, ComposedNode *father)

virtual void	performDuplicationOfPlacement (const Node &other)=0
	performs a duplication of placement using clone method of containers and components. clone behaviour is driven by attachOnCloning attribute. More...

virtual void	performShallowDuplicationOfPlacement (const Node &other)=0
	performs a also duplication of placement but here containers and components are not copied at all whatever the value of attachedOnCloning. More...

virtual Node *	simpleClone (ComposedNode *father, bool editionOnly=true) const =0

virtual void	exForwardFailed ()

virtual void	exForwardFinished ()

virtual void	edDisconnectAllLinksWithMe ()

Static Protected Member Functions
static bool	isNecessaryToBuildSpecificDelegateDF2DS (const std::list< ComposedNode * > &pointsOfView)

Static Protected Member Functions inherited from YACS::ENGINE::ComposedNode
static bool	splitNamesBySep (const std::string &globalName, const char separator[], std::string &firstPart, std::string &lastPart, bool priority)
	Splits name globalName in 2 parts using separator. More...

Static Protected Member Functions inherited from YACS::ENGINE::Node
static void	checkValidityOfPortName (const std::string &name)

static ComposedNode *	checkHavingCommonFather (Node node1, Node node2)

Protected Attributes
Node *	_node

int	_nbOfTurns

FakeNodeForLoop *	_nodeForNullTurnOfLoops

std::set< DSToDFForLoop * >	_inputsTraducer

std::set< DFToDSForLoop * >	_outputsTraducer

Protected Attributes inherited from YACS::ENGINE::Node
InGate	_inGate

OutGate	_outGate

InPropertyPort *	_inPropertyPort

std::string	_name

ComposedNode *	_father

YACS::StatesForNode	_state

int	_modified

std::string	_errorDetails

int	_numId

std::string	_implementation

std::map< std::string, std::string >	_propertyMap

Node *	_eventReceiver =nullptr

Friends
class	DSToDFForLoop

class	FakeNodeForLoop

void	NbDoneLoader (Loop *node, int val)

Additional Inherited Members
Public Attributes inherited from YACS::ENGINE::Node
YACS::Colour	_colour

Static Public Attributes inherited from YACS::ENGINE::ComposedNode
static const char	SEP_CHAR_BTW_LEVEL [] ="."

Static Public Attributes inherited from YACS::ENGINE::Node
static std::map< int, Node * >	idMap

Static Protected Attributes inherited from YACS::ENGINE::ComposedNode
static const unsigned char	FED_ST = 2

static const unsigned char	FREE_ST = 0

static const unsigned char	FED_DS_ST = 1

Static Protected Attributes inherited from YACS::ENGINE::Node
static const char	SEP_CHAR_IN_PORT [] ="."

static int	_total = 0

Detailed Description

Base class for loop node.

See also: ForLoop; WhileLoop

Definition at line 146 of file Loop.hxx.

Constructor & Destructor Documentation

◆ Loop() [1/2]

Loop::Loop	(	const Loop &	other,
		ComposedNode *	father,
		bool	editionOnly
	)

Definition at line 299 of file Loop.cxx.

                                                                   :StaticDefinedComposedNode(other,father),_nbOfTurns(0),_nodeForNullTurnOfLoops(0),_node(0)
{
  if(other._node)
    _node=other._node->simpleClone(this,editionOnly);
}

References _node, and YACS::ENGINE::Node::simpleClone().

◆ Loop() [2/2]

Loop::Loop ( const std::string & name )

Definition at line 305 of file Loop.cxx.

                               :StaticDefinedComposedNode(name),_node(0),_nbOfTurns(0),_nodeForNullTurnOfLoops(0)
{
}

◆ ~Loop()

Loop::~Loop ( )

Definition at line 309 of file Loop.cxx.

{
  delete _node;
  if(_nodeForNullTurnOfLoops)delete _nodeForNullTurnOfLoops;
  for(set<DSToDFForLoop *>::iterator iter1=_inputsTraducer.begin();iter1!=_inputsTraducer.end();iter1++)
    delete (*iter1);
  for(set<DFToDSForLoop *>::iterator iter2=_outputsTraducer.begin();iter2!=_outputsTraducer.end();iter2++)
    delete (*iter2);
}

References _inputsTraducer, _node, _nodeForNullTurnOfLoops, and _outputsTraducer.

Member Function Documentation

◆ accept()

void Loop::accept ( Visitor * visitor )

virtual

Reimplemented from YACS::ENGINE::ComposedNode.

Reimplemented in YACS::ENGINE::ForLoop, and YACS::ENGINE::WhileLoop.

Definition at line 674 of file Loop.cxx.

{
  visitor->visitLoop(this);
}

References YACS::ENGINE::Visitor::visitLoop().

◆ buildDelegateOf() [1/2]

void Loop::buildDelegateOf	(	InPort *&	port,
		OutPort *	initialStart,
		const std::list< ComposedNode * > &	pointsOfView
	)

protectedvirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 459 of file Loop.cxx.

{
  string typeOfPortInstance=port->getNameOfTypeOfCurrentInstance();
  if(typeOfPortInstance!=InputPort::NAME ||
     (typeOfPortInstance == InputPort::NAME &&
      initialStart->getNameOfTypeOfCurrentInstance()== OutputPort::NAME &&
      !isNecessaryToBuildSpecificDelegateDF2DS(pointsOfView)) )
    return ;
  InputPort *portCasted=(InputPort *)port;
  set<DSToDFForLoop*>::iterator iter;
  //Determinig if a DSToDFForLoop node has already been created for delegation of 'port'
  for(iter=_inputsTraducer.begin();iter!=_inputsTraducer.end();iter++)
    if((*iter)->getOutputPort("")->isAlreadyInSet(portCasted))
      break;
  if(iter==_inputsTraducer.end())
    {//first time that 'port' is delegated on higher level
      pair<set<DSToDFForLoop*>::iterator, bool> iter2=_inputsTraducer.insert(new DSToDFForLoop(this,portCasted->getName(),Loop::MappingDF2DS(portCasted->edGetType())));
      iter=iter2.first;
      (*iter)->getOutputPort("")->addInPort(portCasted);
    }
  else
    (*iter)->loopHasOneMoreRef();
  port=(*iter)->getInputDataStreamPort("");
}

References _inputsTraducer, DSToDFForLoop, YACS::ENGINE::DataPort::edGetType(), YACS::ENGINE::DataPort::getName(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), isNecessaryToBuildSpecificDelegateDF2DS(), MappingDF2DS(), YACS::ENGINE::InputPort::NAME, and YACS::ENGINE::OutputPort::NAME.

◆ buildDelegateOf() [2/2]

void Loop::buildDelegateOf	(	std::pair< OutPort , OutPort > &	port,
		InPort *	finalTarget,
		const std::list< ComposedNode * > &	pointsOfView
	)

protectedvirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 484 of file Loop.cxx.

{
  string typeOfPortInstance=(port.first)->getNameOfTypeOfCurrentInstance();
  if(typeOfPortInstance!=OutputPort::NAME ||
    ( typeOfPortInstance == OutputPort::NAME &&
      finalTarget->getNameOfTypeOfCurrentInstance()== InputPort::NAME &&
      !isNecessaryToBuildSpecificDelegateDF2DS(pointsOfView)) )
    return ;
  OutPort *portCasted=port.first;
  set<DFToDSForLoop*>::iterator iter;
  //Determinig if a DFToDSForLoop node has already been created for delegation of 'port'
  for(iter=_outputsTraducer.begin();iter!=_outputsTraducer.end();iter++)
    if(portCasted->isAlreadyLinkedWith((*iter)->getInputPort("")))
      break;
  DFToDSForLoop *kl;
  if(iter==_outputsTraducer.end())
    {//first time that 'port' is delegated on higher level
      //_outputsTraducer.insert(new DFToDSForLoop(this,portCasted->getName(),portCasted->edGetType()));
      kl=new DFToDSForLoop(this,portCasted->getName(),portCasted->edGetType());
      pair<set<DFToDSForLoop*>::iterator, bool> iter2=_outputsTraducer.insert(kl);
      iter=iter2.first;
      portCasted->addInPort((*iter)->getInputPort(""));
    }
  else
    {
      kl=*iter;
      kl->loopHasOneMoreRef();
    }
  edAddLink(isInMyDescendance((port.first)->getNode())->getOutGate(),kl->getInGate());
  port.first=(*iter)->getOutputDataStreamPort("");
}

References _outputsTraducer, YACS::ENGINE::OutPort::addInPort(), YACS::ENGINE::ComposedNode::edAddLink(), YACS::ENGINE::DataPort::edGetType(), YACS::ENGINE::Node::getInGate(), YACS::ENGINE::DataPort::getName(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), YACS::ENGINE::Node::getOutGate(), YACS::ENGINE::OutPort::isAlreadyLinkedWith(), YACS::ENGINE::ComposedNode::isInMyDescendance(), isNecessaryToBuildSpecificDelegateDF2DS(), YACS::ENGINE::DFToDSForLoop::loopHasOneMoreRef(), YACS::ENGINE::InputPort::NAME, and YACS::ENGINE::OutputPort::NAME.

◆ checkBasicConsistency()

void Loop::checkBasicConsistency ( ) const

virtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 693 of file Loop.cxx.

{
  DEBTRACE("Loop::checkBasicConsistency");
  ComposedNode::checkBasicConsistency();
  if(!_node)
    throw Exception("For a loop, internal node is mandatory");
}

References _node, YACS::ENGINE::ComposedNode::checkBasicConsistency(), and DEBTRACE.

◆ checkCFLinks()

void Loop::checkCFLinks	(	const std::list< OutPort * > &	starts,
		InputPort *	end,
		unsigned char &	alreadyFed,
		bool	direction,
		LinkInfo &	info
	)		const

protectedvirtual

check control flow links

Parameters

starts	If different of 0, must aggregate at leat 1 element.
end	:
alreadyFed	in/out parameter. Indicates if 'end' ports is already and surely set or fed by an another port.
direction	If true : forward direction else backward direction.
info	: informations collectedduring the check

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 612 of file Loop.cxx.

{
  Node *nodeEnd=end->getNode();
  if(nodeEnd==this)
    {//In this case 'end' port is a special port of this (for exemple ForLoop::_nbOfTimesPort)
      //ASSERT(!direction) see Loop::checkControlDependancy (bw only)
      solveObviousOrDelegateCFLinks(starts,end,alreadyFed,direction,info);
    }
  else
    StaticDefinedComposedNode::checkCFLinks(starts,end,alreadyFed,direction,info);
}

References YACS::ENGINE::ComposedNode::checkCFLinks(), YACS::ENGINE::Port::getNode(), and YACS::ENGINE::ComposedNode::solveObviousOrDelegateCFLinks().

◆ checkControlDependancy()

void Loop::checkControlDependancy	(	OutPort *	start,
		InPort *	end,
		bool	cross,
		std::map< ComposedNode , std::list< OutPort >, SortHierarc > &	fw,
		std::vector< OutPort * > &	fwCross,
		std::map< ComposedNode , std::list< OutPort >, SortHierarc > &	bw,
		LinkInfo &	info
	)		const

protectedvirtual

Implements YACS::ENGINE::ComposedNode.

Definition at line 679 of file Loop.cxx.

{
  //First testing if end==getDecisionPort. This is the only case possible in theory.
  if(end!=getDecisionPort())
    return StaticDefinedComposedNode::checkControlDependancy(start,end,cross,fw,fwCross,bw,info);
  if(cross)
    throw Exception("Internal error occured - cross type link detected on decision port of a loop. Forbidden !");
  fw[(ComposedNode *)this].push_back(start);
}

References YACS::ENGINE::StaticDefinedComposedNode::checkControlDependancy(), and getDecisionPort().

◆ checkNoCyclePassingThrough()

void Loop::checkNoCyclePassingThrough ( Node * node )

protectedvirtual

Implements YACS::ENGINE::ComposedNode.

Definition at line 607 of file Loop.cxx.

{
  //throw Exception("Loop::checkNoCyclePassingThrough : Internal error occured");
}

◆ edAddChild()

bool Loop::edAddChild ( Node * DISOWNnode )

virtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 353 of file Loop.cxx.

{
  return edSetNode(node);
}

References edSetNode().

◆ edAddDFLink()

bool Loop::edAddDFLink	(	OutPort *	start,
		InPort *	end
	)

virtual

Connect an OutPort to an InPort and add control link if necessary.

Connect the ports with a data link (edAddLink) In a Loop don't add control flow link : use this only to add data back links

Parameters

start	: the OutPort to connect
end	: the InPort to connect

Returns: true if a new link has been created, false otherwise.

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 647 of file Loop.cxx.

{
  return edAddLink(start,end);
}

References YACS::ENGINE::ComposedNode::edAddLink().

◆ edGetDirectDescendants()

std::list< Node * > Loop::edGetDirectDescendants ( ) const

virtual

Implements YACS::ENGINE::ComposedNode.

Definition at line 401 of file Loop.cxx.

{
  list<Node *> ret;
  if(_node)
    ret.push_back(_node);
  return ret;
}

References _node.

Referenced by YACS::ENGINE::ForLoop::getProgressWeight().

◆ edRemoveChild()

void Loop::edRemoveChild ( Node * node )

virtual

Remove a child node.

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 393 of file Loop.cxx.

{
  StaticDefinedComposedNode::edRemoveChild(node);
  if(_node==node)
    _node=0;
  modified();
}

References _node, YACS::ENGINE::ComposedNode::edRemoveChild(), and YACS::ENGINE::Node::modified().

◆ edRemoveNode()

Node * Loop::edRemoveNode ( )

Definition at line 358 of file Loop.cxx.

{
  StaticDefinedComposedNode::edRemoveChild(_node);
  Node *ret=_node;
  _node=0;
  modified();
  return ret;
}

References _node, YACS::ENGINE::ComposedNode::edRemoveChild(), and YACS::ENGINE::Node::modified().

◆ edSetNode()

Node * Loop::edSetNode ( Node * DISOWNnode )

Definition at line 331 of file Loop.cxx.

{
  if(_node==node)
    return 0;
  if(node)
    {
      if(node->_father)
        {
          string what = "Loop::edSetNode: node "; what += node->getName(); what += " is not orphan ! ";
          throw Exception(what);
        }
    }
  checkNoCrossHierachyWith(node);
  StaticDefinedComposedNode::edRemoveChild(_node);
  Node *ret=_node;
  _node=node;
  _node->_father=this;
  //set _modified flag so that edUpdateState() can refresh state
  modified();
  return ret;
}

References YACS::ENGINE::Node::_father, _node, YACS::ENGINE::ComposedNode::checkNoCrossHierachyWith(), YACS::ENGINE::ComposedNode::edRemoveChild(), YACS::ENGINE::Node::getName(), and YACS::ENGINE::Node::modified().

Referenced by edAddChild().

◆ getChildByShortName()

Node * Loop::getChildByShortName ( const std::string & name ) const

virtual

Implements YACS::ENGINE::ComposedNode.

Definition at line 440 of file Loop.cxx.

{
  if (_node)
    if(name==_node->getName())
      return _node;
  string what("node "); what+= name ; what+=" is not a child of loop node "; what += getName();
  throw Exception(what);
}

References _node, YACS::ENGINE::ComposedNode::getName(), and YACS::ENGINE::Node::getName().

◆ getDecisionPort()

virtual InputPort * YACS::ENGINE::Loop::getDecisionPort ( ) const

pure virtual

Returns the port which value is used to take decision about the continuation of the loop.

Implemented in YACS::ENGINE::ForLoop, and YACS::ENGINE::WhileLoop.

Referenced by checkControlDependancy(), and getSetOfInputPort().

◆ getDelegateOf() [1/2]

void Loop::getDelegateOf	(	InPort *&	port,
		OutPort *	initialStart,
		const std::list< ComposedNode * > &	pointsOfView
	)

protectedvirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 516 of file Loop.cxx.

{
  string typeOfPortInstance=port->getNameOfTypeOfCurrentInstance();
  if(typeOfPortInstance!=InputPort::NAME ||
     (typeOfPortInstance == InputPort::NAME &&
      initialStart->getNameOfTypeOfCurrentInstance()== OutputPort::NAME &&
      !isNecessaryToBuildSpecificDelegateDF2DS(pointsOfView)) )
    return ;
  InputPort *portCasted=(InputPort *)port;
  set<DSToDFForLoop*>::iterator iter;
  for(iter=_inputsTraducer.begin();iter!=_inputsTraducer.end();iter++)
    if((*iter)->getOutputPort("")->isAlreadyInSet(portCasted))
      break;
  if(iter==_inputsTraducer.end())
    {
      string what("Loop::getDelegateOf : Port with name "); what+=portCasted->getName(); what+=" not exported by loop "; what+=_name;
      throw Exception(what);
    }
  else
    port=(*iter)->getInputDataStreamPort("");
}

References _inputsTraducer, YACS::ENGINE::Node::_name, YACS::ENGINE::DataPort::getName(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), isNecessaryToBuildSpecificDelegateDF2DS(), YACS::ENGINE::InputPort::NAME, and YACS::ENGINE::OutputPort::NAME.

◆ getDelegateOf() [2/2]

void Loop::getDelegateOf	(	std::pair< OutPort , OutPort > &	port,
		InPort *	finalTarget,
		const std::list< ComposedNode * > &	pointsOfView
	)

protectedvirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 538 of file Loop.cxx.

{
  string typeOfPortInstance=(port.first)->getNameOfTypeOfCurrentInstance();
  if(typeOfPortInstance!=OutputPort::NAME ||
    ( typeOfPortInstance == OutputPort::NAME &&
      finalTarget->getNameOfTypeOfCurrentInstance()== InputPort::NAME &&
      !isNecessaryToBuildSpecificDelegateDF2DS(pointsOfView)) )
    return ;
  OutPort *portCasted=port.first;
  set<DFToDSForLoop*>::iterator iter;
  for(iter=_outputsTraducer.begin();iter!=_outputsTraducer.end();iter++)
    if(portCasted->isAlreadyLinkedWith((*iter)->getInputPort("")))
      break;
  if(iter==_outputsTraducer.end())
    {
      string what("Loop::getDelegateOf : Port with name "); what+=portCasted->getName(); what+=" not exported by loop "; what+=_name;
      throw Exception(what);
    }
  else
    port.first=(*iter)->getOutputDataStreamPort("");
}

References YACS::ENGINE::Node::_name, _outputsTraducer, YACS::ENGINE::DataPort::getName(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), YACS::ENGINE::OutPort::isAlreadyLinkedWith(), isNecessaryToBuildSpecificDelegateDF2DS(), YACS::ENGINE::InputPort::NAME, and YACS::ENGINE::OutputPort::NAME.

◆ getMaxLevelOfParallelism()

int Loop::getMaxLevelOfParallelism ( ) const

virtual

Implements YACS::ENGINE::Node.

Definition at line 421 of file Loop.cxx.

{
  if(!_node)
    return 0;
  return _node->getMaxLevelOfParallelism();
}

References _node, and YACS::ENGINE::Node::getMaxLevelOfParallelism().

◆ getNbOfTurns()

int YACS::ENGINE::Loop::getNbOfTurns ( ) const

inline

Definition at line 162 of file Loop.hxx.

162{ return _nbOfTurns; }

Referenced by YACS::ENGINE::ForLoop::getProgressWeight(), YACS::ENGINE::VisitorSaveState::visitForLoop(), YACS::ENGINE::VisitorSaveState::visitLoop(), and YACS::ENGINE::VisitorSaveState::visitWhileLoop().

◆ getNumberOfInputPorts()

int Loop::getNumberOfInputPorts ( ) const

virtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 416 of file Loop.cxx.

{
  return StaticDefinedComposedNode::getNumberOfInputPorts()+1;
}

References YACS::ENGINE::ComposedNode::getNumberOfInputPorts().

◆ getReadyTasks()

void Loop::getReadyTasks ( std::vector< Task * > & tasks )

virtual

Collect all the child nodes that are ready.

Parameters

tasks : vector of tasks to collect ready nodes

Implements YACS::ENGINE::Node.

Definition at line 371 of file Loop.cxx.

{
  if(!_node)
    return;
  /*
   * To change the way ComposedNode state is handled, uncomment the following line
   * see Bloc::getReadyTasks
   */
  if(_state==YACS::TOACTIVATE) setState(YACS::ACTIVATED);
  if(_state==YACS::TOACTIVATE || _state==YACS::ACTIVATED)
    if(_nodeForNullTurnOfLoops)
      _nodeForNullTurnOfLoops->getReadyTasks(tasks);
    else
      {
        _node->getReadyTasks(tasks);
        for(set<DSToDFForLoop *>::iterator iter1=_inputsTraducer.begin();iter1!=_inputsTraducer.end();iter1++)
          (*iter1)->getReadyTasks(tasks);
        for(set<DFToDSForLoop *>::iterator iter2=_outputsTraducer.begin();iter2!=_outputsTraducer.end();iter2++)
          (*iter2)->getReadyTasks(tasks);
      }
}

References _inputsTraducer, _node, _nodeForNullTurnOfLoops, _outputsTraducer, YACS::ENGINE::Node::_state, YACS::ACTIVATED, YACS::ENGINE::ElementaryNode::getReadyTasks(), YACS::ENGINE::Node::getReadyTasks(), YACS::ENGINE::Node::setState(), and YACS::TOACTIVATE.

◆ getSetOfInputPort()

std::list< InputPort * > Loop::getSetOfInputPort ( ) const

virtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 409 of file Loop.cxx.

{
  list<InputPort *> ret=StaticDefinedComposedNode::getSetOfInputPort();
  ret.push_back(getDecisionPort());
  return ret;
}

References getDecisionPort(), and YACS::ENGINE::ComposedNode::getSetOfInputPort().

◆ getWeightRegardingDPL()

void Loop::getWeightRegardingDPL ( ComplexWeight * weight )

virtual

Implements YACS::ENGINE::Node.

Definition at line 428 of file Loop.cxx.

{
  if(_node)
    _node->getWeightRegardingDPL(weight);
}

References _node, and YACS::ENGINE::Node::getWeightRegardingDPL().

◆ init()

void Loop::init ( bool start = true )

virtual

initialisation of all input and output ports and gates, for execution

Reimplemented from YACS::ENGINE::ComposedNode.

Reimplemented in YACS::ENGINE::WhileLoop.

Definition at line 319 of file Loop.cxx.

{
  StaticDefinedComposedNode::init(start);
  _nbOfTurns=0;
  if(_node)
    _node->init(start); // if start is true, refresh the internal node
  else
    throw Exception("Loop::initLoop : no nodes specifies to be repeated ");
  delete _nodeForNullTurnOfLoops;
  _nodeForNullTurnOfLoops=0;
}

References _nbOfTurns, _node, _nodeForNullTurnOfLoops, YACS::ENGINE::ComposedNode::init(), and YACS::ENGINE::Node::init().

Referenced by YACS::ENGINE::ForLoop::init(), and YACS::ENGINE::WhileLoop::init().

◆ isLoop()

bool YACS::ENGINE::Loop::isLoop ( ) const

inlineoverridevirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 166 of file Loop.hxx.

166{ return true; }

◆ isNecessaryToBuildSpecificDelegateDF2DS()

bool Loop::isNecessaryToBuildSpecificDelegateDF2DS ( const std::list< ComposedNode * > & pointsOfView )

staticprotected

Note: : States if a DF port must be considered on an upper level in hierarchy as a DS port or not from 'pointsOfView' observers.

Returns

:

True : a traduction DF->DS has to be done
False : no traduction needed

Definition at line 630 of file Loop.cxx.

{
  bool ret=false;
  for(list<ComposedNode *>::const_iterator iter=pointsOfView.begin();iter!=pointsOfView.end() && !ret;iter++)
    ret=(*iter)->isRepeatedUnpredictablySeveralTimes();
  return ret;
}

Referenced by buildDelegateOf(), getDelegateOf(), and releaseDelegateOf().

◆ isRepeatedUnpredictablySeveralTimes()

bool YACS::ENGINE::Loop::isRepeatedUnpredictablySeveralTimes ( ) const

inlinevirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 173 of file Loop.hxx.

173{ return true; }

◆ MappingDF2DS()

TypeCode * Loop::MappingDF2DS ( TypeCode * type )

static

Definition at line 449 of file Loop.cxx.

{
  return type;
}

Referenced by buildDelegateOf(), and YACS::ENGINE::DFToDSForLoop::DFToDSForLoop().

◆ MappingDS2DF()

TypeCode * Loop::MappingDS2DF ( TypeCode * type )

static

Definition at line 454 of file Loop.cxx.

{
  return type;
}

◆ partitionRegardingDPL()

void Loop::partitionRegardingDPL	(	const PartDefinition *	pd,
		std::map< ComposedNode *, YACS::BASES::AutoRefCnt< PartDefinition > > &	zeMap
	)

virtual

Implements YACS::ENGINE::Node.

Definition at line 434 of file Loop.cxx.

{
  if(_node)
    _node->partitionRegardingDPL(pd,zeMap);
}

References _node, and YACS::ENGINE::Node::partitionRegardingDPL().

◆ releaseDelegateOf() [1/2]

void Loop::releaseDelegateOf	(	InPort *&	port,
		OutPort *	initialStart,
		const std::list< ComposedNode * > &	pointsOfView
	)

protectedvirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 561 of file Loop.cxx.

{
  string typeOfPortInstance=port->getNameOfTypeOfCurrentInstance();
  if(typeOfPortInstance!=InputPort::NAME ||
    ( typeOfPortInstance == InputPort::NAME &&
      initialStart->getNameOfTypeOfCurrentInstance()== OutputPort::NAME &&
      !isNecessaryToBuildSpecificDelegateDF2DS(pointsOfView)) )
    return ;
  InputPort *portCasted=(InputPort *)port;
  set<DSToDFForLoop*>::iterator iter;
  for(iter=_inputsTraducer.begin();iter!=_inputsTraducer.end();iter++)
    if((*iter)->getOutputPort("")->isAlreadyInSet(portCasted))
      break;
  if(iter==_inputsTraducer.end())
    {
      string what("Loop::releaseDelegateOf Port with name "); what+=portCasted->getName(); what+=" not exported by loop "; what+=_name;
      throw Exception(what);
    }
  else
    {
      port=(*iter)->getInputDataStreamPort("");
      if((*iter)->loopHasOneLessRef())
        {
          (*iter)->getOutputPort("")->removeInPort(portCasted,false);
          delete (*iter);
          _inputsTraducer.erase(iter);
        }
    }
}

References _inputsTraducer, YACS::ENGINE::Node::_name, YACS::ENGINE::DataPort::getName(), YACS::ENGINE::DataPort::getNameOfTypeOfCurrentInstance(), isNecessaryToBuildSpecificDelegateDF2DS(), YACS::ENGINE::InputPort::NAME, and YACS::ENGINE::OutputPort::NAME.

◆ releaseDelegateOf() [2/2]

void Loop::releaseDelegateOf	(	OutPort *	portDwn,
		OutPort *	portUp,
		InPort *	finalTarget,
		const std::list< ComposedNode * > &	pointsOfView
	)

protectedvirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Definition at line 591 of file Loop.cxx.

{
  if(portDwn==portUp)
    return ;
  set<DFToDSForLoop*>::iterator iter;
  for(iter=_outputsTraducer.begin();iter!=_outputsTraducer.end();iter++)
    if((*iter)->getOutputDataStreamPort("")==portUp)
      break;
  if((*iter)->loopHasOneLessRef())
    {
      portDwn->removeInPort((*iter)->getInputPort(""),false);
      delete (*iter);
      _outputsTraducer.erase(iter);
    }
}

References _outputsTraducer, and YACS::ENGINE::OutPort::removeInPort().

◆ typeName()

virtual std::string YACS::ENGINE::Loop::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::ComposedNode.

Reimplemented in YACS::ENGINE::ForLoop, and YACS::ENGINE::WhileLoop.

Definition at line 186 of file Loop.hxx.

186{return "YACS__ENGINE__Loop";}

◆ writeDot()

void Loop::writeDot ( std::ostream & os ) const

virtual

Dump the node state to a stream.

Parameters

os	: the output stream

Reimplemented from YACS::ENGINE::Node.

Definition at line 656 of file Loop.cxx.

{
  os << "  subgraph cluster_" << getId() << "  {\n" ;
  //only one node in a loop
  if(_node)
    {
      _node->writeDot(os);
      os << getId() << " -> " << _node->getId() << ";\n";
    }
  os << "}\n" ;
  os << getId() << "[fillcolor=\"" ;
  YACS::StatesForNode state=getEffectiveState();
  os << getColorState(state);
  os << "\" label=\"" << "Loop:" ;
  os << getQualifiedName() <<"\"];\n";
}

References _node, YACS::ENGINE::Node::getColorState(), YACS::ENGINE::Node::getEffectiveState(), YACS::ENGINE::Node::getId(), YACS::ENGINE::Node::getQualifiedName(), yacsorb.CORBAEngineTest::state, and YACS::ENGINE::Node::writeDot().

Friends And Related Function Documentation

◆ DSToDFForLoop

friend class DSToDFForLoop

friend

Definition at line 148 of file Loop.hxx.

Referenced by buildDelegateOf().

◆ FakeNodeForLoop

friend class FakeNodeForLoop

friend

Definition at line 149 of file Loop.hxx.

Referenced by YACS::ENGINE::ForLoop::exUpdateState(), and YACS::ENGINE::WhileLoop::exUpdateState().

◆ NbDoneLoader

void NbDoneLoader	(	Loop *	node,
		int	val
	)

friend

Member Data Documentation

◆ _inputsTraducer

std::set<DSToDFForLoop *> YACS::ENGINE::Loop::_inputsTraducer

protected

Definition at line 155 of file Loop.hxx.

Referenced by buildDelegateOf(), getDelegateOf(), getReadyTasks(), releaseDelegateOf(), and ~Loop().

◆ _nbOfTurns

int YACS::ENGINE::Loop::_nbOfTurns

protected

Definition at line 153 of file Loop.hxx.

Referenced by YACS::ENGINE::ForLoop::getProgress(), YACS::ENGINE::ForLoop::init(), init(), YACS::ENGINE::NbDoneLoader(), YACS::ENGINE::ForLoop::updateStateOnFinishedEventFrom(), and YACS::ENGINE::WhileLoop::updateStateOnFinishedEventFrom().

◆ _node

Node* YACS::ENGINE::Loop::_node

protected

Definition at line 152 of file Loop.hxx.

Referenced by checkBasicConsistency(), edGetDirectDescendants(), edRemoveChild(), edRemoveNode(), edSetNode(), YACS::ENGINE::ForLoop::exUpdateState(), YACS::ENGINE::WhileLoop::exUpdateState(), getChildByShortName(), getMaxLevelOfParallelism(), getReadyTasks(), getWeightRegardingDPL(), init(), Loop(), partitionRegardingDPL(), YACS::ENGINE::ForLoop::updateStateOnFinishedEventFrom(), writeDot(), and ~Loop().

◆ _nodeForNullTurnOfLoops

FakeNodeForLoop* YACS::ENGINE::Loop::_nodeForNullTurnOfLoops

protected

Definition at line 154 of file Loop.hxx.

Referenced by YACS::ENGINE::ForLoop::exUpdateState(), YACS::ENGINE::WhileLoop::exUpdateState(), getReadyTasks(), init(), and ~Loop().

◆ _outputsTraducer

std::set<DFToDSForLoop *> YACS::ENGINE::Loop::_outputsTraducer

protected

Definition at line 156 of file Loop.hxx.

Referenced by buildDelegateOf(), getDelegateOf(), getReadyTasks(), releaseDelegateOf(), and ~Loop().

The documentation for this class was generated from the following files:

src/engine/Loop.hxx
src/engine/Loop.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Loop() [1/2]

◆ Loop() [2/2]

◆ ~Loop()

Member Function Documentation

◆ accept()

◆ buildDelegateOf() [1/2]

◆ buildDelegateOf() [2/2]

◆ checkBasicConsistency()

◆ checkCFLinks()

◆ checkControlDependancy()

◆ checkNoCyclePassingThrough()

◆ edAddChild()

◆ edAddDFLink()

◆ edGetDirectDescendants()

◆ edRemoveChild()

◆ edRemoveNode()

◆ edSetNode()

◆ getChildByShortName()

◆ getDecisionPort()

◆ getDelegateOf() [1/2]

◆ getDelegateOf() [2/2]

◆ getMaxLevelOfParallelism()

◆ getNbOfTurns()

◆ getNumberOfInputPorts()

◆ getReadyTasks()

◆ getSetOfInputPort()

◆ getWeightRegardingDPL()

◆ init()

◆ isLoop()

◆ isNecessaryToBuildSpecificDelegateDF2DS()

◆ isRepeatedUnpredictablySeveralTimes()

◆ MappingDF2DS()

◆ MappingDS2DF()

◆ partitionRegardingDPL()

◆ releaseDelegateOf() [1/2]

◆ releaseDelegateOf() [2/2]

◆ typeName()

◆ writeDot()

Friends And Related Function Documentation

◆ DSToDFForLoop

◆ FakeNodeForLoop

◆ NbDoneLoader

Member Data Documentation

◆ _inputsTraducer

◆ _nbOfTurns

◆ _node

◆ _nodeForNullTurnOfLoops

◆ _outputsTraducer
