#include <PythonCORBAConv.hxx>

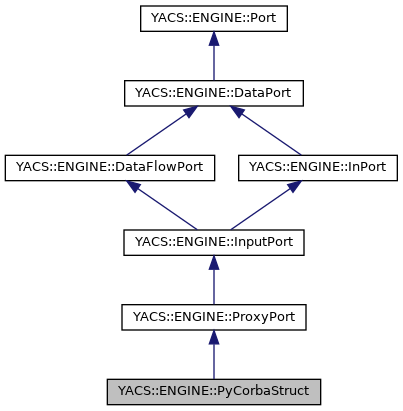

Inheritance diagram for YACS::ENGINE::PyCorbaStruct:

[legend]

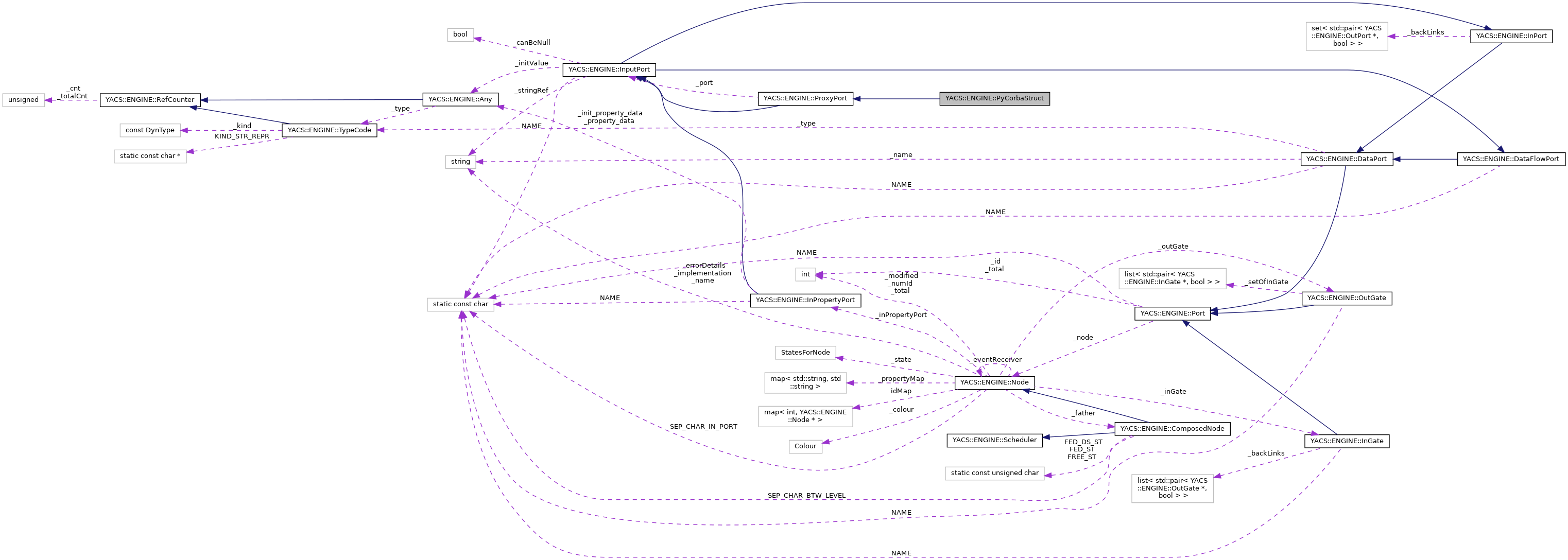

Collaboration diagram for YACS::ENGINE::PyCorbaStruct:

[legend]

Public Member Functions
	PyCorbaStruct (InputCorbaPort *p)
	Class PyCorbaStruct is a proxy port that converts a PyObject object (of type struct) to a CORBA::Any object (of type struct) More...

virtual void	put (const void *data)

void	put (PyObject *data)
	Convert a PyObject (struct) to CORBA::Any (struct) More...

Public Member Functions inherited from YACS::ENGINE::ProxyPort
	ProxyPort (InputPort *p)

	~ProxyPort ()

void	edRemoveAllLinksLinkedWithMe ()

InputPort *	clone (Node *newHelder) const

void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true) override

void	edNotifyDereferencedBy (OutPort *fromPort)

std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

void *	get () const

virtual void	put (const void *data)

void	releaseData () override

int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

bool	isIntermediate () const

void	exRestoreInit ()

void	exSaveInit ()

void	getAllRepresentants (std::set< InPort * > &repr) const

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

virtual bool	isIntermediate () const

virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual void	exSaveInit ()=0

virtual void	exRestoreInit ()=0

virtual InputPort *	clone (Node *newHelder) const =0

virtual bool	isEmpty ()

virtual void *	get () const =0

virtual void	releaseData ()=0

virtual void	put (const void *data)=0

virtual std::string	dump ()

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

virtual std::string	typeName ()

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
std::string	getNameOfTypeOfCurrentInstance () const

TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	typeName ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

std::string	getNameOfTypeOfCurrentInstance () const

virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

bool	isDifferentTypeOf (const DataPort *other) const

virtual void	edRemoveAllLinksLinkedWithMe ()=0

virtual std::string	typeName ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

virtual std::string	getNameOfTypeOfCurrentInstance () const

int	getNumId () const

virtual std::string	typeName ()

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual InPort *	getPublicRepresentant ()

virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

virtual std::string	typeName ()

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Protected Attributes inherited from YACS::ENGINE::ProxyPort
InputPort *	_port

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 89 of file PythonCORBAConv.hxx.

Constructor & Destructor Documentation

◆ PyCorbaStruct()

PyCorbaStruct::PyCorbaStruct ( InputCorbaPort * p )

Class PyCorbaStruct is a proxy port that converts a PyObject object (of type struct) to a CORBA::Any object (of type struct)

Parameters

p	: the input CORBA port to adapt to Python output port

Definition at line 203 of file PythonCORBAConv.cxx.

  : ProxyPort(p), DataPort(p->getName(), p->getNode(), p->edGetType()), Port(p->getNode())
{
}

Member Function Documentation

◆ put() [1/2]

void PyCorbaStruct::put ( const void * data )

virtual

Reimplemented from YACS::ENGINE::ProxyPort.

Definition at line 208 of file PythonCORBAConv.cxx.

{
  put((PyObject *)data);
}

References put().

Referenced by put().

◆ put() [2/2]

void PyCorbaStruct::put ( PyObject * data )

Convert a PyObject (struct) to CORBA::Any (struct)

Parameters

data	: python object

Definition at line 217 of file PythonCORBAConv.cxx.

{
  DEBTRACE("data refcnt: " << data->ob_refcnt);
#ifdef _DEVDEBUG_
  PyObject_Print(data,stderr,Py_PRINT_RAW);
  std::cerr << std::endl;
#endif
  CORBA::Any *a= convertPyObjectCorba(_port->edGetType(),data);
  YACS::ENGINE::InterpreterSaveThread _loc;
  _port->put(a);
#ifdef REFCNT
  DEBTRACE("refcount CORBA structTC: " << ((omni::TypeCode_base*)a->pd_tc.in())->pd_ref_count);
#endif
  //delete Any that has been allocated by convertPyObjectCorba
  delete a;
#ifdef REFCNT
  DEBTRACE("refcount CORBA structTC: " << ((omni::TypeCode_base*)((InputCorbaPort*)_port)->getAny()->pd_tc.in())->pd_ref_count);
#endif
}

References YACS::ENGINE::ProxyPort::_port, gui.CONNECTOR::a, YACS::ENGINE::convertPyObjectCorba(), DEBTRACE, YACS::ENGINE::DataPort::edGetType(), and YACS::ENGINE::InputPort::put().

The documentation for this class was generated from the following files:

src/runtime/PythonCORBAConv.hxx
src/runtime/PythonCORBAConv.cxx
