#include <ConditionInputPort.hxx>

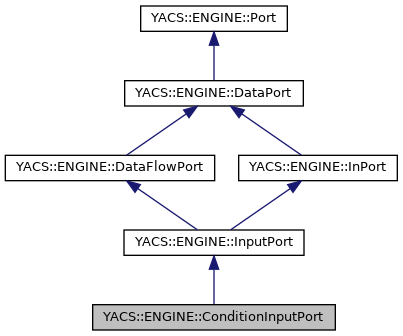

Inheritance diagram for YACS::ENGINE::ConditionInputPort:

[legend]

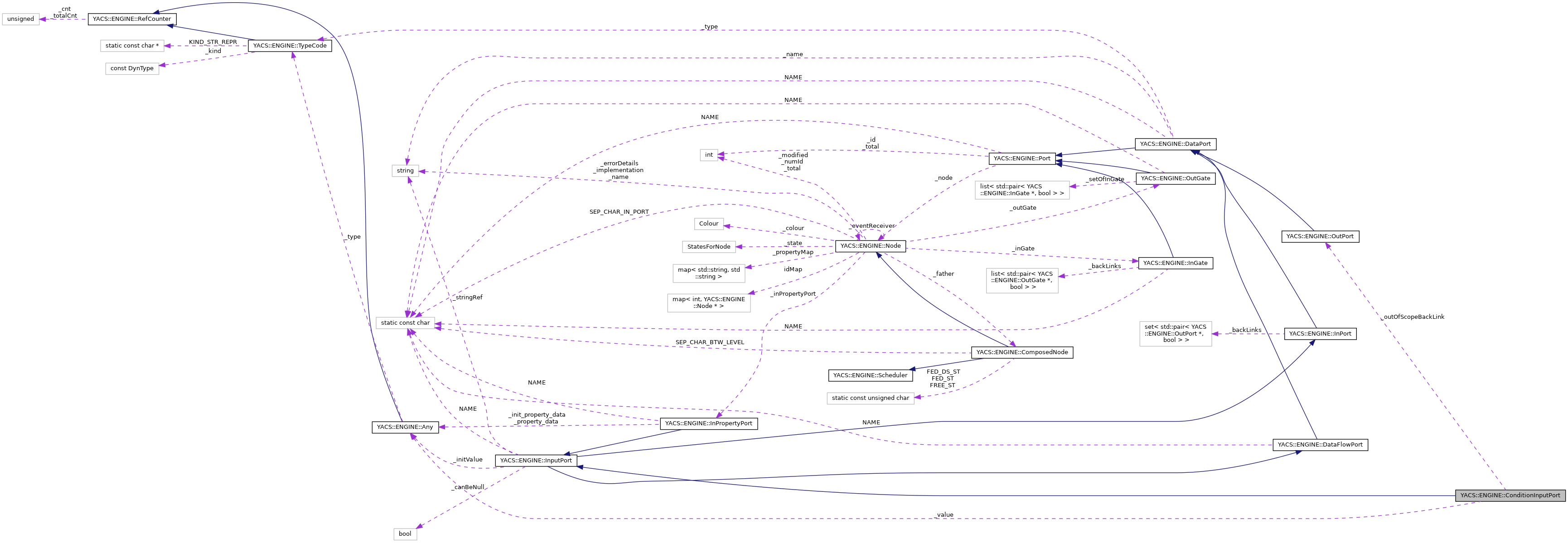

Collaboration diagram for YACS::ENGINE::ConditionInputPort:

[legend]

Public Member Functions
void	exSaveInit ()

void	exRestoreInit ()

bool	isLinkedOutOfScope () const

void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof) override

void	edNotifyDereferencedBy (OutPort *fromPort)

void *	get () const

virtual void	put (const void *data)

void	put (Any *data)

void	releaseData () override

std::string	dump ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

bool	getValue () const

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

virtual bool	isIntermediate () const

virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual bool	isEmpty ()

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

Protected Attributes
Any *	_value

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Private Member Functions
	ConditionInputPort (const std::string &name, WhileLoop *node)

	ConditionInputPort (const ConditionInputPort &other, Node *newHelder)

virtual	~ConditionInputPort ()

InputPort *	clone (Node *newHelder) const

Private Attributes
OutPort *	_outOfScopeBackLink

Friends
class	WhileLoop

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 32 of file ConditionInputPort.hxx.

Constructor & Destructor Documentation

◆ ConditionInputPort() [1/2]

ConditionInputPort::ConditionInputPort	(	const std::string &	name,
		WhileLoop *	node
	)

private

Definition at line 29 of file ConditionInputPort.cxx.

                                                                             :InputPort(name,node,Runtime::_tc_bool),
                                                                                  DataPort(name,node,Runtime::_tc_bool),
                                                                                  Port(node),_outOfScopeBackLink(0),_value(0)
 {
 }

Referenced by clone().

◆ ConditionInputPort() [2/2]

ConditionInputPort::ConditionInputPort	(	const ConditionInputPort &	other,
		Node *	newHelder
	)

private

Definition at line 35 of file ConditionInputPort.cxx.

                                                                                       :InputPort(other,newHelder),
                                                                                          DataPort(other,newHelder),Port(other,newHelder),
                                                                                          _outOfScopeBackLink(0),_value(0)
 {
   if(other._value)
     _value=other._value->clone();
 }

References _value, and YACS::ENGINE::Any::clone().

◆ ~ConditionInputPort()

ConditionInputPort::~ConditionInputPort ( )

privatevirtual

Definition at line 43 of file ConditionInputPort.cxx.

 {
   if(_value)
     _value->decrRef();
 }

References _value, and YACS::ENGINE::RefCounter::decrRef().

Member Function Documentation

◆ clone()

InputPort * ConditionInputPort::clone ( Node * newHelder ) const

privatevirtual

Implements YACS::ENGINE::InputPort.

Definition at line 66 of file ConditionInputPort.cxx.

 {
   return new ConditionInputPort(*this,newHelder);
 }

References ConditionInputPort().

◆ dump()

std::string ConditionInputPort::dump ( )

virtual

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 121 of file ConditionInputPort.cxx.

 {
   string xmldump;
   if (_value->getBoolValue())
     xmldump="<value><boolean>true</boolean></value>\n";
   else
     xmldump="<value><boolean>false</boolean></value>\n";
   return xmldump;
 }

References _value, and YACS::ENGINE::Any::getBoolValue().

◆ edNotifyDereferencedBy()

void ConditionInputPort::edNotifyDereferencedBy ( OutPort * fromPort )

virtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 87 of file ConditionInputPort.cxx.

 {
   if(fromPort==_outOfScopeBackLink)
     _outOfScopeBackLink=0;
   else
     if(!((ComposedNode*)(_node))->isInMyDescendance(fromPort->getNode()))
       throw Exception("ConditionInputPort::edNotifyDereferencedBy link does not exists");
   InputPort::edNotifyDereferencedBy(fromPort);
 }

References YACS::ENGINE::Port::_node, _outOfScopeBackLink, YACS::ENGINE::InPort::edNotifyDereferencedBy(), and YACS::ENGINE::Port::getNode().

◆ edNotifyReferencedBy()

void ConditionInputPort::edNotifyReferencedBy	(	OutPort *	fromPort,
		bool	isLoopProof
	)

overridevirtual

Parameters

[in] isLoopProof - Tells if the data coming from fromPort will be send again in case of this is initialized. This value is important if this is an InPort of a Node contained directly or not inside a Loop, ForEachLoop, OptimizerLoop. In this case, to optimize memory consumption (see squeezeMemory method), we need to know if data coming from fromPort will be generated again in case. If true (the default) it means that for that link is a link loop proof so no need to take care. If false, the link is not loop proof so event in the context of agressive memory management the data can't be safely released.

Reimplemented from YACS::ENGINE::InPort.

Definition at line 76 of file ConditionInputPort.cxx.

 {
   if(!((ComposedNode*)(_node))->isInMyDescendance(fromPort->getNode()))
     {
       if(_outOfScopeBackLink)
         throw Exception("ConditionInputPort::edNotifyReferenced : already linked from outside");
       _outOfScopeBackLink=fromPort;
     }
   InputPort::edNotifyReferencedBy(fromPort,isLoopProof);
 }

References YACS::ENGINE::Port::_node, _outOfScopeBackLink, YACS::ENGINE::InPort::edNotifyReferencedBy(), and YACS::ENGINE::Port::getNode().

◆ exRestoreInit()

void ConditionInputPort::exRestoreInit ( )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 56 of file ConditionInputPort.cxx.

 {
   if(!_initValue)
     return;
   if(_value)
     _value->decrRef();
   _value=_initValue;
   _value->incrRef();
 }

References YACS::ENGINE::InputPort::_initValue, _value, YACS::ENGINE::RefCounter::decrRef(), and YACS::ENGINE::RefCounter::incrRef().

◆ exSaveInit()

void ConditionInputPort::exSaveInit ( )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 49 of file ConditionInputPort.cxx.

 {
   if(_initValue) _initValue->decrRef();
   _initValue=_value;
   _initValue->incrRef();
 }

References YACS::ENGINE::InputPort::_initValue, _value, YACS::ENGINE::RefCounter::decrRef(), and YACS::ENGINE::RefCounter::incrRef().

◆ get()

void * ConditionInputPort::get ( ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 97 of file ConditionInputPort.cxx.

 {
   return (void *)_value;
 }

References _value.

◆ getAsString()

std::string ConditionInputPort::getAsString ( )

virtual

returns port value as a string that can be used in a GUI for example

Do nothing here. To subclass

Reimplemented from YACS::ENGINE::DataPort.

Definition at line 131 of file ConditionInputPort.cxx.

 {
   return (getValue() ? "True" : "False");
 }

References getValue().

◆ getValue()

bool YACS::ENGINE::ConditionInputPort::getValue ( ) const

inline

Definition at line 56 of file ConditionInputPort.hxx.

56 { return (_value ? _value->getBoolValue() : false); }

References YACS::ENGINE::Any::getBoolValue().

Referenced by YACS::ENGINE::WhileLoop::exUpdateState(), getAsString(), and YACS::ENGINE::WhileLoop::updateStateOnFinishedEventFrom().

◆ isLinkedOutOfScope()

bool ConditionInputPort::isLinkedOutOfScope ( ) const

Definition at line 71 of file ConditionInputPort.cxx.

 {
   return _outOfScopeBackLink!=0;
 }

References _outOfScopeBackLink.

Referenced by YACS::ENGINE::WhileLoop::exUpdateState().

◆ put() [1/2]

void ConditionInputPort::put ( Any * data )

Definition at line 114 of file ConditionInputPort.cxx.

 {
   ConditionInputPort::releaseData();
   _value=data;
   _value->incrRef();
 }

References _value, YACS::ENGINE::RefCounter::incrRef(), and releaseData().

◆ put() [2/2]

void ConditionInputPort::put ( const void * data )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 102 of file ConditionInputPort.cxx.

 {
   put((Any*)data);
 }

◆ releaseData()

void ConditionInputPort::releaseData ( )

overridevirtual

Implements YACS::ENGINE::InputPort.

Definition at line 107 of file ConditionInputPort.cxx.

 {
   if(_value)
     _value->decrRef();
   _value=nullptr;
 }

References _value, and YACS::ENGINE::RefCounter::decrRef().

Referenced by put().

◆ typeName()

virtual std::string YACS::ENGINE::ConditionInputPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::InputPort.

Definition at line 57 of file ConditionInputPort.hxx.

57 {return "YACS__ENGINE__ConditionInputPort";}

Friends And Related Function Documentation

◆ WhileLoop

friend class WhileLoop

friend

Definition at line 34 of file ConditionInputPort.hxx.

Member Data Documentation

◆ _outOfScopeBackLink

OutPort* YACS::ENGINE::ConditionInputPort::_outOfScopeBackLink

private

Definition at line 36 of file ConditionInputPort.hxx.

Referenced by edNotifyDereferencedBy(), edNotifyReferencedBy(), and isLinkedOutOfScope().

◆ _value

Any* YACS::ENGINE::ConditionInputPort::_value

protected

Definition at line 54 of file ConditionInputPort.hxx.

Referenced by ConditionInputPort(), dump(), exRestoreInit(), exSaveInit(), get(), put(), releaseData(), and ~ConditionInputPort().

The documentation for this class was generated from the following files:

src/engine/ConditionInputPort.hxx
src/engine/ConditionInputPort.cxx

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ConditionInputPort() [1/2]

◆ ConditionInputPort() [2/2]

◆ ~ConditionInputPort()

Member Function Documentation

◆ clone()

◆ dump()

◆ edNotifyDereferencedBy()

◆ edNotifyReferencedBy()

◆ exRestoreInit()

◆ exSaveInit()

◆ get()

◆ getAsString()

◆ getValue()

◆ isLinkedOutOfScope()

◆ put() [1/2]

◆ put() [2/2]

◆ releaseData()

◆ typeName()

Friends And Related Function Documentation

◆ WhileLoop

Member Data Documentation

◆ _outOfScopeBackLink

◆ _value
