#include <Loop.hxx>

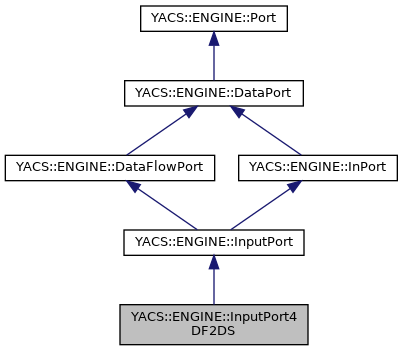

Inheritance diagram for YACS::ENGINE::InputPort4DF2DS:

[legend]

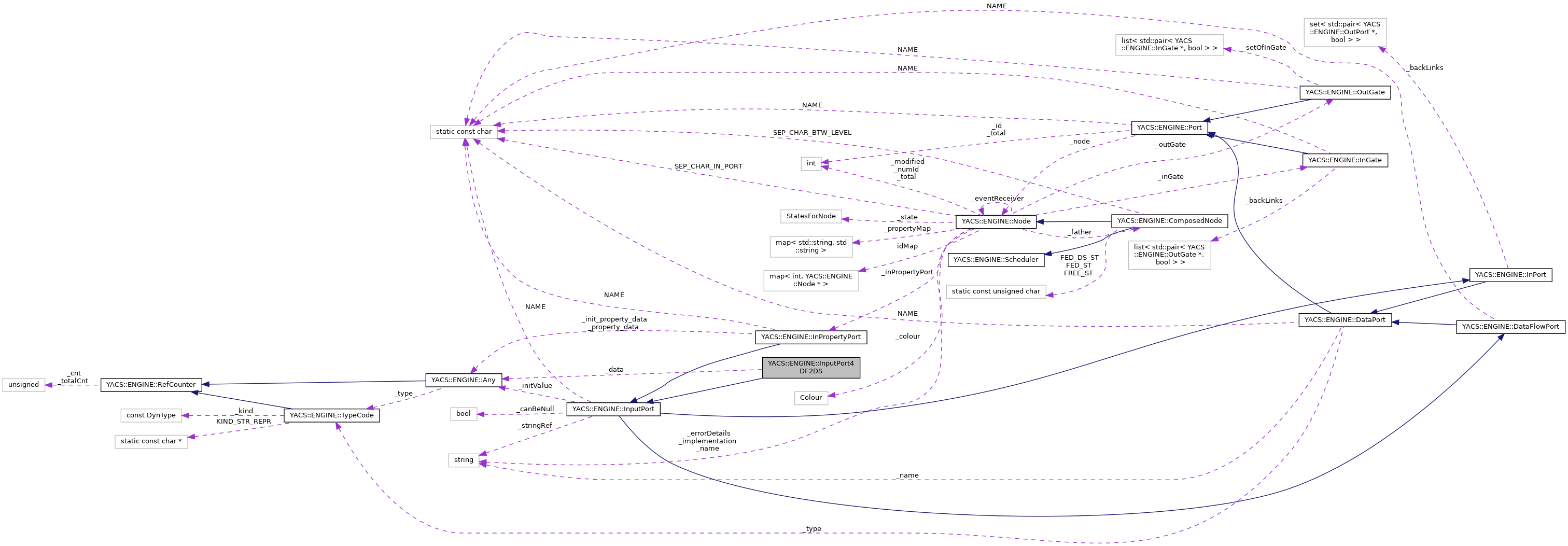

Collaboration diagram for YACS::ENGINE::InputPort4DF2DS:

[legend]

Public Member Functions
	InputPort4DF2DS (DFToDSForLoop node, TypeCode type)

void	getAllRepresentants (std::set< InPort * > &repr) const

void	releaseData () override

void	put (const void *data)

InputPort *	clone (Node *newHelder) const

void *	get () const

void	exRestoreInit ()

void	exSaveInit ()

void	put (Any *data)

	~InputPort4DF2DS ()

Public Member Functions inherited from YACS::ENGINE::InputPort
virtual	~InputPort ()

std::string	getNameOfTypeOfCurrentInstance () const

virtual InputPort *	getPublicRepresentant ()
	returns the final physical port behind 'this'. More...

virtual bool	isIntermediate () const

virtual bool	edIsManuallyInitialized () const
	Specifies if this port has been manually set by the call of InputPort::edInit. More...

bool	edIsInitialized () const
	soon deprecated More...

template<class T >
void	edInit (T value)

void	edInit (Any *value)

void	edInit (const std::string &impl, const void *value)
	Initialize the port with an object (value) coming from a world with implementation impl. More...

virtual void	edRemoveManInit ()
	Removes eventually previous manual initialisation. More...

virtual void	checkBasicConsistency () const
	Check basically that this port has one chance to be specified on time. It's a necessary condition not sufficient at all. More...

virtual void	exInit (bool start)

virtual void	exSaveInit ()=0

virtual void	exRestoreInit ()=0

virtual InputPort *	clone (Node *newHelder) const =0

virtual bool	isEmpty ()

virtual void *	get () const =0

virtual void	releaseData ()=0

virtual void	put (const void *data)=0

virtual std::string	dump ()

virtual std::string	getHumanRepr ()

virtual void	setStringRef (std::string strRef)

virtual std::string	typeName ()

bool	canBeNull () const

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
std::string	getNameOfTypeOfCurrentInstance () const

TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	typeName ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

std::string	getNameOfTypeOfCurrentInstance () const

virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

bool	isDifferentTypeOf (const DataPort *other) const

virtual void	edRemoveAllLinksLinkedWithMe ()=0

virtual std::string	typeName ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

virtual std::string	getNameOfTypeOfCurrentInstance () const

int	getNumId () const

virtual std::string	typeName ()

void	modified ()

Public Member Functions inherited from YACS::ENGINE::InPort
virtual InPort *	getPublicRepresentant ()

virtual int	edGetNumberOfLinks () const
	Returns number of physical backlinks NOT number of user backlinks. More...

virtual std::set< OutPort * >	edSetOutPort () const
	Returns physical backlinks NOT user backlinks. More...

bool	canSafelySqueezeMemory () const

bool	isBackLinked () const

virtual	~InPort ()

virtual std::string	typeName ()

Protected Attributes
Any *	_data

Protected Attributes inherited from YACS::ENGINE::InputPort
Any *	_initValue

std::string	_stringRef

bool	_canBeNull

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Protected Attributes inherited from YACS::ENGINE::InPort
std::set< std::pair< OutPort *, bool > >	_backLinks

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::InputPort
static const char	NAME [] ="InputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::InputPort
	InputPort (const InputPort &other, Node *newHelder)

	InputPort (const std::string &name, Node node, TypeCode type, bool canBeNull=false)

void	releaseDataUnsafe ()

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::InPort
	InPort (const InPort &other, Node *newHelder)

	InPort (const std::string &name, Node node, TypeCode type)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	edNotifyReferencedBy (OutPort *fromPort, bool isLoopProof=true)

virtual void	edNotifyDereferencedBy (OutPort *fromPort)

virtual void	getAllRepresentants (std::set< InPort * > &repr) const

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Definition at line 41 of file Loop.hxx.

Constructor & Destructor Documentation

◆ InputPort4DF2DS()

InputPort4DF2DS::InputPort4DF2DS	(	DFToDSForLoop *	node,
		TypeCode *	type
	)

Definition at line 37 of file Loop.cxx.

                                                                   :
  InputPort("", node, type),
  DataPort("", node, type),
  Port(node),_data(0)
{
}

◆ ~InputPort4DF2DS()

InputPort4DF2DS::~InputPort4DF2DS ( )

Definition at line 102 of file Loop.cxx.

{
  if(_data)
    _data->decrRef();
}

References _data, and YACS::ENGINE::RefCounter::decrRef().

Member Function Documentation

◆ clone()

InputPort * InputPort4DF2DS::clone ( Node * newHelder ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 83 of file Loop.cxx.

{
  throw Exception("InputPort4DF2DS::clone : internal error");
}

◆ exRestoreInit()

void InputPort4DF2DS::exRestoreInit ( )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 60 of file Loop.cxx.

{
  if(!_initValue)
    return;
  if(_data)
    _data->decrRef();
  _data=_initValue;
  _data->incrRef();
}

References _data, YACS::ENGINE::InputPort::_initValue, YACS::ENGINE::RefCounter::decrRef(), and YACS::ENGINE::RefCounter::incrRef().

◆ exSaveInit()

void InputPort4DF2DS::exSaveInit ( )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 70 of file Loop.cxx.

{
  if(_initValue)
    _initValue->decrRef();
  _initValue=_data;
  _initValue->incrRef();
}

References _data, YACS::ENGINE::InputPort::_initValue, YACS::ENGINE::RefCounter::decrRef(), and YACS::ENGINE::RefCounter::incrRef().

◆ get()

void * InputPort4DF2DS::get ( ) const

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 50 of file Loop.cxx.

{
  if(!_data)
    {
      std::string what="InputPort4DF2DS::get : no value currently in input whith name \""; what+=_name; what+="\"";
      throw Exception(what);
    }
  return (void *)_data;
}

References _data, and YACS::ENGINE::DataPort::_name.

◆ getAllRepresentants()

void InputPort4DF2DS::getAllRepresentants ( std::set< InPort * > & repr ) const

virtual

Reimplemented from YACS::ENGINE::InPort.

Definition at line 44 of file Loop.cxx.

{
  set<InPort *> s=_node->getOutputDataStreamPort("")->edSetInPort();
  repr.insert(s.begin(),s.end());
}

References YACS::ENGINE::Port::_node, YACS::ENGINE::OutputDataStreamPort::edSetInPort(), and YACS::ENGINE::Node::getOutputDataStreamPort().

◆ put() [1/2]

void InputPort4DF2DS::put ( Any * data )

Definition at line 95 of file Loop.cxx.

{
  InputPort4DF2DS::releaseData();
  _data=data;
  _data->incrRef();
}

References _data, YACS::ENGINE::RefCounter::incrRef(), and releaseData().

◆ put() [2/2]

void InputPort4DF2DS::put ( const void * data )

virtual

Implements YACS::ENGINE::InputPort.

Definition at line 78 of file Loop.cxx.

{
  put((Any *)data);
}

References put().

Referenced by put().

◆ releaseData()

void InputPort4DF2DS::releaseData ( )

overridevirtual

Implements YACS::ENGINE::InputPort.

Definition at line 88 of file Loop.cxx.

{
  if(_data)
    _data->decrRef();
  _data = nullptr;
}

References _data, and YACS::ENGINE::RefCounter::decrRef().

Referenced by put().

Member Data Documentation

◆ _data

Any* YACS::ENGINE::InputPort4DF2DS::_data

protected

Definition at line 55 of file Loop.hxx.

Referenced by exRestoreInit(), exSaveInit(), get(), put(), releaseData(), and ~InputPort4DF2DS().

The documentation for this class was generated from the following files:

src/engine/Loop.hxx
src/engine/Loop.cxx
