YACS::parametertypeParser Struct Reference

#include <xmlrpcParsers.hxx>

Inheritance diagram for YACS::parametertypeParser:

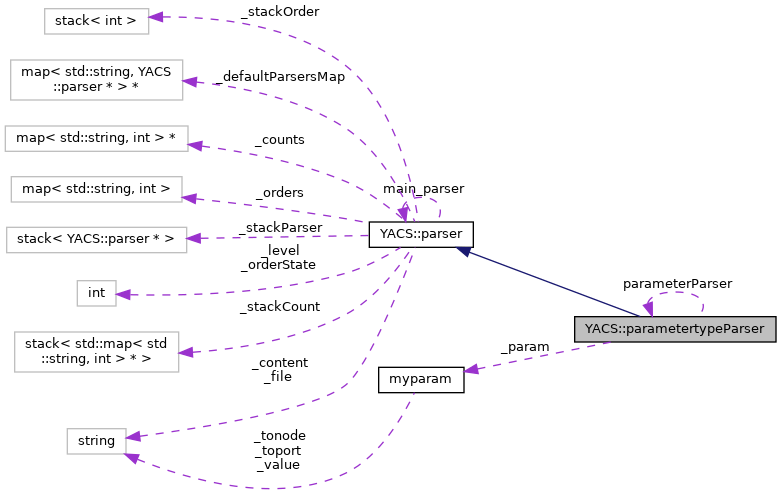

Collaboration diagram for YACS::parametertypeParser:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	pre ()
virtual void	tonode (const std::string &name)
virtual void	toport (const std::string &name)
virtual void	value (const std::string &name)
virtual myparam &	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
virtual void	buildAttr (const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
myparam	_param
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static parametertypeParser	parameterParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Definition at line 160 of file xmlrpcParsers.hxx.

Member Function Documentation

onEnd()

void YACS::parametertypeParser::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 271 of file xmlrpcParsers.cxx.

    {
      std::string element(el);
      if(element == "tonode")tonode(((stringtypeParser*)child)->post());
      else if(element == "toport")toport(((stringtypeParser*)child)->post());
      else if(element == "value")value(((valuetypeParser*)child)->post());
    }

References post(), tonode(), toport(), and value().

onStart()

void YACS::parametertypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 256 of file xmlrpcParsers.cxx.

    {
      std::string element(el);
      this->maxcount("tonode",1,element);
      this->maxcount("toport",1,element);
      this->maxcount("value",1,element);
      parser* pp=&parser::main_parser;
      if(element == "tonode")pp=&stringtypeParser::stringParser;
      else if(element == "toport")pp=&stringtypeParser::stringParser;
      else if(element == "value")pp=&valuetypeParser::valueParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), YACS::parser::init(), YACS::parser::main_parser, YACS::parser::maxcount(), YACS::parser::pre(), YACS::parser::SetUserDataAndPush(), YACS::stringtypeParser::stringParser, and YACS::valuetypeParser::valueParser.

post()

myparam & YACS::parametertypeParser::post ( )

virtual

Definition at line 288 of file xmlrpcParsers.cxx.

                                      {
      mincount("tonode",1);
      mincount("toport",1);
      mincount("value",1);
      return _param;
    }

References _param, and YACS::parser::mincount().

Referenced by onEnd().

pre()

void YACS::parametertypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 278 of file xmlrpcParsers.cxx.

{}

tonode()

void YACS::parametertypeParser::tonode ( const std::string &  name )

virtual

Definition at line 279 of file xmlrpcParsers.cxx.

                                                          {
      _param._tonode=name;
    }

References _param, and myparam::_tonode.

Referenced by onEnd().

toport()

void YACS::parametertypeParser::toport ( const std::string &  name )

virtual

Definition at line 282 of file xmlrpcParsers.cxx.

                                                          {
      _param._toport=name;
    }

References _param, and myparam::_toport.

Referenced by onEnd().

value()

void YACS::parametertypeParser::value ( const std::string &  name )

virtual

Definition at line 285 of file xmlrpcParsers.cxx.

                                                         {
      _param._value=name;
    }

References _param, and myparam::_value.

Referenced by gui.panels.PanelInPort::handleRestore(), gui.panels.PanelOutPort::handleRestore(), gui.panels.PanelInPort::handleSave(), and onEnd().

Member Data Documentation

_param

myparam YACS::parametertypeParser::_param

Definition at line 171 of file xmlrpcParsers.hxx.

Referenced by post(), tonode(), toport(), and value().

parameterParser

parametertypeParser YACS::parametertypeParser::parameterParser

static

Definition at line 162 of file xmlrpcParsers.hxx.

Referenced by YACS::bloctypeParser< T >::onStart(), and YACS::proctypeParser< T >::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/xmlrpcParsers.hxx
• src/yacsloader/xmlrpcParsers.cxx
