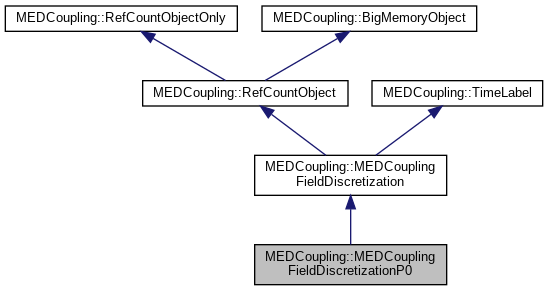

Inheritance diagram for MEDCoupling::MEDCouplingFieldDiscretizationP0:

[legend]

Collaboration diagram for MEDCoupling::MEDCouplingFieldDiscretizationP0:

[legend]

Public Member Functions
MCAuto< MEDCouplingFieldDiscretization >	aggregate (std::vector< const MEDCouplingFieldDiscretization * > &fds) const override

MEDCouplingMesh *	buildSubMeshData (const MEDCouplingMesh mesh, const mcIdType start, const mcIdType end, DataArrayIdType &di) const

MEDCouplingMesh *	buildSubMeshDataRange (const MEDCouplingMesh mesh, mcIdType beginCellIds, mcIdType endCellIds, mcIdType stepCellIds, mcIdType &beginOut, mcIdType &endOut, mcIdType &stepOut, DataArrayIdType &di) const

void	checkCoherencyBetween (const MEDCouplingMesh mesh, const DataArray da) const

void	checkCompatibilityWithNature (NatureOfField nat) const override

MEDCouplingFieldDiscretization *	clone () const override

void	computeMeshRestrictionFromTupleIds (const MEDCouplingMesh mesh, const mcIdType tupleIdsBg, const mcIdType tupleIdsEnd, DataArrayIdType &cellRestriction, DataArrayIdType *&trueTupleRestriction) const

DataArrayIdType *	computeTupleIdsToSelectFromCellIds (const MEDCouplingMesh mesh, const mcIdType startCellIds, const mcIdType *endCellIds) const

std::string	getClassName () const override

TypeOfField	getEnum () const

DataArrayDouble *	getLocalizationOfDiscValues (const MEDCouplingMesh *mesh) const

MEDCouplingFieldDouble *	getMeasureField (const MEDCouplingMesh *mesh, bool isAbs) const override

mcIdType	getNumberOfMeshPlaces (const MEDCouplingMesh *mesh) const

mcIdType	getNumberOfTuples (const MEDCouplingMesh *mesh) const

mcIdType	getNumberOfTuplesExpectedRegardingCode (const std::vector< mcIdType > &code, const std::vector< const DataArrayIdType * > &idsPerType) const

DataArrayIdType *	getOffsetArr (const MEDCouplingMesh *mesh) const

const char *	getRepr () const

std::string	getStringRepr () const

void	getValueOn (const DataArrayDouble arr, const MEDCouplingMesh mesh, const double loc, double res) const override

DataArrayDouble *	getValueOnMulti (const DataArrayDouble arr, const MEDCouplingMesh mesh, const double *loc, mcIdType nbOfPoints) const override

void	getValueOnPos (const DataArrayDouble arr, const MEDCouplingMesh mesh, mcIdType i, mcIdType j, mcIdType k, double *res) const

bool	isEqualIfNotWhy (const MEDCouplingFieldDiscretization *other, double eps, std::string &reason) const override

void	renumberArraysForCell (const MEDCouplingMesh mesh, const std::vector< DataArray > &arrays, const mcIdType *old2NewBg, bool check)

void	renumberValuesOnCells (double epsOnVals, const MEDCouplingMesh mesh, const mcIdType old2New, mcIdType newSz, DataArrayDouble *arr) const

void	renumberValuesOnCellsR (const MEDCouplingMesh mesh, const mcIdType new2old, mcIdType newSz, DataArrayDouble *arr) const

void	renumberValuesOnNodes (double epsOnVals, const mcIdType old2New, mcIdType newNbOfNodes, DataArrayDouble arr) const

void	reprQuickOverview (std::ostream &stream) const

Public Member Functions inherited from MEDCoupling::MEDCouplingFieldDiscretization
virtual void	checkForUnserialization (const std::vector< mcIdType > &tinyInfo, const DataArrayIdType *arr)

virtual void	clearGaussLocalizations ()

virtual MEDCouplingFieldDiscretization *	clonePart (const mcIdType startCellIds, const mcIdType endCellIds) const

virtual MEDCouplingFieldDiscretization *	clonePartRange (mcIdType beginCellIds, mcIdType endCellIds, mcIdType stepCellIds) const

virtual MEDCouplingFieldDiscretization *	deepCopy () const

virtual void	finishUnserialization (const std::vector< double > &tinyInfo)

virtual void	getCellIdsHavingGaussLocalization (mcIdType locId, std::vector< mcIdType > &cellIds) const

std::vector< const BigMemoryObject * >	getDirectChildrenWithNull () const

virtual MEDCouplingGaussLocalization &	getGaussLocalization (mcIdType locId)

virtual const MEDCouplingGaussLocalization &	getGaussLocalization (mcIdType locId) const

virtual mcIdType	getGaussLocalizationIdOfOneCell (mcIdType cellId) const

virtual mcIdType	getGaussLocalizationIdOfOneType (INTERP_KERNEL::NormalizedCellType type) const

virtual std::set< mcIdType >	getGaussLocalizationIdsOfOneType (INTERP_KERNEL::NormalizedCellType type) const

std::size_t	getHeapMemorySizeWithoutChildren () const

virtual double	getIJK (const MEDCouplingMesh mesh, const DataArrayDouble da, mcIdType cellId, mcIdType nodeIdInCell, int compoId) const

virtual mcIdType	getNbOfGaussLocalization () const

double	getPrecision () const

virtual void	getSerializationIntArray (DataArrayIdType *&arr) const

virtual void	getTinySerializationDbleInformation (std::vector< double > &tinyInfo) const

virtual void	getTinySerializationIntInformation (std::vector< mcIdType > &tinyInfo) const

virtual void	integral (const MEDCouplingMesh mesh, const DataArrayDouble arr, bool isWAbs, double *res) const

virtual bool	isEqual (const MEDCouplingFieldDiscretization *other, double eps) const

virtual bool	isEqualWithoutConsideringStr (const MEDCouplingFieldDiscretization *other, double eps) const

virtual void	normL1 (const MEDCouplingMesh mesh, const DataArrayDouble arr, double *res) const

virtual void	normL2 (const MEDCouplingMesh mesh, const DataArrayDouble arr, double *res) const

virtual void	renumberCells (const mcIdType *old2NewBg, bool check=true)

virtual void	resizeForUnserialization (const std::vector< mcIdType > &tinyInfo, DataArrayIdType *&arr)

virtual void	setGaussLocalizationOnCells (const MEDCouplingMesh m, const mcIdType begin, const mcIdType *end, const std::vector< double > &refCoo, const std::vector< double > &gsCoo, const std::vector< double > &wg)

virtual void	setGaussLocalizationOnType (const MEDCouplingMesh *m, INTERP_KERNEL::NormalizedCellType type, const std::vector< double > &refCoo, const std::vector< double > &gsCoo, const std::vector< double > &wg)

void	setPrecision (double val)

void	updateTime () const

virtual	~MEDCouplingFieldDiscretization ()

Public Member Functions inherited from MEDCoupling::RefCountObjectOnly
bool	decrRef () const

int	getRCValue () const

void	incrRef () const

RefCountObjectOnly &	operator= (const RefCountObjectOnly &other)

Public Member Functions inherited from MEDCoupling::BigMemoryObject
std::string	debugHeapMemorySize () const

std::vector< const BigMemoryObject * >	getAllTheProgeny () const

std::vector< const BigMemoryObject * >	getDirectChildren () const

std::size_t	getHeapMemorySize () const

std::string	getHeapMemorySizeStr () const

bool	isObjectInTheProgeny (const BigMemoryObject *obj) const

virtual	~BigMemoryObject ()

Public Member Functions inherited from MEDCoupling::TimeLabel
void	declareAsNew () const

std::size_t	getTimeOfThis () const

TimeLabel &	operator= (const TimeLabel &other)

	TimeLabel (const TimeLabel &other)=default

Static Public Attributes
static const char	REPR [] = "P0"

static constexpr TypeOfField	TYPE = ON_CELLS

Additional Inherited Members
Static Public Member Functions inherited from MEDCoupling::MEDCouplingFieldDiscretization
static TypeOfField	GetTypeOfFieldFromStringRepr (const std::string &repr)

static std::string	GetTypeOfFieldRepr (TypeOfField type)

static MEDCouplingFieldDiscretization *	New (TypeOfField type)

Static Public Member Functions inherited from MEDCoupling::BigMemoryObject
static std::size_t	GetHeapMemorySizeOfObjs (const std::vector< const BigMemoryObject * > &objs)

Protected Member Functions inherited from MEDCoupling::MEDCouplingFieldDiscretization
	MEDCouplingFieldDiscretization ()

Protected Member Functions inherited from MEDCoupling::RefCountObject
	RefCountObject ()

	RefCountObject (const RefCountObject &other)

virtual	~RefCountObject ()

Protected Member Functions inherited from MEDCoupling::RefCountObjectOnly
	RefCountObjectOnly ()

	RefCountObjectOnly (const RefCountObjectOnly &other)

virtual	~RefCountObjectOnly ()

Protected Member Functions inherited from MEDCoupling::TimeLabel
void	forceTimeOfThis (const TimeLabel &other) const

	TimeLabel ()

void	updateTimeWith (const TimeLabel &other) const

virtual	~TimeLabel ()

Static Protected Member Functions inherited from MEDCoupling::MEDCouplingFieldDiscretization
template<class FIELD_DISC >
static MCAuto< MEDCouplingFieldDiscretization >	EasyAggregate (std::vector< const MEDCouplingFieldDiscretization * > &fds)

static void	RenumberEntitiesFromN2OArr (const mcIdType new2OldPtr, mcIdType new2OldSz, DataArrayDouble arr, const std::string &msg)

static void	RenumberEntitiesFromO2NArr (double epsOnVals, const mcIdType old2NewPtr, mcIdType newNbOfEntity, DataArrayDouble arr, const std::string &msg)

Protected Attributes inherited from MEDCoupling::MEDCouplingFieldDiscretization
double	_precision

Static Protected Attributes inherited from MEDCoupling::MEDCouplingFieldDiscretization
static const double	DFLT_PRECISION = 1.e-12

Member Function Documentation

◆ getEnum()

TypeOfField MEDCouplingFieldDiscretizationP0::getEnum ( ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References TYPE.

◆ getClassName()

std::string MEDCoupling::MEDCouplingFieldDiscretizationP0::getClassName ( ) const

overridevirtual

Reimplemented from MEDCoupling::BigMemoryObject.

◆ clone()

MEDCouplingFieldDiscretization * MEDCouplingFieldDiscretizationP0::clone ( ) const

overridevirtual

This method is simply called by MEDCouplingFieldDiscretization::deepCopy. It performs the deep copy of this.

See also: MEDCouplingFieldDiscretization::deepCopy.

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ getStringRepr()

std::string MEDCouplingFieldDiscretizationP0::getStringRepr ( ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References REPR.

◆ getRepr()

const char * MEDCouplingFieldDiscretizationP0::getRepr ( ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References REPR.

◆ isEqualIfNotWhy()

bool MEDCouplingFieldDiscretizationP0::isEqualIfNotWhy	(	const MEDCouplingFieldDiscretization *	other,
		double	eps,
		std::string &	reason
	)		const

overridevirtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ getNumberOfTuplesExpectedRegardingCode()

mcIdType MEDCouplingFieldDiscretizationP0::getNumberOfTuplesExpectedRegardingCode	(	const std::vector< mcIdType > &	code,
		const std::vector< const DataArrayIdType * > &	idsPerType
	)		const

virtual

This method returns the number of tuples regarding exclusively the input code without using a mesh in input. The input code coherency is also checked regarding spatial discretization of this. If an incoherency is detected, an exception will be thrown. If the input code is coherent, the number of tuples expected is returned. The number of tuples expected is equal to those to have a valid field lying on this and having a mesh fitting perfectly the input code (geometric type distribution).

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ getNumberOfTuples()

mcIdType MEDCouplingFieldDiscretizationP0::getNumberOfTuples ( const MEDCouplingMesh * mesh ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::getNumberOfCells().

◆ getNumberOfMeshPlaces()

mcIdType MEDCouplingFieldDiscretizationP0::getNumberOfMeshPlaces ( const MEDCouplingMesh * mesh ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::getNumberOfCells().

◆ getOffsetArr()

DataArrayIdType * MEDCouplingFieldDiscretizationP0::getOffsetArr ( const MEDCouplingMesh * mesh ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::getNumberOfCells().

◆ renumberArraysForCell()

void MEDCouplingFieldDiscretizationP0::renumberArraysForCell	(	const MEDCouplingMesh *	mesh,
		const std::vector< DataArray * > &	arrays,
		const mcIdType *	old2NewBg,
		bool	check
	)

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::getNumberOfCells().

◆ getLocalizationOfDiscValues()

DataArrayDouble * MEDCouplingFieldDiscretizationP0::getLocalizationOfDiscValues ( const MEDCouplingMesh * mesh ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::computeCellCenterOfMass().

◆ checkCompatibilityWithNature()

void MEDCouplingFieldDiscretizationP0::checkCompatibilityWithNature ( NatureOfField nat ) const

overridevirtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ computeMeshRestrictionFromTupleIds()

void MEDCouplingFieldDiscretizationP0::computeMeshRestrictionFromTupleIds	(	const MEDCouplingMesh *	mesh,
		const mcIdType *	tupleIdsBg,
		const mcIdType *	tupleIdsEnd,
		DataArrayIdType *&	cellRestriction,
		DataArrayIdType *&	trueTupleRestriction
	)		const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ checkCoherencyBetween()

void MEDCouplingFieldDiscretizationP0::checkCoherencyBetween	(	const MEDCouplingMesh *	mesh,
		const DataArray *	da
	)		const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::getNumberOfCells(), and MEDCoupling::DataArray::getNumberOfTuples().

◆ getMeasureField()

MEDCouplingFieldDouble * MEDCouplingFieldDiscretizationP0::getMeasureField	(	const MEDCouplingMesh *	mesh,
		bool	isAbs
	)		const

overridevirtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::getMeasureField().

◆ getValueOn()

void MEDCouplingFieldDiscretizationP0::getValueOn	(	const DataArrayDouble *	arr,
		const MEDCouplingMesh *	mesh,
		const double *	loc,
		double *	res
	)		const

overridevirtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingFieldDiscretization::_precision, MEDCoupling::MEDCouplingMesh::getCellContainingPoint(), and MEDCoupling::DataArrayTemplate< T >::getTuple().

◆ getValueOnPos()

void MEDCouplingFieldDiscretizationP0::getValueOnPos	(	const DataArrayDouble *	arr,
		const MEDCouplingMesh *	mesh,
		mcIdType	i,
		mcIdType	j,
		mcIdType	k,
		double *	res
	)		const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingStructuredMesh::getCellIdFromPos(), and MEDCoupling::DataArrayTemplate< T >::getTuple().

◆ getValueOnMulti()

DataArrayDouble * MEDCouplingFieldDiscretizationP0::getValueOnMulti	(	const DataArrayDouble *	arr,
		const MEDCouplingMesh *	mesh,
		const double *	loc,
		mcIdType	nbOfPoints
	)		const

overridevirtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingFieldDiscretization::_precision, MEDCoupling::MEDCouplingMesh::getCellsContainingPoints(), MEDCoupling::DataArray::getNumberOfComponents(), MEDCoupling::MEDCouplingMesh::getSpaceDimension(), MEDCoupling::DataArrayTemplate< T >::getTuple(), and MEDCoupling::DataArrayDouble::New().

◆ renumberValuesOnNodes()

void MEDCouplingFieldDiscretizationP0::renumberValuesOnNodes	(	double	epsOnVals,
		const mcIdType *	old2New,
		mcIdType	newNbOfNodes,
		DataArrayDouble *	arr
	)		const

virtual

Nothing to do. It's not a bug.

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ renumberValuesOnCells()

void MEDCouplingFieldDiscretizationP0::renumberValuesOnCells	(	double	epsOnVals,
		const MEDCouplingMesh *	mesh,
		const mcIdType *	old2New,
		mcIdType	newSz,
		DataArrayDouble *	arr
	)		const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingFieldDiscretization::RenumberEntitiesFromO2NArr().

◆ renumberValuesOnCellsR()

void MEDCouplingFieldDiscretizationP0::renumberValuesOnCellsR	(	const MEDCouplingMesh *	mesh,
		const mcIdType *	new2old,
		mcIdType	newSz,
		DataArrayDouble *	arr
	)		const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingFieldDiscretization::RenumberEntitiesFromN2OArr().

◆ aggregate()

MCAuto< MEDCouplingFieldDiscretization > MEDCouplingFieldDiscretizationP0::aggregate ( std::vector< const MEDCouplingFieldDiscretization * > & fds ) const

overridevirtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ buildSubMeshData()

MEDCouplingMesh * MEDCouplingFieldDiscretizationP0::buildSubMeshData	(	const MEDCouplingMesh *	mesh,
		const mcIdType *	start,
		const mcIdType *	end,
		DataArrayIdType *&	di
	)		const

virtual

This method returns a submesh of 'mesh' instance constituting cell ids contained in array defined as an interval [start;end).

Parameters

di	is an array returned that specifies entity ids (here cells ids) in mesh 'mesh' of entity in returned submesh. Example : The first cell id of returned mesh has the (*di)[0] id in 'mesh'

See also: MEDCouplingFieldDiscretizationP0::buildSubMeshDataRange

Implements MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::buildPart().

◆ buildSubMeshDataRange()

MEDCouplingMesh * MEDCouplingFieldDiscretizationP0::buildSubMeshDataRange	(	const MEDCouplingMesh *	mesh,
		mcIdType	beginCellIds,
		mcIdType	endCellIds,
		mcIdType	stepCellIds,
		mcIdType &	beginOut,
		mcIdType &	endOut,
		mcIdType &	stepOut,
		DataArrayIdType *&	di
	)		const

virtual

This method is strictly equivalent to MEDCouplingFieldDiscretizationP0::buildSubMeshData except that it is optimized for input defined as a range of cell ids.

Parameters

[out]	beginOut	Valid only if di is NULL
[out]	endOut	Valid only if di is NULL
[out]	stepOut	Valid only if di is NULL
[out]	di	is an array returned that specifies entity ids (nodes, cells, Gauss points... ) in array if no output range is foundable.

See also: MEDCouplingFieldDiscretizationP0::buildSubMeshData

Reimplemented from MEDCoupling::MEDCouplingFieldDiscretization.

References MEDCoupling::MEDCouplingMesh::buildPartRange().

◆ computeTupleIdsToSelectFromCellIds()

DataArrayIdType * MEDCouplingFieldDiscretizationP0::computeTupleIdsToSelectFromCellIds	(	const MEDCouplingMesh *	mesh,
		const mcIdType *	startCellIds,
		const mcIdType *	endCellIds
	)		const

virtual

This method returns a tuple ids selection from cell ids selection [start;end). This method is called by MEDCouplingFieldDiscretizationP0::buildSubMeshData to return parameter di. Here for P0 it's very simple !

Returns: a newly allocated array containing ids to select into the DataArrayDouble of the field.

Implements MEDCoupling::MEDCouplingFieldDiscretization.

◆ reprQuickOverview()

void MEDCouplingFieldDiscretizationP0::reprQuickOverview ( std::ostream & stream ) const

virtual

Implements MEDCoupling::MEDCouplingFieldDiscretization.

Member Data Documentation

◆ REPR

const char MEDCouplingFieldDiscretizationP0::REPR = "P0"

static

Referenced by getRepr(), getStringRepr(), MEDCoupling::MEDCouplingFieldDiscretization::GetTypeOfFieldFromStringRepr(), and MEDCoupling::MEDCouplingFieldDiscretization::GetTypeOfFieldRepr().

◆ TYPE

constexpr TypeOfField MEDCoupling::MEDCouplingFieldDiscretizationP0::TYPE = ON_CELLS

staticconstexpr

Referenced by getEnum(), MEDCoupling::MEDCouplingFieldDiscretization::GetTypeOfFieldFromStringRepr(), MEDCoupling::MEDCouplingFieldDiscretization::GetTypeOfFieldRepr(), and MEDCoupling::MEDCouplingFieldDiscretization::New().

Public Member Functions

Static Public Attributes

Additional Inherited Members

Member Function Documentation

◆ getEnum()

◆ getClassName()

◆ clone()

◆ getStringRepr()

◆ getRepr()

◆ isEqualIfNotWhy()

◆ getNumberOfTuplesExpectedRegardingCode()

◆ getNumberOfTuples()

◆ getNumberOfMeshPlaces()

◆ getOffsetArr()

◆ renumberArraysForCell()

◆ getLocalizationOfDiscValues()

◆ checkCompatibilityWithNature()

◆ computeMeshRestrictionFromTupleIds()

◆ checkCoherencyBetween()

◆ getMeasureField()

◆ getValueOn()

◆ getValueOnPos()

◆ getValueOnMulti()

◆ renumberValuesOnNodes()

◆ renumberValuesOnCells()

◆ renumberValuesOnCellsR()

◆ aggregate()

◆ buildSubMeshData()

◆ buildSubMeshDataRange()

◆ computeTupleIdsToSelectFromCellIds()

◆ reprQuickOverview()

Member Data Documentation

◆ REPR

◆ TYPE
