Vertex

Vertex feature creates one or several vertices using vertices already existing in other objects.

To create vertices in the active part:

  1. select in the Main Menu Build - > Vertex item or

  2. click feature_vertex.icon Vertex button in the toolbar

The following property panel will be opened:

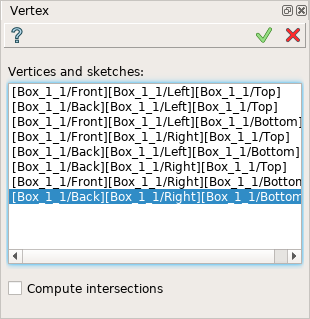

../_images/Vertex.png

Create vertices

Select one or several vertices in the viewer. It is also possible to select a whole sketch result or feature in the object browser, then all start and end points of the sketch segments will be added into result. Checkbox Compute intersections forces to include intersection vertices of edges of the selected sketch.

Apply button creates vertices.

Cancel button cancels operation.

TUI Command:

model.addVertex(Part_doc, Shapes, Intersect)
Parameters

  • part – The current part object.

  • list – A list of shapes.

  • bool – Intersect edges (applicable for sketch only). False by default.

Returns

Result object.

Result

The result of the operation will be a set of vertices created from the selected shapes:

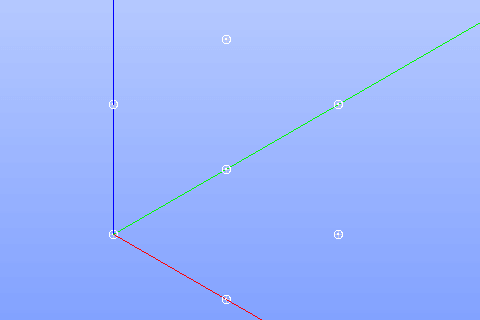

../_images/CreateVertex.png

Result of the operation.

See Also a sample TUI Script of Create Vertex operation.
