#include <SceneItem.hxx>

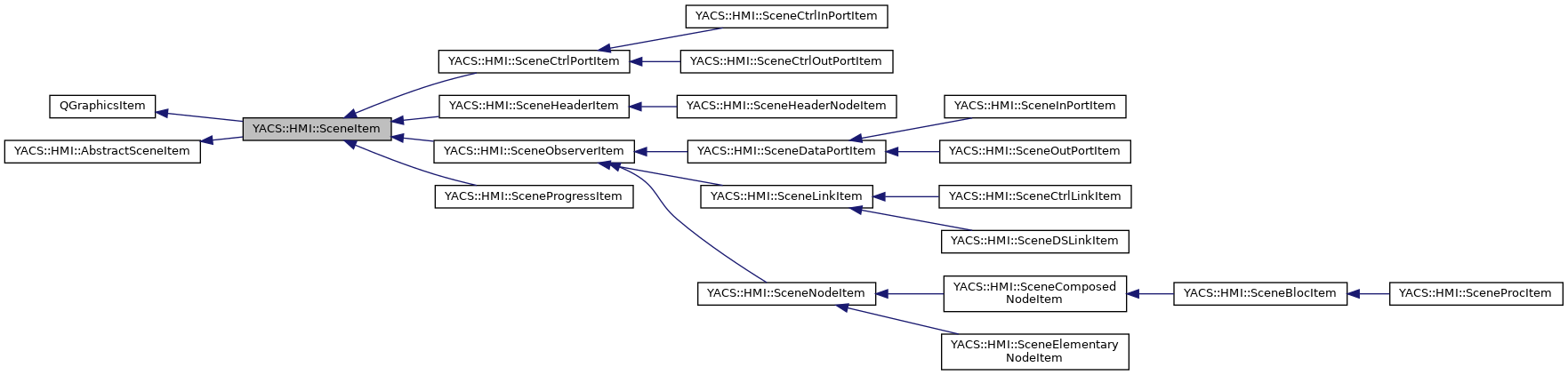

Inheritance diagram for YACS::HMI::SceneItem:

[legend]

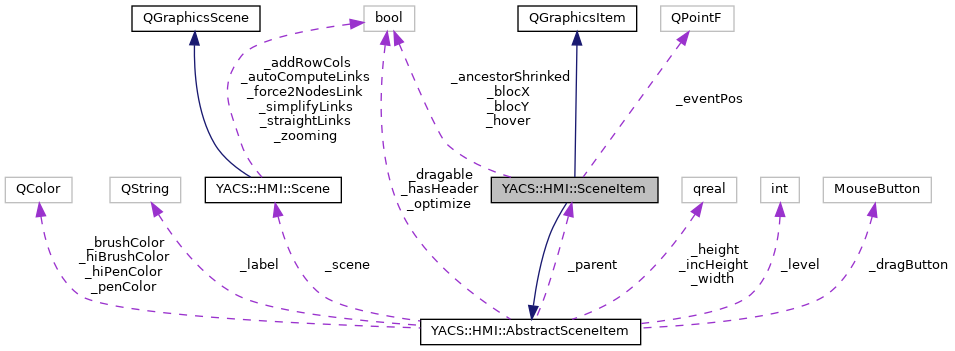

Collaboration diagram for YACS::HMI::SceneItem:

[legend]

Public Member Functions
	SceneItem (QGraphicsScene scene, SceneItem parent, QString label)

virtual	~SceneItem ()

virtual QRectF	boundingRect () const

virtual QRectF	childrenBoundingRect () const

virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget)

virtual void	setTopLeft (QPointF topLeft)

virtual void	checkGeometryChange ()

virtual void	popupMenu (QWidget *caller, const QPoint &globalPos)

void	setParent (SceneItem *parent)

virtual QString	getToolTip ()

void	setEventPos (QPointF point)

virtual void	updateChildItems ()

virtual void	updateLinks ()

virtual void	shrinkExpandLink (bool se)

virtual void	shrinkExpandRecursive (bool isExpanding, bool fromHere, ShrinkMode theShrinkMode)

bool	isAncestorShrinked ()

Public Member Functions inherited from YACS::HMI::AbstractSceneItem
	AbstractSceneItem (QGraphicsScene scene, SceneItem parent, QString label)

virtual	~AbstractSceneItem ()

virtual QRectF	boundingRect () const =0

virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget)=0

virtual void	setTopLeft (QPointF topLeft)=0

int	getLevel ()

void	setLevel ()

virtual void	checkGeometryChange ()=0

virtual void	reorganize ()

virtual QString	getLabel ()

virtual void	addHeader ()

virtual void	addProgressItem ()

virtual qreal	getHeaderBottom ()

qreal	getWidth ()

qreal	getHeight ()

virtual void	setWidth (qreal width)
	AbstractSceneItem cannot be resized (only ComposedNodeItem can) More...

virtual void	setHeight (qreal height)
	AbstractSceneItem cannot be resized (only ComposedNodeItem can) More...

virtual void	popupMenu (QWidget *caller, const QPoint &globalPos)=0

virtual void	activateSelection (bool selected)

virtual void	setGeometryOptimization (bool optimize)

SceneItem *	getParent ()

Public Attributes
bool	_blocX

bool	_blocY

Protected Member Functions
virtual void	mousePressEvent (QGraphicsSceneMouseEvent *event)

virtual void	hoverEnterEvent (QGraphicsSceneHoverEvent *event)

virtual void	hoverMoveEvent (QGraphicsSceneHoverEvent *event)

virtual void	hoverLeaveEvent (QGraphicsSceneHoverEvent *event)

virtual QColor	getPenColor ()

virtual QColor	getBrushColor ()

QColor	hoverColor (QColor origColor)

Protected Member Functions inherited from YACS::HMI::AbstractSceneItem
virtual QRectF	childBoundingRect (AbstractSceneItem *child) const

Protected Attributes
bool	_hover

bool	_ancestorShrinked

QPointF	_eventPos

Protected Attributes inherited from YACS::HMI::AbstractSceneItem
SceneItem *	_parent

YACS::HMI::Scene *	_scene

QString	_label

int	_level

qreal	_width

qreal	_height

qreal	_incHeight

QColor	_penColor

QColor	_brushColor

QColor	_hiPenColor

QColor	_hiBrushColor

bool	_hasHeader

bool	_optimize

bool	_dragable

enum Qt::MouseButton	_dragButton

Detailed Description

Generic class for 2D graphics item, inherits QGraphicsItem, specialised in 2 kind of classes, with or without inheritance from GuiObserver.

Definition at line 120 of file SceneItem.hxx.

Constructor & Destructor Documentation

◆ SceneItem()

SceneItem::SceneItem	(	QGraphicsScene *	scene,
		SceneItem *	parent,
		QString	label
	)

Definition at line 191 of file SceneItem.cxx.

  : QGraphicsItem(parent), AbstractSceneItem(scene, parent, label)
{
  _hover = false;
  _ancestorShrinked = false;
  setToolTip(_label);
  DEBTRACE("SceneItem::SceneItem "<<label.toStdString()<<" "<<this<<" "<<_parent<<" "<< _level);
  setFlag(QGraphicsItem::ItemIsSelectable);
  setAcceptHoverEvents(true);
}

References _ancestorShrinked, _hover, YACS::HMI::AbstractSceneItem::_label, YACS::HMI::AbstractSceneItem::_level, YACS::HMI::AbstractSceneItem::_parent, and DEBTRACE.

◆ ~SceneItem()

SceneItem::~SceneItem ( )

virtual

Definition at line 203 of file SceneItem.cxx.

204{

205}

Member Function Documentation

◆ boundingRect()

QRectF SceneItem::boundingRect ( ) const

virtual

Implements YACS::HMI::AbstractSceneItem.

Reimplemented in YACS::HMI::SceneLinkItem.

Definition at line 215 of file SceneItem.cxx.

{
//   DEBTRACE("SceneItem::boundingRect " <<_label.toStdString()
//            <<" "<<_width<<" "<< _height);
  qreal penWidth = 1;
  return QRectF(- penWidth/2, - penWidth/2,
                _width + penWidth/2, _height + penWidth/2);
}

References YACS::HMI::AbstractSceneItem::_height, and YACS::HMI::AbstractSceneItem::_width.

Referenced by YACS::HMI::SceneBlocItem::arrangeCanvasNodes(), YACS::HMI::SceneComposedNodeItem::autoPosNewChild(), YACS::HMI::LinkMatrix::cellFrom(), YACS::HMI::LinkMatrix::cellTo(), YACS::HMI::SceneComposedNodeItem::collisionResolv(), YACS::HMI::LinkMatrix::getBoundingBox(), YACS::HMI::GraphicsView::onViewFitAll(), and YACS::HMI::GraphicsView::onZoomToBloc().

◆ checkGeometryChange()

void SceneItem::checkGeometryChange ( )

virtual

Implements YACS::HMI::AbstractSceneItem.

Definition at line 248 of file SceneItem.cxx.

{
  DEBTRACE("SceneItem::checkGeometryChange: enter : " << _label.toStdString() << " width= " << _width <<  " height= " << _height);
  qreal newWidth;
  qreal newHeight;
  bool resize = false;
  SceneElementaryNodeItem* aElemNode = dynamic_cast<SceneElementaryNodeItem*>(this);
  if (QtGuiContext::getQtCurrent()->isLoadingPresentation())
    {
      newWidth  = _width;
      newHeight = _height;
      resize    = true;
    }
  else
    {
      if (aElemNode)
        {
          newWidth  = _width;
          newHeight = _height;
          resize    = true;
          DEBTRACE("elementaryNode resize true");
        }
      else
        {
          QRectF childrenBox = childrenBoundingRect();
          newWidth  = childrenBox.width();
          newHeight = childrenBox.height();
          DEBTRACE("composedNode newWidth= " << newWidth << " newHeight=" << newHeight);
        }
    }
  bool wider = (newWidth > _width + 0.5);
  qreal deltaW = 0;
  bool higher = (newHeight > _height + 0.5);
  qreal deltaH = 0;
  bool changeWidth = (fabs(newWidth - _width) > 0.5);

  if (wider || (_optimize && (newWidth < _width)))
    {
      deltaW = newWidth - _width;
      resize = true;
    }
  if (higher || (_optimize && (newHeight < _height)))
    {
      deltaH = newHeight - _height;
      resize = true;
    }
  if (_incHeight >0) //when a port has been added in an elementaryNode, force the collision resolv
    {
      higher = true;
      deltaH = _incHeight;
      resize = true;
    }
  _incHeight = 0;
  DEBTRACE("SceneItem::checkGeometryChange "<<_label.toStdString() <<
           " " << wider << " " << higher << " " << changeWidth <<  " " << resize);

  if (resize)
    {
      prepareGeometryChange();
      _width = newWidth;
      _height = newHeight;
    }
  SceneNodeItem *aNode = dynamic_cast<SceneNodeItem*>(this);
  if (aNode)
    {
      if (changeWidth) aNode->adjustHeader();
      if (wider || higher)
        {
          QPointF oldPos(pos().x() - deltaW, pos().y() - deltaH);
          if (SceneComposedNodeItem *bloc = dynamic_cast<SceneComposedNodeItem*>(_parent))
            bloc->collisionResolv(aNode, oldPos);
        }
      if (changeWidth) aNode->updateLinks();
    }
  if (resize)
    {
      update();
      if (_parent)
        _parent->checkGeometryChange();
    }
  if(resize && aNode)
      aNode->setExpandedWH();
}

References YACS::HMI::AbstractSceneItem::_height, YACS::HMI::AbstractSceneItem::_incHeight, YACS::HMI::AbstractSceneItem::_label, YACS::HMI::AbstractSceneItem::_optimize, YACS::HMI::AbstractSceneItem::_parent, YACS::HMI::AbstractSceneItem::_width, YACS::HMI::SceneNodeItem::adjustHeader(), checkGeometryChange(), childrenBoundingRect(), DEBTRACE, YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::isLoadingPresentation(), YACS::HMI::SceneNodeItem::setExpandedWH(), and YACS::HMI::SceneNodeItem::updateLinks().

Referenced by YACS::HMI::SceneNodeItem::addHeader(), YACS::HMI::SceneNodeItem::addProgressItem(), YACS::HMI::SceneBlocItem::arrangeCanvasNodes(), checkGeometryChange(), YACS::HMI::GuiEditor::PutGraphInBloc(), setTopLeft(), and YACS::HMI::SceneNodeItem::setTopLeft().

◆ childrenBoundingRect()

QRectF SceneItem::childrenBoundingRect ( ) const

virtual

Reimplemented in YACS::HMI::SceneComposedNodeItem.

Definition at line 224 of file SceneItem.cxx.

{
  return QGraphicsItem::childrenBoundingRect();
}

Referenced by checkGeometryChange().

◆ getBrushColor()

virtual QColor YACS::HMI::SceneItem::getBrushColor ( )

protectedvirtual

Reimplemented in YACS::HMI::SceneComposedNodeItem, YACS::HMI::SceneCtrlLinkItem, YACS::HMI::SceneDSLinkItem, YACS::HMI::SceneHeaderItem, YACS::HMI::SceneInPortItem, YACS::HMI::SceneLinkItem, YACS::HMI::SceneObserverItem, and YACS::HMI::SceneProgressItem.

◆ getPenColor()

virtual QColor YACS::HMI::SceneItem::getPenColor ( )

protectedvirtual

Reimplemented in YACS::HMI::SceneComposedNodeItem, YACS::HMI::SceneCtrlLinkItem, YACS::HMI::SceneDSLinkItem, YACS::HMI::SceneHeaderItem, YACS::HMI::SceneInPortItem, YACS::HMI::SceneLinkItem, and YACS::HMI::SceneProgressItem.

Referenced by YACS::HMI::SceneCtrlLinkItem::getPenColor(), YACS::HMI::SceneDSLinkItem::getPenColor(), YACS::HMI::SceneLinkItem::getPenColor(), YACS::HMI::SceneCtrlPortItem::paint(), YACS::HMI::SceneDataPortItem::paint(), and YACS::HMI::SceneElementaryNodeItem::paint().

◆ getToolTip()

QString SceneItem::getToolTip ( )

virtual

generic behaviour for headers: obtain the tooltip from parent. Method to be redefined in derived classes.

Reimplemented in YACS::HMI::SceneObserverItem, and YACS::HMI::SceneProgressItem.

Definition at line 336 of file SceneItem.cxx.

{
  QString tooltip = _label;
  SceneItem *parent = getParent();
  if (parent)
    tooltip = parent->getToolTip();
  return tooltip;
}

References YACS::HMI::AbstractSceneItem::_label, YACS::HMI::AbstractSceneItem::getParent(), and getToolTip().

Referenced by getToolTip(), YACS::HMI::SceneTextItem::getToolTip(), and YACS::HMI::Scene::helpEvent().

◆ hoverColor()

QColor YACS::HMI::SceneItem::hoverColor ( QColor origColor )

protected

Referenced by YACS::HMI::SceneComposedNodeItem::getBrushColor(), YACS::HMI::SceneHeaderItem::getBrushColor(), YACS::HMI::SceneInPortItem::getBrushColor(), YACS::HMI::SceneObserverItem::getBrushColor(), and YACS::HMI::SceneProgressItem::getBrushColor().

◆ hoverEnterEvent()

virtual void YACS::HMI::SceneItem::hoverEnterEvent ( QGraphicsSceneHoverEvent * event )

protectedvirtual

◆ hoverLeaveEvent()

virtual void YACS::HMI::SceneItem::hoverLeaveEvent ( QGraphicsSceneHoverEvent * event )

protectedvirtual

◆ hoverMoveEvent()

virtual void YACS::HMI::SceneItem::hoverMoveEvent ( QGraphicsSceneHoverEvent * event )

protectedvirtual

◆ isAncestorShrinked()

bool YACS::HMI::SceneItem::isAncestorShrinked ( )

inline

Definition at line 142 of file SceneItem.hxx.

142{ return _ancestorShrinked; };

References _ancestorShrinked.

◆ mousePressEvent()

virtual void YACS::HMI::SceneItem::mousePressEvent ( QGraphicsSceneMouseEvent * event )

protectedvirtual

Reimplemented in YACS::HMI::SceneCtrlPortItem, YACS::HMI::SceneHeaderItem, YACS::HMI::SceneHeaderNodeItem, YACS::HMI::SceneNodeItem, YACS::HMI::SceneObserverItem, and YACS::HMI::SceneProgressItem.

◆ paint()

void SceneItem::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget
	)

virtual

Implements YACS::HMI::AbstractSceneItem.

Reimplemented in YACS::HMI::SceneComposedNodeItem, YACS::HMI::SceneCtrlPortItem, YACS::HMI::SceneDataPortItem, YACS::HMI::SceneElementaryNodeItem, YACS::HMI::SceneHeaderItem, YACS::HMI::SceneHeaderNodeItem, YACS::HMI::SceneLinkItem, YACS::HMI::SceneNodeItem, and YACS::HMI::SceneProgressItem.

Definition at line 229 of file SceneItem.cxx.

{
  //DEBTRACE("SceneItem::paint");
//   painter->save();
//   painter->setPen(getPenColor());
//   painter->setBrush(getBrushColor());
//   painter->drawRoundRect(QRectF(0, 0, _width, _height), 33*_height/_width, 33);
//   painter->restore();
}

Referenced by YACS::HMI::SceneObserverItem::mouseMoveEvent().

◆ popupMenu()

virtual void YACS::HMI::SceneItem::popupMenu	(	QWidget *	caller,
		const QPoint &	globalPos
	)

virtual

Implements YACS::HMI::AbstractSceneItem.

Reimplemented in YACS::HMI::SceneComposedNodeItem, YACS::HMI::SceneCtrlInPortItem, YACS::HMI::SceneCtrlOutPortItem, YACS::HMI::SceneElementaryNodeItem, YACS::HMI::SceneHeaderItem, YACS::HMI::SceneHeaderNodeItem, YACS::HMI::SceneInPortItem, YACS::HMI::SceneLinkItem, YACS::HMI::SceneNodeItem, YACS::HMI::SceneOutPortItem, YACS::HMI::SceneProcItem, and YACS::HMI::SceneProgressItem.

Referenced by YACS::HMI::GraphicsView::contextMenuEvent(), YACS::HMI::SceneHeaderItem::popupMenu(), YACS::HMI::SceneHeaderNodeItem::popupMenu(), YACS::HMI::SceneProgressItem::popupMenu(), and YACS::HMI::SceneTextItem::popupMenu().

◆ setEventPos()

void YACS::HMI::SceneItem::setEventPos ( QPointF point )

Referenced by YACS::HMI::GraphicsView::contextMenuEvent(), and YACS::HMI::SceneComposedNodeItem::dropEvent().

◆ setParent()

void SceneItem::setParent ( SceneItem * parent )

Definition at line 207 of file SceneItem.cxx.

{
  setParentItem(parent);
  _parent = parent;
  if (_parent)
    _level = _parent->getLevel() +1;
}

References YACS::HMI::AbstractSceneItem::_level, YACS::HMI::AbstractSceneItem::_parent, and YACS::HMI::AbstractSceneItem::getLevel().

Referenced by YACS::HMI::SceneComposedNodeItem::update().

◆ setTopLeft()

void SceneItem::setTopLeft ( QPointF topLeft )

virtual

Implements YACS::HMI::AbstractSceneItem.

Reimplemented in YACS::HMI::SceneNodeItem.

Definition at line 241 of file SceneItem.cxx.

{
  setPos(int(topLeft.x()), int(topLeft.y()));
  if (_parent)
    _parent->checkGeometryChange();
}

References YACS::HMI::AbstractSceneItem::_parent, and checkGeometryChange().

Referenced by YACS::HMI::SceneHeaderNodeItem::adjustPosPorts(), YACS::HMI::SceneComposedNodeItem::collisionResolv(), YACS::HMI::SceneHeaderNodeItem::SceneHeaderNodeItem(), and YACS::HMI::SceneProgressItem::SceneProgressItem().

◆ shrinkExpandLink()

virtual void YACS::HMI::SceneItem::shrinkExpandLink ( bool se )

virtual

Reimplemented in YACS::HMI::SceneComposedNodeItem, YACS::HMI::SceneDataPortItem, and YACS::HMI::SceneNodeItem.

Referenced by YACS::HMI::SceneComposedNodeItem::shrinkExpandRecursive().

◆ shrinkExpandRecursive()

virtual void YACS::HMI::SceneItem::shrinkExpandRecursive	(	bool	isExpanding,
		bool	fromHere,
		ShrinkMode	theShrinkMode
	)

virtual

Reimplemented in YACS::HMI::SceneComposedNodeItem, and YACS::HMI::SceneElementaryNodeItem.

Referenced by YACS::HMI::SceneComposedNodeItem::reorganizeShrinkExpand(), and YACS::HMI::SceneComposedNodeItem::shrinkExpandRecursive().

◆ updateChildItems()

virtual void YACS::HMI::SceneItem::updateChildItems ( )

virtual

Reimplemented in YACS::HMI::SceneComposedNodeItem, YACS::HMI::SceneDataPortItem, and YACS::HMI::SceneNodeItem.

◆ updateLinks()

virtual void YACS::HMI::SceneItem::updateLinks ( )

virtual

Reimplemented in YACS::HMI::SceneDataPortItem, and YACS::HMI::SceneNodeItem.

Member Data Documentation

◆ _ancestorShrinked

bool YACS::HMI::SceneItem::_ancestorShrinked

protected

Definition at line 156 of file SceneItem.hxx.

Referenced by isAncestorShrinked(), YACS::HMI::SceneComposedNodeItem::reorganizeShrinkExpand(), SceneItem(), YACS::HMI::SceneComposedNodeItem::setShownState(), YACS::HMI::SceneElementaryNodeItem::setShownState(), YACS::HMI::SceneComposedNodeItem::shrinkExpandRecursive(), and YACS::HMI::SceneElementaryNodeItem::shrinkExpandRecursive().

◆ _blocX

bool YACS::HMI::SceneItem::_blocX

Definition at line 143 of file SceneItem.hxx.

Referenced by YACS::HMI::SceneComposedNodeItem::collisionResolv(), YACS::HMI::SceneNodeItem::mouseMoveEvent(), and YACS::HMI::SceneNodeItem::SceneNodeItem().

◆ _blocY

bool YACS::HMI::SceneItem::_blocY

Definition at line 144 of file SceneItem.hxx.

Referenced by YACS::HMI::SceneComposedNodeItem::collisionResolv(), YACS::HMI::SceneNodeItem::mouseMoveEvent(), and YACS::HMI::SceneNodeItem::SceneNodeItem().

◆ _eventPos

QPointF YACS::HMI::SceneItem::_eventPos

protected

Definition at line 157 of file SceneItem.hxx.

Referenced by YACS::HMI::SceneComposedNodeItem::autoPosNewChild().

◆ _hover

bool YACS::HMI::SceneItem::_hover

protected

Definition at line 155 of file SceneItem.hxx.

Referenced by YACS::HMI::SceneComposedNodeItem::getBrushColor(), YACS::HMI::SceneHeaderItem::getBrushColor(), YACS::HMI::SceneInPortItem::getBrushColor(), YACS::HMI::SceneObserverItem::getBrushColor(), YACS::HMI::SceneProgressItem::getBrushColor(), and SceneItem().

The documentation for this class was generated from the following files:

src/genericgui/SceneItem.hxx
src/genericgui/SceneItem.cxx

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SceneItem()

◆ ~SceneItem()

Member Function Documentation

◆ boundingRect()

◆ checkGeometryChange()

◆ childrenBoundingRect()

◆ getBrushColor()

◆ getPenColor()

◆ getToolTip()

◆ hoverColor()

◆ hoverEnterEvent()

◆ hoverLeaveEvent()

◆ hoverMoveEvent()

◆ isAncestorShrinked()

◆ mousePressEvent()

◆ paint()

◆ popupMenu()

◆ setEventPos()

◆ setParent()

◆ setTopLeft()

◆ shrinkExpandLink()

◆ shrinkExpandRecursive()

◆ updateChildItems()

◆ updateLinks()

Member Data Documentation

◆ _ancestorShrinked

◆ _blocX

◆ _blocY

◆ _eventPos

◆ _hover
