YACS::componentinstancetypeParser Struct Reference

Class for componentinstance parser. More...

#include <componentinstanceParsers.hxx>

Inheritance diagram for YACS::componentinstancetypeParser:

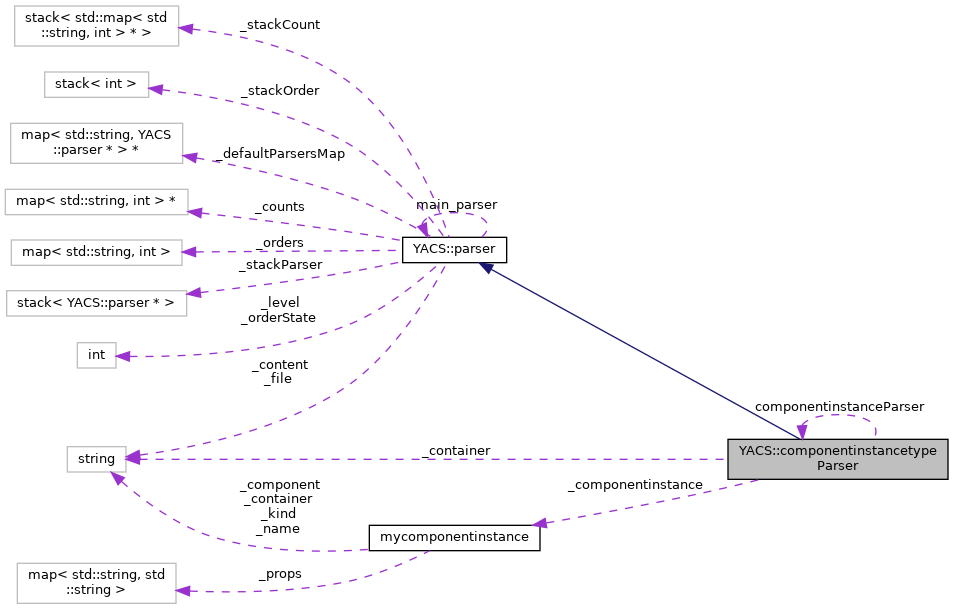

Collaboration diagram for YACS::componentinstancetypeParser:

Public Member Functions
virtual void	buildAttr (const XML_Char **attr)
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	pre ()
virtual void	name (const std::string &name)
virtual void	kind (const std::string &kind)
virtual void	component (const std::string &name)
virtual void	property (const myprop &prop)
virtual void	load (const loadon &l)
mycomponentinstance	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
mycomponentinstance	_componentinstance
std::string	_container
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static componentinstancetypeParser	componentinstanceParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Class for componentinstance parser.

Class used to parse ComponentInstance description

XML schema is

  <xsd:complexType name="ComponentInstanceType">
    <xsd:sequence>
      <xsd:element name="component" type="xsd:string"/>
      <xsd:element name="property" type="PropertyType" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required"/>
    <xsd:attribute name="kind" type="xsd:string"/>
  </xsd:complexType>

Definition at line 45 of file componentinstanceParsers.hxx.

Member Function Documentation

buildAttr()

void YACS::componentinstancetypeParser::buildAttr ( const XML_Char **  attr )

virtual

Reimplemented from YACS::parser.

Definition at line 32 of file componentinstanceParsers.cxx.

    {
      if (!attr)
        return;
      required("name",attr);
      for (int i = 0; attr[i]; i += 2)
      {
        if(std::string(attr[i]) == "name")name(attr[i+1]);
        if(std::string(attr[i]) == "kind")kind(attr[i+1]);
      }
    }

References yacsorb.CORBAEngineTest::i, kind(), name(), and YACS::parser::required().

component()

void YACS::componentinstancetypeParser::component ( const std::string &  name )

virtual

Definition at line 82 of file componentinstanceParsers.cxx.

    {
      DEBTRACE( "component_set: " << name )
      _componentinstance._component=name;
    }

References mycomponentinstance::_component, _componentinstance, DEBTRACE, and name().

Referenced by onEnd().

kind()

void YACS::componentinstancetypeParser::kind ( const std::string &  kind )

virtual

Definition at line 73 of file componentinstanceParsers.cxx.

    { _componentinstance._kind=kind; }

References _componentinstance, and mycomponentinstance::_kind.

Referenced by buildAttr().

load()

void YACS::componentinstancetypeParser::load ( const loadon &  l )

virtual

Definition at line 88 of file componentinstanceParsers.cxx.

    {
      DEBTRACE( "load: " )
      _componentinstance._container=l._container;
    }

References _componentinstance, mycomponentinstance::_container, DEBTRACE, and testCppPluginInvokation::l.

Referenced by onEnd().

name()

void YACS::componentinstancetypeParser::name ( const std::string &  name )

virtual

Definition at line 70 of file componentinstanceParsers.cxx.

    { _componentinstance._name=name; }

References _componentinstance, and mycomponentinstance::_name.

Referenced by buildAttr(), and component().

onEnd()

void YACS::componentinstancetypeParser::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 57 of file componentinstanceParsers.cxx.

    {
      std::string element(el);
      if(element == "property")property(((propertytypeParser*)child)->post());
      else if(element == "component") component(((stringtypeParser*)child)->post());
      else if(element == "load") load(((loadtypeParser*)child)->post());
    }

References component(), load(), post(), and property().

onStart()

void YACS::componentinstancetypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 43 of file componentinstanceParsers.cxx.

    {
      std::string element(el);
      parser* pp=&parser::main_parser;
      this->maxcount("component",1,element);
      this->maxcount("load",1,element);
      if(element == "property")pp=&propertytypeParser::propertyParser;
      else if(element == "component")pp=&stringtypeParser::stringParser;
      else if(element == "load")pp=&loadtypeParser::loadParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), YACS::parser::init(), YACS::loadtypeParser::loadParser, YACS::parser::main_parser, YACS::parser::maxcount(), YACS::parser::pre(), YACS::propertytypeParser::propertyParser, YACS::parser::SetUserDataAndPush(), and YACS::stringtypeParser::stringParser.

post()

mycomponentinstance YACS::componentinstancetypeParser::post

(

)

Definition at line 94 of file componentinstanceParsers.cxx.

    {
      this->mincount("component",1);
      return _componentinstance;
    }

References _componentinstance, and YACS::parser::mincount().

Referenced by onEnd().

pre()

void YACS::componentinstancetypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 65 of file componentinstanceParsers.cxx.

    {
      _componentinstance._props.clear();
    }

References _componentinstance, and mycomponentinstance::_props.

property()

void YACS::componentinstancetypeParser::property ( const myprop &  prop )

virtual

Definition at line 76 of file componentinstanceParsers.cxx.

    {
      DEBTRACE("property_set: "<<prop._name<<" "<<prop._value);
      _componentinstance._props[prop._name]=prop._value;
    }

References _componentinstance, myprop::_name, mycomponentinstance::_props, myprop::_value, and DEBTRACE.

Referenced by onEnd().

Member Data Documentation

_componentinstance

mycomponentinstance YACS::componentinstancetypeParser::_componentinstance

Definition at line 58 of file componentinstanceParsers.hxx.

Referenced by component(), kind(), load(), name(), post(), pre(), and property().

_container

std::string YACS::componentinstancetypeParser::_container

Definition at line 59 of file componentinstanceParsers.hxx.

componentinstanceParser

componentinstancetypeParser YACS::componentinstancetypeParser::componentinstanceParser

static

Definition at line 47 of file componentinstanceParsers.hxx.

Referenced by YACS::proctypeParser< T >::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/componentinstanceParsers.hxx
• src/yacsloader/componentinstanceParsers.cxx
