YACS::presetdatatypeParser Struct Reference

Class for presetdata parser. More...

#include <presetParsers.hxx>

Inheritance diagram for YACS::presetdatatypeParser:

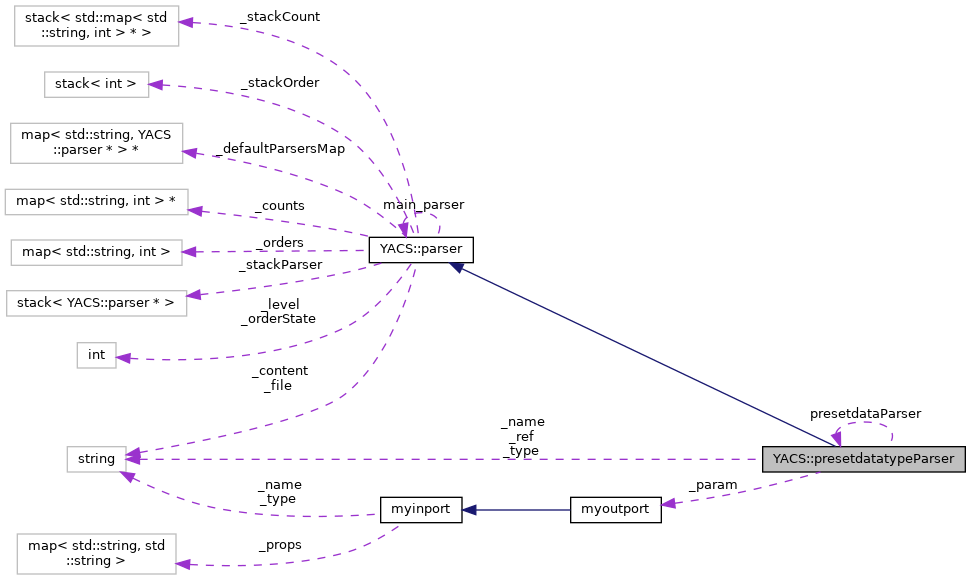

Collaboration diagram for YACS::presetdatatypeParser:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	buildAttr (const XML_Char **attr)
virtual void	name (const std::string &name)
virtual void	type (const std::string &type)
virtual void	ref (const std::string &ref)
virtual void	pre ()
virtual void	value (const std::string &value)
virtual myoutport &	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
myoutport	_param
std::string	_name
std::string	_type
std::string	_ref
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static presetdatatypeParser	presetdataParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Class for presetdata parser.

Its XML schema is:

    <xsd:complexType name="PresetType">
      <xsd:attribute name="name" type="xsd:string" use="required"/>
      <xsd:attribute name="type" type="xsd:string" use="required"/>
      <xsd:element name="value" type="ValueType" minOccurs="1" maxOccurs="1"/>
    </xsd:complexType>

Definition at line 43 of file presetParsers.hxx.

Member Function Documentation

buildAttr()

virtual void YACS::presetdatatypeParser::buildAttr ( const XML_Char **  attr )

inlinevirtual

Reimplemented from YACS::parser.

Definition at line 65 of file presetParsers.hxx.

    {
      if (!attr)
        return;
      DEBTRACE("presetdatatypeParser::buildAttr");
      required("name",attr);
      required("type",attr);
      for (int i = 0; attr[i]; i += 2)
      {
        if(std::string(attr[i]) == "name")name(attr[i+1]);
        if(std::string(attr[i]) == "type")type(attr[i+1]);
        if(std::string(attr[i]) == "ref")ref(attr[i+1]);
      }
    }

References DEBTRACE, yacsorb.CORBAEngineTest::i, name(), ref(), YACS::parser::required(), and type().

name()

virtual void YACS::presetdatatypeParser::name ( const std::string &  name )

inlinevirtual

Definition at line 79 of file presetParsers.hxx.

    {
      DEBTRACE("presetdatatypeParser::name");
      _param._name=name;
      _name=name;
    }

References myinport::_name, _name, _param, and DEBTRACE.

Referenced by buildAttr().

onEnd()

virtual void YACS::presetdatatypeParser::onEnd ( const char *  el, parser *  child  )

inlinevirtual

Reimplemented from YACS::parser.

Definition at line 59 of file presetParsers.hxx.

    {
      DEBTRACE("presetdatatypeParser::onEnd");
      std::string element(el);
      if(element == "value")value(((valuetypeParser*)child)->post());
    }

References DEBTRACE, post(), and value().

onStart()

virtual void YACS::presetdatatypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

inlinevirtual

Reimplemented from YACS::parser.

Definition at line 47 of file presetParsers.hxx.

    {
      DEBTRACE("presetdatatypeParser::onStart");
      std::string element(el);
      this->maxcount("value",1,element);
      parser* pp=&parser::main_parser;
      if(element == "value")pp=&valuetypeParser::valueParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), DEBTRACE, YACS::parser::init(), YACS::parser::main_parser, YACS::parser::maxcount(), YACS::parser::pre(), YACS::parser::SetUserDataAndPush(), and YACS::valuetypeParser::valueParser.

post()

virtual myoutport& YACS::presetdatatypeParser::post ( )

inlinevirtual

Definition at line 108 of file presetParsers.hxx.

  {
    DEBTRACE("presetdatatypeParser::post");
    //a parameter can have a ref attribute OR one value element
    if(_ref == "undef")
      mincount("value",1);
    else
      _param.setProperty("value",_ref);
    return _param;
  }

References _param, _ref, DEBTRACE, YACS::parser::mincount(), and myinport::setProperty().

Referenced by onEnd().

pre()

virtual void YACS::presetdatatypeParser::pre ( )

inlinevirtual

Reimplemented from YACS::parser.

Definition at line 97 of file presetParsers.hxx.

  {
    DEBTRACE("presetdatatypeParser::pre");
    _ref="undef";
    _param.clear();
  }

References _param, _ref, myinport::clear(), and DEBTRACE.

ref()

virtual void YACS::presetdatatypeParser::ref ( const std::string &  ref )

inlinevirtual

Definition at line 92 of file presetParsers.hxx.

  {
    _ref=ref;
  }

References _ref.

Referenced by buildAttr().

type()

virtual void YACS::presetdatatypeParser::type ( const std::string &  type )

inlinevirtual

Definition at line 85 of file presetParsers.hxx.

    {
      DEBTRACE("presetdatatypeParser::type");
      _param._type=type;
      _type=type;
    }

References _param, myinport::_type, _type, and DEBTRACE.

Referenced by buildAttr().

value()

virtual void YACS::presetdatatypeParser::value ( const std::string &  value )

inlinevirtual

Definition at line 103 of file presetParsers.hxx.

  {
    DEBTRACE("presetdatatypeParser::value " << value);
    _param.setProperty("value",value);
  }

References _param, DEBTRACE, and myinport::setProperty().

Referenced by gui.panels.PanelInPort::handleRestore(), gui.panels.PanelOutPort::handleRestore(), gui.panels.PanelInPort::handleSave(), and onEnd().

Member Data Documentation

_name

std::string YACS::presetdatatypeParser::_name

Definition at line 119 of file presetParsers.hxx.

Referenced by name().

_param

myoutport YACS::presetdatatypeParser::_param

Definition at line 118 of file presetParsers.hxx.

Referenced by name(), post(), pre(), type(), and value().

_ref

std::string YACS::presetdatatypeParser::_ref

Definition at line 121 of file presetParsers.hxx.

Referenced by post(), pre(), and ref().

_type

std::string YACS::presetdatatypeParser::_type

Definition at line 120 of file presetParsers.hxx.

Referenced by type().

presetdataParser

presetdatatypeParser YACS::presetdatatypeParser::presetdataParser

static

Definition at line 45 of file presetParsers.hxx.

Referenced by YACS::presettypeParser< T >::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/presetParsers.hxx
• src/yacsloader/rootParser.cxx
