Over-constrained faces

This mesh quality control highlights faces having all their points on the border.

Note

The highlighted faces are actually over-constrained only if, at the computation time, the boundary conditions on the borders where the nodes are located are all Dirichlet boundary conditions.

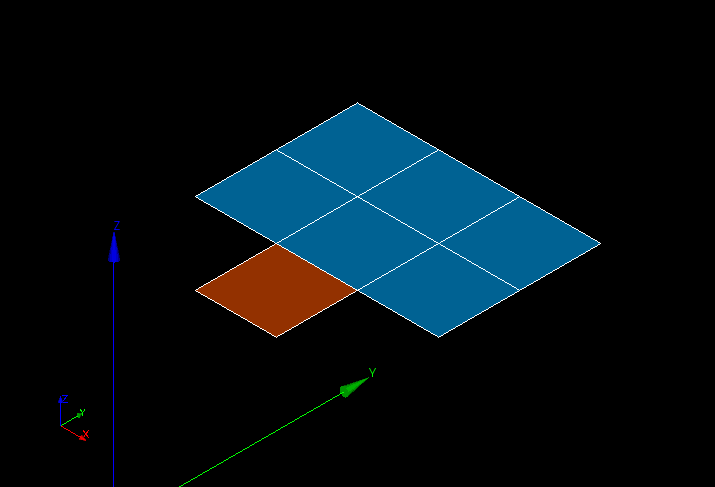

Over-constrained face is displayed in red

See Also a sample TUI Script of a Over-constrained faces filter.
