SMESH_2smeshpy.cxx File Reference

#include "SMESH_2smeshpy.hxx"
#include "SMESH_PythonDump.hxx"
#include "SMESH_NoteBook.hxx"
#include "SMESH_Filter_i.hxx"
#include <SALOMEDS_wrap.hxx>
#include <utilities.h>
#include <Basics_OCCTVersion.hxx>
#include <Resource_DataMapOfAsciiStringAsciiString.hxx>
#include <Resource_DataMapIteratorOfDataMapOfAsciiStringAsciiString.hxx>
#include "SMESH_Gen_i.hxx"
#include <LDOMParser.hxx>
#include <unistd.h>

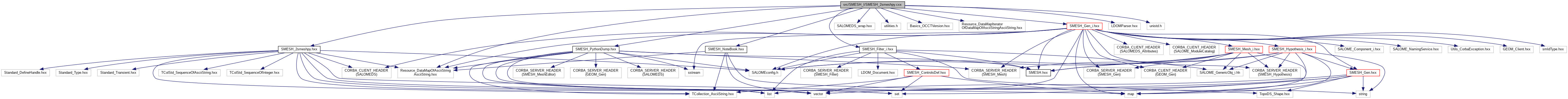

Include dependency graph for SMESH_2smeshpy.cxx:

Functions
static	Handle (_pyGen) theGen
	Container of commands into which the initial script is split. More...
	Handle (_pyCommand) _pyGen
	Convert a command using a specific converter. More...
	Handle (_pyHypothesis) _pyGen
	Find hypothesis by ID (entry) More...
	Handle (_pySubMesh) _pyGen
	Find subMesh by ID (entry) More...
	Handle (_pyCommand) &_pyGen
	Call _pyFilter.AddUser() if a filter is used as a command arg. More...
	Handle (_pyObject) _pyGen
	Finds a _pyObject by ID. More...
	Handle (_pyHypothesisReader) _pyGen
	Return reader of hypotheses of plugins. More...
static bool	isWord (const char c, const bool dotIsWord)
	Check if char is a word part. More...

Variables
static TCollection_AsciiString	theEmptyString

Function Documentation

Handle() [1/7]

Handle

(

_pyCommand

)

&

Call _pyFilter.AddUser() if a filter is used as a command arg.

Set command be last in list of commands

Parameters

theCmd

- Command to be last

Handle() [2/7]

Handle

(

_pyCommand

)

Convert a command using a specific converter.

Parameters

theCommand

- the command to convert

References _pyGen::AddMeshAccessorMethod(), _pyGen::AddObject(), _pyGen::CheckObjectIsReCreated(), SMESH::Entity_Last, SMESH::FunctorTypeToString(), SMESH_2smeshpy::GenName(), SMESH::Geom_LAST, _pyCommand::GetArg(), _pyObject::GetID(), _pyCommand::GetNbArgs(), _pyCommand::GetString(), _pyGen::Handle(), _pyStringFamily::IsInArgs(), MESSAGE, _pyGen::myCommands, _pyGen::myKeepAgrCmdsIDs, _pyGen::myMeshEditors, _pyGen::myMeshes, _pyGen::myNbCommands, _pyGen::myNbFilters, _pyGen::myObjects, _pyGen::Process(), and _pyCommand::SetArg().

Handle() [3/7]

static Handle ( _pyGen  )

static

Container of commands into which the initial script is split.

It also contains data corresponding to SMESH_Gen contents

Referenced by SMESH_2smeshpy::ConvertScript(), and _pyCommand::SetDependentCmdsAfter().

Handle() [4/7]

Handle

(

_pyHypothesis

)

Find hypothesis by ID (entry)

Returns a new hypothesis initialized according to the read information.

Creates algorithm or hypothesis.

Find algorithm able to create a hypothesis.

Parameters

theHypID

- The hypothesis ID

Return values

Handle(_pyHypothesis)

- The found hypothesis

Parameters

theGeom	- The shape ID the algorithm was created on
theMesh	- The mesh ID that created the algorithm
theHypothesis	- The hypothesis the algorithm should be able to create

Return values

Handle(_pyHypothesis)

- The found algo

Parameters

theCreationCmd

- The engine command creating a hypothesis

Return values

Handle(_pyHypothesis)

- Result _pyHypothesis

Adds an object ID to some family of IDs with a common prefix

Parameters

[in]

str

- the object ID

Returns

bool - false if str does not have the same prefix as this family (for internal usage)

References _pyGen::Handle(), and _pyGen::myHypos.

Handle() [5/7]

Handle

(

_pyHypothesisReader

)

Return reader of hypotheses of plugins.

Mesh created by SMESH_Gen

Handle() [6/7]

Handle

(

_pyObject

)

Finds a _pyObject by ID.

Check if a study entry is under GEOM component

Returns true if an object is not present in a study

Add an object to myRemovedObjIDs that leads to that SetName() for this object is not dumped

Parameters

[in]

theObjID

- entry of the object whose creation command was eliminated

References _pyGen::Handle(), _pyGen::myMeshes, and _pyGen::myObjects.

Handle() [7/7]

Handle

(

_pySubMesh

)

Find subMesh by ID (entry)

Parameters

theSubMeshID

- The subMesh ID

Return values

Handle(_pySubMesh)

- The found subMesh

References SMESH::DownCast(), _pyGen::Handle(), and _pyGen::myObjects.

isWord()

static bool isWord ( const char  c, const bool  dotIsWord  )

static

Check if char is a word part.

Parameters

c	- The character to check

Return values

bool	- The check result

Referenced by _pyCommand::GetWord().

Variable Documentation

theEmptyString

TCollection_AsciiString theEmptyString

static

Referenced by _pyCommand::GetArg(), _pyCommand::GetResultValue(), and _pyCommand::GetWord().
