StdMeshers_NumberOfSegments_i Class Reference

#include <StdMeshers_NumberOfSegments_i.hxx>

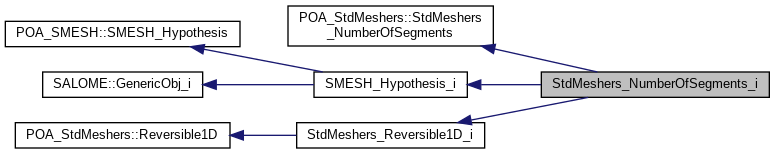

Inheritance diagram for StdMeshers_NumberOfSegments_i:
Inheritance graph
[legend]

Public Member Functions

 StdMeshers_NumberOfSegments_i (PortableServer::POA_ptr thePOA, ::SMESH_Gen *theGenImpl)
 StdMeshers_NumberOfSegments_i::StdMeshers_NumberOfSegments_i. More...

virtual ~StdMeshers_NumberOfSegments_i ()
 StdMeshers_NumberOfSegments_i::~StdMeshers_NumberOfSegments_i. More...

SMESH::double_array * BuildDistributionExpr (const char *, CORBA::Long, CORBA::Long)
 StdMeshers_NumberOfSegments_i::BuildDistribution. More...

SMESH::double_array * BuildDistributionTab (const SMESH::double_array &, CORBA::Long, CORBA::Long)

void SetNumberOfSegments (SMESH::smIdType theSegmentsNumber)
 StdMeshers_NumberOfSegments_i::SetNumberOfSegments. More...

CORBA::Long GetNumberOfSegments ()
 StdMeshers_NumberOfSegments_i::GetNumberOfSegments. More...

void SetDistrType (CORBA::Long typ)

CORBA::Long GetDistrType ()

void SetScaleFactor (CORBA::Double theScaleFactor)
 StdMeshers_NumberOfSegments_i::SetScaleFactor. More...

CORBA::Double GetScaleFactor ()
 StdMeshers_NumberOfSegments_i::GetScaleFactor. More...

void SetBeta (CORBA::Double beta)
 StdMeshers_NumberOfSegments_i::SetBeta. More...

CORBA::Double GetBeta ()
 StdMeshers_NumberOfSegments_i::GetBeta. More...

void SetTableFunction (const SMESH::double_array &table)

SMESH::double_array * GetTableFunction ()

void SetExpressionFunction (const char *expr)

char * GetExpressionFunction ()

void SetConversionMode (CORBA::Long conv)

CORBA::Long ConversionMode ()

::StdMeshers_NumberOfSegments * GetImpl ()
 StdMeshers_NumberOfSegments_i::GetImpl. More...

CORBA::Boolean IsDimSupported (SMESH::Dimension type)
 Verify whether hypothesis supports given entity type. More...

virtual bool getObjectsDependOn (std::vector< std::string > &entryArray, std::vector< int > &subIDArray) const
 Return geometry this hypothesis depends on. More...

virtual bool setObjectsDependOn (std::vector< std::string > &entryArray, std::vector< int > &subIDArray)
 Set new geometry instead of that returned by getObjectsDependOn() More...

virtual char * GetName ()
 SMESH_Hypothesis_i::GetName. More...

virtual char * GetLibName ()
 SMESH_Hypothesis_i::GetLibName. More...

void SetLibName (const char *theLibName)
 SMESH_Hypothesis_i::SetLibName. More...

virtual CORBA::Short GetId ()
 SMESH_Hypothesis_i::GetId. More...

virtual CORBA::Boolean HasParameters ()
 Return true if a hypothesis has parameters. More...

virtual void SetVarParameter (const char *parameter, const char *method)
 Set the pramIndex-th parameter. More...

virtual char * GetVarParameter (const char *methodName)
 Return the pramIndex-th variable parameter used for Hypothesis creation. More...

virtual void SetHolderHypothesis (const SMESH::SMESH_Hypothesis_ptr hyp)
 Store a hypothesis wrapping this not published one. More...

bool IsPublished ()
 SMESH_Hypothesis_i::IsPublished() More...

virtual char * SaveTo ()
 SMESH_Hypothesis_i::SaveTo. More...

virtual void LoadFrom (const char *theStream)
 SMESH_Hypothesis_i::LoadFrom. More...

virtual void UpdateAsMeshesRestored ()
 This mesthod is called after completion of loading a study. More...

virtual void setOldParameters (const char *theParameters)
 Restore myMethod2VarParams by parameters stored in an old study. More...

virtual int getParamIndex (const TCollection_AsciiString &, int) const

void SetReversedEdges (const SMESH::long_array &theIDs)
 StdMeshers_Reversible1D_i::SetReversedEdges. More...

SMESH::long_array * GetReversedEdges ()
 StdMeshers_Reversible1D_i::GetReversedEdges. More...

void SetObjectEntry (const char *theEntry)
 StdMeshers_Reversible1D_i::SetObjectEntry. More...

char * GetObjectEntry ()
 StdMeshers_Reversible1D_i::GetObjectEntry. More...


Protected Member Functions

virtual std::string getMethodOfParameter (const int paramIndex, int nbVars) const
 Return method name corresponding to index of variable parameter. More...


Protected Attributes

::SMESH_Hypothesis * myBaseImpl

SMESH::SMESH_Hypothesis_var myHolder

std::map< std::string, std::string > myMethod2VarParams


Private Attributes

SMESH_Hypothesis_i * myHyp


Constructor & Destructor Documentation

◆ StdMeshers_NumberOfSegments_i()

StdMeshers_NumberOfSegments_i::StdMeshers_NumberOfSegments_i ( PortableServer::POA_ptr  thePOA,
::SMESH_Gen *  theGenImpl
)

StdMeshers_NumberOfSegments_i::StdMeshers_NumberOfSegments_i.

Constructor

References SMESH_Gen::GetANewId(), and SMESH_Hypothesis_i::myBaseImpl.

◆ ~StdMeshers_NumberOfSegments_i()

StdMeshers_NumberOfSegments_i::~StdMeshers_NumberOfSegments_i ( )
virtual

StdMeshers_NumberOfSegments_i::~StdMeshers_NumberOfSegments_i.

Destructor

Member Function Documentation

◆ BuildDistributionExpr()

SMESH::double_array * StdMeshers_NumberOfSegments_i::BuildDistributionExpr ( const char *  func,
CORBA::Long  nbSeg,
CORBA::Long  conv
)

StdMeshers_NumberOfSegments_i::BuildDistribution.

Builds point distribution according to passed function

References StdMeshers_NumberOfSegments::BuildDistributionExpr(), GetImpl(), and SMESH_Hypothesis_i::myBaseImpl.

◆ BuildDistributionTab()

SMESH::double_array * StdMeshers_NumberOfSegments_i::BuildDistributionTab ( const SMESH::double_array &  func,
CORBA::Long  nbSeg,
CORBA::Long  conv
)

References StdMeshers_NumberOfSegments::BuildDistributionTab(), GetImpl(), and SMESH_Hypothesis_i::myBaseImpl.

◆ ConversionMode()

CORBA::Long StdMeshers_NumberOfSegments_i::ConversionMode ( )

References StdMeshers_NumberOfSegments::ConversionMode(), GetImpl(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetBeta()

CORBA::Double StdMeshers_NumberOfSegments_i::GetBeta ( )

StdMeshers_NumberOfSegments_i::GetBeta.

Get beta coefficient for Beta Law distribution

References StdMeshers_NumberOfSegments::GetBeta(), GetImpl(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetDistrType()

CORBA::Long StdMeshers_NumberOfSegments_i::GetDistrType ( )

References StdMeshers_NumberOfSegments::GetDistrType(), GetImpl(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetExpressionFunction()

char * StdMeshers_NumberOfSegments_i::GetExpressionFunction ( )

References StdMeshers_NumberOfSegments::GetExpressionFunction(), GetImpl(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetId()

CORBA::Short SMESH_Hypothesis_i::GetId ( )
virtualinherited

SMESH_Hypothesis_i::GetId.

Get unique id of hypothesis

References SMESHDS_Hypothesis::GetID(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetImpl()

StdMeshers_NumberOfSegments * StdMeshers_NumberOfSegments_i::GetImpl ( )

StdMeshers_NumberOfSegments_i::GetImpl.

Get implementation

References SMESH_Hypothesis_i::myBaseImpl.

Referenced by BuildDistributionExpr(), BuildDistributionTab(), ConversionMode(), GetBeta(), GetDistrType(), GetExpressionFunction(), GetNumberOfSegments(), GetScaleFactor(), GetTableFunction(), SetBeta(), SetConversionMode(), SetDistrType(), SetExpressionFunction(), SetNumberOfSegments(), SetScaleFactor(), and SetTableFunction().

◆ GetLibName()

char * SMESH_Hypothesis_i::GetLibName ( )
virtualinherited

SMESH_Hypothesis_i::GetLibName.

Get plugin library name of hypothesis (required by persistency mechanism)

References SMESH_Hypothesis::GetLibName(), and SMESH_Hypothesis_i::myBaseImpl.

Referenced by StdMeshers_LayerDistribution_i::SetLayerDistribution().

◆ getMethodOfParameter()

std::string StdMeshers_NumberOfSegments_i::getMethodOfParameter ( const int  paramIndex,
int  nbVars
) const
protectedvirtual

Return method name corresponding to index of variable parameter.

Reimplemented from SMESH_Hypothesis_i.

◆ GetName()

char * SMESH_Hypothesis_i::GetName ( )
virtualinherited

SMESH_Hypothesis_i::GetName.

Get type name of hypothesis

References SMESHDS_Hypothesis::GetName(), and SMESH_Hypothesis_i::myBaseImpl.

Referenced by SMESH_Gen_i::createHypothesis(), SMESH_Gen_i::Save(), and StdMeshers_LayerDistribution_i::SetLayerDistribution().

◆ GetNumberOfSegments()

CORBA::Long StdMeshers_NumberOfSegments_i::GetNumberOfSegments ( )

StdMeshers_NumberOfSegments_i::GetNumberOfSegments.

Get number of segments

References GetImpl(), StdMeshers_NumberOfSegments::GetNumberOfSegments(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetObjectEntry()

char * StdMeshers_Reversible1D_i::GetObjectEntry ( )
inherited

StdMeshers_Reversible1D_i::GetObjectEntry.

Set the Entry for the Main Object

References StdMeshers_Reversible1D_i::GetImpl(), and StdMeshers_Reversible1D::GetObjectEntry().

◆ getObjectsDependOn()

bool StdMeshers_NumberOfSegments_i::getObjectsDependOn ( std::vector< std::string > &  entryArray,
std::vector< int > &  subIDArray
) const
virtual

Return geometry this hypothesis depends on.

Return false if there is no geometry parameter

Implements SMESH_Hypothesis_i.

References StdMeshers_Reversible1D_i::getObjectsDependOn().

◆ getParamIndex()

virtual int SMESH_Hypothesis_i::getParamIndex ( const TCollection_AsciiString &  ,
int
) const
virtualinherited

◆ GetReversedEdges()

SMESH::long_array * StdMeshers_Reversible1D_i::GetReversedEdges ( )
inherited

StdMeshers_Reversible1D_i::GetReversedEdges.

Get reversed edges

References StdMeshers_Reversible1D_i::GetImpl(), and StdMeshers_Reversible1D::GetReversedEdges().

◆ GetScaleFactor()

CORBA::Double StdMeshers_NumberOfSegments_i::GetScaleFactor ( )

StdMeshers_NumberOfSegments_i::GetScaleFactor.

Get scalar factor

References GetImpl(), StdMeshers_NumberOfSegments::GetScaleFactor(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetTableFunction()

SMESH::double_array * StdMeshers_NumberOfSegments_i::GetTableFunction ( )

References GetImpl(), StdMeshers_NumberOfSegments::GetTableFunction(), and SMESH_Hypothesis_i::myBaseImpl.

◆ GetVarParameter()

char * SMESH_Hypothesis_i::GetVarParameter ( const char *  methodName)
virtualinherited

Return the pramIndex-th variable parameter used for Hypothesis creation.

References SMESH_Gen_i::GetSMESHGen(), SMESH_Hypothesis_i::myMethod2VarParams, and SMESH_Hypothesis_i::setOldParameters().

Referenced by SMESH_Hypothesis_i::SaveTo().

◆ HasParameters()

CORBA::Boolean SMESH_Hypothesis_i::HasParameters ( )
virtualinherited

Return true if a hypothesis has parameters.

Reimplemented in StdMeshers_LengthFromEdges_i.

References SMESH_Hypothesis_i::myBaseImpl, and SMESHDS_Hypothesis::SaveTo().

◆ IsDimSupported()

CORBA::Boolean StdMeshers_NumberOfSegments_i::IsDimSupported ( SMESH::Dimension  type)

Verify whether hypothesis supports given entity type.

Parameters
type- dimension (see SMESH::Dimension enumeration)
Return values
CORBA::Boolean- TRUE if dimension is supported, FALSE otherwise

Verify whether hypothesis supports given entity type (see SMESH::Dimension enumeration)

References SMESH::DIM_1D.

◆ IsPublished()

bool SMESH_Hypothesis_i::IsPublished ( )
inherited

SMESH_Hypothesis_i::IsPublished()

References SMESH_Gen_i::GetSMESHGen(), and SMESH_Gen_i::ObjectToSObject().

◆ LoadFrom()

void SMESH_Hypothesis_i::LoadFrom ( const char *  theStream)
virtualinherited

SMESH_Hypothesis_i::LoadFrom.

Persistence: Restores parameters from string

Reimplemented in StdMeshers_ImportSource1D_i, StdMeshers_ImportSource2D_i, StdMeshers_LayerDistribution_i, StdMeshers_ProjectionSource1D_i, StdMeshers_ProjectionSource2D_i, StdMeshers_ProjectionSource3D_i, and StdMeshers_QuadrangleParams_i.

References SMESHDS_Hypothesis::LoadFrom(), SMESH_Hypothesis_i::myBaseImpl, SMESH_Hypothesis_i::myMethod2VarParams, and SMESH_Hypothesis::NotifySubMeshesHypothesisModification().

Referenced by SMESH_Gen_i::CopyMeshWithGeom(), SMESH_Gen_i::Load(), and StdMeshers_LayerDistribution_i::LoadFrom().

◆ SaveTo()

char * SMESH_Hypothesis_i::SaveTo ( )
virtualinherited

SMESH_Hypothesis_i::SaveTo.

Persistence: Dumps parameters to the string stream

Reimplemented in StdMeshers_ImportSource1D_i, StdMeshers_ImportSource2D_i, StdMeshers_LayerDistribution_i, StdMeshers_ProjectionSource1D_i, StdMeshers_ProjectionSource2D_i, StdMeshers_ProjectionSource3D_i, and StdMeshers_QuadrangleParams_i.

References SMESH_Hypothesis_i::GetVarParameter(), SMESH_Hypothesis_i::myBaseImpl, SMESH_Hypothesis_i::myMethod2VarParams, and SMESHDS_Hypothesis::SaveTo().

Referenced by SMESH_Gen_i::CopyMeshWithGeom(), SMESH_Gen_i::Save(), and StdMeshers_LayerDistribution_i::SaveTo().

◆ SetBeta()

void StdMeshers_NumberOfSegments_i::SetBeta ( CORBA::Double  beta)

StdMeshers_NumberOfSegments_i::SetBeta.

Set beta coefficient for Beta Law distribution

References GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetBeta().

◆ SetConversionMode()

void StdMeshers_NumberOfSegments_i::SetConversionMode ( CORBA::Long  conv)

References GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetConversionMode().

◆ SetDistrType()

void StdMeshers_NumberOfSegments_i::SetDistrType ( CORBA::Long  typ)

References StdMeshers_NumberOfSegments::GetDistrType(), GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetDistrType().

◆ SetExpressionFunction()

void StdMeshers_NumberOfSegments_i::SetExpressionFunction ( const char *  expr)

References GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetExpressionFunction().

◆ SetHolderHypothesis()

void SMESH_Hypothesis_i::SetHolderHypothesis ( const SMESH::SMESH_Hypothesis_ptr  hyp)
virtualinherited

Store a hypothesis wrapping this not published one.

This hyp, which has no own parameters but is published, is used to store variables defining parameters of this hypothesis.

References SMESH_Hypothesis_i::myHolder.

◆ SetLibName()

void SMESH_Hypothesis_i::SetLibName ( const char *  theLibName)
inherited

SMESH_Hypothesis_i::SetLibName.

Set plugin library name of hypothesis (required by persistency mechanism)

References SMESH_Hypothesis_i::myBaseImpl, and SMESH_Hypothesis::SetLibName().

Referenced by SMESH_Gen_i::createHypothesis().

◆ SetNumberOfSegments()

void StdMeshers_NumberOfSegments_i::SetNumberOfSegments ( SMESH::smIdType  theSegmentsNumber)

StdMeshers_NumberOfSegments_i::SetNumberOfSegments.

Set number of segments

References GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetNumberOfSegments().

◆ SetObjectEntry()

void StdMeshers_Reversible1D_i::SetObjectEntry ( const char *  theEntry)
inherited

StdMeshers_Reversible1D_i::SetObjectEntry.

Set the Entry for the Main Object

References StdMeshers_Reversible1D_i::GetImpl(), StdMeshers_Reversible1D_i::myHyp, and StdMeshers_Reversible1D::SetObjectEntry().

◆ setObjectsDependOn()

bool StdMeshers_NumberOfSegments_i::setObjectsDependOn ( std::vector< std::string > &  entryArray,
std::vector< int > &  subIDArray
)
virtual

Set new geometry instead of that returned by getObjectsDependOn()

Implements SMESH_Hypothesis_i.

References StdMeshers_Reversible1D_i::setObjectsDependOn().

◆ setOldParameters()

void SMESH_Hypothesis_i::setOldParameters ( const char *  theParameters)
virtualinherited

Restore myMethod2VarParams by parameters stored in an old study.

Reimplemented in StdMeshers_LayerDistribution_i.

References SMESH_Hypothesis_i::getMethodOfParameter(), SMESH_Gen_i::GetSMESHGen(), and SMESH_Hypothesis_i::myMethod2VarParams.

Referenced by SMESH_Hypothesis_i::GetVarParameter().

◆ SetReversedEdges()

void StdMeshers_Reversible1D_i::SetReversedEdges ( const SMESH::long_array &  theIds)
inherited

StdMeshers_Reversible1D_i::SetReversedEdges.

Set edges to reverse

References StdMeshers_Reversible1D_i::GetImpl(), StdMeshers_Reversible1D_i::myHyp, and StdMeshers_Reversible1D::SetReversedEdges().

◆ SetScaleFactor()

void StdMeshers_NumberOfSegments_i::SetScaleFactor ( CORBA::Double  theScaleFactor)

StdMeshers_NumberOfSegments_i::SetScaleFactor.

Set scalar factor

References GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetScaleFactor().

◆ SetTableFunction()

void StdMeshers_NumberOfSegments_i::SetTableFunction ( const SMESH::double_array &  table)

References GetImpl(), SMESH_Hypothesis_i::myBaseImpl, and StdMeshers_NumberOfSegments::SetTableFunction().

◆ SetVarParameter()

void SMESH_Hypothesis_i::SetVarParameter ( const char *  parameter,
const char *  method
)
virtualinherited

Set the pramIndex-th parameter.

References SMESH_Gen_i::GetSMESHGen(), SMESH_Hypothesis_i::myHolder, and SMESH_Hypothesis_i::myMethod2VarParams.

◆ UpdateAsMeshesRestored()

void SMESH_Hypothesis_i::UpdateAsMeshesRestored ( )
virtualinherited

This mesthod is called after completion of loading a study.

Reimplemented in StdMeshers_ImportSource1D_i, StdMeshers_ImportSource2D_i, and StdMeshers_ViscousLayers2D_i.

Referenced by SMESH_Gen_i::Load().

Field Documentation

◆ myBaseImpl

::SMESH_Hypothesis* SMESH_Hypothesis_i::myBaseImpl
protectedinherited

Referenced by BuildDistributionExpr(), BuildDistributionTab(), ConversionMode(), GetBeta(), SMESH_Algo_i::GetCompatibleHypothesis(), StdMeshers_Adaptive1D_i::GetDeflection(), StdMeshers_Deflection1D_i::GetDeflection(), GetDistrType(), GetExpressionFunction(), StdMeshers_AutomaticLength_i::GetFineness(), StdMeshers_CartesianParameters3D_i::GetGrid(), StdMeshers_CartesianParameters3D_i::GetGridSpacing(), SMESH_Hypothesis_i::GetId(), SMESH_Hypothesis_i::GetImpl(), StdMeshers_Adaptive1D_i::GetImpl(), StdMeshers_Arithmetic1D_i::GetImpl(), StdMeshers_AutomaticLength_i::GetImpl(), StdMeshers_BlockRenumber_i::GetImpl(), StdMeshers_Cartesian_3D_i::GetImpl(), StdMeshers_CartesianParameters3D_i::GetImpl(), StdMeshers_CompositeSegment_1D_i::GetImpl(), StdMeshers_Deflection1D_i::GetImpl(), StdMeshers_FixedPoints1D_i::GetImpl(), StdMeshers_Geometric1D_i::GetImpl(), StdMeshers_Hexa_3D_i::GetImpl(), StdMeshers_Import_1D2D_i::GetImpl(), StdMeshers_Import_1D_i::GetImpl(), StdMeshers_ImportSource1D_i::GetImpl(), StdMeshers_ImportSource2D_i::GetImpl(), StdMeshers_LayerDistribution2D_i::GetImpl(), StdMeshers_LayerDistribution_i::GetImpl(), StdMeshers_LengthFromEdges_i::GetImpl(), StdMeshers_LocalLength_i::GetImpl(), StdMeshers_MaxElementArea_i::GetImpl(), StdMeshers_MaxElementVolume_i::GetImpl(), StdMeshers_MaxLength_i::GetImpl(), StdMeshers_NumberOfLayers2D_i::GetImpl(), StdMeshers_NumberOfLayers_i::GetImpl(), GetImpl(), StdMeshers_Prism_3D_i::GetImpl(), StdMeshers_RadialPrism_3D_i::GetImpl(), StdMeshers_Projection_3D_i::GetImpl(), StdMeshers_Projection_2D_i::GetImpl(), StdMeshers_Projection_1D2D_i::GetImpl(), StdMeshers_Projection_1D_i::GetImpl(), StdMeshers_ProjectionSource1D_i::GetImpl(), StdMeshers_ProjectionSource2D_i::GetImpl(), StdMeshers_ProjectionSource3D_i::GetImpl(), StdMeshers_Quadrangle_2D_i::GetImpl(), StdMeshers_QuadrangleParams_i::GetImpl(), StdMeshers_QuadranglePreference_i::GetImpl(), StdMeshers_QuadraticMesh_i::GetImpl(), StdMeshers_RadialQuadrangle_1D2D_i::GetImpl(), StdMeshers_Regular_1D_i::GetImpl(), StdMeshers_SegmentAroundVertex_0D_i::GetImpl(), StdMeshers_SegmentLengthAroundVertex_i::GetImpl(), StdMeshers_StartEndLength_i::GetImpl(), StdMeshers_UseExisting_1D_i::GetImpl(), StdMeshers_UseExisting_2D_i::GetImpl(), StdMeshers_ViscousLayerBuilder_i::GetImpl(), StdMeshers_ViscousLayers2D_i::GetImpl(), StdMeshers_ViscousLayers_i::GetImpl(), StdMeshers_LocalLength_i::GetLength(), StdMeshers_MaxLength_i::GetLength(), StdMeshers_SegmentLengthAroundVertex_i::GetLength(), StdMeshers_Arithmetic1D_i::GetLength(), StdMeshers_StartEndLength_i::GetLength(), SMESH_Hypothesis_i::GetLibName(), StdMeshers_MaxElementArea_i::GetMaxElementArea(), StdMeshers_MaxElementVolume_i::GetMaxElementVolume(), StdMeshers_Adaptive1D_i::GetMaxSize(), StdMeshers_Adaptive1D_i::GetMinSize(), StdMeshers_LengthFromEdges_i::GetMode(), SMESH_Hypothesis_i::GetName(), StdMeshers_FixedPoints1D_i::GetNbSegments(), StdMeshers_NumberOfLayers_i::GetNumberOfLayers(), GetNumberOfSegments(), StdMeshers_QuadrangleParams_i::GetObjectEntry(), StdMeshers_QuadrangleParams_i::getObjectsDependOn(), StdMeshers_ViscousLayers2D_i::getObjectsDependOn(), StdMeshers_ViscousLayers_i::getObjectsDependOn(), StdMeshers_FixedPoints1D_i::GetPoints(), StdMeshers_LocalLength_i::GetPrecision(), StdMeshers_MaxLength_i::GetPreestimatedLength(), StdMeshers_QuadrangleParams_i::GetQuadType(), GetScaleFactor(), StdMeshers_ProjectionSource3D_i::GetSource3DShape(), StdMeshers_ProjectionSource1D_i::GetSourceEdge(), StdMeshers_ProjectionSource2D_i::GetSourceFace(), StdMeshers_ProjectionSource1D_i::GetSourceVertex(), StdMeshers_ProjectionSource2D_i::GetSourceVertex(), StdMeshers_ProjectionSource3D_i::GetSourceVertex(), GetTableFunction(), StdMeshers_ProjectionSource1D_i::GetTargetVertex(), StdMeshers_ProjectionSource2D_i::GetTargetVertex(), StdMeshers_ProjectionSource3D_i::GetTargetVertex(), StdMeshers_QuadrangleParams_i::GetTriaVertex(), StdMeshers_MaxLength_i::GetUsePreestimatedLength(), SMESH_Hypothesis_i::HasParameters(), StdMeshers_MaxLength_i::HavePreestimatedLength(), SMESH_Hypothesis_i::LoadFrom(), StdMeshers_ImportSource1D_i::LoadFrom(), StdMeshers_ImportSource2D_i::LoadFrom(), StdMeshers_LayerDistribution_i::LoadFrom(), StdMeshers_ProjectionSource1D_i::LoadFrom(), StdMeshers_ProjectionSource2D_i::LoadFrom(), StdMeshers_ProjectionSource3D_i::LoadFrom(), StdMeshers_QuadrangleParams_i::LoadFrom(), SMESH_Hypothesis_i::SaveTo(), StdMeshers_ImportSource1D_i::SaveTo(), StdMeshers_ImportSource2D_i::SaveTo(), StdMeshers_LayerDistribution_i::SaveTo(), StdMeshers_ProjectionSource1D_i::SaveTo(), StdMeshers_ProjectionSource2D_i::SaveTo(), StdMeshers_ProjectionSource3D_i::SaveTo(), StdMeshers_QuadrangleParams_i::SaveTo(), SetBeta(), SetConversionMode(), StdMeshers_Adaptive1D_i::SetDeflection(), StdMeshers_Deflection1D_i::SetDeflection(), SetDistrType(), SetExpressionFunction(), StdMeshers_AutomaticLength_i::SetFineness(), StdMeshers_CartesianParameters3D_i::SetGrid(), StdMeshers_CartesianParameters3D_i::SetGridSpacing(), StdMeshers_LayerDistribution_i::SetLayerDistribution(), StdMeshers_LocalLength_i::SetLength(), StdMeshers_MaxLength_i::SetLength(), StdMeshers_SegmentLengthAroundVertex_i::SetLength(), StdMeshers_Arithmetic1D_i::SetLength(), StdMeshers_StartEndLength_i::SetLength(), SMESH_Hypothesis_i::SetLibName(), StdMeshers_MaxElementArea_i::SetMaxElementArea(), StdMeshers_MaxElementVolume_i::SetMaxElementVolume(), StdMeshers_Adaptive1D_i::SetMaxSize(), StdMeshers_Adaptive1D_i::SetMinSize(), StdMeshers_LengthFromEdges_i::SetMode(), StdMeshers_FixedPoints1D_i::SetNbSegments(), StdMeshers_NumberOfLayers_i::SetNumberOfLayers(), SetNumberOfSegments(), StdMeshers_QuadrangleParams_i::SetObjectEntry(), StdMeshers_FixedPoints1D_i::SetPoints(), StdMeshers_LocalLength_i::SetPrecision(), StdMeshers_MaxLength_i::SetPreestimatedLength(), StdMeshers_QuadrangleParams_i::SetQuadType(), StdMeshers_CartesianParameters3D_i::SetQuanta(), SetScaleFactor(), StdMeshers_CartesianParameters3D_i::SetSizeThreshold(), StdMeshers_ProjectionSource3D_i::SetSource3DShape(), StdMeshers_ProjectionSource1D_i::SetSourceEdge(), StdMeshers_ImportSource1D_i::SetSourceEdges(), StdMeshers_ProjectionSource2D_i::SetSourceFace(), StdMeshers_ImportSource2D_i::SetSourceFaces(), StdMeshers_ProjectionSource1D_i::SetSourceMesh(), StdMeshers_ProjectionSource2D_i::SetSourceMesh(), StdMeshers_ProjectionSource3D_i::SetSourceMesh(), SetTableFunction(), StdMeshers_QuadrangleParams_i::SetTriaVertex(), StdMeshers_MaxLength_i::SetUsePreestimatedLength(), StdMeshers_ProjectionSource1D_i::SetVertexAssociation(), StdMeshers_ProjectionSource2D_i::SetVertexAssociation(), StdMeshers_ProjectionSource3D_i::SetVertexAssociation(), SMESH_Hypothesis_i::SMESH_Hypothesis_i(), StdMeshers_Adaptive1D_i::StdMeshers_Adaptive1D_i(), StdMeshers_Arithmetic1D_i::StdMeshers_Arithmetic1D_i(), StdMeshers_AutomaticLength_i::StdMeshers_AutomaticLength_i(), StdMeshers_BlockRenumber_i::StdMeshers_BlockRenumber_i(), StdMeshers_Cartesian_3D_i::StdMeshers_Cartesian_3D_i(), StdMeshers_CartesianParameters3D_i::StdMeshers_CartesianParameters3D_i(), StdMeshers_CompositeSegment_1D_i::StdMeshers_CompositeSegment_1D_i(), StdMeshers_Deflection1D_i::StdMeshers_Deflection1D_i(), StdMeshers_FixedPoints1D_i::StdMeshers_FixedPoints1D_i(), StdMeshers_Geometric1D_i::StdMeshers_Geometric1D_i(), StdMeshers_Hexa_3D_i::StdMeshers_Hexa_3D_i(), StdMeshers_Import_1D2D_i::StdMeshers_Import_1D2D_i(), StdMeshers_Import_1D_i::StdMeshers_Import_1D_i(), StdMeshers_ImportSource1D_i::StdMeshers_ImportSource1D_i(), StdMeshers_ImportSource2D_i::StdMeshers_ImportSource2D_i(), StdMeshers_LayerDistribution2D_i::StdMeshers_LayerDistribution2D_i(), StdMeshers_LayerDistribution_i::StdMeshers_LayerDistribution_i(), StdMeshers_LengthFromEdges_i::StdMeshers_LengthFromEdges_i(), StdMeshers_LocalLength_i::StdMeshers_LocalLength_i(), StdMeshers_MaxElementArea_i::StdMeshers_MaxElementArea_i(), StdMeshers_MaxElementVolume_i::StdMeshers_MaxElementVolume_i(), StdMeshers_MaxLength_i::StdMeshers_MaxLength_i(), StdMeshers_NotConformAllowed_i::StdMeshers_NotConformAllowed_i(), StdMeshers_NumberOfLayers2D_i::StdMeshers_NumberOfLayers2D_i(), StdMeshers_NumberOfLayers_i::StdMeshers_NumberOfLayers_i(), StdMeshers_NumberOfSegments_i(), StdMeshers_PolygonPerFace_2D_i::StdMeshers_PolygonPerFace_2D_i(), StdMeshers_PolyhedronPerSolid_3D_i::StdMeshers_PolyhedronPerSolid_3D_i(), StdMeshers_Prism_3D_i::StdMeshers_Prism_3D_i(), StdMeshers_Projection_1D2D_i::StdMeshers_Projection_1D2D_i(), StdMeshers_Projection_1D_i::StdMeshers_Projection_1D_i(), StdMeshers_Projection_2D_i::StdMeshers_Projection_2D_i(), StdMeshers_Projection_3D_i::StdMeshers_Projection_3D_i(), StdMeshers_ProjectionSource1D_i::StdMeshers_ProjectionSource1D_i(), StdMeshers_ProjectionSource2D_i::StdMeshers_ProjectionSource2D_i(), StdMeshers_ProjectionSource3D_i::StdMeshers_ProjectionSource3D_i(), StdMeshers_Propagation_i::StdMeshers_Propagation_i(), StdMeshers_PropagOfDistribution_i::StdMeshers_PropagOfDistribution_i(), StdMeshers_QuadFromMedialAxis_1D2D_i::StdMeshers_QuadFromMedialAxis_1D2D_i(), StdMeshers_Quadrangle_2D_i::StdMeshers_Quadrangle_2D_i(), StdMeshers_QuadrangleParams_i::StdMeshers_QuadrangleParams_i(), StdMeshers_QuadranglePreference_i::StdMeshers_QuadranglePreference_i(), StdMeshers_QuadraticMesh_i::StdMeshers_QuadraticMesh_i(), StdMeshers_RadialPrism_3D_i::StdMeshers_RadialPrism_3D_i(), StdMeshers_RadialQuadrangle_1D2D_i::StdMeshers_RadialQuadrangle_1D2D_i(), StdMeshers_Regular_1D_i::StdMeshers_Regular_1D_i(), StdMeshers_SegmentAroundVertex_0D_i::StdMeshers_SegmentAroundVertex_0D_i(), StdMeshers_SegmentLengthAroundVertex_i::StdMeshers_SegmentLengthAroundVertex_i(), StdMeshers_StartEndLength_i::StdMeshers_StartEndLength_i(), StdMeshers_UseExisting_1D_i::StdMeshers_UseExisting_1D_i(), StdMeshers_UseExisting_2D_i::StdMeshers_UseExisting_2D_i(), StdMeshers_ViscousLayerBuilder_i::StdMeshers_ViscousLayerBuilder_i(), StdMeshers_ViscousLayers2D_i::StdMeshers_ViscousLayers2D_i(), StdMeshers_ViscousLayers_i::StdMeshers_ViscousLayers_i(), and SMESH_Hypothesis_i::~SMESH_Hypothesis_i().

◆ myHolder

SMESH::SMESH_Hypothesis_var SMESH_Hypothesis_i::myHolder
protectedinherited

Referenced by SMESH_Hypothesis_i::SetHolderHypothesis(), and SMESH_Hypothesis_i::SetVarParameter().

◆ myHyp

SMESH_Hypothesis_i* StdMeshers_Reversible1D_i::myHyp
privateinherited

Referenced by StdMeshers_Reversible1D_i::GetImpl(), StdMeshers_Reversible1D_i::getObjectsDependOn(), StdMeshers_Reversible1D_i::SetObjectEntry(), and StdMeshers_Reversible1D_i::SetReversedEdges().

◆ myMethod2VarParams

std::map< std::string, std::string > SMESH_Hypothesis_i::myMethod2VarParams
protectedinherited

Referenced by SMESH_Hypothesis_i::GetVarParameter(), SMESH_Hypothesis_i::LoadFrom(), SMESH_Hypothesis_i::SaveTo(), SMESH_Hypothesis_i::setOldParameters(), and SMESH_Hypothesis_i::SetVarParameter().
