YACS::HMI::NameEditor Class Reference

#include <ValueDelegate.hxx>

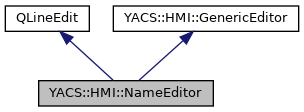

Inheritance diagram for YACS::HMI::NameEditor:

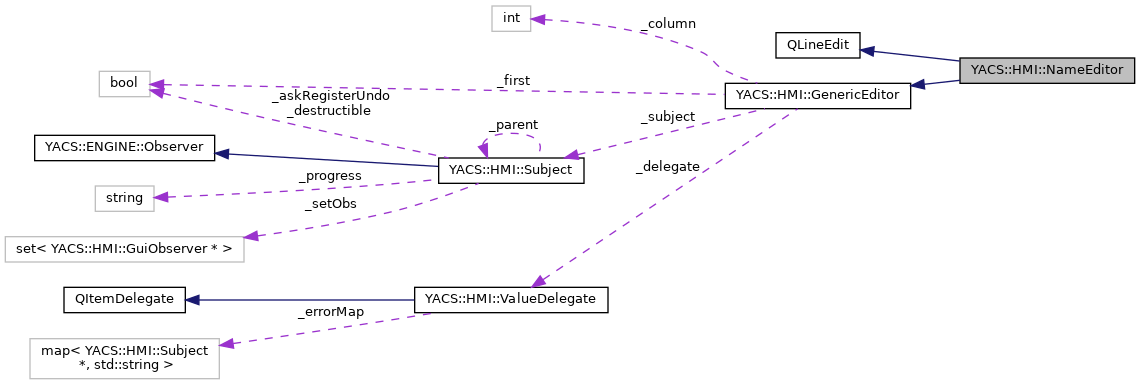

Collaboration diagram for YACS::HMI::NameEditor:

Public Member Functions
	NameEditor (Subject *subject, const ValueDelegate *delegate, int column=0, QWidget *parent=0)
virtual	~NameEditor ()
virtual QString	GetStrValue ()
virtual void	setData (QVariant val)
Public Member Functions inherited from YACS::HMI::GenericEditor
	GenericEditor ()
virtual	~GenericEditor ()
virtual void	setSubject (Subject *subject)
virtual void	setColumn (int column)
virtual void	setDelegate (const ValueDelegate *delegate)
virtual QString	GetStrValue ()
virtual Subject *	getSubject ()
virtual int	getColumnInSubject ()
virtual void	setData (QVariant val)
virtual bool	firstSetData ()

Additional Inherited Members
Protected Attributes inherited from YACS::HMI::GenericEditor
Subject *	_subject
int	_column
const ValueDelegate *	_delegate
bool	_first

Detailed Description

Definition at line 74 of file ValueDelegate.hxx.

Constructor & Destructor Documentation

NameEditor()

NameEditor::NameEditor	(	Subject *	subject,
		const ValueDelegate *	delegate,
		int	column = 0,
		QWidget *	parent = 0
	)

Definition at line 132 of file ValueDelegate.cxx.

  : QLineEdit(parent), GenericEditor()
{
  DEBTRACE("NameEditor::NameEditor");
  setDelegate(delegate);
  setSubject(subject);
  setColumn(column);
}

References DEBTRACE, YACS::HMI::GenericEditor::setColumn(), YACS::HMI::GenericEditor::setDelegate(), and YACS::HMI::GenericEditor::setSubject().

~NameEditor()

NameEditor::~NameEditor ( )

virtual

Definition at line 144 of file ValueDelegate.cxx.

{
}

Member Function Documentation

GetStrValue()

QString NameEditor::GetStrValue ( )

virtual

Reimplemented from YACS::HMI::GenericEditor.

Definition at line 148 of file ValueDelegate.cxx.

{
  DEBTRACE("Name::GetStrValue " << text().toStdString());
  string filtered = ItemEdition::filterName(text().toStdString());
  return filtered.c_str();
}

References DEBTRACE, and YACS::HMI::ItemEdition::filterName().

setData()

void NameEditor::setData ( QVariant  val )

virtual

Reimplemented from YACS::HMI::GenericEditor.

Definition at line 155 of file ValueDelegate.cxx.

{
  DEBTRACE("NameEditor::setData " << this);
  DEBTRACE(val.canConvert<QString>());
  DEBTRACE(val.toString().toStdString());
  string filtered = ItemEdition::filterName(val.toString().toStdString());
  setText(filtered.c_str());
}

References DEBTRACE, and YACS::HMI::ItemEdition::filterName().

---

The documentation for this class was generated from the following files:

• src/genericgui/ValueDelegate.hxx
• src/genericgui/ValueDelegate.cxx
