YACS::HMI::ValueDelegate Class Reference

#include <ValueDelegate.hxx>

Inheritance diagram for YACS::HMI::ValueDelegate:

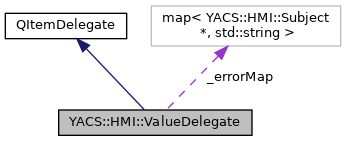

Collaboration diagram for YACS::HMI::ValueDelegate:

Public Member Functions
	ValueDelegate (QObject *parent=0)
virtual	~ValueDelegate ()
virtual QWidget *	createEditor (QWidget *parent, const QStyleOptionViewItem &option, const QModelIndex &index) const
virtual void	setEditorData (QWidget *editor, const QModelIndex &index) const
virtual void	setModelData (QWidget *editor, QAbstractItemModel *model, const QModelIndex &index) const
virtual void	updateEditorGeometry (QWidget *editor, const QStyleOptionViewItem &option, const QModelIndex &index) const
virtual void	setResultEditing (QWidget *editor, bool isOk)

Protected Attributes
std::map< Subject *, std::string >	_errorMap

Detailed Description

Definition at line 116 of file ValueDelegate.hxx.

Constructor & Destructor Documentation

ValueDelegate()

ValueDelegate::ValueDelegate

(

QObject *

parent = 0

)

Definition at line 245 of file ValueDelegate.cxx.

  : QItemDelegate(parent)
{
  DEBTRACE("ValueDelegate::ValueDelegate");
  _errorMap.clear();
}

References _errorMap, and DEBTRACE.

~ValueDelegate()

ValueDelegate::~ValueDelegate ( )

virtual

Definition at line 252 of file ValueDelegate.cxx.

{
  DEBTRACE("ValueDelegate::~ValueDelegate");
}

References DEBTRACE.

Member Function Documentation

createEditor()

QWidget * ValueDelegate::createEditor ( QWidget *  parent, const QStyleOptionViewItem &  option, const QModelIndex &  index  ) const

virtual

Definition at line 257 of file ValueDelegate.cxx.

{
  DEBTRACE("ValueDelegate::createEditor");

  SchemaItem *item = static_cast<SchemaItem*>(index.internalPointer());
  Subject *subject = item->getSubject();
  int column = index.column();
  DEBTRACE(subject->getName() << " " << column);

  QWidget *editor = 0;
  SubjectDataPort *sport = 0;
  SubjectNode *snode = 0;

  if (column == YValue)
    {
      sport = dynamic_cast<SubjectDataPort*>(subject);
      if (!sport)
        snode= dynamic_cast<SubjectNode*>(subject);

      if (sport)
        {
          YACS::ENGINE::DataPort *port = sport->getPort();
          YACS::ENGINE::InputStudyPort* istport=dynamic_cast<YACS::ENGINE::InputStudyPort*>(port);
          YACS::ENGINE::OutputStudyPort* ostport=dynamic_cast<YACS::ENGINE::OutputStudyPort*>(port);
          YACS::ENGINE::TypeCode *tc = port->edGetType();
          YACS::ENGINE::DynType dt = tc->kind();
          if (!istport && !ostport && dt == YACS::ENGINE::Int)
            editor = new IntEditor(subject, this, column, parent);
        }
      else if (snode)
        {
          SubjectSwitch *sSwitch = dynamic_cast<SubjectSwitch*>(snode->getParent());
          if (sSwitch)
            editor = new CaseSwitchEditor(subject, this, column, parent);
        }
    }

  if (column == YLabel)
    {
      sport = dynamic_cast<SubjectDataPort*>(subject);
      if (sport)
        editor = new NameEditor(subject, this, column, parent);
    }

  if (!editor) editor = new GeneralEditor(subject, this, column, parent);
  return editor;
}

References DEBTRACE, YACS::ENGINE::DataPort::edGetType(), YACS::HMI::Subject::getName(), YACS::HMI::Subject::getParent(), YACS::HMI::SubjectDataPort::getPort(), YACS::HMI::SchemaItem::getSubject(), YACS::ENGINE::Int, YACS::ENGINE::TypeCode::kind(), YACS::HMI::YLabel, and YACS::HMI::YValue.

setEditorData()

void ValueDelegate::setEditorData ( QWidget *  editor, const QModelIndex &  index  ) const

virtual

Initialise the editor with data from model, unless there is a previous error in edition of this item, and it is the first initialisation of the editor: in case of error, a new editor must be initialised with the wrong edited string, for correction.

Definition at line 313 of file ValueDelegate.cxx.

{
  DEBTRACE("ValueDelegate::setEditorData");
  GenericEditor* gedit = dynamic_cast<GenericEditor*>(editor);
  YASSERT(gedit);
  QString edited = gedit->GetStrValue();
  DEBTRACE(edited.toStdString());
  Subject *sub = gedit->getSubject();
  if (! gedit->firstSetData())    // --- editor already initialized
    return;
  else if (_errorMap.count(sub))  // --- initialize with previous error
    {
      string error = _errorMap[sub];
      gedit->setData(QString(error.c_str()));
      _errorMap.erase(gedit->getSubject());
      DEBTRACE("--------erase-----------");
    }
  else                            // --- initialize with model
    gedit->setData(index.model()->data(index, Qt::DisplayRole));
}

References _errorMap, DEBTRACE, YACS::HMI::GenericEditor::firstSetData(), YACS::HMI::GenericEditor::GetStrValue(), YACS::HMI::GenericEditor::getSubject(), YACS::HMI::GenericEditor::setData(), and YASSERT.

setModelData()

void ValueDelegate::setModelData ( QWidget *  editor, QAbstractItemModel *  model, const QModelIndex &  index  ) const

virtual

Nothing done here: model->setData is done by UPDATE.

Definition at line 338 of file ValueDelegate.cxx.

{
  DEBTRACE("ValueDelegate::setModelData");
  GenericEditor* gedit = dynamic_cast<GenericEditor*>(editor);
  YASSERT(gedit);
  QString value = gedit->GetStrValue();
  DEBTRACE(value.toStdString());
  //model->setData(index, value, Qt::EditRole); // real set done by update
}

References DEBTRACE, YACS::HMI::GenericEditor::GetStrValue(), and YASSERT.

setResultEditing()

void ValueDelegate::setResultEditing ( QWidget *  editor, bool  isOk  )

virtual

If edition is in error, keep the wrong string value in a map, to initialise a next instance of editor with the wrong string, in order to help correction of the edition.

Definition at line 363 of file ValueDelegate.cxx.

{
  DEBTRACE("ValueDelegate::setResultEditing " << isOk);
  GenericEditor* gedit = dynamic_cast<GenericEditor*>(editor);
  YASSERT(gedit);
  Subject *sub = gedit->getSubject();
  string val = gedit->GetStrValue().toStdString();
  DEBTRACE(sub->getName() << " " << val);
  if (!isOk)
    {
      sub->update(EDIT, 1, sub);
      _errorMap[sub] = val;
    }
  else
      sub->update(EDIT, 0, sub);
}

References _errorMap, DEBTRACE, YACS::HMI::EDIT, YACS::HMI::Subject::getName(), YACS::HMI::GenericEditor::GetStrValue(), YACS::HMI::GenericEditor::getSubject(), YACS::HMI::Subject::update(), and YASSERT.

Referenced by YACS::HMI::EditionElementaryNode::onCommitData(), YACS::HMI::EditionSwitch::onCommitData(), and YACS::HMI::TreeView::onCommitData().

updateEditorGeometry()

void ValueDelegate::updateEditorGeometry ( QWidget *  editor, const QStyleOptionViewItem &  option, const QModelIndex &  index  ) const

virtual

Definition at line 350 of file ValueDelegate.cxx.

{
  DEBTRACE("ValueDelegate::updateEditorGeometry");
  editor->setGeometry(option.rect);
}

References DEBTRACE.

Member Data Documentation

_errorMap

std::map<Subject*, std::string> YACS::HMI::ValueDelegate::_errorMap

mutableprotected

Definition at line 140 of file ValueDelegate.hxx.

Referenced by setEditorData(), setResultEditing(), and ValueDelegate().

---

The documentation for this class was generated from the following files:

• src/genericgui/ValueDelegate.hxx
• src/genericgui/ValueDelegate.cxx
