#include <guiObservers.hxx>

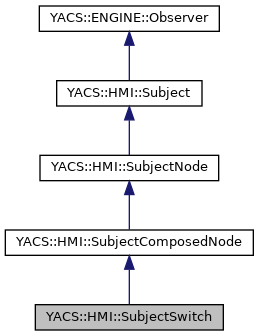

Inheritance diagram for YACS::HMI::SubjectSwitch:

[legend]

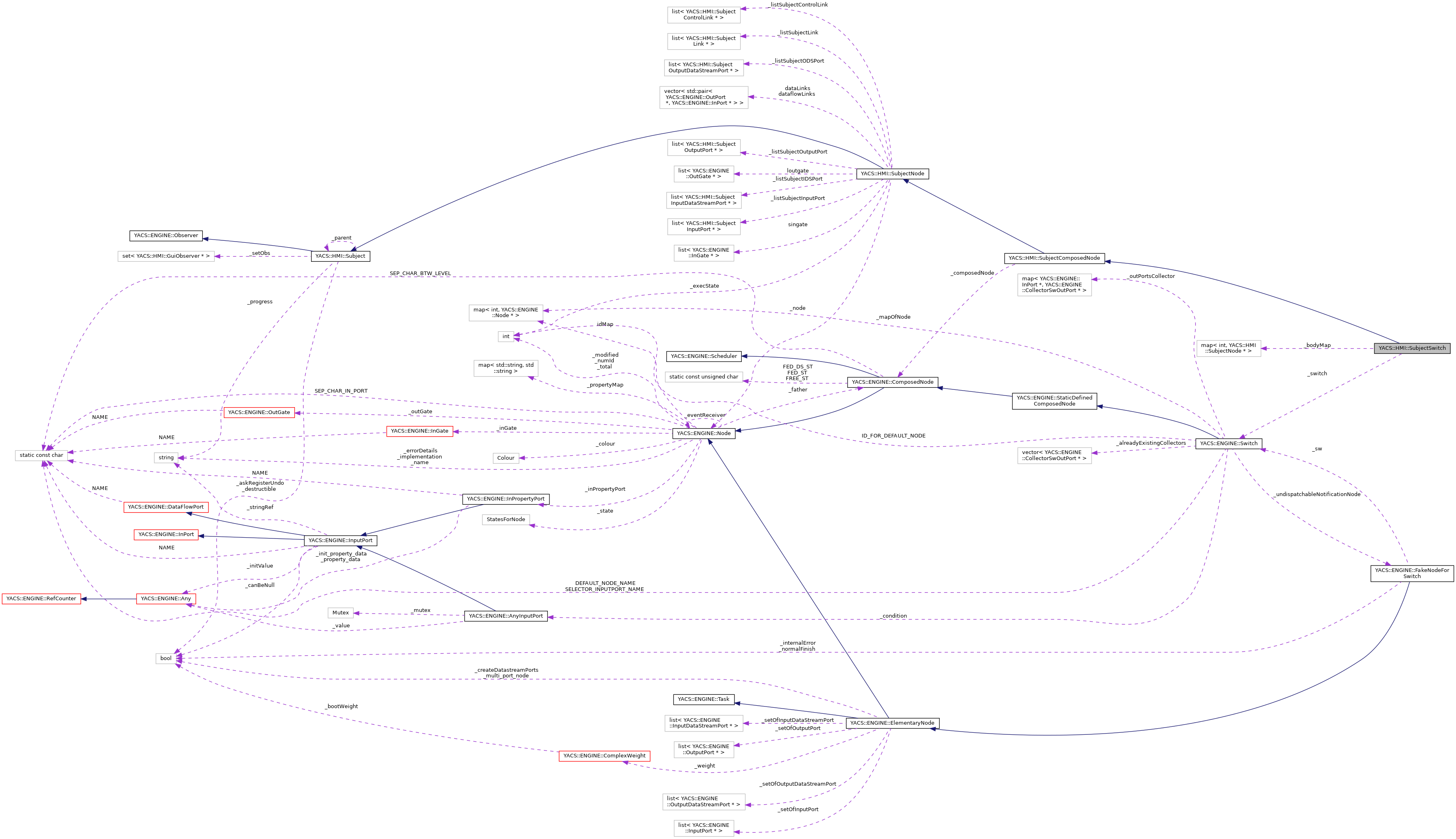

Collaboration diagram for YACS::HMI::SubjectSwitch:

[legend]

Public Member Functions
	SubjectSwitch (YACS::ENGINE::Switch aSwitch, Subject parent)

virtual	~SubjectSwitch ()

virtual SubjectNode *	addNode (YACS::ENGINE::Catalog *catalog, std::string compo, std::string type, std::string name, bool newCompoInst, int swCase, bool replace=false)

virtual void	recursiveUpdate (GuiEvent event, int type, Subject *son)

virtual void	removeNode (SubjectNode *son)

std::map< int, SubjectNode * >	getBodyMap ()

virtual void	completeChildrenSubjectList (SubjectNode *son)

virtual SubjectNode *	getChild (YACS::ENGINE::Node *node=0) const

virtual bool	setSelect (std::string select)

virtual bool	setCase (std::string caseId, SubjectNode *snode)

virtual bool	hasValue ()

virtual std::string	getValue ()

virtual void	houseKeepingAfterCutPaste (bool isCut, SubjectNode *son)

virtual void	clean (Command *command=0)

void	localclean (Command *command=0)

virtual TypeOfElem	getType ()

Public Member Functions inherited from YACS::HMI::SubjectComposedNode
	SubjectComposedNode (YACS::ENGINE::ComposedNode composedNode, Subject parent)

virtual	~SubjectComposedNode ()

virtual SubjectNode *	addNode (YACS::ENGINE::Catalog *catalog, std::string compo, std::string type, std::string name, bool newCompoInst)

virtual SubjectNode *	getChild (YACS::ENGINE::Node *node=0) const

virtual void	loadChildren ()

virtual void	loadLinks ()

virtual void	completeChildrenSubjectList (SubjectNode *son)

SubjectNode *	addSubjectNode (YACS::ENGINE::Node node, std::string name="", YACS::ENGINE::Catalog catalog=0, std::string compo="", std::string type="")

SubjectLink *	addSubjectLink (SubjectNode sno, SubjectDataPort spo, SubjectNode sni, SubjectDataPort spi)

SubjectControlLink *	addSubjectControlLink (SubjectNode sno, SubjectNode sni)

virtual void	removeLink (SubjectLink *link)

virtual void	removeControlLink (SubjectControlLink *link)

virtual void	removeExternalControlLinks ()

virtual void	houseKeepingAfterCutPaste (bool isCut, SubjectNode *son)

virtual bool	hasValue ()

virtual std::string	getValue ()

virtual void	clean (Command *command=0)

void	localclean (Command *command=0)

Public Member Functions inherited from YACS::HMI::SubjectNode
	SubjectNode (YACS::ENGINE::Node node, Subject parent)

virtual	~SubjectNode ()

virtual bool	setProperties (std::map< std::string, std::string > properties)

virtual std::map< std::string, std::string >	getProperties ()

virtual bool	reparent (Subject *parent)

virtual bool	copy (Subject *parent)

virtual std::string	getName ()

virtual bool	setName (std::string name)

virtual YACS::ENGINE::Node *	getNode ()

virtual void	clean (Command *command=0)

void	registerUndoDestroy ()

SubjectControlLink *	addSubjectControlLink (SubjectControlLink *sub)

void	removeSubjectControlLink (SubjectControlLink *sub)

std::list< SubjectLink * >	getSubjectLinks () const

std::list< SubjectControlLink * >	getSubjectControlLinks () const

std::list< SubjectInputPort * >	getSubjectInputPorts () const

std::list< SubjectOutputPort * >	getSubjectOutputPorts () const

std::list< SubjectInputDataStreamPort * >	getSubjectInputDataStreamPorts () const

std::list< SubjectOutputDataStreamPort * >	getSubjectOutputDataStreamPorts () const

void	localclean (Command *command=0)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual void	recursiveUpdate (GuiEvent event, int type, Subject *son)

virtual void	removeExternalLinks ()

virtual void	removeExternalControlLinks ()

virtual void	saveLinks ()

virtual void	restoreLinks ()

virtual bool	putInComposedNode (std::string name, std::string type, bool toSaveRestoreLinks=true)

virtual int	isValid ()

void	setExecState (int execState)

Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)

virtual	~Subject ()

virtual void	attach (GuiObserver *obs)

virtual void	detach (GuiObserver *obs)

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual std::string	getName ()

virtual bool	setName (std::string name)

virtual bool	setProperties (std::map< std::string, std::string > properties)

virtual std::map< std::string, std::string >	getProperties ()

virtual std::vector< std::string >	knownProperties ()

virtual Subject *	getParent ()

virtual void	setParent (Subject *son)

virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...

virtual void	loadChildren ()

virtual void	loadLinks ()

virtual void	addSubjectReference (Subject *ref)

virtual void	clean (Command *command=0)

void	localclean (Command *command=0)

void	registerUndoDestroy ()

void	askRegisterUndoDestroy ()

bool	isDestructible ()

virtual TypeOfElem	getType ()

virtual void	setProgress (std::string newProgress)

virtual std::string	getProgress ()

Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver (Node *object, const std::string &event)

virtual void	notifyObserver2 (Node object, const std::string &event, void something)

virtual void	notifyObserverFromClone (Node originalInstance, const std::string &event, Node clonedInstanceGeneratingEvent)

virtual	~Observer ()

Protected Attributes
YACS::ENGINE::Switch *	_switch

std::map< int, SubjectNode * >	_bodyMap

Protected Attributes inherited from YACS::HMI::SubjectComposedNode
YACS::ENGINE::ComposedNode *	_composedNode

Protected Attributes inherited from YACS::HMI::SubjectNode
YACS::ENGINE::Node *	_node

std::list< SubjectInputPort * >	_listSubjectInputPort

std::list< SubjectOutputPort * >	_listSubjectOutputPort

std::list< SubjectInputDataStreamPort * >	_listSubjectIDSPort

std::list< SubjectOutputDataStreamPort * >	_listSubjectODSPort

std::list< SubjectLink * >	_listSubjectLink

std::list< SubjectControlLink * >	_listSubjectControlLink

int	_execState

std::list< YACS::ENGINE::OutGate * >	loutgate

std::list< YACS::ENGINE::InGate * >	singate

std::vector< std::pair< YACS::ENGINE::OutPort , YACS::ENGINE::InPort > >	dataLinks

std::vector< std::pair< YACS::ENGINE::OutPort , YACS::ENGINE::InPort > >	dataflowLinks

Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs

Subject *	_parent

bool	_destructible

bool	_askRegisterUndo

std::string	_progress

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::SubjectComposedNode
static SubjectComposedNode *	getLowestCommonAncestor (SubjectNode snode1, SubjectNode snode2)
	Retrieves the lowest common ancestor of 2 nodes. More...

Static Public Member Functions inherited from YACS::HMI::SubjectNode
static bool	tryCreateLink (SubjectNode subOutNode, SubjectNode subInNode)

Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject sub, Command command=0, bool post=false)

Protected Member Functions inherited from YACS::HMI::SubjectComposedNode
virtual SubjectNode *	createNode (YACS::ENGINE::Catalog *catalog, std::string compo, std::string type, std::string name, bool newCompoInst, int swCase=0)

Protected Member Functions inherited from YACS::HMI::SubjectNode
virtual SubjectInputPort *	addSubjectInputPort (YACS::ENGINE::InputPort *port, std::string name="")

virtual SubjectOutputPort *	addSubjectOutputPort (YACS::ENGINE::OutputPort *port, std::string name="")

virtual SubjectInputDataStreamPort *	addSubjectIDSPort (YACS::ENGINE::InputDataStreamPort *port, std::string name="")

virtual SubjectOutputDataStreamPort *	addSubjectODSPort (YACS::ENGINE::OutputDataStreamPort *port, std::string name="")

virtual void	notifyObserver (YACS::ENGINE::Node *object, const std::string &event)

Detailed Description

Definition at line 586 of file guiObservers.hxx.

Constructor & Destructor Documentation

◆ SubjectSwitch()

SubjectSwitch::SubjectSwitch	(	YACS::ENGINE::Switch *	aSwitch,
		Subject *	parent
	)

Definition at line 3092 of file guiObservers.cxx.

  : SubjectComposedNode(aSwitch, parent), _switch(aSwitch)
{
  _bodyMap.clear();
}

References _bodyMap.

◆ ~SubjectSwitch()

SubjectSwitch::~SubjectSwitch ( )

virtual

Definition at line 3098 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::~SubjectSwitch " << getName());
}

References DEBTRACE, and YACS::HMI::SubjectNode::getName().

Member Function Documentation

◆ addNode()

SubjectNode * SubjectSwitch::addNode	(	YACS::ENGINE::Catalog *	catalog,
		std::string	compo,
		std::string	type,
		std::string	name,
		bool	newCompoInst,
		int	swCase,
		bool	replace = `false`
	)

virtual

Definition at line 3131 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::addNode("<<catalog<<","<<compo<<","<<type<<","<<name<<","<<swCase<<","<<(int)replace<<")");
  SubjectNode* body = 0;
  if (!replace && _bodyMap.count(swCase))
    {
      GuiContext::getCurrent()->_lastErrorMessage = "If you need several nodes in a switch case, put the nodes in a bloc";
      return body;
    }
  body = createNode(catalog, compo, type, name, newCompoInst, swCase);
  return body;
}

References _bodyMap, YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::SubjectComposedNode::createNode(), DEBTRACE, and YACS::HMI::GuiContext::getCurrent().

Referenced by YACS::HMI::GuiEditor::_createNode(), and gui.GraphViewer.GraphViewer::popup().

◆ clean()

void SubjectSwitch::clean ( Command * command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::SubjectComposedNode.

Definition at line 3103 of file guiObservers.cxx.

{
  if (_askRegisterUndo)
    {
      _askRegisterUndo = false;
      registerUndoDestroy();
    }
  localclean(command);
  SubjectComposedNode::clean(command);
}

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::SubjectComposedNode::clean(), localclean(), and YACS::HMI::SubjectNode::registerUndoDestroy().

◆ completeChildrenSubjectList()

void SubjectSwitch::completeChildrenSubjectList ( SubjectNode * son )

virtual

Reimplemented from YACS::HMI::SubjectComposedNode.

Definition at line 3190 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::completeChildrenSubjectList");
  _bodyMap[_switch->getRankOfNode(son->getNode())] = son;
}

References _bodyMap, _switch, DEBTRACE, YACS::HMI::SubjectNode::getNode(), and YACS::ENGINE::Switch::getRankOfNode().

◆ getBodyMap()

std::map< int, SubjectNode * > SubjectSwitch::getBodyMap ( )

Definition at line 3175 of file guiObservers.cxx.

{
  return _bodyMap;
}

References _bodyMap.

Referenced by YACS::HMI::GuiEditor::_createNode().

◆ getChild()

SubjectNode * SubjectSwitch::getChild ( YACS::ENGINE::Node * node = 0 ) const

virtual

Reimplemented from YACS::HMI::SubjectComposedNode.

Definition at line 3196 of file guiObservers.cxx.

{
  SubjectNode* aChild = 0;

  if (node)
  {
    map<int, SubjectNode*>::const_iterator it;
    for (it = _bodyMap.begin(); it != _bodyMap.end(); ++it)
      if ( (*it).second->getNode() == node )
      {
        aChild = (*it).second;
        break;
      }
  }

  return aChild;
}

References _bodyMap.

◆ getType()

virtual TypeOfElem YACS::HMI::SubjectSwitch::getType ( )

inlinevirtual

Reimplemented from YACS::HMI::Subject.

Definition at line 610 of file guiObservers.hxx.

610{return SWITCH;}

YACS::HMI::SWITCH

@ SWITCH

Definition: commandsProc.hxx:68

References YACS::HMI::SWITCH.

◆ getValue()

std::string SubjectSwitch::getValue ( )

virtual

used in derived classes using a counter, a selector, or a condition: ForLoop, ForEachLoop, Switch, WhileLoop.

Reimplemented from YACS::HMI::SubjectComposedNode.

Definition at line 3258 of file guiObservers.cxx.

{
  return _switch->edGetConditionPort()->getAsString();
}

References _switch, YACS::ENGINE::Switch::edGetConditionPort(), and YACS::ENGINE::DataPort::getAsString().

Referenced by YACS::HMI::SchemaComposedNodeItem::update().

◆ hasValue()

bool SubjectSwitch::hasValue ( )

virtual

used in derived classes using a counter, a selector, or a condition: ForLoop, ForEachLoop, Switch, WhileLoop.

Reimplemented from YACS::HMI::SubjectComposedNode.

Definition at line 3253 of file guiObservers.cxx.

{
  return true;
}

Referenced by YACS::HMI::SchemaComposedNodeItem::update().

◆ houseKeepingAfterCutPaste()

void SubjectSwitch::houseKeepingAfterCutPaste	(	bool	isCut,
		SubjectNode *	son
	)

virtual

Reimplemented from YACS::HMI::SubjectComposedNode.

Definition at line 3180 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::houseKeepingAfterCutPaste");
  if (isCut)
    _bodyMap.erase(_switch->getRankOfNode(son->getNode()));
  else
    _bodyMap[_switch->getRankOfNode(son->getNode())] = son;
}

References _bodyMap, _switch, DEBTRACE, YACS::HMI::SubjectNode::getNode(), and YACS::ENGINE::Switch::getRankOfNode().

◆ localclean()

void SubjectSwitch::localclean ( Command * command = 0 )

Definition at line 3114 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::localClean ");
  map<int, SubjectNode*>::iterator it;
  map<int, SubjectNode*> bodyMapCpy = _bodyMap;
  for (it = bodyMapCpy.begin(); it != bodyMapCpy.end(); ++it)
    erase((*it).second);
}

References _bodyMap, DEBTRACE, and YACS::HMI::Subject::erase().

Referenced by clean().

◆ recursiveUpdate()

void SubjectSwitch::recursiveUpdate	(	GuiEvent	event,
		int	type,
		Subject *	son
	)

virtual

Reimplemented from YACS::HMI::SubjectNode.

Definition at line 3123 of file guiObservers.cxx.

{
  update(event, type, son);
  map<int, SubjectNode*>::iterator it = _bodyMap.begin();
  for (; it != _bodyMap.end(); ++it)
    (*it).second->recursiveUpdate(event, type, son);
}

References _bodyMap, and YACS::HMI::SubjectNode::update().

◆ removeNode()

void SubjectSwitch::removeNode ( SubjectNode * son )

virtual

Definition at line 3150 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::removeNode("<<son->getName()<<")");
  if (son)
  {
    int id;
    bool isFound = false;
    map<int, SubjectNode*>::const_iterator it;
    for (it = _bodyMap.begin(); it != _bodyMap.end(); ++it)
    {
      if ( (*it).second == son )
      {
        isFound = true;
        id = (*it).first;
        break;
      }
    }
    if (isFound)
    {
      DEBTRACE("id = "<<id);
      _bodyMap.erase(id);
    }
  }
}

References _bodyMap, DEBTRACE, and YACS::HMI::SubjectNode::getName().

◆ setCase()

bool SubjectSwitch::setCase	(	std::string	caseId,
		SubjectNode *	snode
	)

virtual

Definition at line 3229 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::setCase " << caseId);
  Proc *proc = GuiContext::getCurrent()->getProc();

  Switch* aSwitch = dynamic_cast<Switch*>(getNode());
  Node* node =snode->getNode();
  int previousRank = aSwitch->getRankOfNode(node);
  int newRank = atoi(caseId.c_str());
  if (previousRank == newRank) return true; // nothing to do.

  CommandSetSwitchCase *command =
    new CommandSetSwitchCase(proc->getChildName(getNode()),
                             proc->getChildName(snode->getNode()),
                             caseId);
  if (command->execute())
    {
      GuiContext::getCurrent()->getInvoc()->add(command);
      return true;
    }
  else delete command;
  return false;
}

References YACS::HMI::Invocator::add(), DEBTRACE, YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::GuiContext::getProc(), and YACS::ENGINE::Switch::getRankOfNode().

Referenced by YACS::HMI::EditionSwitch::onCommitData(), and YACS::HMI::TreeView::onCommitData().

◆ setSelect()

bool SubjectSwitch::setSelect ( std::string select )

virtual

Definition at line 3214 of file guiObservers.cxx.

{
  DEBTRACE("SubjectSwitch::setSelect " << select);
  Proc *proc = GuiContext::getCurrent()->getProc();
  CommandSetSwitchSelect *command =
    new CommandSetSwitchSelect(proc->getChildName(getNode()), select);
  if (command->execute())
    {
      GuiContext::getCurrent()->getInvoc()->add(command);
      return true;
    }
  else delete command;
  return false;
}

References YACS::HMI::Invocator::add(), DEBTRACE, YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::GuiContext::getProc(), and YACS::HMI::Subject::select().

Referenced by YACS::HMI::EditionSwitch::onModifySelect().

Member Data Documentation

◆ _bodyMap

std::map<int, SubjectNode*> YACS::HMI::SubjectSwitch::_bodyMap

protected

Definition at line 613 of file guiObservers.hxx.

Referenced by addNode(), completeChildrenSubjectList(), getBodyMap(), getChild(), houseKeepingAfterCutPaste(), localclean(), recursiveUpdate(), removeNode(), and SubjectSwitch().

◆ _switch

YACS::ENGINE::Switch* YACS::HMI::SubjectSwitch::_switch

protected

Definition at line 612 of file guiObservers.hxx.

Referenced by completeChildrenSubjectList(), getValue(), and houseKeepingAfterCutPaste().

The documentation for this class was generated from the following files:

src/hmi/guiObservers.hxx
src/hmi/guiObservers.cxx

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SubjectSwitch()

◆ ~SubjectSwitch()

Member Function Documentation

◆ addNode()

◆ clean()

◆ completeChildrenSubjectList()

◆ getBodyMap()

◆ getChild()

◆ getType()

◆ getValue()

◆ hasValue()

◆ houseKeepingAfterCutPaste()

◆ localclean()

◆ recursiveUpdate()

◆ removeNode()

◆ setCase()

◆ setSelect()

Member Data Documentation

◆ _bodyMap

◆ _switch
