#include <guiObservers.hxx>

Inheritance diagram for YACS::HMI::SubjectLink:

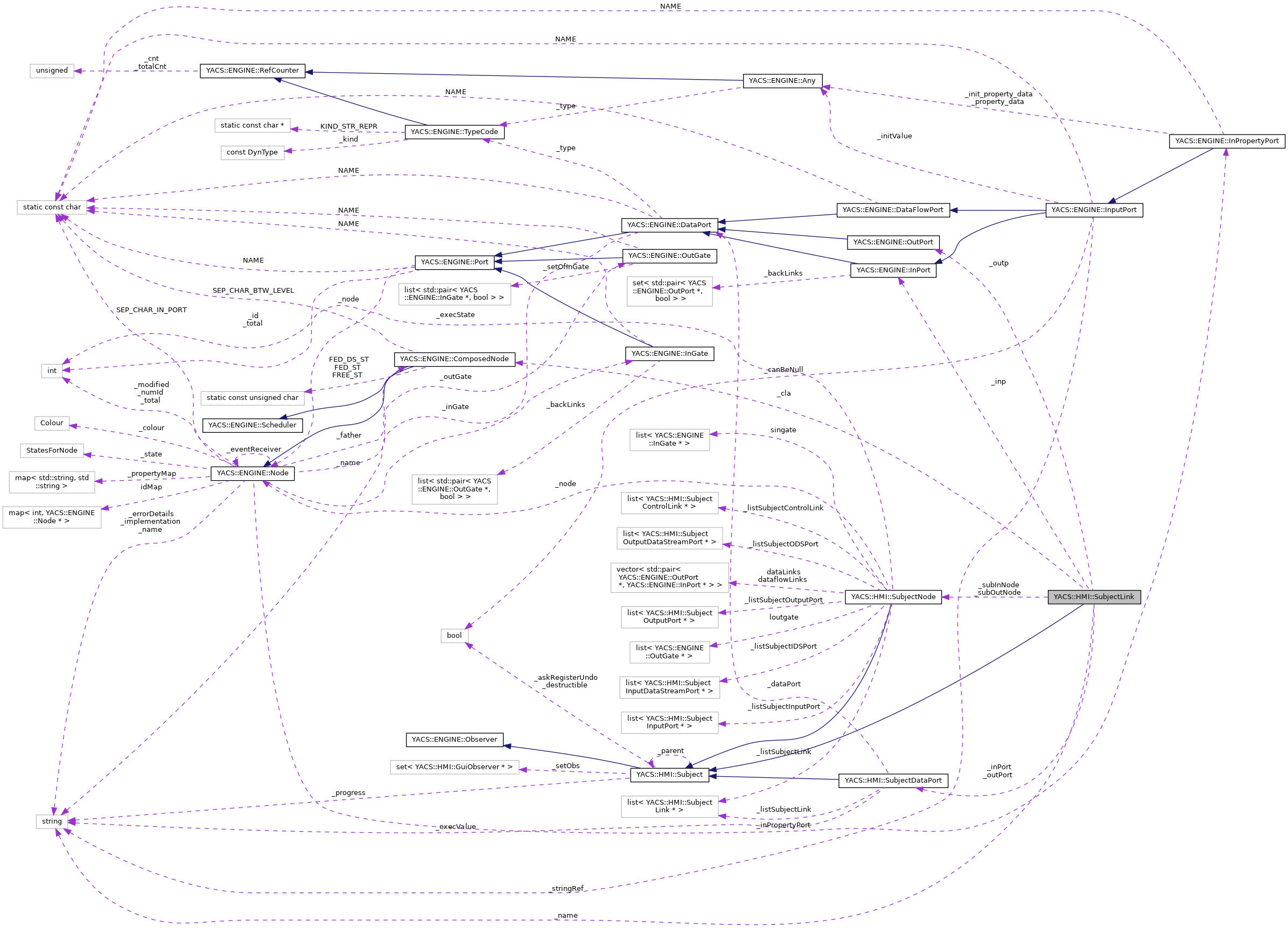

Collaboration diagram for YACS::HMI::SubjectLink:

[legend]

Public Member Functions
	SubjectLink (SubjectNode subOutNode, SubjectDataPort outPort, SubjectNode subInNode, SubjectDataPort inPort, Subject *parent)

virtual	~SubjectLink ()

virtual std::string	getName ()

virtual void	clean (Command *command=0)

void	localclean (Command *command=0)

SubjectNode *	getSubjectOutNode ()

SubjectNode *	getSubjectInNode ()

SubjectDataPort *	getSubjectOutPort ()

SubjectDataPort *	getSubjectInPort ()

virtual bool	setProperties (std::map< std::string, std::string > properties)

virtual std::map< std::string, std::string >	getProperties ()

virtual std::vector< std::string >	knownProperties ()

virtual TypeOfElem	getType ()

void	registerUndoDestroy ()

Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)

virtual	~Subject ()

virtual void	attach (GuiObserver *obs)

virtual void	detach (GuiObserver *obs)

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual std::string	getName ()

virtual bool	setName (std::string name)

virtual bool	setProperties (std::map< std::string, std::string > properties)

virtual std::map< std::string, std::string >	getProperties ()

virtual std::vector< std::string >	knownProperties ()

virtual Subject *	getParent ()

virtual void	setParent (Subject *son)

virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...

virtual void	loadChildren ()

virtual void	loadLinks ()

virtual void	addSubjectReference (Subject *ref)

virtual void	clean (Command *command=0)

void	localclean (Command *command=0)

void	registerUndoDestroy ()

void	askRegisterUndoDestroy ()

bool	isDestructible ()

virtual TypeOfElem	getType ()

virtual void	setProgress (std::string newProgress)

virtual std::string	getProgress ()

Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver (Node *object, const std::string &event)

virtual void	notifyObserver2 (Node object, const std::string &event, void something)

virtual void	notifyObserverFromClone (Node originalInstance, const std::string &event, Node clonedInstanceGeneratingEvent)

virtual	~Observer ()

Protected Attributes
SubjectNode *	_subOutNode

SubjectDataPort *	_outPort

SubjectNode *	_subInNode

SubjectDataPort *	_inPort

std::string	_name

YACS::ENGINE::ComposedNode *	_cla

YACS::ENGINE::OutPort *	_outp

YACS::ENGINE::InPort *	_inp

Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs

Subject *	_parent

bool	_destructible

bool	_askRegisterUndo

std::string	_progress

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject sub, Command command=0, bool post=false)

Detailed Description

Definition at line 889 of file guiObservers.hxx.

Constructor & Destructor Documentation

◆ SubjectLink()

SubjectLink::SubjectLink	(	SubjectNode *	subOutNode,
		SubjectDataPort *	outPort,
		SubjectNode *	subInNode,
		SubjectDataPort *	inPort,
		Subject *	parent
	)

Definition at line 4000 of file guiObservers.cxx.

  : Subject(parent),
    _subOutNode(subOutNode), _outPort(outPort), _subInNode(subInNode), _inPort(inPort)
{
  _name = "";
  ComposedNode *cla = ComposedNode::getLowestCommonAncestor(_subOutNode->getNode()->getFather(),
                                                            _subInNode->getNode()->getFather());
  DEBTRACE(_subOutNode->getName() << "." << _outPort->getName());
  DEBTRACE(_subInNode->getName() << "." << _inPort->getName());
  DEBTRACE(cla->getName());
  _name += cla->getChildName(_subOutNode->getNode());
  _name += "." + _outPort->getName();
  _name += "->";
  _name += cla->getChildName(_subInNode->getNode());
  _name += "." + _inPort->getName();
  DEBTRACE("SubjectLink::SubjectLink " << _name);
}

References _inPort, _name, _outPort, _subInNode, _subOutNode, DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::ENGINE::Node::getFather(), YACS::HMI::SubjectDataPort::getName(), YACS::HMI::SubjectNode::getName(), YACS::ENGINE::ComposedNode::getName(), and YACS::HMI::SubjectNode::getNode().

◆ ~SubjectLink()

SubjectLink::~SubjectLink ( )

virtual

Definition at line 4022 of file guiObservers.cxx.

{
  DEBTRACE("SubjectLink::~SubjectLink " << getName());
  _inPort->update(UPDATE,DATALINK,_outPort);
  _outPort->update(UPDATE,DATALINK,_inPort);
}

References _inPort, _outPort, YACS::HMI::DATALINK, DEBTRACE, getName(), YACS::HMI::UPDATE, and YACS::HMI::Subject::update().

Member Function Documentation

◆ clean()

void SubjectLink::clean ( Command * command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::Subject.

Definition at line 4029 of file guiObservers.cxx.

{
  if (_askRegisterUndo)
    {
      _askRegisterUndo = false;
      registerUndoDestroy();
    }
  localclean(command);
  Subject::clean(command);
}

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::Subject::clean(), localclean(), and registerUndoDestroy().

◆ getName()

std::string SubjectLink::getName ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 4060 of file guiObservers.cxx.

{
  return _name;
}

References _name.

Referenced by YACS::HMI::SubjectComposedNode::addSubjectLink(), localclean(), YACS::HMI::SubjectNode::registerUndoDestroy(), YACS::HMI::SubjectNode::removeExternalLinks(), YACS::HMI::SubjectComposedNode::removeLink(), setProperties(), and ~SubjectLink().

◆ getProperties()

std::map< std::string, std::string > SubjectLink::getProperties ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 4065 of file guiObservers.cxx.

{
  return getSubjectInPort()->getProperties();
}

References YACS::HMI::Subject::getProperties(), and getSubjectInPort().

Referenced by registerUndoDestroy().

◆ getSubjectInNode()

SubjectNode * YACS::HMI::SubjectLink::getSubjectInNode ( )

inline

Definition at line 902 of file guiObservers.hxx.

902{ return _subInNode; };

References _subInNode.

Referenced by registerUndoDestroy().

◆ getSubjectInPort()

SubjectDataPort * YACS::HMI::SubjectLink::getSubjectInPort ( )

inline

Definition at line 904 of file guiObservers.hxx.

904{ return _inPort; };

References _inPort.

Referenced by YACS::HMI::EditionDataLink::EditionDataLink(), YACS::HMI::GenericGui::emphasizePortLink(), getProperties(), knownProperties(), registerUndoDestroy(), YACS::HMI::SubjectComposedNode::removeLink(), and setProperties().

◆ getSubjectOutNode()

SubjectNode * YACS::HMI::SubjectLink::getSubjectOutNode ( )

inline

Definition at line 901 of file guiObservers.hxx.

901{ return _subOutNode; };

References _subOutNode.

Referenced by registerUndoDestroy().

◆ getSubjectOutPort()

SubjectDataPort * YACS::HMI::SubjectLink::getSubjectOutPort ( )

inline

Definition at line 903 of file guiObservers.hxx.

903{ return _outPort; };

References _outPort.

Referenced by YACS::HMI::GenericGui::emphasizePortLink(), registerUndoDestroy(), YACS::HMI::SubjectComposedNode::removeLink(), and setProperties().

◆ getType()

virtual TypeOfElem YACS::HMI::SubjectLink::getType ( )

inlinevirtual

Reimplemented from YACS::HMI::Subject.

Definition at line 908 of file guiObservers.hxx.

908{return DATALINK;}

References YACS::HMI::DATALINK.

Referenced by registerUndoDestroy().

◆ knownProperties()

std::vector< std::string > SubjectLink::knownProperties ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 4070 of file guiObservers.cxx.

{
  return getSubjectInPort()->knownProperties();
}

References getSubjectInPort(), and YACS::HMI::Subject::knownProperties().

◆ localclean()

void SubjectLink::localclean ( Command * command = 0 )

Definition at line 4040 of file guiObservers.cxx.

{
  DEBTRACE("SubjectLink::localClean ");
  if (_parent)
    {
      DEBTRACE("clean link: " << _parent->getName() << " " << getName());
      SubjectComposedNode* father = dynamic_cast<SubjectComposedNode*>(_parent);
      YASSERT(father);
      father->removeLink(this); // --- clean subjects first
      _cla = dynamic_cast<ComposedNode*>(father->getNode());
      YASSERT(_cla);
      _outp = dynamic_cast<OutPort*>(_outPort->getPort());
      YASSERT(_outp);
      _inp = dynamic_cast<InPort*>(_inPort->getPort());
      YASSERT(_inp);
      if (isDestructible())
        _cla->edRemoveLink(_outp, _inp);
    }
}

References _cla, _inp, _inPort, _outp, _outPort, YACS::HMI::Subject::_parent, DEBTRACE, YACS::ENGINE::ComposedNode::edRemoveLink(), YACS::HMI::Subject::getName(), getName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::SubjectDataPort::getPort(), YACS::HMI::Subject::isDestructible(), YACS::HMI::SubjectComposedNode::removeLink(), and YASSERT.

Referenced by clean().

◆ registerUndoDestroy()

void SubjectLink::registerUndoDestroy ( )

Definition at line 4091 of file guiObservers.cxx.

{
  DEBTRACE("SubjectLink::registerUndoDestroy");
  Proc *proc = GuiContext::getCurrent()->getProc();
  Node *outn = getSubjectOutNode()->getNode();
  Node *inn = getSubjectInNode()->getNode();
  DataPort *outp = getSubjectOutPort()->getPort();
  DataPort *inp = getSubjectInPort()->getPort();
  CommandAddLink *command = new CommandAddLink(proc->getChildName(outn),
                                               outp->getName(),
                                               getSubjectOutPort()->getType(),
                                               proc->getChildName(inn),
                                               inp->getName(),
                                               getSubjectInPort()->getType(),
                                               false);
  GuiContext::getCurrent()->getInvoc()->add(command);

  map<string, string> properties = getProperties();
  if (properties.empty())
    return;

  CommandSetLinkProperties *command2 = new CommandSetLinkProperties(proc->getChildName(outn),
                                                                    outp->getName(),
                                                                    proc->getChildName(inn),
                                                                    inp->getName(),
                                                                    properties);
  GuiContext::getCurrent()->getInvoc()->add(command2);
}

References YACS::HMI::Invocator::add(), DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::ENGINE::DataPort::getName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::SubjectDataPort::getPort(), YACS::HMI::GuiContext::getProc(), getProperties(), getSubjectInNode(), getSubjectInPort(), getSubjectOutNode(), getSubjectOutPort(), and getType().

Referenced by clean(), and YACS::HMI::SubjectNode::registerUndoDestroy().

◆ setProperties()

bool SubjectLink::setProperties ( std::map< std::string, std::string > properties )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 4075 of file guiObservers.cxx.

{
  Proc *proc = GuiContext::getCurrent()->getProc();
  CommandSetLinkProperties *command =
    new CommandSetLinkProperties(proc->getChildName(getSubjectOutPort()->getPort()->getNode()), getSubjectOutPort()->getName(),
                                 proc->getChildName(getSubjectInPort()->getPort()->getNode()), getSubjectInPort()->getName(),
                                 properties);
  if (command->execute())
    {
      GuiContext::getCurrent()->getInvoc()->add(command);
      return true;
    }
  else delete command;
  return false;
}

References YACS::HMI::Invocator::add(), YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), getName(), YACS::HMI::GuiContext::getProc(), getSubjectInPort(), and getSubjectOutPort().

Member Data Documentation

◆ _cla

YACS::ENGINE::ComposedNode* YACS::HMI::SubjectLink::_cla

protected

Definition at line 916 of file guiObservers.hxx.

Referenced by localclean().

◆ _inp

YACS::ENGINE::InPort* YACS::HMI::SubjectLink::_inp

protected

Definition at line 918 of file guiObservers.hxx.

Referenced by localclean().

◆ _inPort

SubjectDataPort* YACS::HMI::SubjectLink::_inPort

protected

Definition at line 914 of file guiObservers.hxx.

Referenced by getSubjectInPort(), localclean(), SubjectLink(), and ~SubjectLink().

◆ _name

std::string YACS::HMI::SubjectLink::_name

protected

Definition at line 915 of file guiObservers.hxx.

Referenced by getName(), and SubjectLink().

◆ _outp

YACS::ENGINE::OutPort* YACS::HMI::SubjectLink::_outp

protected

Definition at line 917 of file guiObservers.hxx.

Referenced by localclean().

◆ _outPort

SubjectDataPort* YACS::HMI::SubjectLink::_outPort

protected

Definition at line 912 of file guiObservers.hxx.

Referenced by getSubjectOutPort(), localclean(), SubjectLink(), and ~SubjectLink().

◆ _subInNode

SubjectNode* YACS::HMI::SubjectLink::_subInNode

protected

Definition at line 913 of file guiObservers.hxx.

Referenced by getSubjectInNode(), and SubjectLink().

◆ _subOutNode

SubjectNode* YACS::HMI::SubjectLink::_subOutNode

protected

Definition at line 911 of file guiObservers.hxx.

Referenced by getSubjectOutNode(), and SubjectLink().

The documentation for this class was generated from the following files:

src/hmi/guiObservers.hxx
src/hmi/guiObservers.cxx

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SubjectLink()

◆ ~SubjectLink()

Member Function Documentation

◆ clean()

◆ getName()

◆ getProperties()

◆ getSubjectInNode()

◆ getSubjectInPort()

◆ getSubjectOutNode()

◆ getSubjectOutPort()

◆ getType()

◆ knownProperties()

◆ localclean()

◆ registerUndoDestroy()

◆ setProperties()

Member Data Documentation

◆ _cla

◆ _inp

◆ _inPort

◆ _name

◆ _outp

◆ _outPort

◆ _subInNode

◆ _subOutNode
