#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandSetLinkProperties:

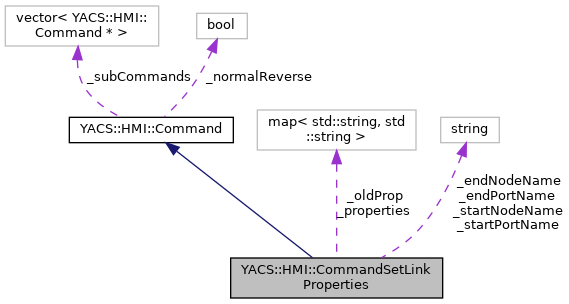

Collaboration diagram for YACS::HMI::CommandSetLinkProperties:

[legend]

Public Member Functions
	CommandSetLinkProperties (std::string startnode, std::string startport, std::string endnode, std::string endport, std::map< std::string, std::string > properties)

Public Member Functions inherited from YACS::HMI::Command
	Command ()

virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...

virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...

virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...

std::string	recursiveDump (int level=0)

void	addSubCommand (Command *command)

bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()

virtual bool	localReverse ()

virtual std::string	dump ()

Protected Attributes
std::string	_startNodeName

std::string	_startPortName

std::string	_endNodeName

std::string	_endPortName

std::map< std::string, std::string >	_properties

std::map< std::string, std::string >	_oldProp

Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands

bool	_normalReverse

Detailed Description

Definition at line 622 of file commandsProc.hxx.

Constructor & Destructor Documentation

◆ CommandSetLinkProperties()

CommandSetLinkProperties::CommandSetLinkProperties	(	std::string	startnode,
		std::string	startport,
		std::string	endnode,
		std::string	endport,
		std::map< std::string, std::string >	properties
	)

Definition at line 3502 of file commandsProc.cxx.

   : Command(), _startNodeName(startnode), _startPortName(startport),
     _endNodeName(endnode), _endPortName(endport),
     _properties(properties)
 {
   DEBTRACE("CommandSetLinkProperties::CommandSetLinkProperties " );
   _oldProp.clear();
 }

References _oldProp, and DEBTRACE.

Member Function Documentation

◆ dump()

std::string CommandSetLinkProperties::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 3513 of file commandsProc.cxx.

 {
   string ret ="CommandSetLinkProperties " + _startNodeName + " " + _startPortName + " " + _endNodeName + " " + _endPortName;
   return ret;
 }

References _endNodeName, _endPortName, _startNodeName, and _startPortName.

◆ localExecute()

bool CommandSetLinkProperties::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3519 of file commandsProc.cxx.

 {
   DEBTRACE("CommandSetLinkProperties::localExecute");
   try
     {
       Proc* proc = GuiContext::getCurrent()->getProc();
       Node* node;
       InputDataStreamPort* inDSPort = 0;
       OutputDataStreamPort* outDSPort = 0;

       node   = proc->getChildByName(_startNodeName);
       outDSPort = node->getOutputDataStreamPort(_startPortName);
       outDSPort->setProperties(_properties);

       node   = proc->getChildByName(_endNodeName);
       inDSPort = node->getInputDataStreamPort(_endPortName);
       _oldProp = inDSPort->getProperties();
       inDSPort->setProperties(_properties);

       std::pair<OutPort*,InPort*> keymap = std::pair<OutPort*,InPort*>(outDSPort,inDSPort);
       SubjectLink* subject = GuiContext::getCurrent()->_mapOfSubjectLink[keymap];
       subject->update(SETVALUE, 0, subject);
       return true;
     }
   catch (Exception& ex)
     {
       DEBTRACE("CommandSetDSPortProperties::localExecute() : " << ex.what());
       setErrorMsg(ex);
       return false;
     }
 }

References _endNodeName, _endPortName, YACS::HMI::GuiContext::_mapOfSubjectLink, _oldProp, _properties, _startNodeName, _startPortName, DEBTRACE, testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::Node::getInputDataStreamPort(), YACS::ENGINE::Node::getOutputDataStreamPort(), YACS::HMI::GuiContext::getProc(), YACS::ENGINE::DataStreamPort::getProperties(), setErrorMsg(), YACS::ENGINE::DataStreamPort::setProperties(), YACS::HMI::SETVALUE, and YACS::HMI::Subject::update().

◆ localReverse()

bool CommandSetLinkProperties::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3551 of file commandsProc.cxx.

 {
   DEBTRACE("CommandSetLinkProperties::localReverse");
   try
     {
       Proc* proc = GuiContext::getCurrent()->getProc();
       Node* node;
       InputDataStreamPort* inDSPort = 0;
       OutputDataStreamPort* outDSPort = 0;

       node   = proc->getChildByName(_startNodeName);
       outDSPort = node->getOutputDataStreamPort(_startPortName);
       outDSPort->setProperties(_properties);

       node   = proc->getChildByName(_endNodeName);
       inDSPort = node->getInputDataStreamPort(_endPortName);
       inDSPort->setProperties(_oldProp);

       std::pair<OutPort*,InPort*> keymap = std::pair<OutPort*,InPort*>(outDSPort,inDSPort);
       SubjectLink* subject = GuiContext::getCurrent()->_mapOfSubjectLink[keymap];
       subject->update(SETVALUE, 0, subject);
       return true;
     }
   catch (Exception& ex)
     {
       DEBTRACE("CommandSetDSPortProperties::localReverse() : " << ex.what());
       setErrorMsg(ex);
       return false;
     }
 }
