#include <guiObservers.hxx>

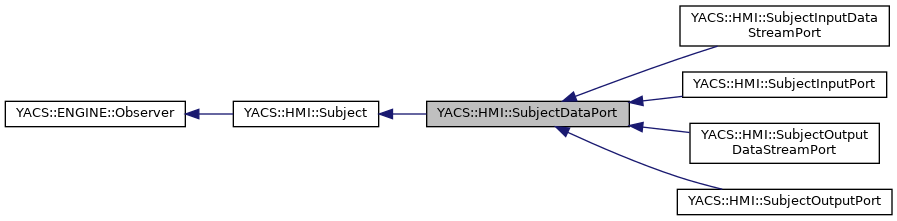

Inheritance diagram for YACS::HMI::SubjectDataPort:

[legend]

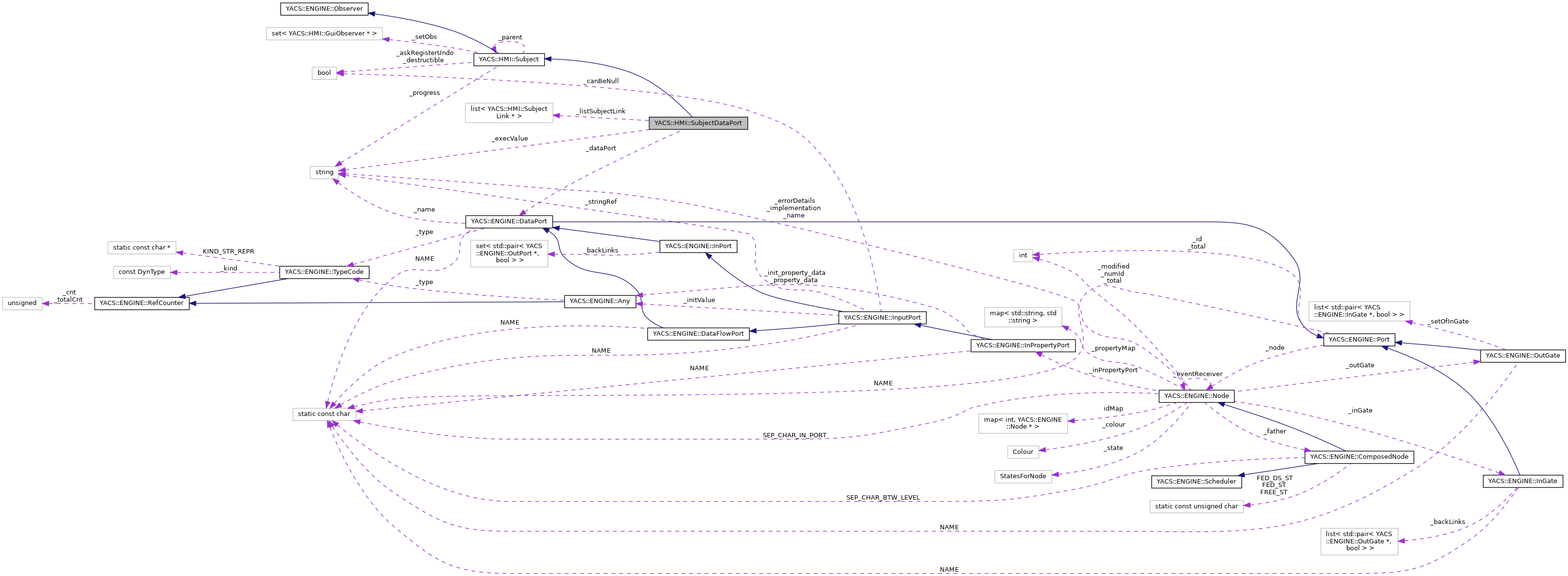

Collaboration diagram for YACS::HMI::SubjectDataPort:

[legend]

Public Member Functions
	SubjectDataPort (YACS::ENGINE::DataPort port, Subject parent)

virtual	~SubjectDataPort ()

virtual std::string	getName ()

virtual bool	setName (std::string name)

virtual YACS::ENGINE::DataPort *	getPort ()

virtual void	clean (Command *command=0)

void	localclean (Command *command=0)

void	addSubjectLink (SubjectLink *subject)

void	removeSubjectLink (SubjectLink *subject)

std::list< SubjectLink * >	getListOfSubjectLink ()

virtual bool	setValue (std::string value)

void	setExecValue (std::string value)

std::string	getExecValue ()

void	registerUndoDestroy ()

Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)

virtual	~Subject ()

virtual void	attach (GuiObserver *obs)

virtual void	detach (GuiObserver *obs)

virtual void	select (bool isSelected)

virtual void	update (GuiEvent event, int type, Subject *son)

virtual bool	setProperties (std::map< std::string, std::string > properties)

virtual std::map< std::string, std::string >	getProperties ()

virtual std::vector< std::string >	knownProperties ()

virtual Subject *	getParent ()

virtual void	setParent (Subject *son)

virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...

virtual void	loadChildren ()

virtual void	loadLinks ()

virtual void	addSubjectReference (Subject *ref)

void	localclean (Command *command=0)

void	registerUndoDestroy ()

void	askRegisterUndoDestroy ()

bool	isDestructible ()

virtual TypeOfElem	getType ()

virtual void	setProgress (std::string newProgress)

virtual std::string	getProgress ()

Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver (Node *object, const std::string &event)

virtual void	notifyObserver2 (Node object, const std::string &event, void something)

virtual void	notifyObserverFromClone (Node originalInstance, const std::string &event, Node clonedInstanceGeneratingEvent)

virtual	~Observer ()

Static Public Member Functions
static bool	tryCreateLink (SubjectDataPort subOutport, SubjectDataPort subInport, bool control=true)

Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject sub, Command command=0, bool post=false)

Protected Attributes
YACS::ENGINE::DataPort *	_dataPort

std::list< SubjectLink * >	_listSubjectLink

std::string	_execValue

Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs

Subject *	_parent

bool	_destructible

bool	_askRegisterUndo

std::string	_progress

Detailed Description

Definition at line 203 of file guiObservers.hxx.

Constructor & Destructor Documentation

◆ SubjectDataPort()

SubjectDataPort::SubjectDataPort	(	YACS::ENGINE::DataPort *	port,
		Subject *	parent
	)

Definition at line 3510 of file guiObservers.cxx.

   : Subject(parent), _dataPort(port)
 {
   _listSubjectLink.clear();
   _execValue = "";
 }

References _execValue, and _listSubjectLink.

◆ ~SubjectDataPort()

SubjectDataPort::~SubjectDataPort ( )

virtual

Definition at line 3517 of file guiObservers.cxx.

 {
   DEBTRACE("SubjectDataPort::~SubjectDataPort " << getName());
   if (isDestructible())
     {
       Node* node = _dataPort->getNode();
       ElementaryNode * father = dynamic_cast<ElementaryNode*>(node);
       if (father)
         {
           DEBTRACE("father->edRemovePort(_dataPort)");
           try
             {
               father->edRemovePort(_dataPort);
             }
           catch (YACS::Exception &e)
             {
               DEBTRACE("------------------------------------------------------------------------------");
               DEBTRACE("SubjectDataPort::~SubjectDataPort: father->edRemovePort: YACS exception " << e.what());
               DEBTRACE("------------------------------------------------------------------------------");
             }
         }
     }
 }

References _dataPort, DEBTRACE, YACS::ENGINE::ElementaryNode::edRemovePort(), getName(), YACS::ENGINE::Port::getNode(), YACS::HMI::Subject::isDestructible(), and YACS::Exception::what().

Member Function Documentation

◆ addSubjectLink()

void YACS::HMI::SubjectDataPort::addSubjectLink ( SubjectLink * subject )

inline

Definition at line 214 of file guiObservers.hxx.

214 { _listSubjectLink.push_back(subject); };

Referenced by YACS::HMI::SubjectComposedNode::addSubjectLink().

◆ clean()

void SubjectDataPort::clean ( Command * command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::Subject.

Reimplemented in YACS::HMI::SubjectOutputDataStreamPort, YACS::HMI::SubjectInputDataStreamPort, YACS::HMI::SubjectOutputPort, and YACS::HMI::SubjectInputPort.

Definition at line 3541 of file guiObservers.cxx.

 {
   if (_askRegisterUndo)
     {
       _askRegisterUndo = false;
       registerUndoDestroy();
     }
   localclean(command);
   Subject::clean(command);
 }

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::Subject::clean(), localclean(), and registerUndoDestroy().

Referenced by YACS::HMI::SubjectInputPort::clean(), YACS::HMI::SubjectOutputPort::clean(), YACS::HMI::SubjectInputDataStreamPort::clean(), and YACS::HMI::SubjectOutputDataStreamPort::clean().

◆ getExecValue()

std::string SubjectDataPort::getExecValue ( )

Definition at line 3653 of file guiObservers.cxx.

 {
   return _execValue;
 }

References _execValue.

Referenced by YACS::HMI::EditionLoop::update(), YACS::HMI::SchemaInPortItem::update(), and YACS::HMI::SchemaOutPortItem::update().

◆ getListOfSubjectLink()

std::list<SubjectLink*> YACS::HMI::SubjectDataPort::getListOfSubjectLink ( )

inline

Definition at line 216 of file guiObservers.hxx.

216 { return _listSubjectLink; };

Referenced by YACS::HMI::GenericGui::displayPortLinks(), YACS::HMI::GenericGui::emphasizePortLink(), localclean(), and registerUndoDestroy().

◆ getName()

std::string SubjectDataPort::getName ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 3560 of file guiObservers.cxx.

 {
   return _dataPort->getName();
 }

References _dataPort, and YACS::ENGINE::DataPort::getName().

Referenced by YACS::HMI::GenericGui::displayPortLinks(), YACS::HMI::GenericGui::emphasizePortLink(), YACS::HMI::SubjectElementaryNode::OrderDataPorts(), registerUndoDestroy(), YACS::HMI::SubjectInputDataStreamPort::registerUndoDestroy(), YACS::HMI::SubjectOutputDataStreamPort::registerUndoDestroy(), YACS::HMI::SubjectElementaryNode::removePort(), YACS::HMI::SubjectInputDataStreamPort::setProperties(), YACS::HMI::SubjectOutputDataStreamPort::setProperties(), YACS::HMI::SubjectInputPort::setValue(), YACS::HMI::SubjectOutputPort::setValue(), YACS::HMI::SubjectLink::SubjectLink(), tryCreateLink(), ~SubjectDataPort(), YACS::HMI::SubjectInputDataStreamPort::~SubjectInputDataStreamPort(), YACS::HMI::SubjectInputPort::~SubjectInputPort(), YACS::HMI::SubjectOutputDataStreamPort::~SubjectOutputDataStreamPort(), and YACS::HMI::SubjectOutputPort::~SubjectOutputPort().

◆ getPort()

YACS::ENGINE::DataPort * SubjectDataPort::getPort ( )

virtual

Definition at line 3592 of file guiObservers.cxx.

 {
   return _dataPort;
 }

References _dataPort.

Referenced by YACS::HMI::SubjectComposedNode::addSubjectLink(), YACS::HMI::ValueDelegate::createEditor(), YACS::HMI::SchemaInPortItem::dropMimeData(), YACS::HMI::EditionInputPort::EditionInputPort(), YACS::HMI::EditionOutputPort::EditionOutputPort(), YACS::HMI::SchemaInPortItem::flags(), YACS::HMI::SchemaOutPortItem::flags(), YACS::HMI::SubjectLink::localclean(), YACS::HMI::TablePortsEdition::on_pb_insert_clicked(), YACS::HMI::EditionElementaryNode::onCommitData(), YACS::HMI::TreeView::onCommitData(), YACS::HMI::InPortMenu::popupMenu(), YACS::HMI::OutPortMenu::popupMenu(), registerUndoDestroy(), YACS::HMI::SubjectLink::registerUndoDestroy(), YACS::HMI::SubjectComposedNode::removeLink(), YACS::HMI::SchemaInPortItem::SchemaInPortItem(), YACS::HMI::SchemaOutPortItem::SchemaOutPortItem(), setName(), YACS::HMI::SubjectInputDataStreamPort::setProperties(), YACS::HMI::SubjectOutputDataStreamPort::setProperties(), YACS::HMI::SubjectInputPort::setValue(), YACS::HMI::SubjectOutputPort::setValue(), tryCreateLink(), YACS::HMI::SchemaInPortItem::update(), and YACS::HMI::SchemaOutPortItem::update().

◆ localclean()

void SubjectDataPort::localclean ( Command * command = 0 )

Definition at line 3552 of file guiObservers.cxx.

 {
   DEBTRACE("SubjectDataPort::localClean ");
   list<SubjectLink*> lsl = getListOfSubjectLink();
   for (list<SubjectLink*>::iterator it = lsl.begin(); it != lsl.end(); ++it)
     erase(*it);
 }

References DEBTRACE, YACS::HMI::Subject::erase(), and getListOfSubjectLink().

Referenced by clean().

◆ registerUndoDestroy()

void SubjectDataPort::registerUndoDestroy ( )

Definition at line 3658 of file guiObservers.cxx.

 {
   DEBTRACE("SubjectDataPort::registerUndoDestroy");
   Proc *proc = GuiContext::getCurrent()->getProc();
   SubjectNode *sno = dynamic_cast<SubjectNode*>(getParent());
   YASSERT(sno);
   Node *node = sno->getNode();
   string nodeName = proc->getChildName(node);
   string portName = getName();
   ElementaryNode* father = dynamic_cast<ElementaryNode*>(node);
   YASSERT(father);

   DataPort *port = getPort();
   TypeCode *dtyp = port->edGetType();
   string typeName = dtyp->name();
   Catalog *undoCata = GuiContext::getCurrent()->getInvoc()->getUndoCata();
   undoCata->_typeMap[typeName] = dtyp;

   Command *command = 0;
   Command *comm2 =0;
   TypeOfElem elemType = getType();
   switch (elemType)
     {
     case INPUTPORT:
       command = new CommandAddInputPortFromCatalog(undoCata, typeName, nodeName, portName);
       {
         int rang = 1;
         int nbUp = 0;
         list<InputPort*> plist = father->getSetOfInputPort();
         list<InputPort*>::iterator pos = plist.begin();
         for (; (*pos) != port; pos++)
           rang++;
         nbUp = plist.size() -rang;
         if (nbUp)
           comm2 = new CommandOrderInputPorts(nodeName, portName, nbUp);
       }
       break;
     case OUTPUTPORT:
       command = new CommandAddOutputPortFromCatalog(undoCata, typeName, nodeName, portName);
       {
         int rang = 1;
         int nbUp = 0;
         list<OutputPort*> plist = father->getSetOfOutputPort();
         list<OutputPort*>::iterator pos = plist.begin();
         for (; (*pos) != port; pos++)
           rang++;
         nbUp = plist.size() -rang;
         if (nbUp)
           comm2 = new CommandOrderOutputPorts(nodeName, portName, nbUp);
       }
       break;
     case INPUTDATASTREAMPORT:
       command = new CommandAddIDSPortFromCatalog(undoCata, typeName, nodeName, portName);
       break;
     case OUTPUTDATASTREAMPORT:
       command = new CommandAddODSPortFromCatalog(undoCata, typeName, nodeName, portName);
       break;
     }
   if (command)
     GuiContext::getCurrent()->getInvoc()->add(command);
   if (comm2)
     GuiContext::getCurrent()->getInvoc()->add(comm2);
   //save links
   list<SubjectLink*> lsl = getListOfSubjectLink();
   for (list<SubjectLink*>::iterator it = lsl.begin(); it != lsl.end(); ++it)
     {
       (*it)->registerUndoDestroy();
     }
 }

References YACS::ENGINE::Catalog::_typeMap, YACS::HMI::Invocator::add(), DEBTRACE, YACS::ENGINE::DataPort::edGetType(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), getListOfSubjectLink(), getName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::Subject::getParent(), getPort(), YACS::HMI::GuiContext::getProc(), YACS::ENGINE::ElementaryNode::getSetOfInputPort(), YACS::ENGINE::ElementaryNode::getSetOfOutputPort(), YACS::HMI::Subject::getType(), YACS::HMI::Invocator::getUndoCata(), YACS::HMI::INPUTDATASTREAMPORT, YACS::HMI::INPUTPORT, YACS::ENGINE::TypeCode::name(), YACS::HMI::OUTPUTDATASTREAMPORT, YACS::HMI::OUTPUTPORT, and YASSERT.

Referenced by clean(), YACS::HMI::SubjectInputPort::clean(), YACS::HMI::SubjectOutputPort::clean(), YACS::HMI::SubjectInputDataStreamPort::registerUndoDestroy(), and YACS::HMI::SubjectOutputDataStreamPort::registerUndoDestroy().

◆ removeSubjectLink()

void YACS::HMI::SubjectDataPort::removeSubjectLink ( SubjectLink * subject )

inline

Definition at line 215 of file guiObservers.hxx.

215 { _listSubjectLink.remove(subject); };

Referenced by YACS::HMI::SubjectComposedNode::removeLink().

◆ setExecValue()

void SubjectDataPort::setExecValue ( std::string value )

Definition at line 3648 of file guiObservers.cxx.

 {
   _execValue = value;
 }

References _execValue.

Referenced by YACS::HMI::GuiExecutor::event(), and YACS::HMI::GuiExecutor::updateSchema().

◆ setName()

bool SubjectDataPort::setName ( std::string name )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 3565 of file guiObservers.cxx.

 {
   DEBTRACE("SubjectDataPort::setName " << name);
   Proc *proc = GuiContext::getCurrent()->getProc();
   string position = "";
   Node *node = getPort()->getNode();
   if (proc != dynamic_cast<Proc*>(node))
     position = proc->getChildName(node);
   else
     position = node->getName();

   Command *command = 0;
   bool isIn = dynamic_cast<InPort*>(_dataPort);
   if (isIn)
     command = new CommandRenameInDataPort(position, _dataPort->getName(),name, getType());
   else
     command = new CommandRenameOutDataPort(position, _dataPort->getName(),name, getType());

   if (command->execute())
     {
       GuiContext::getCurrent()->getInvoc()->add(command);
       return true;
     }
   else delete command;
   return false;
 }

References _dataPort, YACS::HMI::Invocator::add(), DEBTRACE, YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::ENGINE::DataPort::getName(), YACS::ENGINE::Node::getName(), YACS::ENGINE::Port::getNode(), getPort(), YACS::HMI::GuiContext::getProc(), and YACS::HMI::Subject::getType().

Referenced by YACS::HMI::SubjectNode::addSubjectIDSPort(), YACS::HMI::SubjectNode::addSubjectInputPort(), YACS::HMI::SubjectNode::addSubjectODSPort(), YACS::HMI::SubjectNode::addSubjectOutputPort(), YACS::HMI::EditionElementaryNode::onCommitData(), and YACS::HMI::TreeView::onCommitData().

◆ setValue()

bool SubjectDataPort::setValue ( std::string value )

virtual

Generic method do nothing. Implementation in SubjectInputPort and SubjectOutputPort.

Reimplemented in YACS::HMI::SubjectOutputPort, and YACS::HMI::SubjectInputPort.

Definition at line 3643 of file guiObservers.cxx.

 {
   return false;
 }

Referenced by YACS::HMI::EditionElementaryNode::onCommitData(), YACS::HMI::TreeView::onCommitData(), YACS::HMI::EditionForEachLoop::onModifyCollection(), and YACS::HMI::EditionOptimizerLoop::onModifyInitFile().

◆ tryCreateLink()

bool SubjectDataPort::tryCreateLink	(	SubjectDataPort *	subOutport,
		SubjectDataPort *	subInport,
		bool	control = `true`
	)

static

Definition at line 3597 of file guiObservers.cxx.

 {
   DEBTRACE("SubjectDataPort::tryCreateLink");

   InPort *inp = dynamic_cast<InPort*>(subInport->getPort());
   OutPort *outp = dynamic_cast<OutPort*>(subOutport->getPort());
   if (outp && outp->isAlreadyLinkedWith(inp))
     {
       DEBTRACE("isAlreadyLinkedWith");
       GuiContext::getCurrent()->_lastErrorMessage = "Ports are already linked";
       return false;
     }

   Proc *proc = GuiContext::getCurrent()->getProc();

   string outNodePos = "";
   SubjectNode *sno = dynamic_cast<SubjectNode*>(subOutport->getParent());
   YASSERT(sno);
   Node *outNode = sno->getNode();
   outNodePos = proc->getChildName(outNode);
   string outportName = subOutport->getName();

   string inNodePos = "";
   SubjectNode *sni = dynamic_cast<SubjectNode*>(subInport->getParent());
   YASSERT(sni);
   Node *inNode = sni->getNode();
   inNodePos = proc->getChildName(inNode);
   string inportName = subInport->getName();

   CommandAddLink *command = new CommandAddLink(outNodePos, outportName, subOutport->getType(),
                                                inNodePos, inportName, subInport->getType(), control);
   if (command->execute())
     {
       GuiContext::getCurrent()->getInvoc()->add(command);
       return true;
     }
   else
     {
       delete command;
       return false;
     }
 }

References YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::Invocator::add(), DEBTRACE, YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), getName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::Subject::getParent(), getPort(), YACS::HMI::GuiContext::getProc(), YACS::HMI::Subject::getType(), YACS::ENGINE::OutPort::isAlreadyLinkedWith(), and YASSERT.

Referenced by YACS::HMI::SceneInPortItem::dropEvent(), and YACS::HMI::SchemaInPortItem::dropMimeData().

Member Data Documentation

◆ _dataPort

YACS::ENGINE::DataPort* YACS::HMI::SubjectDataPort::_dataPort

protected

Definition at line 222 of file guiObservers.hxx.

Referenced by getName(), getPort(), setName(), and ~SubjectDataPort().

◆ _execValue

std::string YACS::HMI::SubjectDataPort::_execValue

protected

Definition at line 224 of file guiObservers.hxx.

Referenced by getExecValue(), setExecValue(), and SubjectDataPort().

◆ _listSubjectLink

std::list<SubjectLink*> YACS::HMI::SubjectDataPort::_listSubjectLink

protected

Definition at line 223 of file guiObservers.hxx.

Referenced by SubjectDataPort().

The documentation for this class was generated from the following files:

src/hmi/guiObservers.hxx
src/hmi/guiObservers.cxx

Public Member Functions

Static Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SubjectDataPort()

◆ ~SubjectDataPort()

Member Function Documentation

◆ addSubjectLink()

◆ clean()

◆ getExecValue()

◆ getListOfSubjectLink()

◆ getName()

◆ getPort()

◆ localclean()

◆ registerUndoDestroy()

◆ removeSubjectLink()

◆ setExecValue()

◆ setName()

◆ setValue()

◆ tryCreateLink()

Member Data Documentation

◆ _dataPort

◆ _execValue

◆ _listSubjectLink
