YACS::HMI::SubjectInputDataStreamPort Class Reference

#include <guiObservers.hxx>

Inheritance diagram for YACS::HMI::SubjectInputDataStreamPort:

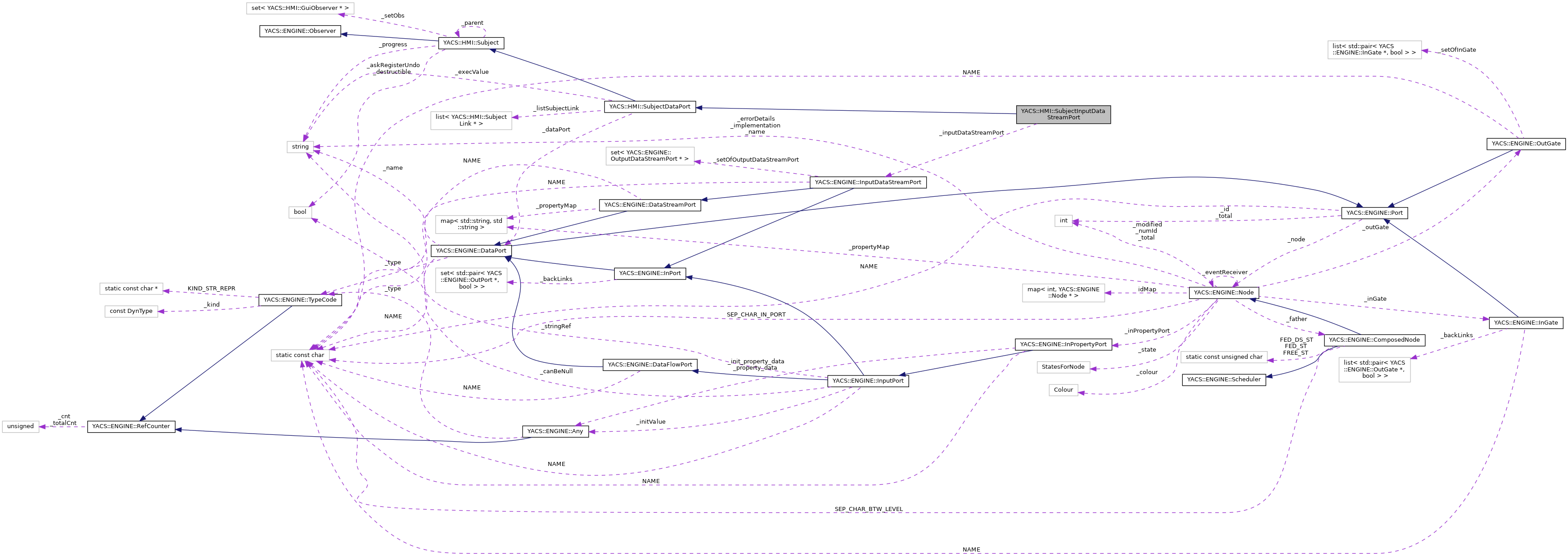

Collaboration diagram for YACS::HMI::SubjectInputDataStreamPort:

Public Member Functions
	SubjectInputDataStreamPort (YACS::ENGINE::InputDataStreamPort *port, Subject *parent)
virtual	~SubjectInputDataStreamPort ()
virtual bool	setProperties (std::map< std::string, std::string > properties)
virtual std::map< std::string, std::string >	getProperties ()
virtual std::vector< std::string >	knownProperties ()
virtual void	clean (Command *command=0)
void	localclean (Command *command=0)
virtual TypeOfElem	getType ()
void	registerUndoDestroy ()
Public Member Functions inherited from YACS::HMI::SubjectDataPort
	SubjectDataPort (YACS::ENGINE::DataPort *port, Subject *parent)
virtual	~SubjectDataPort ()
virtual std::string	getName ()
virtual bool	setName (std::string name)
virtual YACS::ENGINE::DataPort *	getPort ()
void	localclean (Command *command=0)
void	addSubjectLink (SubjectLink *subject)
void	removeSubjectLink (SubjectLink *subject)
std::list< SubjectLink * >	getListOfSubjectLink ()
virtual bool	setValue (std::string value)
void	setExecValue (std::string value)
std::string	getExecValue ()
void	registerUndoDestroy ()
Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)
virtual	~Subject ()
virtual void	attach (GuiObserver *obs)
virtual void	detach (GuiObserver *obs)
virtual void	select (bool isSelected)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual Subject *	getParent ()
virtual void	setParent (Subject *son)
virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...
virtual void	loadChildren ()
virtual void	loadLinks ()
virtual void	addSubjectReference (Subject *ref)
void	localclean (Command *command=0)
void	registerUndoDestroy ()
void	askRegisterUndoDestroy ()
bool	isDestructible ()
virtual void	setProgress (std::string newProgress)
virtual std::string	getProgress ()
Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver (Node *object, const std::string &event)
virtual void	notifyObserver2 (Node *object, const std::string &event, void *something)
virtual void	notifyObserverFromClone (Node *originalInstance, const std::string &event, Node *clonedInstanceGeneratingEvent)
virtual	~Observer ()

Protected Attributes
YACS::ENGINE::InputDataStreamPort *	_inputDataStreamPort
Protected Attributes inherited from YACS::HMI::SubjectDataPort
YACS::ENGINE::DataPort *	_dataPort
std::list< SubjectLink * >	_listSubjectLink
std::string	_execValue
Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs
Subject *	_parent
bool	_destructible
bool	_askRegisterUndo
std::string	_progress

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::SubjectDataPort
static bool	tryCreateLink (SubjectDataPort *subOutport, SubjectDataPort *subInport, bool control=true)
Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject *sub, Command *command=0, bool post=false)

Detailed Description

Definition at line 253 of file guiObservers.hxx.

Constructor & Destructor Documentation

SubjectInputDataStreamPort()

SubjectInputDataStreamPort::SubjectInputDataStreamPort	(	YACS::ENGINE::InputDataStreamPort *	port,
		Subject *	parent
	)

Definition at line 3857 of file guiObservers.cxx.

  : SubjectDataPort(port, parent), _inputDataStreamPort(port)
{
}

~SubjectInputDataStreamPort()

SubjectInputDataStreamPort::~SubjectInputDataStreamPort ( )

virtual

Definition at line 3863 of file guiObservers.cxx.

{
  DEBTRACE("SubjectInputDataStreamPort::~SubjectInputDataStreamPort " << getName());
}

References DEBTRACE, and YACS::HMI::SubjectDataPort::getName().

Member Function Documentation

clean()

void SubjectInputDataStreamPort::clean ( Command *  command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::SubjectDataPort.

Definition at line 3900 of file guiObservers.cxx.

{
  if (_askRegisterUndo)
    {
      _askRegisterUndo = false;
      registerUndoDestroy();
    }
  localclean(command);
  SubjectDataPort::clean(command);
}

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::SubjectDataPort::clean(), localclean(), and registerUndoDestroy().

getProperties()

std::map< std::string, std::string > SubjectInputDataStreamPort::getProperties ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 3868 of file guiObservers.cxx.

{
  return _inputDataStreamPort->getProperties();
}

References _inputDataStreamPort, and YACS::ENGINE::DataStreamPort::getProperties().

Referenced by registerUndoDestroy().

getType()

virtual TypeOfElem YACS::HMI::SubjectInputDataStreamPort::getType ( )

inlinevirtual

Reimplemented from YACS::HMI::Subject.

Definition at line 263 of file guiObservers.hxx.

{return INPUTDATASTREAMPORT;}

References YACS::HMI::INPUTDATASTREAMPORT.

knownProperties()

std::vector< std::string > SubjectInputDataStreamPort::knownProperties ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 3873 of file guiObservers.cxx.

{
  std::vector<std::string> props;
  props.push_back("StorageLevel");
  //props.push_back("DependencyType");
  props.push_back("DateCalSchem");
  props.push_back("Alpha");
  props.push_back("DeltaT");
  props.push_back("InterpolationSchem");
  props.push_back("ExtrapolationSchem");
  return props;
}

localclean()

void SubjectInputDataStreamPort::localclean

(

Command *

command = 0

)

Definition at line 3911 of file guiObservers.cxx.

{
  DEBTRACE("SubjectInputDataStreamPort::localClean ");
}

References DEBTRACE.

Referenced by clean().

registerUndoDestroy()

void SubjectInputDataStreamPort::registerUndoDestroy

(

)

Definition at line 3916 of file guiObservers.cxx.

{
  DEBTRACE("SubjectInputDataStreamPort::registerUndoDestroy");
  SubjectDataPort::registerUndoDestroy();
  map<string,string> properties = getProperties();
  if (properties.empty())
    return;
  Proc *proc = GuiContext::getCurrent()->getProc();
  SubjectNode *sno = dynamic_cast<SubjectNode*>(getParent());
  YASSERT(sno);
  Node *node = sno->getNode();
  string nodeName = proc->getChildName(node);
  string portName = getName();
  Command *command = new CommandSetDSPortProperties(nodeName, portName, true, properties);
  GuiContext::getCurrent()->getInvoc()->add(command);
}

References YACS::HMI::Invocator::add(), DEBTRACE, YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::HMI::SubjectDataPort::getName(), YACS::HMI::SubjectNode::getNode(), YACS::HMI::Subject::getParent(), YACS::HMI::GuiContext::getProc(), getProperties(), YACS::HMI::SubjectDataPort::registerUndoDestroy(), and YASSERT.

Referenced by clean().

setProperties()

bool SubjectInputDataStreamPort::setProperties ( std::map< std::string, std::string >  properties )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 3886 of file guiObservers.cxx.

{
  Proc *proc = GuiContext::getCurrent()->getProc();
  CommandSetDSPortProperties *command =
    new CommandSetDSPortProperties(proc->getChildName(getPort()->getNode()), getName(), true, properties);
  if (command->execute())
    {
      GuiContext::getCurrent()->getInvoc()->add(command);
      return true;
    }
  else delete command;
  return false;
}

References YACS::HMI::Invocator::add(), YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::HMI::SubjectDataPort::getName(), YACS::HMI::SubjectDataPort::getPort(), and YACS::HMI::GuiContext::getProc().

Member Data Documentation

_inputDataStreamPort

YACS::ENGINE::InputDataStreamPort* YACS::HMI::SubjectInputDataStreamPort::_inputDataStreamPort

protected

Definition at line 266 of file guiObservers.hxx.

Referenced by getProperties().

---

The documentation for this class was generated from the following files:

• src/hmi/guiObservers.hxx
• src/hmi/guiObservers.cxx
