#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandRenameOutDataPort:

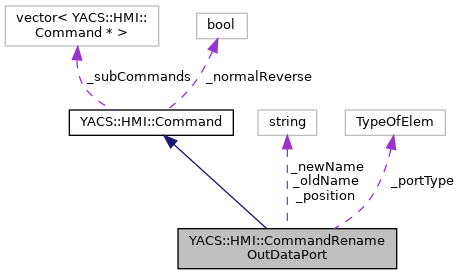

Collaboration diagram for YACS::HMI::CommandRenameOutDataPort:

[legend]

Public Member Functions
	CommandRenameOutDataPort (std::string position, std::string oldName, std::string newName, TypeOfElem portType)

Public Member Functions inherited from YACS::HMI::Command
	Command ()

virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...

virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...

virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...

virtual std::string	dump ()

std::string	recursiveDump (int level=0)

void	addSubCommand (Command *command)

bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()

virtual bool	localReverse ()

virtual std::string	dump ()

virtual bool	localExecute ()=0

virtual bool	localReverse ()=0

Protected Attributes
std::string	_position

std::string	_oldName

std::string	_newName

TypeOfElem	_portType

Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands

bool	_normalReverse

Detailed Description

Definition at line 231 of file commandsProc.hxx.

Constructor & Destructor Documentation

◆ CommandRenameOutDataPort()

CommandRenameOutDataPort::CommandRenameOutDataPort	(	std::string	position,
		std::string	oldName,
		std::string	newName,
		TypeOfElem	portType
	)

Definition at line 1039 of file commandsProc.cxx.

  : Command(), _position(position), _oldName(oldName), _newName(newName), _portType(portType)
{
  DEBTRACE("CommandRenameOutDataPort::CommandRenameOutDataPort "
           << _position << " " << _oldName<< " " << _newName);
}

References _newName, _oldName, _position, and DEBTRACE.

Member Function Documentation

◆ dump()

std::string CommandRenameOutDataPort::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 1048 of file commandsProc.cxx.

{
  string ret ="CommandRenameOutDataPort "  + _position + " " + _oldName + " " + _newName;
  return ret;
}

References _newName, _oldName, and _position.

◆ localExecute()

bool CommandRenameOutDataPort::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 1054 of file commandsProc.cxx.

{
  DEBTRACE("CommandRenameOutDataPort::localExecute");
  Proc* proc = GuiContext::getCurrent()->getProc();
  Node* node = proc;
  try
    {
      if (_position != proc->getName()) node = proc->getChildByName(_position);
      OutPort * port = 0;
      try
        {
          if(_portType==OUTPUTPORT)
            port = node->getOutputPort(_newName);
          else
            port = node->getOutputDataStreamPort(_newName);
        }
      catch (Exception& e) {} // --- raised when no existing port with _newName
      if (port)
        throw Exception("there is already a port with the new name");

      if(_portType==OUTPUTPORT)
        port = node->getOutputPort(_oldName);
      else
        port = node->getOutputDataStreamPort(_oldName);
      port->setName(_newName);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectDataPort.count(port));
      SubjectDataPort *sport = GuiContext::getCurrent()->_mapOfSubjectDataPort[port];
      sport->update(RENAME, 0, sport);
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandRenameOutDataPort::localExecute() : " << ex.what());
      setErrorMsg(ex);
      node = 0;
    }
  return (node != 0);
}

References YACS::HMI::GuiContext::_mapOfSubjectDataPort, _newName, _oldName, _portType, _position, DEBTRACE, testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::ENGINE::ComposedNode::getName(), YACS::ENGINE::Node::getOutputDataStreamPort(), YACS::ENGINE::Node::getOutputPort(), YACS::HMI::GuiContext::getProc(), YACS::HMI::OUTPUTPORT, YACS::HMI::RENAME, setErrorMsg(), YACS::ENGINE::DataPort::setName(), YACS::HMI::Subject::update(), and YASSERT.

◆ localReverse()

bool CommandRenameOutDataPort::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 1092 of file commandsProc.cxx.

{
  DEBTRACE("CommandRenameOutDataPort::localReverse");
  Proc* proc = GuiContext::getCurrent()->getProc();
  Node* node = proc;
  try
    {
      if (_position != proc->getName()) node = proc->getChildByName(_position);
      OutPort * port = 0;
      try
        {
          if(_portType==OUTPUTPORT)
            port = node->getOutputPort(_oldName);
          else
            port = node->getOutputDataStreamPort(_oldName);
        }
      catch (Exception& e) {} // --- raised when no existing port with _newName
      if (port)
        throw Exception("there is already a port with the old name");

      if(_portType==OUTPUTPORT)
        port = node->getOutputPort(_newName);
      else
        port = node->getOutputDataStreamPort(_newName);
      port->setName(_oldName);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectDataPort.count(port));
      SubjectDataPort *sport = GuiContext::getCurrent()->_mapOfSubjectDataPort[port];
      sport->update(RENAME, 0, sport);
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandRenameOutDataPort::localReverse() : " << ex.what());
      setErrorMsg(ex);
      node = 0;
    }
  return (node != 0);
}
