YACS::HMI::SubjectOutputPort Class Reference

#include <guiObservers.hxx>

Inheritance diagram for YACS::HMI::SubjectOutputPort:

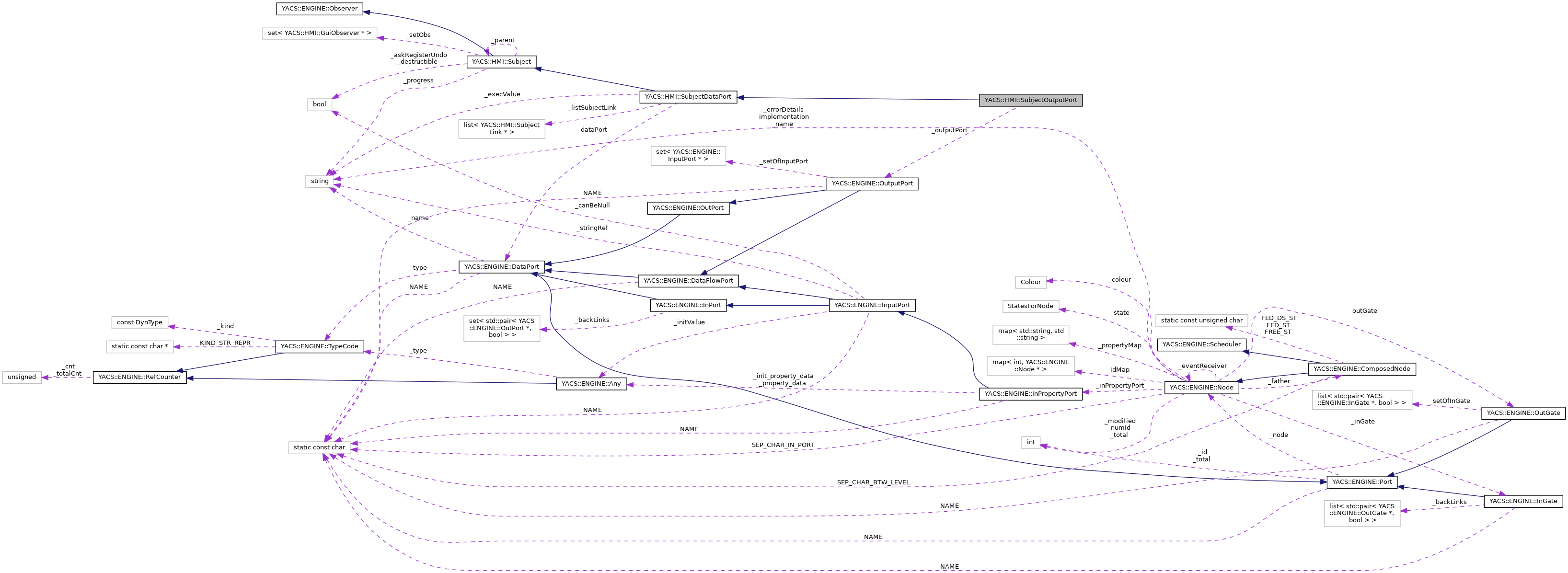

Collaboration diagram for YACS::HMI::SubjectOutputPort:

Public Member Functions
	SubjectOutputPort (YACS::ENGINE::OutputPort *port, Subject *parent)
virtual	~SubjectOutputPort ()
virtual void	clean (Command *command=0)
void	localclean (Command *command=0)
virtual bool	setValue (std::string value)
virtual TypeOfElem	getType ()
Public Member Functions inherited from YACS::HMI::SubjectDataPort
	SubjectDataPort (YACS::ENGINE::DataPort *port, Subject *parent)
virtual	~SubjectDataPort ()
virtual std::string	getName ()
virtual bool	setName (std::string name)
virtual YACS::ENGINE::DataPort *	getPort ()
void	localclean (Command *command=0)
void	addSubjectLink (SubjectLink *subject)
void	removeSubjectLink (SubjectLink *subject)
std::list< SubjectLink * >	getListOfSubjectLink ()
void	setExecValue (std::string value)
std::string	getExecValue ()
void	registerUndoDestroy ()
Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)
virtual	~Subject ()
virtual void	attach (GuiObserver *obs)
virtual void	detach (GuiObserver *obs)
virtual void	select (bool isSelected)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual bool	setProperties (std::map< std::string, std::string > properties)
virtual std::map< std::string, std::string >	getProperties ()
virtual std::vector< std::string >	knownProperties ()
virtual Subject *	getParent ()
virtual void	setParent (Subject *son)
virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...
virtual void	loadChildren ()
virtual void	loadLinks ()
virtual void	addSubjectReference (Subject *ref)
void	localclean (Command *command=0)
void	registerUndoDestroy ()
void	askRegisterUndoDestroy ()
bool	isDestructible ()
virtual void	setProgress (std::string newProgress)
virtual std::string	getProgress ()
Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver (Node *object, const std::string &event)
virtual void	notifyObserver2 (Node *object, const std::string &event, void *something)
virtual void	notifyObserverFromClone (Node *originalInstance, const std::string &event, Node *clonedInstanceGeneratingEvent)
virtual	~Observer ()

Protected Attributes
YACS::ENGINE::OutputPort *	_outputPort
Protected Attributes inherited from YACS::HMI::SubjectDataPort
YACS::ENGINE::DataPort *	_dataPort
std::list< SubjectLink * >	_listSubjectLink
std::string	_execValue
Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs
Subject *	_parent
bool	_destructible
bool	_askRegisterUndo
std::string	_progress

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::SubjectDataPort
static bool	tryCreateLink (SubjectDataPort *subOutport, SubjectDataPort *subInport, bool control=true)
Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject *sub, Command *command=0, bool post=false)

Detailed Description

Definition at line 240 of file guiObservers.hxx.

Constructor & Destructor Documentation

SubjectOutputPort()

SubjectOutputPort::SubjectOutputPort	(	YACS::ENGINE::OutputPort *	port,
		Subject *	parent
	)

Definition at line 3805 of file guiObservers.cxx.

  : SubjectDataPort(port, parent), _outputPort(port)
{
  if (DynParaLoop* dynloop = dynamic_cast<DynParaLoop*>(_outputPort->getNode()))
    {
      if (_outputPort == dynloop->edGetSamplePort()) _destructible = false;
    }
}

References YACS::HMI::Subject::_destructible, _outputPort, and YACS::ENGINE::Port::getNode().

~SubjectOutputPort()

SubjectOutputPort::~SubjectOutputPort ( )

virtual

Definition at line 3814 of file guiObservers.cxx.

{
  DEBTRACE("SubjectOutputPort::~SubjectOutputPort " << getName());
}

References DEBTRACE, and YACS::HMI::SubjectDataPort::getName().

Member Function Documentation

clean()

void SubjectOutputPort::clean ( Command *  command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::SubjectDataPort.

Definition at line 3819 of file guiObservers.cxx.

{
  if (_askRegisterUndo)
    {
      _askRegisterUndo = false;
      registerUndoDestroy();
    }
  localclean(command);
  SubjectDataPort::clean(command);
}

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::SubjectDataPort::clean(), localclean(), and YACS::HMI::SubjectDataPort::registerUndoDestroy().

getType()

virtual TypeOfElem YACS::HMI::SubjectOutputPort::getType ( )

inlinevirtual

Reimplemented from YACS::HMI::Subject.

Definition at line 248 of file guiObservers.hxx.

{return OUTPUTPORT;}

References YACS::HMI::OUTPUTPORT.

localclean()

void SubjectOutputPort::localclean

(

Command *

command = 0

)

Definition at line 3830 of file guiObservers.cxx.

{
  DEBTRACE("SubjectOutputPort::localClean ");
  if (_parent)
    {
      SubjectElementaryNode* elem = dynamic_cast<SubjectElementaryNode*>(_parent);
      if (elem) elem->removePort(this);
    }
}

References YACS::HMI::Subject::_parent, DEBTRACE, and YACS::HMI::SubjectElementaryNode::removePort().

Referenced by clean().

setValue()

bool SubjectOutputPort::setValue ( std::string  value )

virtual

Generic method do nothing. Implementation in SubjectInputPort and SubjectOutputPort.

Reimplemented from YACS::HMI::SubjectDataPort.

Definition at line 3840 of file guiObservers.cxx.

{
  DEBTRACE("SubjectOutputPort::setValue " << value);
  Proc *proc = GuiContext::getCurrent()->getProc();
  CommandSetOutPortValue *command =
    new CommandSetOutPortValue(proc->getChildName(getPort()->getNode()), getName(), value);
  if (command->execute())
    {
      GuiContext::getCurrent()->getInvoc()->add(command);
      return true;
    }
  else delete command;
  return false;
}

References YACS::HMI::Invocator::add(), DEBTRACE, YACS::HMI::Command::execute(), YACS::ENGINE::ComposedNode::getChildName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getInvoc(), YACS::HMI::SubjectDataPort::getName(), YACS::HMI::SubjectDataPort::getPort(), and YACS::HMI::GuiContext::getProc().

Member Data Documentation

_outputPort

YACS::ENGINE::OutputPort* YACS::HMI::SubjectOutputPort::_outputPort

protected

Definition at line 250 of file guiObservers.hxx.

Referenced by SubjectOutputPort().

---

The documentation for this class was generated from the following files:

• src/hmi/guiObservers.hxx
• src/hmi/guiObservers.cxx
