YACS::HMI::CommandSetSwitchSelect Class Reference

#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandSetSwitchSelect:

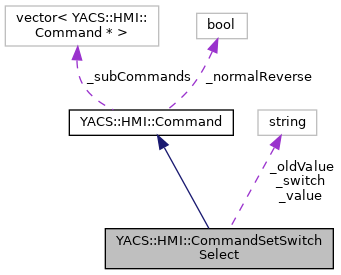

Collaboration diagram for YACS::HMI::CommandSetSwitchSelect:

Public Member Functions
	CommandSetSwitchSelect (std::string aSwitch, std::string value)
Public Member Functions inherited from YACS::HMI::Command
	Command ()
virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...
virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...
virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...
virtual std::string	dump ()
std::string	recursiveDump (int level=0)
void	addSubCommand (Command *command)
bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()
virtual bool	localReverse ()
virtual std::string	dump ()
virtual bool	localExecute ()=0
virtual bool	localReverse ()=0

Protected Attributes
std::string	_switch
std::string	_value
std::string	_oldValue
Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands
bool	_normalReverse

Detailed Description

Definition at line 411 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandSetSwitchSelect()

CommandSetSwitchSelect::CommandSetSwitchSelect	(	std::string	aSwitch,
		std::string	value
	)

Definition at line 2437 of file commandsProc.cxx.

  : Command(), _switch(aSwitch), _value(value)
{
  DEBTRACE("CommandSetSwitchSelect::CommandSetSwitchSelect");
  _oldValue = "0";
}

References _oldValue, and DEBTRACE.

Member Function Documentation

dump()

std::string CommandSetSwitchSelect::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 2445 of file commandsProc.cxx.

{
  string ret ="CommandSetSwitchSelect " + _switch + " " + _value;
  return ret;
}

References _switch, and _value.

localExecute()

bool CommandSetSwitchSelect::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 2451 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetSwitchSelect::localExecute");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Switch* aSwitch = dynamic_cast<Switch*>(proc->getChildByName(_switch));
      InputPort *condPort = aSwitch->edGetConditionPort();
      _oldValue = condPort->getAsString();
      if (_oldValue == "None") _oldValue = "0";
      int val = atoi(_value.c_str());
      condPort->edInit(val);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(aSwitch));
      SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[aSwitch];
      snode->update(SETSELECT, 0, snode);
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetSwitchSelect::localExecute() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
  return true;
}

References YACS::HMI::GuiContext::_mapOfSubjectNode, _oldValue, _switch, _value, DEBTRACE, YACS::ENGINE::Switch::edGetConditionPort(), YACS::ENGINE::InputPort::edInit(), testCppPluginInvokation::ex, YACS::ENGINE::DataPort::getAsString(), YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SETSELECT, YACS::HMI::SubjectNode::update(), and YASSERT.

localReverse()

bool CommandSetSwitchSelect::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 2476 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetSwitchSelect::localReverse");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Switch* aSwitch = dynamic_cast<Switch*>(proc->getChildByName(_switch));
      InputPort *condPort = aSwitch->edGetConditionPort();
      int val = atoi(_oldValue.c_str());
      condPort->edInit(val);
      YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(aSwitch));
      SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[aSwitch];
      snode->update(SETSELECT, 0, snode);
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetSwitchSelect::localReverse() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
  return true;
}

References YACS::HMI::GuiContext::_mapOfSubjectNode, _oldValue, _switch, DEBTRACE, YACS::ENGINE::Switch::edGetConditionPort(), YACS::ENGINE::InputPort::edInit(), testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SETSELECT, YACS::HMI::SubjectNode::update(), and YASSERT.

Member Data Documentation

_oldValue

std::string YACS::HMI::CommandSetSwitchSelect::_oldValue

protected

Definition at line 422 of file commandsProc.hxx.

Referenced by CommandSetSwitchSelect(), localExecute(), and localReverse().

_switch

std::string YACS::HMI::CommandSetSwitchSelect::_switch

protected

Definition at line 420 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

_value

std::string YACS::HMI::CommandSetSwitchSelect::_value

protected

Definition at line 421 of file commandsProc.hxx.

Referenced by dump(), and localExecute().

---

The documentation for this class was generated from the following files:

• src/hmi/commandsProc.hxx
• src/hmi/commandsProc.cxx
