YACS::ENGINE::OutputStudyPort Class Reference

Class for Study output Ports. More...

#include <StudyPorts.hxx>

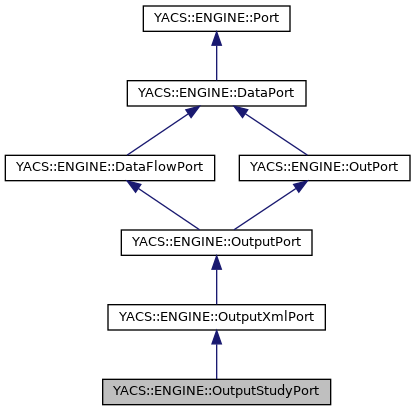

Inheritance diagram for YACS::ENGINE::OutputStudyPort:

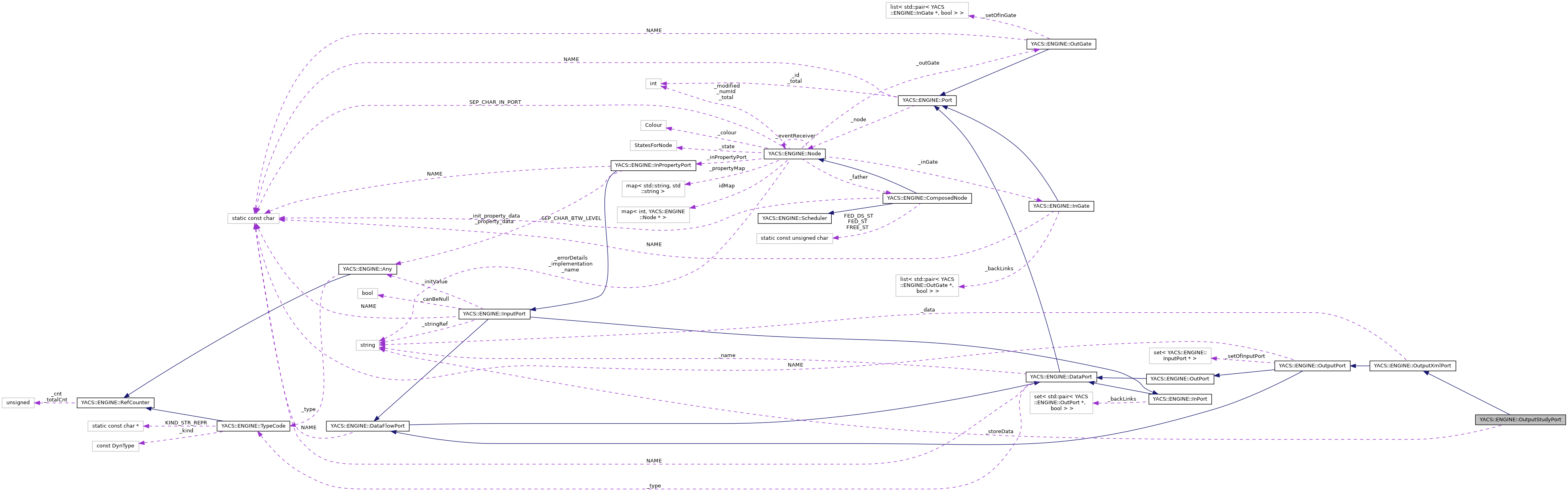

Collaboration diagram for YACS::ENGINE::OutputStudyPort:

Public Member Functions
	OutputStudyPort (const std::string &name, Node *node, TypeCode *type)
	OutputStudyPort (const OutputStudyPort &other, Node *newHelder)
OutputPort *	clone (Node *newHelder) const
void	setData (const std::string &data)
std::string	getData ()
virtual void	putIOR (const std::string &ior)
virtual std::string	dump ()
virtual std::string	getPyObj ()
virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...
virtual std::string	typeName ()
virtual void	getDataFromStudy ()
Public Member Functions inherited from YACS::ENGINE::OutputXmlPort
	OutputXmlPort (const std::string &name, Node *node, TypeCode *type)
	OutputXmlPort (const OutputXmlPort &other, Node *newHelder)
virtual void	put (const void *data)
void	put (const char *data)
virtual const char *	get () const
OutputPort *	clone (Node *newHelder) const
virtual std::string	dump ()
virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...
virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...
Public Member Functions inherited from YACS::ENGINE::OutputPort
virtual	~OutputPort ()
std::set< InPort * >	edSetInPort () const
bool	isAlreadyLinkedWith (InPort *withp) const
bool	isAlreadyInSet (InputPort *inputPort) const
bool	isConnected () const
std::string	getNameOfTypeOfCurrentInstance () const
int	removeInPort (InPort *inPort, bool forward)
virtual bool	edAddInputPort (InputPort *phyPort)
virtual bool	edAddInPropertyPort (InPropertyPort *phyPort)
virtual int	edRemoveInputPort (InputPort *inputPort, bool forward)
bool	addInPort (InPort *inPort)
void	edRemoveAllLinksLinkedWithMe ()
virtual void	exInit ()
virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...
virtual OutputPort *	clone (Node *newHelder) const =0
virtual std::string	dump ()
virtual void	put (const void *data)
virtual std::string	typeName ()
Public Member Functions inherited from YACS::ENGINE::DataFlowPort
std::string	getNameOfTypeOfCurrentInstance () const
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...
virtual	~DataFlowPort ()
virtual std::string	typeName ()
virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...
virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...
Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const
void	edSetType (TypeCode *type)
std::string	getName () const
void	setName (std::string theName)
std::string	getNameOfTypeOfCurrentInstance () const
virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...
bool	isDifferentTypeOf (const DataPort *other) const
virtual void	edRemoveAllLinksLinkedWithMe ()=0
virtual std::string	typeName ()
virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...
Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()
Node *	getNode () const
virtual std::string	getNameOfTypeOfCurrentInstance () const
int	getNumId () const
virtual std::string	typeName ()
void	modified ()
Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const
virtual int	edGetNumberOfOutLinks () const
virtual std::set< InPort * >	edSetInPort () const =0
virtual bool	isAlreadyLinkedWith (InPort *withp) const =0
virtual void	getAllRepresented (std::set< OutPort * > &represented) const
virtual bool	addInPort (InPort *inPort)=0
virtual int	removeInPort (InPort *inPort, bool forward)=0
virtual	~OutPort ()
std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)
virtual std::string	typeName ()

Protected Attributes
std::string	_storeData
Protected Attributes inherited from YACS::ENGINE::OutputXmlPort
std::string	_data
Protected Attributes inherited from YACS::ENGINE::OutputPort
std::set< InputPort * >	_setOfInputPort
Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type
std::string	_name
Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node
int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)
Static Public Attributes inherited from YACS::ENGINE::OutputPort
static const char	NAME [] ="OutputPort"
Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"
Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"
Protected Member Functions inherited from YACS::ENGINE::OutputPort
	OutputPort (const OutputPort &other, Node *newHelder)
	OutputPort (const std::string &name, Node *node, TypeCode *type)
const std::set< InputPort * > &	getSetOfPhyLinks () const
	Returns physical links linked to this. Contrary to edSetInPort that returns semantic links. More...
Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)
	DataFlowPort (const std::string &name, Node *node, TypeCode *type)
Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()
	DataPort (const DataPort &other, Node *newHelder)
	DataPort (const std::string &name, Node *node, TypeCode *type)
Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)
	Port (const Port &other, Node *newHelder)
Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)
	OutPort (const std::string &name, Node *node, TypeCode *type)
Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0
static const char	NAME [] ="Port"

Detailed Description

Class for Study output Ports.

See also

StudyInNode

Definition at line 32 of file StudyPorts.hxx.

Constructor & Destructor Documentation

OutputStudyPort() [1/2]

YACS::ENGINE::OutputStudyPort::OutputStudyPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 52 of file StudyPorts.cxx.

  : OutputXmlPort(name, node, type),
    DataPort(name, node, type),
    Port(node)
{
}

Referenced by clone().

OutputStudyPort() [2/2]

YACS::ENGINE::OutputStudyPort::OutputStudyPort	(	const OutputStudyPort &	other,
		Node *	newHelder
	)

Definition at line 59 of file StudyPorts.cxx.

  : OutputXmlPort(other,newHelder),
    DataPort(other,newHelder),
    Port(other,newHelder),_storeData(other._storeData)
{
}

Member Function Documentation

clone()

OutputPort * YACS::ENGINE::OutputStudyPort::clone ( Node *  newHelder ) const

virtual

Implements YACS::ENGINE::OutputPort.

Definition at line 66 of file StudyPorts.cxx.

{
  return new OutputStudyPort(*this,newHelder);
}

References OutputStudyPort().

dump()

std::string YACS::ENGINE::OutputStudyPort::dump ( )

virtual

Reimplemented from YACS::ENGINE::OutputXmlPort.

Definition at line 122 of file StudyPorts.cxx.

{
  DEBTRACE( "OutputStudyPort::dump " << _storeData );
  DEBTRACE( "OutputStudyPort::dump " << _data );
  //return "<value><string>"+_storeData+"</string></value>";
  return _data;
}

References YACS::ENGINE::OutputXmlPort::_data, _storeData, and DEBTRACE.

getAsString()

std::string YACS::ENGINE::OutputStudyPort::getAsString ( )

virtual

returns port value as a string that can be used in a GUI for example

Do nothing here. To subclass

Reimplemented from YACS::ENGINE::DataPort.

Definition at line 134 of file StudyPorts.cxx.

{
  return getData();
}

References getData().

Referenced by YACS::HMI::CommandSetOutPortValue::localExecute(), and YACS::HMI::CommandSetOutPortValue::localReverse().

getData()

std::string YACS::ENGINE::OutputStudyPort::getData

(

)

Definition at line 78 of file StudyPorts.cxx.

{
  DEBTRACE("OutputStudyPort::getData " << _storeData);
  return _storeData;
}

References _storeData, and DEBTRACE.

Referenced by YACS::ENGINE::StudyInNode::checkBasicConsistency(), getAsString(), getDataFromStudy(), getPyObj(), and YACS::ENGINE::VisitorSaveSalomeSchema::writeStudyInNodeParameters().

getDataFromStudy()

void YACS::ENGINE::OutputStudyPort::getDataFromStudy ( )

virtual

Definition at line 139 of file StudyPorts.cxx.

{
      std::string data = getData();
      DEBTRACE("data: " << data );
      //try an id
      SALOMEDS::SObject_var aSO = KERNEL::getStudyServant()->FindObjectID(data.c_str());
      if(CORBA::is_nil(aSO))
        {
          //try a path
          aSO=KERNEL::getStudyServant()->FindObjectByPath(data.c_str());
          if(CORBA::is_nil(aSO))
            {
              std::stringstream msg;
              msg << "Execution problem: no id or path: " << data << " in study";
              throw Exception(msg.str());
            }
        }

      CORBA::String_var path=KERNEL::getStudyServant()->GetObjectPath(aSO);
      DEBTRACE(path);
      CORBA::String_var id=aSO->GetID();
      DEBTRACE(id);
      //CORBA::Object_var sobj=aSO->GetObject();

      SALOMEDS::GenericAttribute_var aGAttr;
      CORBA::String_var value;

      if(edGetType()->kind()==Objref)
        {
          if ( aSO->FindAttribute( aGAttr, "AttributeIOR" ) )
            {
              SALOMEDS::AttributeIOR_var anAttr = SALOMEDS::AttributeIOR::_narrow( aGAttr );
              value=anAttr->Value();
              putIOR((const char*)value);
            }
          else
            {
              //Problem !!!
              std::string error="Execution problem: no AttributeIOR in study object: ";
              error=error+data;
              throw Exception(error);
            }
        }
      else if(edGetType()->kind()==Double )
        {
          if ( aSO->FindAttribute( aGAttr, "AttributeReal" ) )
            {
              SALOMEDS::AttributeReal_var anAttr = SALOMEDS::AttributeReal::_narrow( aGAttr );
              CORBA::Double d=anAttr->Value();
              std::stringstream msg;
              msg << "<value><double>" << std::setprecision(16) << d << "</double></value>";
              put(msg.str().c_str());
            }
          else
            {
              std::string error="Execution problem: no AttributeReal in study object: ";
              throw Exception(error+data);
            }
        }
      else if(edGetType()->kind()== Int)
        {
          if ( aSO->FindAttribute( aGAttr, "AttributeInteger" ) )
            {
              SALOMEDS::AttributeInteger_var anAttr = SALOMEDS::AttributeInteger::_narrow( aGAttr );
              CORBA::Long l=anAttr->Value();
              std::stringstream msg;
              msg << "<value><int>" << l << "</int></value>";
              put(msg.str().c_str());
            }
          else
            {
              std::string error="Execution problem: no AttributeInteger in study object: ";
              throw Exception(error+data);
            }
        }
      else
        {
          if ( aSO->FindAttribute( aGAttr, "AttributeComment" ) )
            {
              SALOMEDS::AttributeComment_var anAttr = SALOMEDS::AttributeComment::_narrow( aGAttr );
              value=anAttr->Value();
              DEBTRACE(value);
              putIOR((const char*)value);
            }
          else
            {
              std::string error="Execution problem: no AttributeComment in study object: ";
              throw Exception(error+data);
            }
        }
}

References DEBTRACE, YACS::ENGINE::Double, YACS::ENGINE::DataPort::edGetType(), getData(), YACS::ENGINE::Int, testCppPluginInvokation::l, YACS::ENGINE::Objref, YACS::ENGINE::OutputXmlPort::put(), and putIOR().

Referenced by YACS::ENGINE::StudyInNode::execute().

getPyObj()

std::string YACS::ENGINE::OutputStudyPort::getPyObj ( )

virtual

Definition at line 130 of file StudyPorts.cxx.

{
  return getData();
}

References getData().

putIOR()

void YACS::ENGINE::OutputStudyPort::putIOR ( const std::string &  ior )

virtual

Definition at line 84 of file StudyPorts.cxx.

{
  DEBTRACE("OutputStudyPort::putIOR " << ior);
  if(ior.substr(0,7) == "<value>")
    {
      put(ior.c_str());
    }
  else
    {
      int tk=edGetType()->kind();
      std::string value;
      switch(tk)
        {
        case Double:
          value="<value><double>"+ior+"</double></value>";
          break;
        case Int:
          value="<value><int>"+ior+"</int></value>";
          break;
        case String:
          value="<value><string>"+ior+"</string></value>";
          break;
        case Bool:
          value="<value><boolean>"+ior+"</boolean></value>";
          break;
        case Objref:
          value="<value><objref>"+ior+"</objref></value>";
          break;
        case Sequence:
        case Array:
        case Struct:
        default:
          break;
        }
      put(value.c_str());
    }
}

References YACS::ENGINE::Array, YACS::ENGINE::Bool, DEBTRACE, YACS::ENGINE::Double, YACS::ENGINE::DataPort::edGetType(), YACS::ENGINE::Int, YACS::ENGINE::TypeCode::kind(), YACS::ENGINE::Objref, YACS::ENGINE::OutputXmlPort::put(), YACS::ENGINE::Sequence, YACS::ENGINE::String, and YACS::ENGINE::Struct.

Referenced by getDataFromStudy().

setData()

void YACS::ENGINE::OutputStudyPort::setData

(

const std::string &

data

)

Definition at line 71 of file StudyPorts.cxx.

{
  _storeData = data;
  DEBTRACE( "OutputStudyPort::setData " << _storeData );
  modified();
}

References _storeData, DEBTRACE, and YACS::ENGINE::Port::modified().

Referenced by YACS::ENGINE::StudyInNode::setData().

typeName()

virtual std::string YACS::ENGINE::OutputStudyPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 44 of file StudyPorts.hxx.

{return "YACS__ENGINE__OutputStudyPort";}

Member Data Documentation

_storeData

std::string YACS::ENGINE::OutputStudyPort::_storeData

protected

Definition at line 47 of file StudyPorts.hxx.

Referenced by dump(), getData(), and setData().

---

The documentation for this class was generated from the following files:

• src/runtime/StudyPorts.hxx
• src/runtime/StudyPorts.cxx
