Class for XML Output Ports. More...

#include <XMLPorts.hxx>

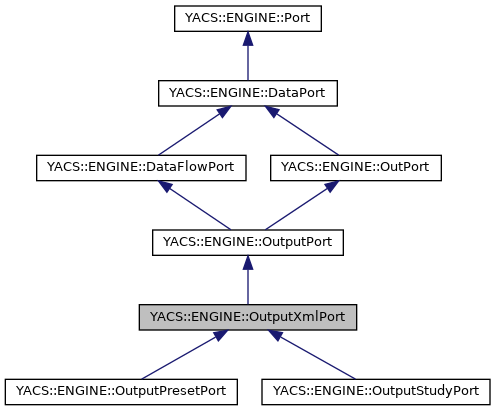

Inheritance diagram for YACS::ENGINE::OutputXmlPort:

[legend]

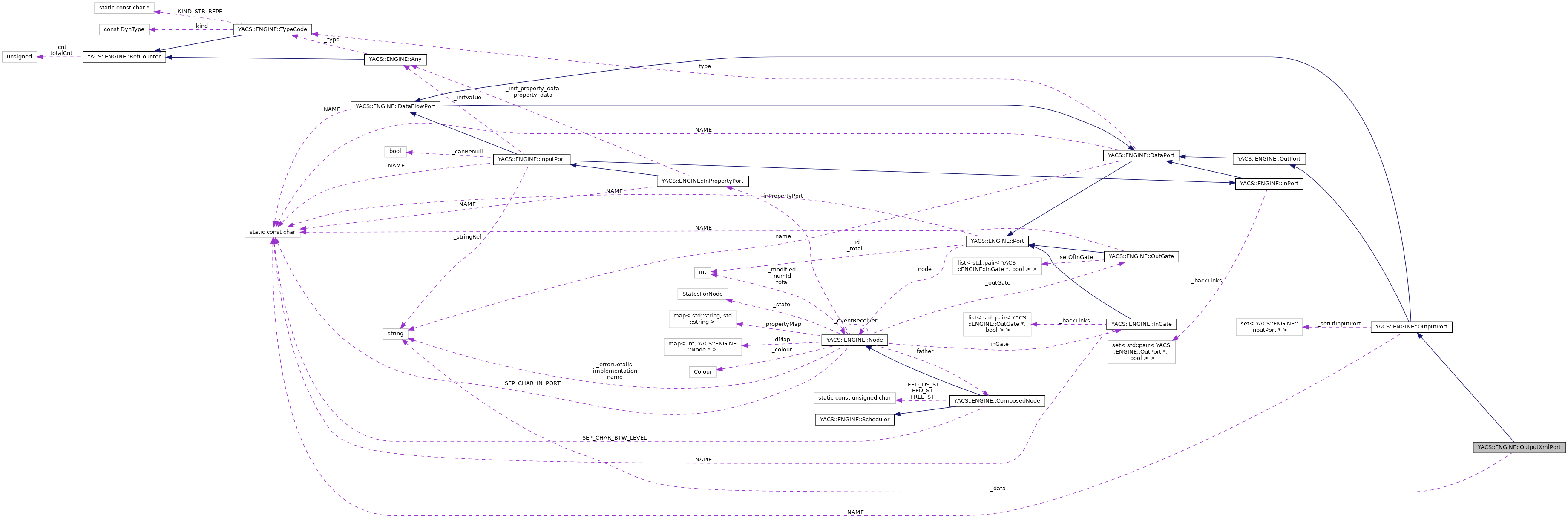

Collaboration diagram for YACS::ENGINE::OutputXmlPort:

[legend]

Public Member Functions
	OutputXmlPort (const std::string &name, Node node, TypeCode type)

	OutputXmlPort (const OutputXmlPort &other, Node *newHelder)

virtual void	put (const void *data)

void	put (const char *data)

virtual const char *	get () const

OutputPort *	clone (Node *newHelder) const

virtual std::string	dump ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::OutputPort
virtual	~OutputPort ()

std::set< InPort * >	edSetInPort () const

bool	isAlreadyLinkedWith (InPort *withp) const

bool	isAlreadyInSet (InputPort *inputPort) const

bool	isConnected () const

std::string	getNameOfTypeOfCurrentInstance () const

int	removeInPort (InPort *inPort, bool forward)

virtual bool	edAddInputPort (InputPort *phyPort)

virtual bool	edAddInPropertyPort (InPropertyPort *phyPort)

virtual int	edRemoveInputPort (InputPort *inputPort, bool forward)

bool	addInPort (InPort *inPort)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	exInit ()

virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

bool	isDifferentTypeOf (const DataPort *other) const

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

int	getNumId () const

void	modified ()

Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const

virtual int	edGetNumberOfOutLinks () const

virtual void	getAllRepresented (std::set< OutPort * > &represented) const

virtual	~OutPort ()

std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)

Protected Attributes
std::string	_data

Protected Attributes inherited from YACS::ENGINE::OutputPort
std::set< InputPort * >	_setOfInputPort

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::OutputPort
static const char	NAME [] ="OutputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::OutputPort
	OutputPort (const OutputPort &other, Node *newHelder)

	OutputPort (const std::string &name, Node node, TypeCode type)

const std::set< InputPort * > &	getSetOfPhyLinks () const
	Returns physical links linked to this. Contrary to edSetInPort that returns semantic links. More...

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)

	OutPort (const std::string &name, Node node, TypeCode type)

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Class for XML Output Ports.

See also: XmlNode

Definition at line 67 of file XMLPorts.hxx.

Constructor & Destructor Documentation

◆ OutputXmlPort() [1/2]

OutputXmlPort::OutputXmlPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 122 of file XMLPorts.cxx.

   : OutputPort(name, node, type), DataPort(name, node, type), Port(node)
 {
 }

Referenced by clone().

◆ OutputXmlPort() [2/2]

OutputXmlPort::OutputXmlPort	(	const OutputXmlPort &	other,
		Node *	newHelder
	)

Definition at line 127 of file XMLPorts.cxx.

                                                                        :OutputPort(other,newHelder),DataPort(other,newHelder),
                                                                           Port(other,newHelder),_data(other._data)
 {
 }

Member Function Documentation

◆ clone()

OutputPort * OutputXmlPort::clone ( Node * newHelder ) const

virtual

Implements YACS::ENGINE::OutputPort.

Definition at line 150 of file XMLPorts.cxx.

 {
   return new OutputXmlPort(*this,newHelder);
 }

References OutputXmlPort().

◆ dump()

std::string OutputXmlPort::dump ( )

virtual

Reimplemented from YACS::ENGINE::OutputPort.

Reimplemented in YACS::ENGINE::OutputStudyPort, and YACS::ENGINE::OutputPresetPort.

Definition at line 155 of file XMLPorts.cxx.

 {
   return _data;
 }

References _data.

◆ get()

const char * OutputXmlPort::get ( ) const

virtual

Definition at line 132 of file XMLPorts.cxx.

 {
   return _data.c_str();
 }

References _data.

◆ put() [1/2]

void OutputXmlPort::put ( const char * data )

Definition at line 142 of file XMLPorts.cxx.

 {
   DEBTRACE(data);
   InputPort *p;
   _data=data;
   OutputPort::put(data);
 }

References _data, DEBTRACE, p, and YACS::ENGINE::OutputPort::put().

◆ put() [2/2]

void OutputXmlPort::put ( const void * data )

virtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 137 of file XMLPorts.cxx.

 {
   put((const char*)data);
 }

Referenced by YACS::ENGINE::PresetNode::execute(), YACS::ENGINE::OutputStudyPort::getDataFromStudy(), and YACS::ENGINE::OutputStudyPort::putIOR().

◆ valFromStr()

void OutputXmlPort::valFromStr ( std::string valstr )

virtual

Allows to set data from a string representation used in user interface.

Implemented in derived classes, depending on runtime, to set the data from its user interface representation. Typical use, a Python string representation that can be used in edition or restitution.

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 165 of file XMLPorts.cxx.

 {
   _data = valstr;
 }

References _data.

◆ valToStr()

std::string OutputXmlPort::valToStr ( )

virtual

Gives a string representation of the data, for user interfaces.

Implemented in derived classes, depending on runtime, to provide the data representation for user interfaces. Typical use, a Python string representation that can be used in edition or restitution.

Reimplemented from YACS::ENGINE::DataFlowPort.

Definition at line 160 of file XMLPorts.cxx.

 {
   return _data;
 }

References _data.

Member Data Documentation

◆ _data

std::string YACS::ENGINE::OutputXmlPort::_data

protected

Definition at line 80 of file XMLPorts.hxx.

Referenced by YACS::ENGINE::OutputStudyPort::dump(), dump(), get(), put(), valFromStr(), and valToStr().

The documentation for this class was generated from the following files:

src/runtime/XMLPorts.hxx
src/runtime/XMLPorts.cxx
