Class for PRESET output Ports. More...

#include <PresetPorts.hxx>

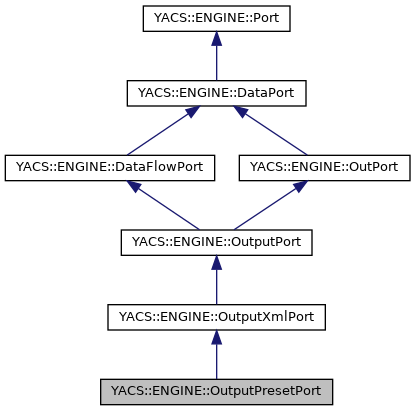

Inheritance diagram for YACS::ENGINE::OutputPresetPort:

[legend]

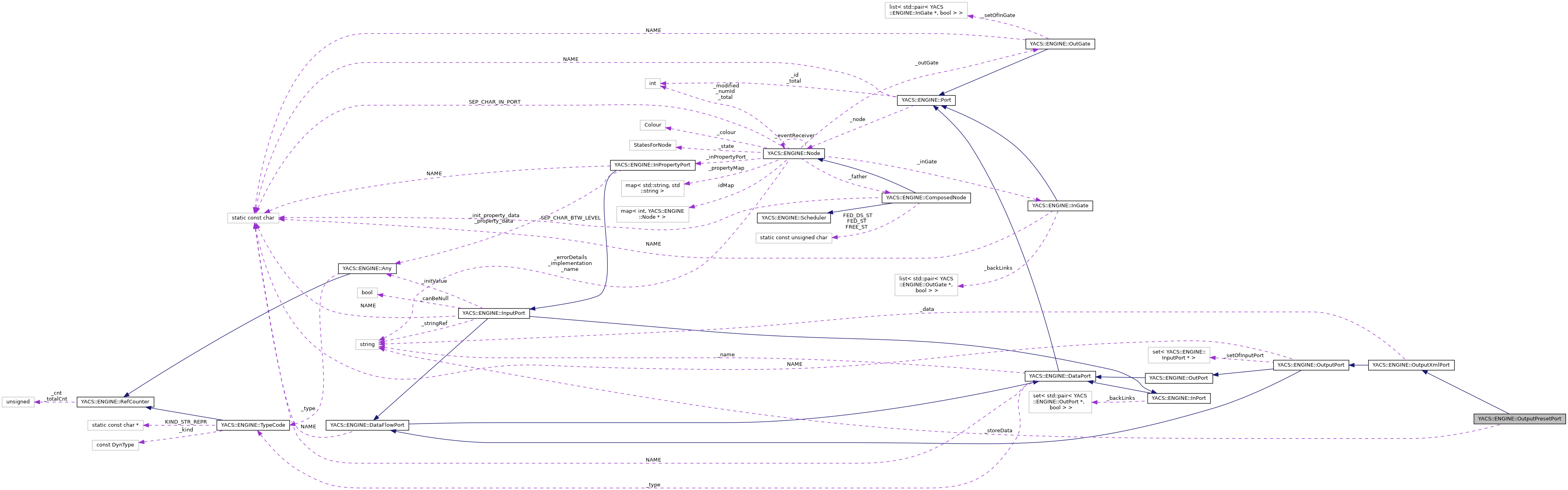

Collaboration diagram for YACS::ENGINE::OutputPresetPort:

[legend]

Public Member Functions
	OutputPresetPort (const std::string &name, Node node, TypeCode type)

	OutputPresetPort (const OutputPresetPort &other, Node *newHelder)

OutputPort *	clone (Node *newHelder) const

void	setData (std::string data)

std::string	getData ()

virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...

virtual std::string	dump ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

virtual PyObject *	getPyObj ()

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::OutputXmlPort
	OutputXmlPort (const std::string &name, Node node, TypeCode type)

	OutputXmlPort (const OutputXmlPort &other, Node *newHelder)

virtual void	put (const void *data)

void	put (const char *data)

virtual const char *	get () const

OutputPort *	clone (Node *newHelder) const

virtual std::string	dump ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::OutputPort
virtual	~OutputPort ()

std::set< InPort * >	edSetInPort () const

bool	isAlreadyLinkedWith (InPort *withp) const

bool	isAlreadyInSet (InputPort *inputPort) const

bool	isConnected () const

std::string	getNameOfTypeOfCurrentInstance () const

int	removeInPort (InPort *inPort, bool forward)

virtual bool	edAddInputPort (InputPort *phyPort)

virtual bool	edAddInPropertyPort (InPropertyPort *phyPort)

virtual int	edRemoveInputPort (InputPort *inputPort, bool forward)

bool	addInPort (InPort *inPort)

void	edRemoveAllLinksLinkedWithMe ()

virtual void	exInit ()

virtual void	checkBasicConsistency () const
	Check validity of output port. Nothing on base class. More...

virtual OutputPort *	clone (Node *newHelder) const =0

virtual std::string	dump ()

virtual void	put (const void *data)

virtual std::string	typeName ()

Public Member Functions inherited from YACS::ENGINE::DataFlowPort
std::string	getNameOfTypeOfCurrentInstance () const

TypeOfChannel	getTypeOfChannel () const
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

virtual	~DataFlowPort ()

virtual std::string	typeName ()

virtual std::string	valToStr ()
	Gives a string representation of the data, for user interfaces. More...

virtual void	valFromStr (std::string valstr)
	Allows to set data from a string representation used in user interface. More...

Public Member Functions inherited from YACS::ENGINE::DataPort
TypeCode *	edGetType () const

void	edSetType (TypeCode *type)

std::string	getName () const

void	setName (std::string theName)

std::string	getNameOfTypeOfCurrentInstance () const

virtual TypeOfChannel	getTypeOfChannel () const =0
	returns type of channel the port will use for data exchange on runtime : DATAFLOW or DATASTREAM. More...

bool	isDifferentTypeOf (const DataPort *other) const

virtual void	edRemoveAllLinksLinkedWithMe ()=0

virtual std::string	typeName ()

virtual std::string	getAsString ()
	returns port value as a string that can be used in a GUI for example More...

Public Member Functions inherited from YACS::ENGINE::Port
virtual	~Port ()

Node *	getNode () const

virtual std::string	getNameOfTypeOfCurrentInstance () const

int	getNumId () const

virtual std::string	typeName ()

void	modified ()

Public Member Functions inherited from YACS::ENGINE::OutPort
virtual void	checkConsistency (LinkInfo &info) const

virtual int	edGetNumberOfOutLinks () const

virtual std::set< InPort * >	edSetInPort () const =0

virtual bool	isAlreadyLinkedWith (InPort *withp) const =0

virtual void	getAllRepresented (std::set< OutPort * > &represented) const

virtual bool	addInPort (InPort *inPort)=0

virtual int	removeInPort (InPort *inPort, bool forward)=0

virtual	~OutPort ()

std::vector< DataPort * >	calculateHistoryOfLinkWith (InPort *end)

virtual std::string	typeName ()

Protected Attributes
std::string	_storeData

Protected Attributes inherited from YACS::ENGINE::OutputXmlPort
std::string	_data

Protected Attributes inherited from YACS::ENGINE::OutputPort
std::set< InputPort * >	_setOfInputPort

Protected Attributes inherited from YACS::ENGINE::DataPort
TypeCode *	_type

std::string	_name

Protected Attributes inherited from YACS::ENGINE::Port
Node *	_node

int	_id

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::DataPort
static DataPort *	isCrossingType (const std::vector< DataPort * > &historyOfLink)

Static Public Attributes inherited from YACS::ENGINE::OutputPort
static const char	NAME [] ="OutputPort"

Static Public Attributes inherited from YACS::ENGINE::DataFlowPort
static const char	NAME [] ="DataFlowPort"

Static Public Attributes inherited from YACS::ENGINE::DataPort
static const char	NAME [] ="DataPort"

Protected Member Functions inherited from YACS::ENGINE::OutputPort
	OutputPort (const OutputPort &other, Node *newHelder)

	OutputPort (const std::string &name, Node node, TypeCode type)

const std::set< InputPort * > &	getSetOfPhyLinks () const
	Returns physical links linked to this. Contrary to edSetInPort that returns semantic links. More...

Protected Member Functions inherited from YACS::ENGINE::DataFlowPort
	DataFlowPort (const DataFlowPort &other, Node *newHelder)

	DataFlowPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::DataPort
virtual	~DataPort ()

	DataPort (const DataPort &other, Node *newHelder)

	DataPort (const std::string &name, Node node, TypeCode type)

Protected Member Functions inherited from YACS::ENGINE::Port
	Port (Node *node)

	Port (const Port &other, Node *newHelder)

Protected Member Functions inherited from YACS::ENGINE::OutPort
	OutPort (const OutPort &other, Node *newHelder)

	OutPort (const std::string &name, Node node, TypeCode type)

Static Protected Attributes inherited from YACS::ENGINE::Port
static int	_total = 0

static const char	NAME [] ="Port"

Detailed Description

Class for PRESET output Ports.

See also: PresetNode

Definition at line 32 of file PresetPorts.hxx.

Constructor & Destructor Documentation

◆ OutputPresetPort() [1/2]

OutputPresetPort::OutputPresetPort	(	const std::string &	name,
		Node *	node,
		TypeCode *	type
	)

Definition at line 40 of file PresetPorts.cxx.

  : OutputXmlPort(name, node, type),
    DataPort(name, node, type),
    Port(node)
{
}

Referenced by clone().

◆ OutputPresetPort() [2/2]

OutputPresetPort::OutputPresetPort	(	const OutputPresetPort &	other,
		Node *	newHelder
	)

Definition at line 47 of file PresetPorts.cxx.

  : OutputXmlPort(other,newHelder),
    DataPort(other,newHelder),
    Port(other,newHelder),_storeData(other._storeData)
{
}

Member Function Documentation

◆ checkBasicConsistency()

void OutputPresetPort::checkBasicConsistency ( ) const

virtual

Check validity of output port. Nothing on base class.

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 66 of file PresetPorts.cxx.

{
  DEBTRACE("OutputPresetPort::checkBasicConsistency " << _storeData);
  if (_storeData.empty())
    {
      std::string what("OutputPresetPort: ");
      what += getName();
      what += " is not initialised";
      throw Exception(what);
    }
}

References _storeData, DEBTRACE, and YACS::ENGINE::DataPort::getName().

Referenced by YACS::ENGINE::PresetNode::checkBasicConsistency().

◆ clone()

OutputPort * OutputPresetPort::clone ( Node * newHelder ) const

virtual

Implements YACS::ENGINE::OutputPort.

Definition at line 54 of file PresetPorts.cxx.

{
  return new OutputPresetPort(*this,newHelder);
}

References OutputPresetPort().

◆ dump()

std::string OutputPresetPort::dump ( )

virtual

Reimplemented from YACS::ENGINE::OutputXmlPort.

Definition at line 119 of file PresetPorts.cxx.

{
  return getData();
}

References getData().

◆ getAsString()

std::string OutputPresetPort::getAsString ( )

virtual

returns port value as a string that can be used in a GUI for example

Do nothing here. To subclass

Reimplemented from YACS::ENGINE::DataPort.

Definition at line 136 of file PresetPorts.cxx.

{
  InterpreterUnlocker loc;
  PyObject* ob=getPyObj();
  DEBTRACE(PyObject_Str(ob));
  std::string s=convertPyObjectToString(ob);
  DEBTRACE(s);
  Py_DECREF(ob);
  return s;
}

References YACS::ENGINE::convertPyObjectToString(), DEBTRACE, and getPyObj().

Referenced by YACS::HMI::CommandSetOutPortValue::localExecute(), and YACS::HMI::CommandSetOutPortValue::localReverse().

◆ getData()

std::string OutputPresetPort::getData ( )

Definition at line 78 of file PresetPorts.cxx.

{
  DEBTRACE("OutputPresetPort::getData " << _storeData);
  if(_storeData.substr(0,7) == "<value>")
    {
      return _storeData;
    }
  else
    {
      std::string value;
      switch(edGetType()->kind())
        {
        case Double:
          value="<value><double>"+_storeData+"</double></value>";
          break;
        case Int:
          value="<value><int>"+_storeData+"</int></value>";
          break;
        case String:
          value="<value><string>"+_storeData+"</string></value>";
          break;
        case Bool:
          value="<value><boolean>"+_storeData+"</boolean></value>";
          break;
        case Objref:
          value="<value><objref>"+_storeData+"</objref></value>";
          break;
        case Sequence:
        case Array:
          value="<value><array><data>"+_storeData+"</data></array></value>";
          break;
        case Struct:
          value="<value><struct><data>"+_storeData+"</data></struct></value>";
          break;
        default:
          break;
        }
      return value;
    }
}

References _storeData, YACS::ENGINE::Array, YACS::ENGINE::Bool, DEBTRACE, YACS::ENGINE::Double, YACS::ENGINE::DataPort::edGetType(), YACS::ENGINE::Int, YACS::ENGINE::Objref, YACS::ENGINE::Sequence, YACS::ENGINE::String, and YACS::ENGINE::Struct.

Referenced by dump(), YACS::ENGINE::PresetNode::execute(), getPyObj(), and YACS::ENGINE::VisitorSaveSalomeSchema::writeDataNodeParameters().

◆ getPyObj()

PyObject * OutputPresetPort::getPyObj ( )

virtual

Definition at line 124 of file PresetPorts.cxx.

{
  DEBTRACE(getData());
  if(_storeData=="")
    {
      Py_INCREF(Py_None);
      return Py_None;
    }
  else
    return convertXmlStrPyObject(edGetType(),getData());
}

References _storeData, YACS::ENGINE::convertXmlStrPyObject(), DEBTRACE, YACS::ENGINE::DataPort::edGetType(), and getData().

Referenced by getAsString().

◆ setData()

void OutputPresetPort::setData ( std::string data )

Definition at line 59 of file PresetPorts.cxx.

{
  _storeData = data;
  DEBTRACE( "OutputPresetPort::setData " << _storeData );
  modified();
}

References _storeData, DEBTRACE, and YACS::ENGINE::Port::modified().

Referenced by YACS::ENGINE::PresetNode::setData().

◆ typeName()

virtual std::string YACS::ENGINE::OutputPresetPort::typeName ( )

inlinevirtual

Reimplemented from YACS::ENGINE::OutputPort.

Definition at line 44 of file PresetPorts.hxx.

44{return "YACS__ENGINE__OutputPresetPort";}

Member Data Documentation

◆ _storeData

std::string YACS::ENGINE::OutputPresetPort::_storeData

protected

Definition at line 46 of file PresetPorts.hxx.

Referenced by checkBasicConsistency(), getData(), getPyObj(), and setData().

The documentation for this class was generated from the following files:

src/runtime/PresetPorts.hxx
src/runtime/PresetPorts.cxx

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ OutputPresetPort() [1/2]

◆ OutputPresetPort() [2/2]

Member Function Documentation

◆ checkBasicConsistency()

◆ clone()

◆ dump()

◆ getAsString()

◆ getData()

◆ getPyObj()

◆ setData()

◆ typeName()

Member Data Documentation

◆ _storeData
