#include <StructuredCoincidentDEC.hxx>

Inheritance diagram for MEDCoupling::StructuredCoincidentDEC:

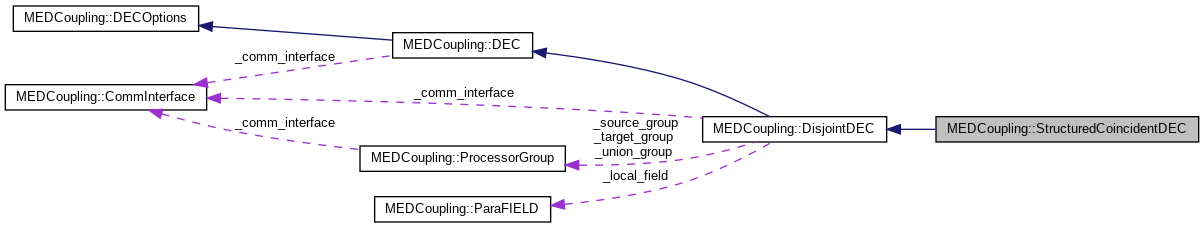

Collaboration diagram for MEDCoupling::StructuredCoincidentDEC:

Public Member Functions
void	prepareSourceDE ()

void	prepareTargetDE ()

void	recvData ()

void	release ()

void	sendData ()

	StructuredCoincidentDEC ()

	StructuredCoincidentDEC (ProcessorGroup &source, ProcessorGroup &target)

void	synchronize ()

virtual	~StructuredCoincidentDEC ()

Public Member Functions inherited from MEDCoupling::DisjointDEC
void	attachLocalField (const ICoCo::MEDDoubleField *field)

void	attachLocalField (const ParaFIELD *field, bool ownPt=false)

void	attachLocalField (MEDCouplingFieldDouble *field)

virtual void	computeProcGroup ()

	DisjointDEC ()

	DisjointDEC (const DisjointDEC &)

	DisjointDEC (const std::set< int > &src_ids, const std::set< int > &trg_ids, const MPI_Comm &world_comm=MPI_COMM_WORLD)

	DisjointDEC (ProcessorGroup &source_group, ProcessorGroup &target_group)

DisjointDEC &	operator= (const DisjointDEC &s)

virtual void	prepareSourceDE ()=0

virtual void	prepareTargetDE ()=0

virtual void	recvData ()=0

void	renormalizeTargetField (bool isWAbs)

virtual void	sendData ()=0

void	sendRecvData (bool way=true)

void	setNature (NatureOfField nature)

virtual void	synchronize ()=0

virtual	~DisjointDEC ()

Additional Inherited Members
Protected Member Functions inherited from MEDCoupling::DisjointDEC
void	cleanInstance ()

void	compareFieldAndMethod () const

Protected Attributes inherited from MEDCoupling::DisjointDEC
const ParaFIELD *	_local_field

bool	_owns_field

Detailed Description

This class aims at remapping fields that have identical structured supports (=the same underlying mesh) but different parallel topologies (=different sub-domains in the structured mesh). It can be used to couple together multi-physics codes that operate on the same domain with different partitioning. This can be useful for example if one of the computation is much faster than the other. It can also be used to couple together codes that share an interface that was generated in the same manner (with identical global ids). Also, this DEC can be used for fields that have component topologies, i.e., components that are scattered over several processors.

The remapping between the two supports is based on identity of global ids, instead of geometrical considerations (as it is the case for InterpKernelDEC). Therefore, beware that this DEC can not be used for coincident meshes if they do not have the exact same numbering.

With this DEC no projection, and no interpolation of the field data is done, contrary to what happens in InterpKernelDEC. It is just a matter of allocating the values from one side to the other, using directly the cell identifiers.

As all the other DECs, its usage requires two phases :

a setup phase during which the topologies are exchanged so that the target side knows from which processors it should expect the data.
a send/recv phase during which the field data is actually transferred.

This example illustrates the sending of a field with the StructuredCoincidentDEC :

...
StructuredCoincidentDEC dec(groupA, groupB);
dec.attachLocalField(field);
dec.synchronize();
if (groupA.containsMyRank())
dec.recvData();
else if (groupB.containsMyRank())
dec.sendData();
...

Creating a ParaFIELD to be attached to the DEC is done in exactly the same way as for the other DECs, if only the partitioning of the support mesh differs. In the case where the fields have also different component topologies, creating the ParaFIELD requires some more effort. See the parallelism section for more details.
