SMESH_MeshAlgos.hxx File Reference
#include "SMESH_Utils.hxx"#include "SMDSAbs_ElementType.hxx"#include "SMDS_ElemIterator.hxx"#include "SMESH_TypeDefs.hxx"#include <TopAbs_State.hxx>#include <gp_Pnt.hxx>#include <gp_Vec.hxx>#include <vector>

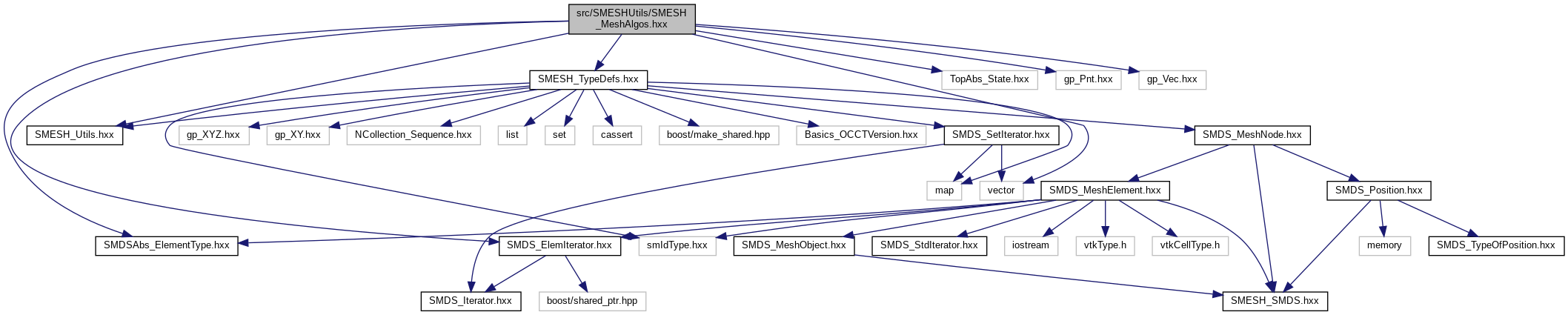

Include dependency graph for SMESH_MeshAlgos.hxx:

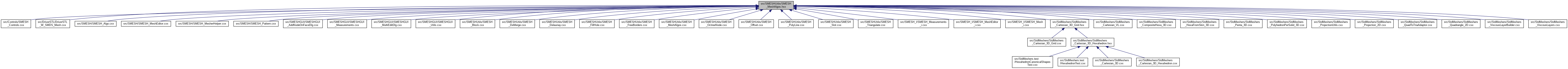

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | SMESH_NodeSearcher |
| Searcher for the node closest to a point. More... | |
| struct | SMESH_ElementSearcher |
| Searcher for elements. More... | |
| struct | SMESH_MeshAlgos::Edge |
| struct | SMESH_MeshAlgos::TFreeBorderPart |
| struct | SMESH_MeshAlgos::CoincidentFreeBorders |
| class | SMESH_MeshAlgos::Intersector |
| Cut faces of a triangular mesh. More... | |
| class | SMESH_MeshAlgos::Triangulate |
| Divide a mesh face into triangles. More... | |
| struct | SMESH_MeshAlgos::PolySegment |
Namespaces | |
| namespace | SMESH_MeshAlgos |
Typedefs | |
| typedef std::vector< std::vector< const SMDS_MeshElement * > > | SMESH_MeshAlgos::TElemGroupVector |
| typedef std::vector< std::vector< const SMDS_MeshNode * > > | SMESH_MeshAlgos::TNodeGroupVector |
| typedef std::vector< const SMDS_MeshNode * > | SMESH_MeshAlgos::TFreeBorder |
| typedef std::vector< TFreeBorder > | SMESH_MeshAlgos::TFreeBorderVec |
| typedef std::vector< TFreeBorderPart > | SMESH_MeshAlgos::TCoincidentGroup |
| typedef std::vector< TCoincidentGroup > | SMESH_MeshAlgos::TCoincidentGroupVec |
| typedef std::vector< std::pair< const SMDS_MeshElement *, int > > | SMESH_MeshAlgos::TElemIntPairVec |
| typedef std::vector< std::pair< const SMDS_MeshNode *, int > > | SMESH_MeshAlgos::TNodeIntPairVec |
| typedef std::vector< PolySegment > | SMESH_MeshAlgos::TListOfPolySegments |
Functions | |
| SMESH_NodeSearcher * | SMESH_MeshAlgos::GetNodeSearcher (SMDS_Mesh &mesh) |
| Return SMESH_NodeSearcher. More... | |
| SMESH_NodeSearcher * | SMESH_MeshAlgos::GetNodeSearcher (SMDS_ElemIteratorPtr elemIt) |
| Return SMESH_NodeSearcher. More... | |
| SMESH_ElementSearcher * | SMESH_MeshAlgos::GetElementSearcher (SMDS_Mesh &mesh, double tolerance=-1.) |
| Return SMESH_ElementSearcher. More... | |
| SMESH_ElementSearcher * | SMESH_MeshAlgos::GetElementSearcher (SMDS_Mesh &mesh, SMDS_ElemIteratorPtr elemIt, double tolerance=-1.) |
| Return SMESH_ElementSearcher acting on a sub-set of elements. More... | |
| bool | SMESH_MeshAlgos::IsOut (const SMDS_MeshElement *element, const gp_Pnt &point, double tol) |
| Return true if the point is IN or ON of the element. More... | |
| double | SMESH_MeshAlgos::GetDistance (const SMDS_MeshElement *elem, const gp_Pnt &point, gp_XYZ *closestPnt=0) |
| Return minimal distance from a point to an element. More... | |
| double | SMESH_MeshAlgos::GetDistance (const SMDS_MeshEdge *edge, const gp_Pnt &point, gp_XYZ *closestPnt=0) |
| Return minimal distance from a point to an edge. More... | |
| double | SMESH_MeshAlgos::GetDistance (const SMDS_MeshFace *face, const gp_Pnt &point, gp_XYZ *closestPnt=0) |
| Return minimal distance from a point to a face. More... | |
| double | SMESH_MeshAlgos::GetDistance (const SMDS_MeshVolume *volume, const gp_Pnt &point, gp_XYZ *closestPnt=0) |
| Return minimal distance from a point to a volume. More... | |
| void | SMESH_MeshAlgos::GetBarycentricCoords (const gp_XY &point, const gp_XY &t0, const gp_XY &t1, const gp_XY &t2, double &bc0, double &bc1) |
| Returns barycentric coordinates of a point within a triangle. More... | |
| bool | SMESH_MeshAlgos::IntersectRayVolume (const gp_Ax1 &ray, const double rayLen, const SMDS_MeshElement *vol, double &tMin, double &tMax, int &iFacetMin, int &iFacetMax) |
| Intersect volume by a ray. More... | |
| const SMDS_MeshElement * | SMESH_MeshAlgos::FindFaceInSet (const SMDS_MeshNode *n1, const SMDS_MeshNode *n2, const TIDSortedElemSet &elemSet, const TIDSortedElemSet &avoidSet, int *i1=0, int *i2=0) |
| Return a face having linked nodes n1 and n2 and which is. More... | |
| bool | SMESH_MeshAlgos::FaceNormal (const SMDS_MeshElement *F, gp_XYZ &normal, bool normalized=true) |
| Calculate normal of a mesh face. More... | |
| int | SMESH_MeshAlgos::NbCommonNodes (const SMDS_MeshElement *e1, const SMDS_MeshElement *e2) |
| Return number of nodes common to two elements. More... | |
| std::vector< const SMDS_MeshNode * > | SMESH_MeshAlgos::GetCommonNodes (const SMDS_MeshElement *e1, const SMDS_MeshElement *e2) |
| Return nodes common to two elements. More... | |
| bool | SMESH_MeshAlgos::IsOn2DBoundary (const SMDS_MeshNode *node, std::vector< const SMDS_MeshNode * > *neibors=nullptr) |
| Return true if a node is on a boundary of 2D mesh. More... | |
| bool | SMESH_MeshAlgos::IsRightOrder (const SMDS_MeshElement *face, const SMDS_MeshNode *node0, const SMDS_MeshNode *node1) |
| Return true if node1 encounters first in the face and node2, after. More... | |
| void | SMESH_MeshAlgos::Get1DBranches (SMDS_ElemIteratorPtr edgeIt, TElemGroupVector &edgeGroups, TNodeGroupVector &nodeGroups, const SMDS_MeshNode *startNode=0) |
| Partition given 1D elements into groups of contiguous edges. More... | |
| template<class ElemIter > | |
| void | SMESH_MeshAlgos::MarkElems (ElemIter it, const bool isMarked) |
| Mark elements given by SMDS_Iterator. More... | |
| template<class ElemIter > | |
| void | SMESH_MeshAlgos::MarkElems (ElemIter it, ElemIter end, const bool isMarked) |
| Mark elements given by std iterators. More... | |
| template<class ElemIter > | |
| void | SMESH_MeshAlgos::MarkElemNodes (ElemIter it, const bool isMarked, const bool markElem=false) |
| Mark nodes of elements given by SMDS_Iterator. More... | |
| template<class ElemIter > | |
| void | SMESH_MeshAlgos::MarkElemNodes (ElemIter it, ElemIter end, const bool isMarked, const bool markElem=false) |
| Mark elements given by std iterators. More... | |
| std::vector< Edge > | SMESH_MeshAlgos::FindSharpEdges (SMDS_Mesh *mesh, double angle, bool addExisting) |
| Return sharp edges of faces and non-manifold ones. More... | |
| std::vector< std::vector< const SMDS_MeshElement * > > | SMESH_MeshAlgos::SeparateFacesByEdges (SMDS_Mesh *mesh, const std::vector< Edge > &edges) |
| Distribute all faces of the mesh between groups using given edges. More... | |
| void | SMESH_MeshAlgos::FindCoincidentFreeBorders (SMDS_Mesh &mesh, double tolerance, CoincidentFreeBorders &foundFreeBordes) |
| Returns TFreeBorder's coincident within the given tolerance. More... | |
| void | SMESH_MeshAlgos::FindFreeBorders (SMDS_Mesh &mesh, TFreeBorderVec &foundFreeBordes, const bool closedOnly, bool *isManifold=0, bool *isGoodOri=0) |
| Returns all or only closed TFreeBorder's. More... | |
| void | SMESH_MeshAlgos::FillHole (const TFreeBorder &freeBorder, SMDS_Mesh &mesh, std::vector< const SMDS_MeshElement * > &newFaces) |
| Fill a hole defined by a TFreeBorder with 2D elements. More... | |
| void | SMESH_MeshAlgos::DeMerge (const SMDS_MeshElement *elem, std::vector< const SMDS_MeshNode * > &newNodes, std::vector< const SMDS_MeshNode * > &noMergeNodes) |
| Find nodes whose merge makes the element invalid. More... | |
| SMDS_Mesh * | SMESH_MeshAlgos::MakeOffset (SMDS_ElemIteratorPtr faceIt, SMDS_Mesh &mesh, const double offset, const bool theFixIntersections, TElemIntPairVec &new2OldFaces, TNodeIntPairVec &new2OldNodes) |
| Create an offset mesh of given faces. More... | |
| void | SMESH_MeshAlgos::MakePolyLine (SMDS_Mesh *mesh, TListOfPolySegments &segments, std::vector< const SMDS_MeshElement * > &newEdges, std::vector< const SMDS_MeshNode * > &newNodes, SMDS_MeshGroup *group=0, SMESH_ElementSearcher *searcher=0) |
| Create a polyline consisting of 1D mesh elements each lying on a 2D element of the initial mesh. More... | |
| std::vector< Edge > | SMESH_MeshAlgos::MakeSlot (SMDS_ElemIteratorPtr segmentIt, double width, SMDS_Mesh *mesh, std::vector< SMDS_MeshGroup * > &groupsToUpdate) |
| Create a slot of given width around given 1D elements lying on a triangle mesh. More... | |
