FormContainerDecorator Class Reference

#include <FormContainerDecorator.hxx>

Inheritance diagram for FormContainerDecorator:

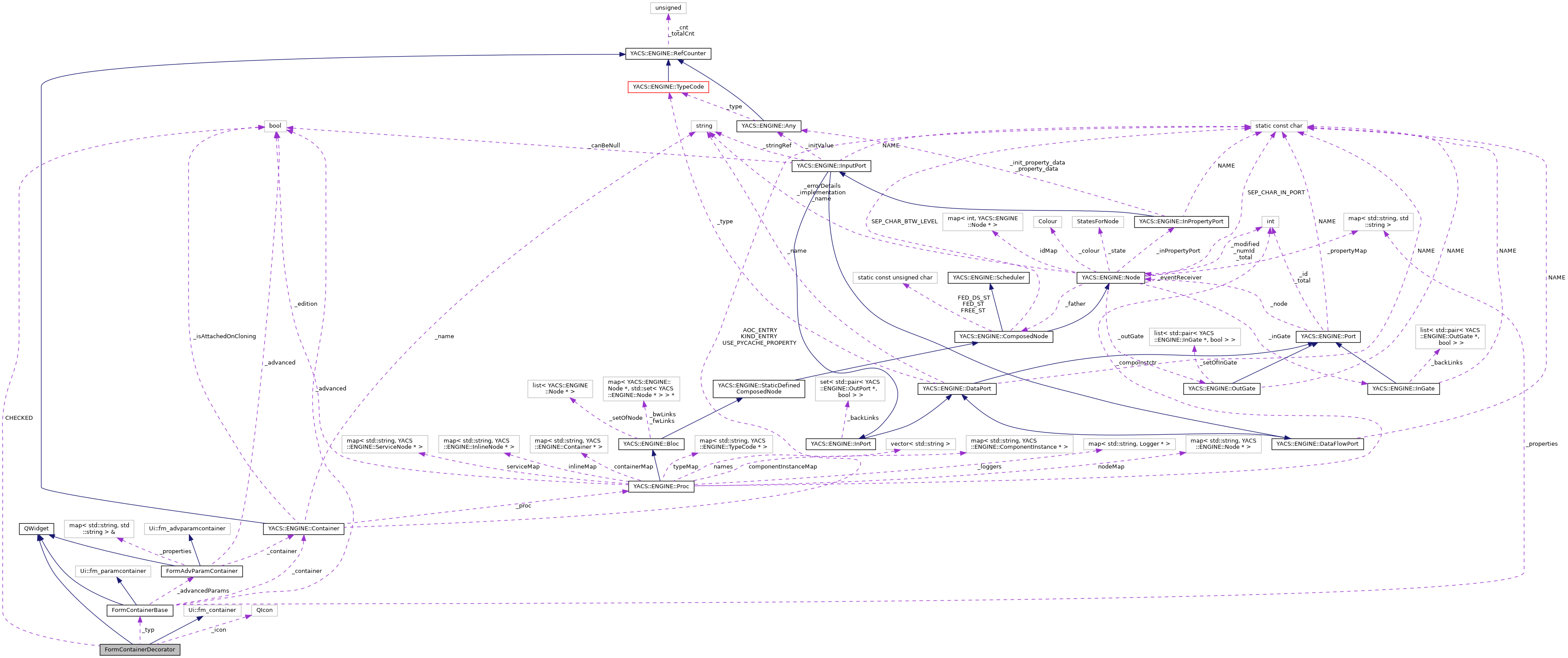

Collaboration diagram for FormContainerDecorator:

Public Slots
void	on_tb_container_toggled (bool checked)
void	onResMousePressed ()
void	onResActivated (int)
void	onContToggled (bool)

Signals
void	typeOfContainerIsKnown (const QString &typeOfCont)
void	resourceMousePressed ()
void	resourceActivated (int)
void	containerToggled (bool)

Public Member Functions
	FormContainerDecorator (YACS::ENGINE::Container *cont, QWidget *parent=0)
	~FormContainerDecorator ()
void	FillPanel (YACS::ENGINE::Container *container)
QWidget *	getWidget ()
bool	onApply ()
void	onCancel ()
void	show ()
void	hide ()
void	synchronizeCheckContainer ()
std::string	getHostName (int index) const
void	setName (const std::string &name)

Static Public Attributes
static bool	CHECKED = false

Private Member Functions
bool	checkOK () const
void	checkAndRepareTypeIfNecessary (YACS::ENGINE::Container *container)
void	connectForTyp ()

Private Attributes
FormContainerBase *	_typ
QIcon	_icon

Detailed Description

Definition at line 40 of file FormContainerDecorator.hxx.

Constructor & Destructor Documentation

FormContainerDecorator()

FormContainerDecorator::FormContainerDecorator	(	YACS::ENGINE::Container *	cont,
		QWidget *	parent = 0
	)

Definition at line 34 of file FormContainerDecorator.cxx.

                                                                                        :QWidget(parent),_typ(0)
{
  setupUi(this);
  _icon.addFile("icons:icon_down.png");
  _icon.addFile("icons:icon_up.png",QSize(), QIcon::Normal, QIcon::On);
  tb_container->setIcon(_icon);
  connect(this,SIGNAL(typeOfContainerIsKnown(const QString&)),label,SLOT(setText(const QString &)));
  if(!cont)
    return ;
  HomogeneousPoolContainer *hpc(dynamic_cast<HomogeneousPoolContainer *>(cont));
  if(!hpc)
    _typ=new FormContainer(this);
  else
    _typ=new FormHPContainer(this);
  emit typeOfContainerIsKnown(_typ->getTypeStr());
  _typ->FillPanel(cont);
  gridLayout_1->addWidget(_typ);
  connectForTyp();
  tb_container->setChecked(CHECKED);
  on_tb_container_toggled(CHECKED);
}

References _icon, _typ, CHECKED, connectForTyp(), FormContainerBase::FillPanel(), FormContainerBase::getTypeStr(), on_tb_container_toggled(), and typeOfContainerIsKnown().

~FormContainerDecorator()

FormContainerDecorator::~FormContainerDecorator

(

)

Definition at line 56 of file FormContainerDecorator.cxx.

{
  delete _typ;
}

References _typ.

Member Function Documentation

checkAndRepareTypeIfNecessary()

void FormContainerDecorator::checkAndRepareTypeIfNecessary ( YACS::ENGINE::Container *  container )

private

Definition at line 157 of file FormContainerDecorator.cxx.

{
  if(!container)
    return ;
  YACS::ENGINE::HomogeneousPoolContainer *cont1(dynamic_cast<YACS::ENGINE::HomogeneousPoolContainer *>(container));
  if(_typ)
    {
      bool isTyp1(dynamic_cast<FormHPContainer *>(_typ)!=0);
      if((!cont1 && !isTyp1) || (cont1 && isTyp1))
        return ;
      delete _typ; _typ=0;
    }
  if(!cont1)
    _typ=new FormContainer(this);
  else
    _typ=new FormHPContainer(this);
  gridLayout_1->addWidget(_typ);
  emit typeOfContainerIsKnown(_typ->getTypeStr());
  connectForTyp();
  _typ->FillPanel(container);
}

References _typ, connectForTyp(), FormContainerBase::FillPanel(), FormContainerBase::getTypeStr(), and typeOfContainerIsKnown().

Referenced by FillPanel().

checkOK()

bool FormContainerDecorator::checkOK ( ) const

private

Definition at line 152 of file FormContainerDecorator.cxx.

{
  return _typ;
}

References _typ.

Referenced by getHostName(), hide(), onApply(), onCancel(), setName(), and show().

connectForTyp()

void FormContainerDecorator::connectForTyp ( )

private

Definition at line 179 of file FormContainerDecorator.cxx.

{
  connect(_typ->cb_resource,SIGNAL(mousePressed()),this,SLOT(onResMousePressed()));
  connect(_typ->cb_resource,SIGNAL(activated(int)),this,SLOT(onResActivated(int)));
  connect(tb_container,SIGNAL(toggled(bool)),this,SLOT(onContToggled(bool)));
}

References _typ, onContToggled(), onResActivated(), and onResMousePressed().

Referenced by checkAndRepareTypeIfNecessary(), and FormContainerDecorator().

containerToggled

void FormContainerDecorator::containerToggled ( bool  )

signal

Referenced by onContToggled().

FillPanel()

void FormContainerDecorator::FillPanel

(

YACS::ENGINE::Container *

container

)

Definition at line 61 of file FormContainerDecorator.cxx.

{
  checkAndRepareTypeIfNecessary(container);
  _typ->FillPanel(container);
}

References _typ, checkAndRepareTypeIfNecessary(), and FormContainerBase::FillPanel().

Referenced by YACS::HMI::EditionScript::changeContainer(), YACS::HMI::EditionContainer::fillContainerPanel(), YACS::HMI::EditionSalomeNode::fillContainerPanel(), YACS::HMI::EditionScript::fillContainerPanel(), YACS::HMI::EditionSalomeNode::onCancel(), and YACS::HMI::EditionScript::update().

getHostName()

std::string FormContainerDecorator::getHostName

(

int

index

)

const

Definition at line 123 of file FormContainerDecorator.cxx.

{
  if(!checkOK())
    return std::string();
  return _typ->cb_resource->itemText(index).toStdString();
}

References _typ, and checkOK().

Referenced by YACS::HMI::EditionSalomeNode::changeHost().

getWidget()

QWidget * FormContainerDecorator::getWidget

(

)

Definition at line 67 of file FormContainerDecorator.cxx.

{
  return _typ;
}

References _typ.

Referenced by on_tb_container_toggled().

hide()

void FormContainerDecorator::hide

(

)

Definition at line 96 of file FormContainerDecorator.cxx.

{
  QWidget::hide();
  if(!checkOK())
    return ;
  _typ->hide();
}

References _typ, and checkOK().

Referenced by YACS::HMI::EditionScript::on_remote_toggled(), and YACS::HMI::EditionScript::on_tb_options_toggled().

on_tb_container_toggled

void FormContainerDecorator::on_tb_container_toggled ( bool  checked )

slot

Definition at line 104 of file FormContainerDecorator.cxx.

{
  DEBTRACE("FormContainer::on_tb_container_toggled " << checked);
  CHECKED = checked;
  if (CHECKED)
    {
      getWidget()->show();
    }
  else
    {
      getWidget()->hide();
    }
}

References CHECKED, DEBTRACE, and getWidget().

Referenced by FormContainerDecorator(), and show().

onApply()

bool FormContainerDecorator::onApply

(

)

Definition at line 72 of file FormContainerDecorator.cxx.

{
  if(!checkOK())
    return false;
  return _typ->onApply();
}

References _typ, checkOK(), and FormContainerBase::onApply().

Referenced by YACS::HMI::EditionContainer::onApply(), YACS::HMI::EditionSalomeNode::onApply(), and YACS::HMI::EditionScript::onApply().

onCancel()

void FormContainerDecorator::onCancel

(

)

Definition at line 79 of file FormContainerDecorator.cxx.

{
  if(!checkOK())
    return ;
  _typ->onCancel();
}

References _typ, checkOK(), and FormContainerBase::onCancel().

Referenced by YACS::HMI::EditionContainer::onCancel(), and YACS::HMI::EditionScript::onCancel().

onContToggled

void FormContainerDecorator::onContToggled ( bool  v )

slot

Definition at line 147 of file FormContainerDecorator.cxx.

{
  emit(containerToggled(v));
}

References containerToggled().

Referenced by connectForTyp().

onResActivated

void FormContainerDecorator::onResActivated ( int  v )

slot

Definition at line 142 of file FormContainerDecorator.cxx.

{
  emit(resourceActivated(v));
}

References resourceActivated().

Referenced by connectForTyp().

onResMousePressed

void FormContainerDecorator::onResMousePressed ( )

slot

Definition at line 137 of file FormContainerDecorator.cxx.

{
  emit(resourceMousePressed());
}

References resourceMousePressed().

Referenced by connectForTyp().

resourceActivated

void FormContainerDecorator::resourceActivated ( int  )

signal

Referenced by onResActivated().

resourceMousePressed

void FormContainerDecorator::resourceMousePressed ( )

signal

Referenced by onResMousePressed().

setName()

void FormContainerDecorator::setName

(

const std::string &

name

)

Definition at line 130 of file FormContainerDecorator.cxx.

{
  if(!checkOK())
    return ;
  _typ->le_name->setText(name.c_str());
}

References _typ, and checkOK().

Referenced by YACS::HMI::EditionContainer::update().

show()

void FormContainerDecorator::show

(

)

Definition at line 86 of file FormContainerDecorator.cxx.

{
  QWidget::show();
  if(!checkOK())
    return ;
  _typ->show();
  tb_container->setChecked(CHECKED);
  on_tb_container_toggled(CHECKED);
}

References _typ, CHECKED, checkOK(), and on_tb_container_toggled().

Referenced by YACS::HMI::EditionScript::on_remote_toggled(), and YACS::HMI::EditionScript::on_tb_options_toggled().

synchronizeCheckContainer()

void FormContainerDecorator::synchronizeCheckContainer

(

)

Definition at line 118 of file FormContainerDecorator.cxx.

{
  tb_container->setChecked(CHECKED);
}

References CHECKED.

Referenced by YACS::HMI::EditionSalomeNode::synchronize().

typeOfContainerIsKnown

void FormContainerDecorator::typeOfContainerIsKnown ( const QString &  typeOfCont )

signal

Referenced by checkAndRepareTypeIfNecessary(), and FormContainerDecorator().

Member Data Documentation

_icon

QIcon FormContainerDecorator::_icon

private

Definition at line 73 of file FormContainerDecorator.hxx.

Referenced by FormContainerDecorator().

_typ

FormContainerBase* FormContainerDecorator::_typ

private

Definition at line 72 of file FormContainerDecorator.hxx.

Referenced by checkAndRepareTypeIfNecessary(), checkOK(), connectForTyp(), FillPanel(), FormContainerDecorator(), getHostName(), getWidget(), hide(), onApply(), onCancel(), setName(), show(), and ~FormContainerDecorator().

CHECKED

bool FormContainerDecorator::CHECKED = false

static

Definition at line 56 of file FormContainerDecorator.hxx.

Referenced by FormContainerDecorator(), on_tb_container_toggled(), show(), and synchronizeCheckContainer().

---

The documentation for this class was generated from the following files:

• src/genericgui/FormContainerDecorator.hxx
• src/genericgui/FormContainerDecorator.cxx
