YACS::HMI::GuiObserver_i Class Reference

#include <GuiObserver_i.hxx>

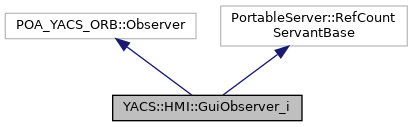

Inheritance diagram for YACS::HMI::GuiObserver_i:

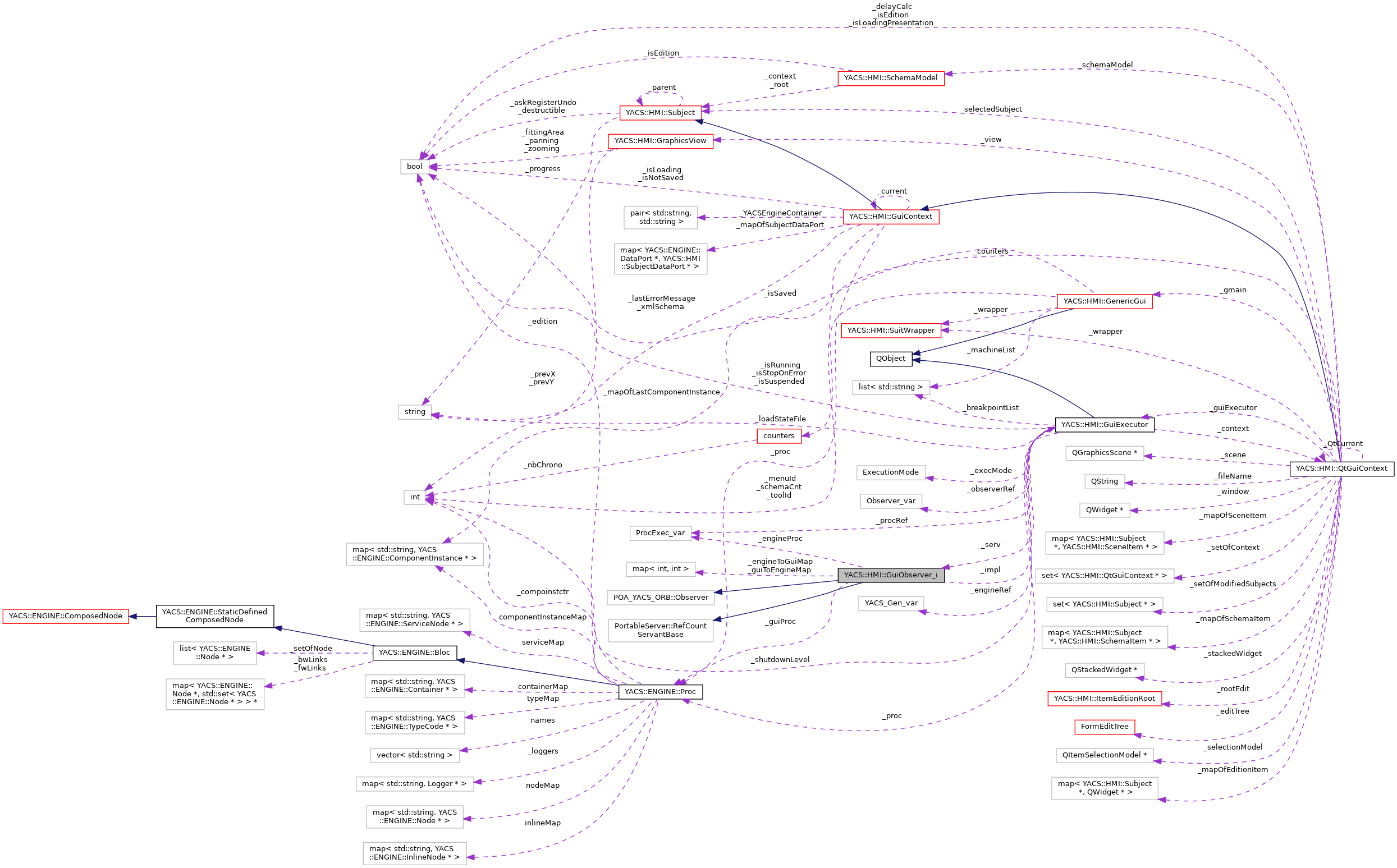

Collaboration diagram for YACS::HMI::GuiObserver_i:

Public Member Functions
	GuiObserver_i (YACS::ENGINE::Proc *guiProc)
virtual	~GuiObserver_i ()
void	notifyObserver (CORBA::Long numid, const char *event)
void	setConversion ()
void	SetImpl (GuiExecutor *impl)
void	SetRemoteProc (YACS_ORB::ProcExec_ptr engineProc)
int	getEngineId (int guiId)

Protected Attributes
YACS::ENGINE::Proc *	_guiProc
YACS_ORB::ProcExec_var	_engineProc
GuiExecutor *	_impl
std::map< int, int >	_guiToEngineMap
std::map< int, int >	_engineToGuiMap

Friends
class	GuiExecutor

Detailed Description

Definition at line 51 of file GuiObserver_i.hxx.

Constructor & Destructor Documentation

GuiObserver_i()

GuiObserver_i::GuiObserver_i

(

YACS::ENGINE::Proc *

guiProc

)

Definition at line 41 of file GuiObserver_i.cxx.

{
  DEBTRACE("GuiObserver_i::GuiObserver_i");
  _guiProc = guiProc;
  _engineProc = YACS_ORB::ProcExec::_nil();
  _impl = 0;
  _guiToEngineMap.clear();
  _engineToGuiMap.clear();
}

References _engineProc, _engineToGuiMap, _guiProc, _guiToEngineMap, _impl, and DEBTRACE.

~GuiObserver_i()

GuiObserver_i::~GuiObserver_i ( )

virtual

Definition at line 51 of file GuiObserver_i.cxx.

{
  DEBTRACE("GuiObserver_i::~GuiObserver_i");
}

References DEBTRACE.

Member Function Documentation

getEngineId()

int YACS::HMI::GuiObserver_i::getEngineId ( int  guiId )

inline

Definition at line 62 of file GuiObserver_i.hxx.

{ return _guiToEngineMap[guiId]; };

References _guiToEngineMap.

Referenced by YACS::HMI::GuiExecutor::getContainerLog(), YACS::HMI::GuiExecutor::getErrorDetails(), YACS::HMI::GuiExecutor::getErrorReport(), and YACS::HMI::GuiExecutor::registerStatusObservers().

notifyObserver()

void GuiObserver_i::notifyObserver	(	CORBA::Long	numid,
		const char *	event
	)

Definition at line 56 of file GuiObserver_i.cxx.

{
  DEBTRACE("GuiObserver_i::notifyObserver " << numid << " " << event);
  pair<int,string> myEvent(numid, event);
  YACSEvent* evt = new YACSEvent(myEvent);
  QApplication::postEvent(_impl, evt);  // Qt will delete it when done
}

References _impl, and DEBTRACE.

setConversion()

void GuiObserver_i::setConversion

(

)

Definition at line 64 of file GuiObserver_i.cxx.

{
  DEBTRACE("GuiObserver_i::setConversion");
  YASSERT(!CORBA::is_nil(_engineProc));
  YACS_ORB::stringArray_var engineNames;
  YACS_ORB::longArray_var engineIds;
  //DEBTRACE("---");
  _engineProc->getIds(engineIds.out(), engineNames.out());
  int iLength = engineIds->length();
  int nLength = engineNames->length();
  if (nLength < iLength) iLength = nLength;
  for(int i=0; i<iLength; i++)
    {
      string aName = "";
      aName = engineNames[i];
      int iEng = engineIds[i];
      DEBTRACE("--- " << aName << " " << iEng);
      if (aName != "_root_")
        {
          int iGui = _guiProc->getChildByName(aName)->getNumId();
          //DEBTRACE("---");
          _guiToEngineMap[iGui] = iEng;
          _engineToGuiMap[iEng] = iGui;
        }
      else
        {
          int iGui = _guiProc->getNumId();
          _guiToEngineMap[iGui] = iEng;
          _engineToGuiMap[iEng] = iGui;
        }
    }
}

References _engineProc, _engineToGuiMap, _guiProc, _guiToEngineMap, DEBTRACE, YACS::ENGINE::ComposedNode::getChildByName(), YACS::ENGINE::Node::getNumId(), yacsorb.CORBAEngineTest::i, and YASSERT.

Referenced by YACS::HMI::GuiExecutor::registerStatusObservers().

SetImpl()

void GuiObserver_i::SetImpl

(

GuiExecutor *

impl

)

Definition at line 97 of file GuiObserver_i.cxx.

{
  DEBTRACE("GuiObserver_i::SetImpl");
  _impl = impl;
}

References _impl, and DEBTRACE.

Referenced by YACS::HMI::GuiExecutor::registerStatusObservers().

SetRemoteProc()

void GuiObserver_i::SetRemoteProc

(

YACS_ORB::ProcExec_ptr

engineProc

)

Definition at line 103 of file GuiObserver_i.cxx.

{
  DEBTRACE("GuiObserver_i::SetRemoteProc");
  _engineProc = YACS_ORB::ProcExec::_duplicate(engineProc);
}

References _engineProc, and DEBTRACE.

Referenced by YACS::HMI::GuiExecutor::registerStatusObservers().

Friends And Related Function Documentation

GuiExecutor

friend class GuiExecutor

friend

Definition at line 54 of file GuiObserver_i.hxx.

Member Data Documentation

_engineProc

YACS_ORB::ProcExec_var YACS::HMI::GuiObserver_i::_engineProc

protected

Definition at line 66 of file GuiObserver_i.hxx.

Referenced by GuiObserver_i(), setConversion(), and SetRemoteProc().

_engineToGuiMap

std::map<int, int> YACS::HMI::GuiObserver_i::_engineToGuiMap

protected

Definition at line 69 of file GuiObserver_i.hxx.

Referenced by YACS::HMI::GuiExecutor::event(), GuiObserver_i(), and setConversion().

_guiProc

YACS::ENGINE::Proc* YACS::HMI::GuiObserver_i::_guiProc

protected

Definition at line 65 of file GuiObserver_i.hxx.

Referenced by GuiObserver_i(), and setConversion().

_guiToEngineMap

std::map<int, int> YACS::HMI::GuiObserver_i::_guiToEngineMap

protected

Definition at line 68 of file GuiObserver_i.hxx.

Referenced by getEngineId(), GuiObserver_i(), and setConversion().

_impl

GuiExecutor* YACS::HMI::GuiObserver_i::_impl

protected

Definition at line 67 of file GuiObserver_i.hxx.

Referenced by GuiObserver_i(), notifyObserver(), and SetImpl().

---

The documentation for this class was generated from the following files:

• src/genericgui/GuiObserver_i.hxx
• src/genericgui/GuiObserver_i.cxx
