gui.Items.ItemComposedNode Class Reference

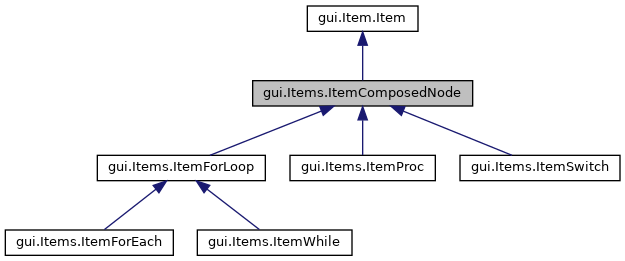

Inheritance diagram for gui.Items.ItemComposedNode:

Collaboration diagram for gui.Items.ItemComposedNode:

Public Member Functions
def	__init__ (self, node)
def	isExpandable (self)
def	getChildren (self)
def	dblselected (self)
def	selected (self)
def	getIconName (self)
def	panel (self, parent)
def	addNode (self, service)
def	panel1 (self, parent)
def	layout (self, rankdir)
def	addLink (self, link)
Public Member Functions inherited from gui.Item.Item
def	__init__ (self, label="")
def	isExpandable (self)
def	getChildren (self)
def	father (self)
def	getIconName (self)
def	panel (self, parent)
def	box (self, parent)
def	selected (self)
def	dblselected (self)

Public Attributes
	node
	graph
	label
	datalinks
	controllinks
	emitting
Public Attributes inherited from gui.Item.Item
	label
	emitting

Static Public Attributes
int	n = 0
list	panels = [("Panel1",panel1)]
Static Public Attributes inherited from gui.Item.Item
	ADAPT = adapt.adapt

Detailed Description

Item pour les noeuds composes

Definition at line 117 of file Items.py.

Constructor & Destructor Documentation

__init__()

def gui.Items.ItemComposedNode.__init__	(		self,
			node
	)

Reimplemented from gui.Item.Item.

Definition at line 120 of file Items.py.

  def __init__(self,node):
    #node is an instance of YACS::ENGINE::ComposedNode
    Item.Item.__init__(self)
    self.node=node
    self.graph=None
    self.label=node.getName()
    self.datalinks=DataLinksItem(self)
    self.controllinks=ControlLinksItem(self)


Member Function Documentation

addLink()

def gui.Items.ItemComposedNode.addLink	(		self,
			link
	)

Definition at line 198 of file Items.py.

  def addLink(self,link):
    print("Composed.addLink",link)
    if isinstance(link,DataLinkItem):
      self.datalinks.addLink(link)
    elif isinstance(link,StreamLinkItem):
      self.datalinks.addLink(link)
    else:
      self.controllinks.addLink(link)



References gui.Items.ItemComposedNode.addLink(), gui.Items.ItemComposedNode.controllinks, and gui.Items.ItemComposedNode.datalinks.

Referenced by gui.Items.ItemComposedNode.addLink().

addNode()

def gui.Items.ItemComposedNode.addNode	(		self,
			service
	)

Reimplemented in gui.Items.ItemForLoop, and gui.Items.ItemSwitch.

Definition at line 176 of file Items.py.

  def addNode(self,service):
    print("Composed.addNode",service)
    #add node service in the parent self which is a ComposedNode
    new_node=service.clone(None)
    ItemComposedNode.n=ItemComposedNode.n+1
    name=service.getName()+"_%d" % ItemComposedNode.n
    new_node.setName(name)
    self.node.edAddChild(new_node)
    item=Item.adapt(new_node)
    CONNECTOR.Emit(self,"add",item)


References gui.cataitems.ItemNode.node, gui.cataitems.ItemComposedNode.node, gui.CItems.ControlItem.node, gui.CItems.PortItem.node, gui.CItems.Cell.node, gui.graph.Graph.node, gui.GraphViewer.PortItem.node, gui.Items.ItemComposedNode.node, gui.Items.ItemNode.node, YACS::servertypeParser< T >.node(), YACS::servicetypeParser< T >.node(), YACS::looptypeParser< PseudoComposedNode * >.node(), YACS::looptypeParser< T >.node(), YACS::looptypeParser< ENGINE::DynParaLoop * >.node(), YACS::looptypeParser< ENGINE::ForLoop * >.node(), YACS::looptypeParser< ENGINE::WhileLoop * >.node(), YACS::looptypeParser< ENGINE::OptimizerLoop * >.node(), YACS::casetypeParser.node(), YACS::bloctypeParser< T >.node(), and YACS::bloctypeParser< YACS::ENGINE::Proc * >.node().

Referenced by gui.GraphViewer.GraphViewer.popup().

dblselected()

def gui.Items.ItemComposedNode.dblselected

(

self

)

Method called on double selection

Reimplemented from gui.Item.Item.

Definition at line 148 of file Items.py.

  def dblselected(self):
    #print "ItemComposedNode dblselected"
    root=self.node.getRootNode()
    rootItem=Item.adapt(root)
    if not self.emitting:
      self.emitting=1
      CONNECTOR.Emit(rootItem,"dblselected",self)
      self.emitting=0


References gui.cataitems.Obj.emitting, gui.cataitems.ItemService.emitting, gui.cataitems.ItemType.emitting, gui.cataitems.ItemCompo.emitting, gui.cataitems.ItemNode.emitting, gui.cataitems.ItemComposedNode.emitting, gui.cataitems.Cata.emitting, gui.Item.Item.emitting, gui.Items.ItemComposedNode.emitting, gui.Items.ItemPort.emitting, gui.Items.ItemNode.emitting, gui.sessions.Sessions.emitting, gui.sessions.Session.emitting, gui.cataitems.ItemNode.node, gui.cataitems.ItemComposedNode.node, gui.CItems.ControlItem.node, gui.CItems.PortItem.node, gui.CItems.Cell.node, gui.graph.Graph.node, gui.GraphViewer.PortItem.node, gui.Items.ItemComposedNode.node, gui.Items.ItemNode.node, YACS::servertypeParser< T >.node(), YACS::servicetypeParser< T >.node(), YACS::looptypeParser< T >.node(), YACS::looptypeParser< ENGINE::ForLoop * >.node(), YACS::looptypeParser< PseudoComposedNode * >.node(), YACS::looptypeParser< ENGINE::OptimizerLoop * >.node(), YACS::looptypeParser< ENGINE::WhileLoop * >.node(), YACS::looptypeParser< ENGINE::DynParaLoop * >.node(), YACS::casetypeParser.node(), YACS::bloctypeParser< T >.node(), and YACS::bloctypeParser< YACS::ENGINE::Proc * >.node().

getChildren()

def gui.Items.ItemComposedNode.getChildren

(

self

)

Reimplemented from gui.Item.Item.

Definition at line 132 of file Items.py.

  def getChildren(self):
    #liste des noeuds fils
    liste=self.node.edGetDirectDescendants()
    #On les adapte en item avant de les retourner
    sublist=[]
    for n in liste:
      try:
        sublist.append(Item.adapt(n))
      except:
        #print n
        #traceback.print_exc()
        raise
    sublist.append(self.datalinks)
    sublist.append(self.controllinks)
    return sublist


References gui.Items.ItemComposedNode.controllinks, gui.Items.ItemComposedNode.datalinks, gui.cataitems.ItemNode.node, gui.cataitems.ItemComposedNode.node, gui.CItems.ControlItem.node, gui.CItems.PortItem.node, gui.CItems.Cell.node, gui.graph.Graph.node, gui.GraphViewer.PortItem.node, gui.Items.ItemComposedNode.node, gui.Items.ItemNode.node, YACS::servertypeParser< T >.node(), YACS::servicetypeParser< T >.node(), YACS::looptypeParser< PseudoComposedNode * >.node(), YACS::looptypeParser< ENGINE::ForLoop * >.node(), YACS::looptypeParser< ENGINE::DynParaLoop * >.node(), YACS::looptypeParser< T >.node(), YACS::looptypeParser< ENGINE::OptimizerLoop * >.node(), YACS::looptypeParser< ENGINE::WhileLoop * >.node(), YACS::casetypeParser.node(), YACS::bloctypeParser< T >.node(), and YACS::bloctypeParser< YACS::ENGINE::Proc * >.node().

getIconName()

def gui.Items.ItemComposedNode.getIconName

(

self

)

Reimplemented from gui.Item.Item.

Definition at line 166 of file Items.py.

  def getIconName(self):
    return "green-los"


isExpandable()

def gui.Items.ItemComposedNode.isExpandable

(

self

)

Reimplemented from gui.Item.Item.

Definition at line 129 of file Items.py.

  def isExpandable(self):
    return True


layout()

def gui.Items.ItemComposedNode.layout	(		self,
			rankdir
	)

Definition at line 192 of file Items.py.

  def layout(self,rankdir):
    if self.graph:
      self.graph.layout(rankdir)


References gui.graph.grid.graph, gui.Items.ItemComposedNode.graph, and gui.Items.ItemComposedNode.layout().

Referenced by gui.Items.ItemComposedNode.layout().

panel()

def gui.Items.ItemComposedNode.panel	(		self,
			parent
	)

Retourne un tab widget pour browser/editer la proc

Reimplemented from gui.Item.Item.

Definition at line 169 of file Items.py.

  def panel(self,parent):
    """Retourne un tab widget pour browser/editer la proc"""
    tabWidget = QTabWidget( parent )
    for name,method in self.panels:
      tabWidget.addTab( method(self,tabWidget), name )
    return tabWidget


References gui.BoxManager.BoxManager.panels, gui.cataitems.Obj.panels, gui.Items.ItemComposedNode.panels, gui.Items.ItemPort.panels, gui.Items.ItemInPort.panels, gui.Items.ItemOutPort.panels, gui.Items.ItemNode.panels, gui.Items.ItemScriptNode.panels, gui.Items.ItemFuncNode.panels, gui.Items.ItemService.panels, and gui.PanelManager.PanelManager.panels.

panel1()

def gui.Items.ItemComposedNode.panel1	(		self,
			parent
	)

Definition at line 187 of file Items.py.

  def panel1(self,parent):
    qvbox=QVBox(parent)
    self.graph=graph.Graph(self,qvbox)
    return qvbox


References gui.graph.grid.graph, and gui.Items.ItemComposedNode.graph.

selected()

def gui.Items.ItemComposedNode.selected

(

self

)

Method called on selection

Reimplemented from gui.Item.Item.

Definition at line 157 of file Items.py.

  def selected(self):
    #print "ItemComposedNode selected"
    root=self.node.getRootNode()
    rootItem=Item.adapt(root)
    if not self.emitting:
      self.emitting=1
      CONNECTOR.Emit(rootItem,"selected",self)
      self.emitting=0


References gui.cataitems.Obj.emitting, gui.cataitems.ItemService.emitting, gui.cataitems.ItemType.emitting, gui.cataitems.ItemCompo.emitting, gui.cataitems.ItemNode.emitting, gui.cataitems.ItemComposedNode.emitting, gui.cataitems.Cata.emitting, gui.Item.Item.emitting, gui.Items.ItemComposedNode.emitting, gui.Items.ItemPort.emitting, gui.Items.ItemNode.emitting, gui.sessions.Sessions.emitting, gui.sessions.Session.emitting, gui.cataitems.ItemNode.node, gui.cataitems.ItemComposedNode.node, gui.CItems.ControlItem.node, gui.CItems.PortItem.node, gui.CItems.Cell.node, gui.graph.Graph.node, gui.GraphViewer.PortItem.node, gui.Items.ItemComposedNode.node, gui.Items.ItemNode.node, YACS::servertypeParser< T >.node(), YACS::servicetypeParser< T >.node(), YACS::looptypeParser< T >.node(), YACS::looptypeParser< ENGINE::ForLoop * >.node(), YACS::looptypeParser< PseudoComposedNode * >.node(), YACS::looptypeParser< ENGINE::OptimizerLoop * >.node(), YACS::looptypeParser< ENGINE::WhileLoop * >.node(), YACS::looptypeParser< ENGINE::DynParaLoop * >.node(), YACS::casetypeParser.node(), YACS::bloctypeParser< T >.node(), and YACS::bloctypeParser< YACS::ENGINE::Proc * >.node().

Referenced by gui.browser_catalog.Browser.handleBut1(), and gui.GraphViewer.GraphViewer.selectItem().

Member Data Documentation

controllinks

gui.Items.ItemComposedNode.controllinks

Definition at line 127 of file Items.py.

Referenced by gui.Items.ItemComposedNode.addLink(), and gui.Items.ItemComposedNode.getChildren().

datalinks

gui.Items.ItemComposedNode.datalinks

Definition at line 126 of file Items.py.

Referenced by gui.Items.ItemComposedNode.addLink(), and gui.Items.ItemComposedNode.getChildren().

emitting

gui.Items.ItemComposedNode.emitting

Definition at line 153 of file Items.py.

Referenced by gui.cataitems.Cata.dblselected(), gui.Items.ItemComposedNode.dblselected(), gui.cataitems.Obj.selected(), gui.cataitems.ItemService.selected(), gui.cataitems.ItemType.selected(), gui.cataitems.ItemCompo.selected(), gui.cataitems.ItemNode.selected(), gui.cataitems.ItemComposedNode.selected(), gui.Items.ItemComposedNode.selected(), gui.Items.ItemPort.selected(), gui.Items.ItemNode.selected(), gui.sessions.Sessions.selected(), and gui.sessions.Session.selected().

graph

gui.Items.ItemComposedNode.graph

Definition at line 124 of file Items.py.

Referenced by gui.Items.ItemComposedNode.layout(), and gui.Items.ItemComposedNode.panel1().

label

gui.Items.ItemComposedNode.label

Definition at line 125 of file Items.py.

Referenced by gui.CItems.Cell.moveBy(), and gui.CItems.Cell.show().

n

int gui.Items.ItemComposedNode.n = 0

static

Definition at line 119 of file Items.py.

node

gui.Items.ItemComposedNode.node

Definition at line 123 of file Items.py.

Referenced by gui.cataitems.ItemNode.addNode(), gui.cataitems.ItemComposedNode.addNode(), gui.Items.ItemComposedNode.addNode(), gui.Items.ItemForLoop.addNode(), gui.CItems.Cell.customEvent(), gui.Items.ItemComposedNode.dblselected(), gui.Items.ItemComposedNode.getChildren(), gui.Items.ItemNode.getChildren(), gui.Items.ItemService.handleCancel(), gui.Items.ItemService.handleSave(), gui.graph.Graph.layout(), gui.CItems.ControlItem.moveBy(), gui.CItems.PortItem.moveBy(), gui.GraphViewer.PortItem.moveBy(), gui.CItems.Cell.selected(), gui.Items.ItemComposedNode.selected(), gui.Items.ItemNode.selected(), and gui.CItems.Cell.tooltip().

panels

list gui.Items.ItemComposedNode.panels = [("Panel1",panel1)]

static

Definition at line 196 of file Items.py.

Referenced by gui.BoxManager.BoxManager.changePanel(), gui.cataitems.Obj.panel(), gui.Items.ItemComposedNode.panel(), gui.Items.ItemPort.panel(), gui.Items.ItemNode.panel(), gui.BoxManager.BoxManager.setview(), and gui.PanelManager.PanelManager.setview().

---

The documentation for this class was generated from the following file:

• src/pyqt/gui/Items.py
