YACS::containertypeParser Struct Reference

Class for container parser. More...

#include <containerParsers.hxx>

Inheritance diagram for YACS::containertypeParser:

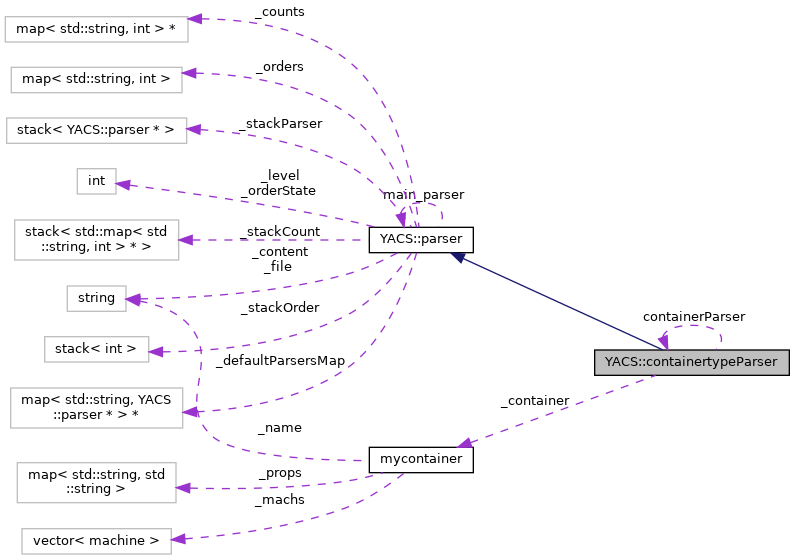

Collaboration diagram for YACS::containertypeParser:

Public Member Functions
virtual void	buildAttr (const XML_Char **attr)
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	pre ()
virtual void	name (const std::string &name)
virtual void	machine_ (const machine &m)
virtual void	property (const myprop &prop)
virtual void	initializescriptkey (const myfunc &f)
mycontainer	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const XML_Char *el, parser *child)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	pre ()
virtual void	required (const std::string &name, const XML_Char **attr)
virtual void	buildAttr (const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
mycontainer	_container
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static containertypeParser	containerParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Class for container parser.

Class used to parse container description

XML schema is

  <xsd:complexType name="ContainerType">
    <xsd:sequence>
      <xsd:element name="machine" type="MachineType" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element name="property" type="PropertyType" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required"/>
  </xsd:complexType>

Definition at line 66 of file containerParsers.hxx.

Member Function Documentation

buildAttr()

void YACS::containertypeParser::buildAttr ( const XML_Char **  attr )

virtual

Reimplemented from YACS::parser.

Definition at line 50 of file containerParsers.cxx.

    {
      if (!attr)
        return;
      required("name",attr);
      for (int i = 0; attr[i]; i += 2)
      {
        if(std::string(attr[i]) == "name")name(attr[i+1]);
      }
    }

References yacsorb.CORBAEngineTest::i, name(), and YACS::parser::required().

initializescriptkey()

void YACS::containertypeParser::initializescriptkey ( const myfunc &  f )

virtual

Definition at line 95 of file containerParsers.cxx.

  {
    _container._props[YACS::ENGINE::HomogeneousPoolContainer::INITIALIZE_SCRIPT_KEY]=f._code;
  }

References _container, mycontainer::_props, gui.CONNECTOR::f(), and YACS::ENGINE::HomogeneousPoolContainer::INITIALIZE_SCRIPT_KEY.

Referenced by onEnd().

machine_()

void YACS::containertypeParser::machine_ ( const machine &  m )

virtual

Definition at line 85 of file containerParsers.cxx.

    {
      DEBTRACE( "machine: " << m._name )
      _container._machs.push_back(m);
    }

References _container, mycontainer::_machs, DEBTRACE, and gui.GraphViewer::m.

Referenced by onEnd().

name()

void YACS::containertypeParser::name ( const std::string &  name )

virtual

Definition at line 84 of file containerParsers.cxx.

{ _container._name=name; }

References _container, mycontainer::_name, and name().

Referenced by buildAttr(), and name().

onEnd()

void YACS::containertypeParser::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 72 of file containerParsers.cxx.

    {
      std::string element(el);
      if(element == "machine")machine_(((machinetypeParser*)child)->post());
      if(element == "property")property(((propertytypeParser*)child)->post());
      if(element == "initializescriptkey")initializescriptkey(((codetypeParser*)child)->post());
    }

References initializescriptkey(), machine_(), post(), and property().

onStart()

void YACS::containertypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 60 of file containerParsers.cxx.

    {
      std::string element(el);
      parser* pp=&parser::main_parser;
      if(element == "machine")pp=&machinetypeParser::machineParser;
      if(element == "property")pp=&propertytypeParser::propertyParser;
      if(element == "initializescriptkey")pp=&codetypeParser::codeParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), YACS::codetypeParser::codeParser, YACS::parser::init(), YACS::machinetypeParser::machineParser, YACS::parser::main_parser, YACS::parser::pre(), YACS::propertytypeParser::propertyParser, and YACS::parser::SetUserDataAndPush().

post()

mycontainer YACS::containertypeParser::post

(

)

Definition at line 100 of file containerParsers.cxx.

    {
      //mincount("machine",1);
      return _container;
    }

References _container.

Referenced by onEnd().

pre()

void YACS::containertypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 79 of file containerParsers.cxx.

    {
      _container._machs.clear();
      _container._props.clear();
    }

References _container, mycontainer::_machs, and mycontainer::_props.

property()

void YACS::containertypeParser::property ( const myprop &  prop )

virtual

Definition at line 90 of file containerParsers.cxx.

    {
      DEBTRACE( "property_set: " << prop._name << " " << prop._value );
      _container._props[prop._name]=prop._value;
    }

References _container, myprop::_name, mycontainer::_props, myprop::_value, and DEBTRACE.

Referenced by onEnd().

Member Data Documentation

_container

mycontainer YACS::containertypeParser::_container

Definition at line 78 of file containerParsers.hxx.

Referenced by initializescriptkey(), machine_(), name(), post(), pre(), and property().

containerParser

containertypeParser YACS::containertypeParser::containerParser

static

Definition at line 68 of file containerParsers.hxx.

Referenced by YACS::proctypeParser< T >::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/containerParsers.hxx
• src/yacsloader/containerParsers.cxx
