YACS::ENGINE::NbBranches Class Reference

#include <NbBranches.hxx>

Inheritance diagram for YACS::ENGINE::NbBranches:

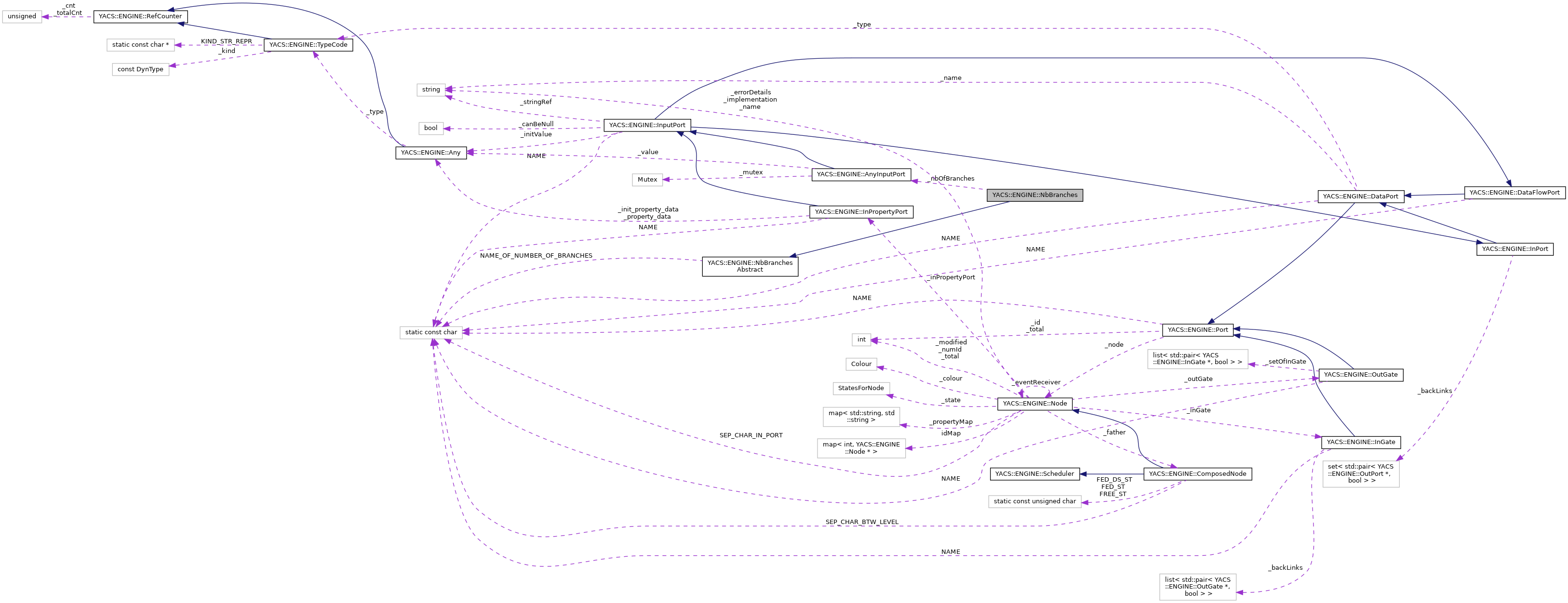

Collaboration diagram for YACS::ENGINE::NbBranches:

Public Member Functions
	NbBranches (Node *node)
	NbBranches (const NbBranches &other, Node *node)
bool	isMyName (const std::string &name) const override
std::unique_ptr< NbBranchesAbstract >	copy (Node *node) const override
int	getNumberOfBranches (int nbOfElems) const override
void	exInit (bool start) override
InputPort *	getPort () const override
bool	isMultiplicitySpecified (unsigned &value) const override
void	forceMultiplicity (unsigned value) override
int	getIntValue () const override
virtual std::unique_ptr< NbBranchesAbstract >	copy (Node *node) const =0
virtual int	getNumberOfBranches (int nbOfElems) const =0
virtual bool	isMyName (const std::string &name) const =0
virtual void	exInit (bool start)=0
virtual InputPort *	getPort () const =0
virtual bool	isMultiplicitySpecified (unsigned &value) const =0
virtual void	forceMultiplicity (unsigned value)=0
virtual int	getIntValue () const =0

Private Attributes
AnyInputPort	_nbOfBranches

Additional Inherited Members
Static Public Member Functions inherited from YACS::ENGINE::NbBranchesAbstract
static bool	IsBranchPortName (const std::string &name)
Static Protected Attributes inherited from YACS::ENGINE::NbBranchesAbstract
static const char	NAME_OF_NUMBER_OF_BRANCHES [] ="nbBranches"

Detailed Description

Definition at line 48 of file NbBranches.hxx.

Constructor & Destructor Documentation

NbBranches() [1/2]

YACS::ENGINE::NbBranches::NbBranches ( Node *  node )

inline

Definition at line 51 of file NbBranches.hxx.

:_nbOfBranches(NAME_OF_NUMBER_OF_BRANCHES,node,Runtime::_tc_int) { }

Referenced by copy().

NbBranches() [2/2]

YACS::ENGINE::NbBranches::NbBranches ( const NbBranches &  other, Node *  node  )

inline

Definition at line 52 of file NbBranches.hxx.

:_nbOfBranches(other._nbOfBranches,node) { }

Member Function Documentation

copy()

std::unique_ptr< NbBranchesAbstract > NbBranches::copy ( Node *  node ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 31 of file NbBranches.cxx.

{
  return std::unique_ptr<NbBranchesAbstract>(new NbBranches(*this,node));
}

References NbBranches().

exInit()

void NbBranches::exInit ( bool  start )

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 46 of file NbBranches.cxx.

{
  _nbOfBranches.exInit(start);
}

References _nbOfBranches, and YACS::ENGINE::InputPort::exInit().

forceMultiplicity()

void NbBranches::forceMultiplicity ( unsigned  value )

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 67 of file NbBranches.cxx.

{
  _nbOfBranches.edRemoveAllLinksLinkedWithMe();
  _nbOfBranches.edInit((int)value);
}

References _nbOfBranches, YACS::ENGINE::InputPort::edInit(), and YACS::ENGINE::InPort::edRemoveAllLinksLinkedWithMe().

getIntValue()

int YACS::ENGINE::NbBranches::getIntValue ( ) const

inlineoverridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 60 of file NbBranches.hxx.

{ return _nbOfBranches.getIntValue(); }

Referenced by getNumberOfBranches().

getNumberOfBranches()

int NbBranches::getNumberOfBranches ( int  nbOfElems ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 36 of file NbBranches.cxx.

{
  return this->getIntValue();
}

References getIntValue().

getPort()

InputPort * NbBranches::getPort ( ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 51 of file NbBranches.cxx.

{
  return const_cast<AnyInputPort *>(&_nbOfBranches);
}

References _nbOfBranches.

isMultiplicitySpecified()

bool NbBranches::isMultiplicitySpecified ( unsigned &  value ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 56 of file NbBranches.cxx.

{
  if(_nbOfBranches.edIsManuallyInitialized())
    if(_nbOfBranches.edGetNumberOfLinks()==0)
    {
      value=_nbOfBranches.getIntValue();
      return true;
    }
  return false;
}

References _nbOfBranches, YACS::ENGINE::InPort::edGetNumberOfLinks(), YACS::ENGINE::InputPort::edIsManuallyInitialized(), and YACS::ENGINE::AnyInputPort::getIntValue().

isMyName()

bool NbBranches::isMyName ( const std::string &  name ) const

overridevirtual

Implements YACS::ENGINE::NbBranchesAbstract.

Definition at line 41 of file NbBranches.cxx.

{
  return NbBranchesAbstract::IsBranchPortName(name);
}

References YACS::ENGINE::NbBranchesAbstract::IsBranchPortName().

Member Data Documentation

_nbOfBranches

AnyInputPort YACS::ENGINE::NbBranches::_nbOfBranches

private

Definition at line 62 of file NbBranches.hxx.

Referenced by exInit(), forceMultiplicity(), getPort(), and isMultiplicitySpecified().

---

The documentation for this class was generated from the following files:

• src/engine/NbBranches.hxx
• src/engine/NbBranches.cxx
