YACS::HMI::CommandSetNodeProperties Class Reference

#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandSetNodeProperties:

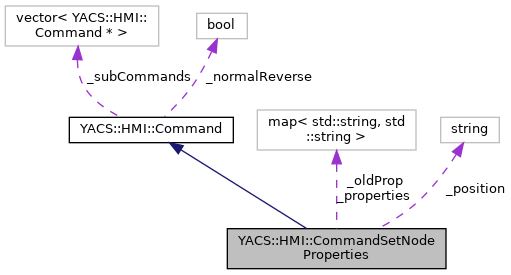

Collaboration diagram for YACS::HMI::CommandSetNodeProperties:

Public Member Functions
	CommandSetNodeProperties (std::string position, std::map< std::string, std::string > properties)
Public Member Functions inherited from YACS::HMI::Command
	Command ()
virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...
virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...
virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...
virtual std::string	dump ()
std::string	recursiveDump (int level=0)
void	addSubCommand (Command *command)
bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()
virtual bool	localReverse ()
virtual std::string	dump ()
virtual bool	localExecute ()=0
virtual bool	localReverse ()=0

Protected Attributes
std::string	_position
std::map< std::string, std::string >	_properties
std::map< std::string, std::string >	_oldProp
Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands
bool	_normalReverse

Detailed Description

Definition at line 577 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandSetNodeProperties()

CommandSetNodeProperties::CommandSetNodeProperties	(	std::string	position,
		std::map< std::string, std::string >	properties
	)

Definition at line 3225 of file commandsProc.cxx.

  : Command(), _position(position), _properties(properties)
{
  DEBTRACE("CommandSetNodeProperties::CommandSetNodeProperties " << position);
  _oldProp.clear();
}

References _oldProp, and DEBTRACE.

Member Function Documentation

dump()

std::string CommandSetNodeProperties::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 3232 of file commandsProc.cxx.

{
  string ret ="CommandSetNodeProperties " + _position;
  return ret;
}

References _position.

localExecute()

bool CommandSetNodeProperties::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3238 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetNodeProperties::localExecute");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node = proc;

      if (!_position.empty()) node = proc->getChildByName(_position);

      if (node)
        {
          _oldProp = node->getPropertyMap();
          node->setProperties(_properties);
          SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
          snode->update(SETVALUE, 0, snode);
          return true;
        }
      GuiContext::getCurrent()->_lastErrorMessage = "node not found: " + _position;
      return false;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetNodeProperties::localExecute() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectNode, _oldProp, _position, _properties, DEBTRACE, testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), YACS::ENGINE::Node::getPropertyMap(), setErrorMsg(), YACS::ENGINE::Node::setProperties(), YACS::HMI::SETVALUE, and YACS::HMI::SubjectNode::update().

localReverse()

bool CommandSetNodeProperties::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3267 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetNodeProperties::localReverse");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node = proc;

      if (!_position.empty()) node = proc->getChildByName(_position);

      if (node)
        {
          node->setProperties(_oldProp);
          SubjectNode *snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
          snode->update(SETVALUE, 0, snode);
          return true;
        }
      GuiContext::getCurrent()->_lastErrorMessage = "node not found: " + _position;
      return false;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetNodeProperties::localReverse() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectNode, _oldProp, _position, DEBTRACE, testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::ENGINE::Node::setProperties(), YACS::HMI::SETVALUE, and YACS::HMI::SubjectNode::update().

Member Data Documentation

_oldProp

std::map<std::string,std::string> YACS::HMI::CommandSetNodeProperties::_oldProp

protected

Definition at line 588 of file commandsProc.hxx.

Referenced by CommandSetNodeProperties(), localExecute(), and localReverse().

_position

std::string YACS::HMI::CommandSetNodeProperties::_position

protected

Definition at line 586 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

_properties

std::map<std::string,std::string> YACS::HMI::CommandSetNodeProperties::_properties

protected

Definition at line 587 of file commandsProc.hxx.

Referenced by localExecute().

---

The documentation for this class was generated from the following files:

• src/hmi/commandsProc.hxx
• src/hmi/commandsProc.cxx
