Class for Salome component instance. More...

#include <SalomeComponent.hxx>

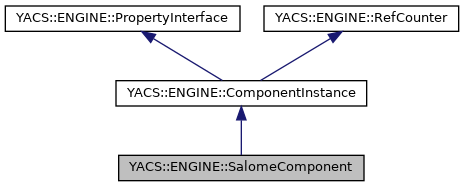

Inheritance diagram for YACS::ENGINE::SalomeComponent:

[legend]

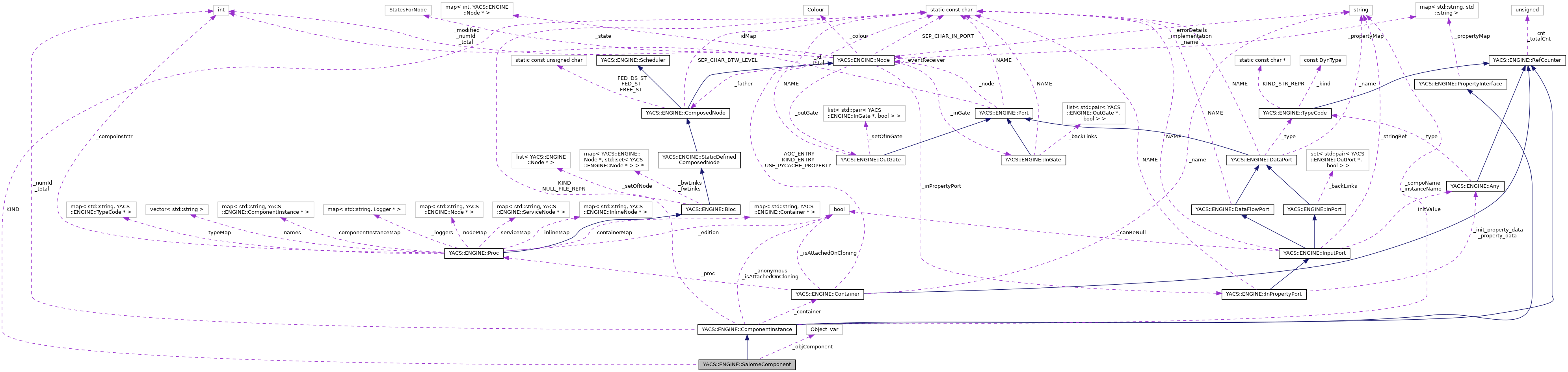

Collaboration diagram for YACS::ENGINE::SalomeComponent:

[legend]

Public Member Functions
	SalomeComponent (const std::string &name)
	SalomeComponent constructor. More...

	SalomeComponent (const SalomeComponent &other)
	SalomeComponent copy constructor. More...

virtual	~SalomeComponent ()

virtual void	load (Task *askingNode)
	Load the component. More...

virtual void	unload (Task *askingNode)
	Unload the component. More...

virtual bool	isLoaded (Task *askingNode) const
	Is the component instance already loaded ? More...

virtual bool	setContainer (Container *cont)

virtual ServiceNode *	createNode (const std::string &name)
	Create a ServiceNode with this component instance and no input or output port. More...

virtual ComponentInstance *	clone () const
	Clone the component instance. More...

virtual ComponentInstance *	cloneAlways () const

virtual std::string	getFileRepr () const
	For dump in file. More...

virtual CORBA::Object_ptr	getCompoPtr ()

virtual void	shutdown (int level)

virtual std::string	getKind () const
	Return the component kind. More...

virtual std::string	getKindForNode () const

Public Member Functions inherited from YACS::ENGINE::ComponentInstance
	ComponentInstance (const std::string &name)

	ComponentInstance (const ComponentInstance &other)

const std::string &	getCompoName () const

const std::string &	getInstanceName () const

void	setName (const std::string &name)

virtual void	setAnonymous (bool anon)

virtual bool	isAnonymous ()

int	getNumId () const

virtual bool	setContainer (Container *cont)

Container *	getContainer () const

virtual void	load (Task *askingNode)=0
	Load the component instance. More...

virtual void	unload (Task *askingNode)=0
	Unload the component instance. More...

virtual bool	isLoaded (Task *askingNode) const =0
	Indicate if the component instance is loaded (true) or not. More...

virtual void	attachOnCloning () const

virtual void	dettachOnCloning () const

bool	isAttachedOnCloning () const

virtual std::string	getFileRepr () const
	For dump in file. More...

virtual ServiceNode *	createNode (const std::string &name)=0

virtual ComponentInstance *	clone () const =0

virtual ComponentInstance *	cloneAlways () const =0

virtual std::string	getKind () const
	Return the component kind. More...

virtual std::string	getKindForNode () const

virtual void	shutdown (int level)

Public Member Functions inherited from YACS::ENGINE::PropertyInterface
virtual	~PropertyInterface ()

virtual void	setProperty (const std::string &name, const std::string &value)

virtual std::string	getProperty (const std::string &name)
	Get a property value given its name. More...

std::map< std::string, std::string >	getProperties () const

virtual void	setProperties (std::map< std::string, std::string > properties)

Public Member Functions inherited from YACS::ENGINE::RefCounter
unsigned int	getRefCnt () const

void	incrRef () const

bool	decrRef () const

Static Public Attributes
static const char	KIND [] ="Salome"

Static Public Attributes inherited from YACS::ENGINE::ComponentInstance
static const char	KIND [] =""

Static Public Attributes inherited from YACS::ENGINE::RefCounter
static unsigned int	_totalCnt =0

Protected Attributes
CORBA::Object_var	_objComponent

Protected Attributes inherited from YACS::ENGINE::ComponentInstance
std::string	_compoName
	WARNING : _compoName identify only the component type. More...

std::string	_instanceName
	WARNING : _InstanceName has a strong semantic. It discriminates ComponentInstance instances each other. More...

int	_numId

Container *	_container

bool	_isAttachedOnCloning

bool	_anonymous

Protected Attributes inherited from YACS::ENGINE::PropertyInterface
std::map< std::string, std::string >	_propertyMap

Protected Attributes inherited from YACS::ENGINE::RefCounter
unsigned int	_cnt

Additional Inherited Members
Protected Member Functions inherited from YACS::ENGINE::ComponentInstance
virtual	~ComponentInstance ()

Protected Member Functions inherited from YACS::ENGINE::RefCounter
	RefCounter ()

	RefCounter (const RefCounter &other)

virtual	~RefCounter ()

Static Protected Attributes inherited from YACS::ENGINE::ComponentInstance
static const char	NULL_FILE_REPR [] ="No repr specified for ComponentInstance"

static int	_total = 0

Detailed Description

Class for Salome component instance.

Definition at line 35 of file SalomeComponent.hxx.

Constructor & Destructor Documentation

◆ SalomeComponent() [1/2]

SalomeComponent::SalomeComponent ( const std::string & name )

SalomeComponent constructor.

Definition at line 45 of file SalomeComponent.cxx.

                                                     : ComponentInstance(name)
{
  _objComponent=CORBA::Object::_nil();
}

References _objComponent.

Referenced by clone(), and cloneAlways().

◆ SalomeComponent() [2/2]

SalomeComponent::SalomeComponent ( const SalomeComponent & other )

SalomeComponent copy constructor.

Definition at line 51 of file SalomeComponent.cxx.

                                                            :ComponentInstance(other)
{
  _objComponent=CORBA::Object::_nil();
}

References _objComponent.

◆ ~SalomeComponent()

SalomeComponent::~SalomeComponent ( )

virtual

Definition at line 56 of file SalomeComponent.cxx.

57{

58}

Member Function Documentation

◆ clone()

ComponentInstance * SalomeComponent::clone ( ) const

virtual

Clone the component instance.

Implements YACS::ENGINE::ComponentInstance.

Definition at line 130 of file SalomeComponent.cxx.

{
  if(_isAttachedOnCloning)
    {
      incrRef();
      return (ComponentInstance*) (this);
    }
  else
    return new SalomeComponent(*this);
}

References YACS::ENGINE::ComponentInstance::_isAttachedOnCloning, YACS::ENGINE::RefCounter::incrRef(), and SalomeComponent().

◆ cloneAlways()

ComponentInstance * SalomeComponent::cloneAlways ( ) const

virtual

Implements YACS::ENGINE::ComponentInstance.

Definition at line 141 of file SalomeComponent.cxx.

{
  return new SalomeComponent(*this);
}

References SalomeComponent().

◆ createNode()

ServiceNode * SalomeComponent::createNode ( const std::string & name )

virtual

Create a ServiceNode with this component instance and no input or output port.

Parameters

name	: node name

Returns: a new SalomeNode node

Implements YACS::ENGINE::ComponentInstance.

Definition at line 122 of file SalomeComponent.cxx.

{
   SalomeNode* node=new SalomeNode(name);
   node->setComponent(this);
   return node;
}

References YACS::ENGINE::ServiceNode::setComponent().

◆ getCompoPtr()

virtual CORBA::Object_ptr YACS::ENGINE::SalomeComponent::getCompoPtr ( )

inlinevirtual

Definition at line 49 of file SalomeComponent.hxx.

49{return CORBA::Object::_duplicate(_objComponent);}

◆ getFileRepr()

std::string SalomeComponent::getFileRepr ( ) const

virtual

For dump in file.

Reimplemented from YACS::ENGINE::ComponentInstance.

Definition at line 146 of file SalomeComponent.cxx.

{
  ostringstream stream;
  stream << "<component>" << getCompoName() << "</component>";
  return stream.str();
}

References YACS::ENGINE::ComponentInstance::getCompoName().

◆ getKind()

std::string SalomeComponent::getKind ( ) const

virtual

Return the component kind.

A runtime can provide several implementations of a component instance. Each implementation has a different kind. A ComponentInstance can be associated to a ServiceNode is they have the same kind.

Reimplemented from YACS::ENGINE::ComponentInstance.

Definition at line 60 of file SalomeComponent.cxx.

{
  return KIND;
}

References KIND.

◆ getKindForNode()

std::string SalomeComponent::getKindForNode ( ) const

virtual

Reimplemented from YACS::ENGINE::ComponentInstance.

Definition at line 65 of file SalomeComponent.cxx.

{
  return KIND;
}

References KIND.

◆ isLoaded()

bool SalomeComponent::isLoaded ( Task * askingNode ) const

virtual

Is the component instance already loaded ?

Implements YACS::ENGINE::ComponentInstance.

Definition at line 78 of file SalomeComponent.cxx.

{
  if(CORBA::is_nil(_objComponent))
    return false;
  else
    return true;
}

References _objComponent.

◆ load()

void SalomeComponent::load ( Task * askingNode )

virtual

Load the component.

Implements YACS::ENGINE::ComponentInstance.

Definition at line 88 of file SalomeComponent.cxx.

{
  if(_container)
    {
      SalomeContainer *salomeContainer(dynamic_cast<SalomeContainer *>(_container));
      if(salomeContainer)
        {
          _objComponent=salomeContainer->loadComponent(askingNode);
          return ;
        }
      throw Exception("Unrecognized type of Container ! Only Salome are supported by the Salome components !");
    }
  //throw Exception("SalomeComponent::load : no container specified !!! To be implemented in executor to allocate default a Container in case of presenceOfDefaultContainer.");
  //This component has no specified container : use default container policy
  SALOME_NamingService_Wrapper ns(getSALOMERuntime()->getOrb());
  SALOME_LifeCycleCORBA LCC(&ns);
  Engines::ContainerParameters params;
  LCC.preSet(params);
  params.resource_params.name = "localhost";
  params.container_name ="FactoryServer";
  _objComponent=LCC.LoadComponent(params,_compoName.c_str());
}

References YACS::ENGINE::ComponentInstance::_compoName, YACS::ENGINE::ComponentInstance::_container, _objComponent, YACS::ENGINE::getSALOMERuntime(), and YACS::ENGINE::SalomeContainer::loadComponent().

◆ setContainer()

bool SalomeComponent::setContainer ( Container * cont )

virtual

Reimplemented from YACS::ENGINE::ComponentInstance.

Definition at line 153 of file SalomeComponent.cxx.

{
  if(!dynamic_cast<SalomeContainer *>(cont))
    throw Exception("SalomeComponent::setContainer : a Salome component must be attached to a Salome container !");
  if(ComponentInstance::setContainer(cont))
    {
      if(_container)
        _container->addComponentName(_compoName);
      return true;
    }
  else
    return false;
}

References YACS::ENGINE::ComponentInstance::_compoName, YACS::ENGINE::ComponentInstance::_container, YACS::ENGINE::Container::addComponentName(), and YACS::ENGINE::ComponentInstance::setContainer().

◆ shutdown()

void SalomeComponent::shutdown ( int level )

virtual

Reimplemented from YACS::ENGINE::ComponentInstance.

Definition at line 167 of file SalomeComponent.cxx.

{
  DEBTRACE("SalomeComponent::shutdown " << level);
  if(_container)
    _container->shutdown(level);
}

References YACS::ENGINE::ComponentInstance::_container, DEBTRACE, and YACS::ENGINE::Container::shutdown().

◆ unload()

void SalomeComponent::unload ( Task * askingNode )

virtual

Unload the component.

Implements YACS::ENGINE::ComponentInstance.

Definition at line 71 of file SalomeComponent.cxx.

{
  //Not implemented
  std::cerr << "SalomeComponent::unload : not implemented " << std::endl;
}

Member Data Documentation

◆ _objComponent

CORBA::Object_var YACS::ENGINE::SalomeComponent::_objComponent

protected

Definition at line 56 of file SalomeComponent.hxx.

Referenced by isLoaded(), load(), and SalomeComponent().

◆ KIND

const char SalomeComponent::KIND ="Salome"

static

Definition at line 52 of file SalomeComponent.hxx.

Referenced by YACS::ENGINE::SalomeContainer::checkCapabilityToDealWith(), YACS::ENGINE::RuntimeSALOME::createComponentInstance(), getKind(), YACS::ENGINE::SalomePythonComponent::getKind(), getKindForNode(), and YACS::ENGINE::SalomeHPComponent::getKindForNode().

The documentation for this class was generated from the following files:

src/runtime/SalomeComponent.hxx
src/runtime/SalomeComponent.cxx
