YACS::HMI::CommandSetInlineNodeScript Class Reference

#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandSetInlineNodeScript:

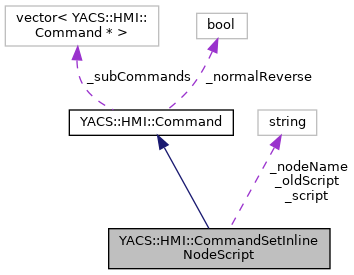

Collaboration diagram for YACS::HMI::CommandSetInlineNodeScript:

Public Member Functions
	CommandSetInlineNodeScript (std::string node, std::string script)
Public Member Functions inherited from YACS::HMI::Command
	Command ()
virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...
virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...
virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...
std::string	recursiveDump (int level=0)
void	addSubCommand (Command *command)
bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()
virtual bool	localReverse ()
virtual std::string	dump ()

Protected Attributes
std::string	_nodeName
std::string	_script
std::string	_oldScript
Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands
bool	_normalReverse

Detailed Description

Definition at line 653 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandSetInlineNodeScript()

CommandSetInlineNodeScript::CommandSetInlineNodeScript	(	std::string	node,
		std::string	script
	)

Definition at line 3657 of file commandsProc.cxx.

  : Command(), _nodeName(node), _script(script)
{
  DEBTRACE("CommandSetInlineNodeScript::CommandSetInlineNodeScript " << node << " " <<script);
  _oldScript.clear();
}

References _oldScript, and DEBTRACE.

Member Function Documentation

dump()

std::string CommandSetInlineNodeScript::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 3664 of file commandsProc.cxx.

{
  string ret ="CommandSetInlineNodeScript " + _nodeName;
  return ret;
}

References _nodeName.

localExecute()

bool CommandSetInlineNodeScript::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3670 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetInlineNodeScript::localExecute");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node = proc->getChildByName(_nodeName);
      if (_script.empty())
        {
          GuiContext::getCurrent()->_lastErrorMessage = "InlineNode script empty: " + _nodeName;
          return false;
        }
      if (YACS::ENGINE::InlineNode* inlineNode = dynamic_cast<YACS::ENGINE::InlineNode*>(node))
        {
          _oldScript = inlineNode->getScript();
          inlineNode->setScript(_script);
          YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(node));
          SubjectNode* snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
          snode->update(SYNCHRO,0,snode);
          return true;
        }
      else
        {
          GuiContext::getCurrent()->_lastErrorMessage = "node is not an InlineNode: " + _nodeName;
          return false;
        }
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetInlineNodeScript::localExecute() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectNode, _nodeName, _oldScript, _script, DEBTRACE, testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SYNCHRO, YACS::HMI::SubjectNode::update(), and YASSERT.

localReverse()

bool CommandSetInlineNodeScript::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3705 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetInlineNodeScript::localReverse");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      Node* node = proc->getChildByName(_nodeName);
      if (YACS::ENGINE::InlineNode* inlineNode = dynamic_cast<YACS::ENGINE::InlineNode*>(node))
        {
          inlineNode->setScript(_oldScript);
          YASSERT(GuiContext::getCurrent()->_mapOfSubjectNode.count(node));
          SubjectNode* snode = GuiContext::getCurrent()->_mapOfSubjectNode[node];
          snode->update(SYNCHRO,0,snode);
          return true;
        }
      else
        {
          GuiContext::getCurrent()->_lastErrorMessage = "node is not an InlineNode: " + _nodeName;
          return false;
        }
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetInlineNodeScript::localExecute() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectNode, _nodeName, _oldScript, DEBTRACE, testCppPluginInvokation::ex, YACS::ENGINE::ComposedNode::getChildByName(), YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), setErrorMsg(), YACS::HMI::SYNCHRO, YACS::HMI::SubjectNode::update(), and YASSERT.

Member Data Documentation

_nodeName

std::string YACS::HMI::CommandSetInlineNodeScript::_nodeName

protected

Definition at line 661 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

_oldScript

std::string YACS::HMI::CommandSetInlineNodeScript::_oldScript

protected

Definition at line 663 of file commandsProc.hxx.

Referenced by CommandSetInlineNodeScript(), localExecute(), and localReverse().

_script

std::string YACS::HMI::CommandSetInlineNodeScript::_script

protected

Definition at line 662 of file commandsProc.hxx.

Referenced by localExecute().

---

The documentation for this class was generated from the following files:

• src/hmi/commandsProc.hxx
• src/hmi/commandsProc.cxx
