YACS::HMI::SubjectDataType Class Reference

#include <guiObservers.hxx>

Inheritance diagram for YACS::HMI::SubjectDataType:

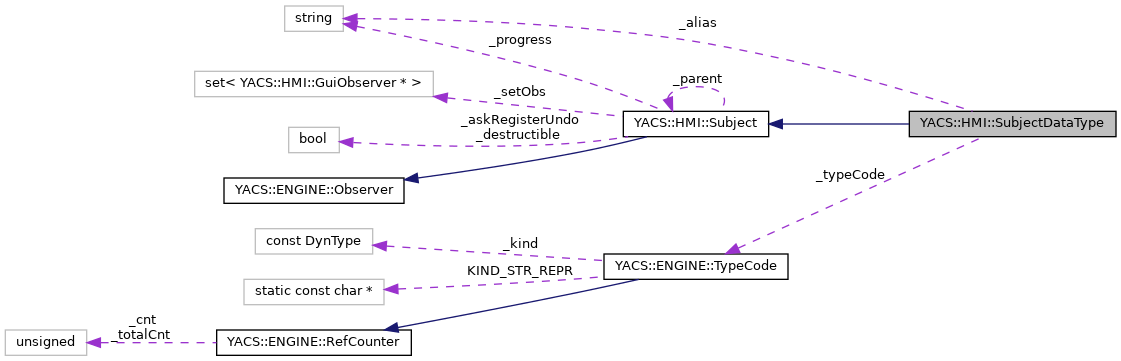

Collaboration diagram for YACS::HMI::SubjectDataType:

Public Member Functions
	SubjectDataType (YACS::ENGINE::TypeCode *typeCode, Subject *parent, std::string alias)
virtual	~SubjectDataType ()
virtual std::string	getName ()
virtual std::string	getAlias ()
virtual YACS::ENGINE::TypeCode *	getTypeCode ()
virtual void	clean (Command *command=0)
void	localclean (Command *command=0)
virtual TypeOfElem	getType ()
Public Member Functions inherited from YACS::HMI::Subject
	Subject (Subject *parent=0)
virtual	~Subject ()
virtual void	attach (GuiObserver *obs)
virtual void	detach (GuiObserver *obs)
virtual void	select (bool isSelected)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual bool	setName (std::string name)
virtual bool	setProperties (std::map< std::string, std::string > properties)
virtual std::map< std::string, std::string >	getProperties ()
virtual std::vector< std::string >	knownProperties ()
virtual Subject *	getParent ()
virtual void	setParent (Subject *son)
virtual bool	destroy (Subject *son)
	From user action in Ihm, destroy an object. More...
virtual void	loadChildren ()
virtual void	loadLinks ()
virtual void	addSubjectReference (Subject *ref)
void	localclean (Command *command=0)
void	registerUndoDestroy ()
void	askRegisterUndoDestroy ()
bool	isDestructible ()
virtual void	setProgress (std::string newProgress)
virtual std::string	getProgress ()
Public Member Functions inherited from YACS::ENGINE::Observer
virtual void	notifyObserver (Node *object, const std::string &event)
virtual void	notifyObserver2 (Node *object, const std::string &event, void *something)
virtual void	notifyObserverFromClone (Node *originalInstance, const std::string &event, Node *clonedInstanceGeneratingEvent)
virtual	~Observer ()

Protected Attributes
YACS::ENGINE::TypeCode *	_typeCode
std::string	_alias
Protected Attributes inherited from YACS::HMI::Subject
std::set< GuiObserver * >	_setObs
Subject *	_parent
bool	_destructible
bool	_askRegisterUndo
std::string	_progress

Additional Inherited Members
Static Public Member Functions inherited from YACS::HMI::Subject
static void	erase (Subject *sub, Command *command=0, bool post=false)

Detailed Description

Definition at line 491 of file guiObservers.hxx.

Constructor & Destructor Documentation

SubjectDataType()

SubjectDataType::SubjectDataType	(	YACS::ENGINE::TypeCode *	typeCode,
		Subject *	parent,
		std::string	alias
	)

Definition at line 4608 of file guiObservers.cxx.

  : Subject(parent), _typeCode(typeCode), _alias(alias)
{
}

~SubjectDataType()

SubjectDataType::~SubjectDataType ( )

virtual

Definition at line 4613 of file guiObservers.cxx.

{
}

Member Function Documentation

clean()

void SubjectDataType::clean ( Command *  command = 0 )

virtual

Clean process prior to delete is redefined in derived classes: a local clean treatment relative to the derived class, then a call to the parent class clean method.

Reimplemented from YACS::HMI::Subject.

Definition at line 4617 of file guiObservers.cxx.

{
  if (_askRegisterUndo)
    {
      _askRegisterUndo = false;
      registerUndoDestroy();
    }
  localclean(command);
  Subject::clean(command);
}

References YACS::HMI::Subject::_askRegisterUndo, YACS::HMI::Subject::clean(), localclean(), and YACS::HMI::Subject::registerUndoDestroy().

getAlias()

std::string SubjectDataType::getAlias ( )

virtual

Definition at line 4638 of file guiObservers.cxx.

{
  return _alias;
}

References _alias.

Referenced by YACS::HMI::SchemaDirTypesItem::addTypeItem().

getName()

std::string SubjectDataType::getName ( )

virtual

Reimplemented from YACS::HMI::Subject.

Definition at line 4633 of file guiObservers.cxx.

{
  return _typeCode->name();
}

References _typeCode, and YACS::ENGINE::TypeCode::name().

getType()

virtual TypeOfElem YACS::HMI::SubjectDataType::getType ( )

inlinevirtual

Reimplemented from YACS::HMI::Subject.

Definition at line 501 of file guiObservers.hxx.

{return DATATYPE;}

References YACS::HMI::DATATYPE.

getTypeCode()

YACS::ENGINE::TypeCode * SubjectDataType::getTypeCode ( )

virtual

Definition at line 4643 of file guiObservers.cxx.

{
  return _typeCode;
}

References _typeCode.

localclean()

void SubjectDataType::localclean

(

Command *

command = 0

)

Definition at line 4628 of file guiObservers.cxx.

{
  DEBTRACE("SubjectDataType::localClean ");
}

References DEBTRACE.

Referenced by clean().

Member Data Documentation

_alias

std::string YACS::HMI::SubjectDataType::_alias

protected

Definition at line 504 of file guiObservers.hxx.

Referenced by getAlias().

_typeCode

YACS::ENGINE::TypeCode* YACS::HMI::SubjectDataType::_typeCode

protected

Definition at line 503 of file guiObservers.hxx.

Referenced by getName(), and getTypeCode().

---

The documentation for this class was generated from the following files:

• src/hmi/guiObservers.hxx
• src/hmi/guiObservers.cxx
