YACS::HMI::CommandSetComponentInstanceProperties Class Reference

#include <commandsProc.hxx>

Inheritance diagram for YACS::HMI::CommandSetComponentInstanceProperties:

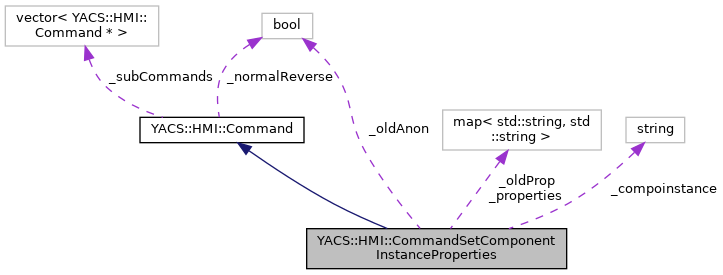

Collaboration diagram for YACS::HMI::CommandSetComponentInstanceProperties:

Public Member Functions
	CommandSetComponentInstanceProperties (std::string compoinstance, std::map< std::string, std::string > properties)
Public Member Functions inherited from YACS::HMI::Command
	Command ()
virtual bool	execute ()
	the command is executed a first time after its registration for undo redo, then on redo More...
virtual bool	reverse (bool isNormal=true)
	Reverse action: undo. More...
virtual bool	executeSubOnly ()
	execute only sub commands in a reverse action More...
virtual std::string	dump ()
std::string	recursiveDump (int level=0)
void	addSubCommand (Command *command)
bool	isNormalReverse ()

Protected Member Functions
virtual bool	localExecute ()
virtual bool	localReverse ()
virtual std::string	dump ()
virtual bool	localExecute ()=0
virtual bool	localReverse ()=0

Protected Attributes
std::string	_compoinstance
std::map< std::string, std::string >	_properties
std::map< std::string, std::string >	_oldProp
bool	_oldAnon
Protected Attributes inherited from YACS::HMI::Command
std::vector< Command * >	_subCommands
bool	_normalReverse

Detailed Description

Definition at line 591 of file commandsProc.hxx.

Constructor & Destructor Documentation

CommandSetComponentInstanceProperties()

CommandSetComponentInstanceProperties::CommandSetComponentInstanceProperties	(	std::string	compoinstance,
		std::map< std::string, std::string >	properties
	)

Definition at line 3297 of file commandsProc.cxx.

  : Command(), _compoinstance(compoinstance), _properties(properties)
{
  DEBTRACE("CommandSetComponentInstanceProperties::CommandSetComponentInstanceProperties " << compoinstance);
  _oldProp.clear();
}

References _oldProp, and DEBTRACE.

Member Function Documentation

dump()

std::string CommandSetComponentInstanceProperties::dump ( )

protectedvirtual

Reimplemented from YACS::HMI::Command.

Definition at line 3305 of file commandsProc.cxx.

{
  string ret ="CommandSetComponentInstanceProperties " + _compoinstance;
  return ret;
}

References _compoinstance.

localExecute()

bool CommandSetComponentInstanceProperties::localExecute ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3311 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetComponentInstanceProperties::localExecute");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      if (proc->componentInstanceMap.count(_compoinstance))
        {
          ComponentInstance *ref = proc->componentInstanceMap[_compoinstance];
          YASSERT(ref);
          _oldProp = ref->getProperties();
          _oldAnon = ref->isAnonymous();
          ref->setProperties(_properties);
          ref->setAnonymous(false);
          SubjectComponent* subcompo = GuiContext::getCurrent()->_mapOfSubjectComponent[ref];
          subcompo->update(SETVALUE, 0, subcompo);
          return true;
        }
      GuiContext::getCurrent()->_lastErrorMessage = "compoinstance not found: " + _compoinstance;
      return false;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetComponentInstanceProperties::localExecute() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References _compoinstance, YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectComponent, _oldAnon, _oldProp, _properties, YACS::ENGINE::Proc::componentInstanceMap, DEBTRACE, testCppPluginInvokation::ex, YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), gui.CONNECTOR::ref(), setErrorMsg(), YACS::HMI::SETVALUE, YACS::HMI::Subject::update(), and YASSERT.

localReverse()

bool CommandSetComponentInstanceProperties::localReverse ( )

protectedvirtual

Implements YACS::HMI::Command.

Definition at line 3340 of file commandsProc.cxx.

{
  DEBTRACE("CommandSetComponentInstanceProperties::localReverse");
  try
    {
      Proc* proc = GuiContext::getCurrent()->getProc();
      if (proc->componentInstanceMap.count(_compoinstance))
        {
          ComponentInstance *ref = proc->componentInstanceMap[_compoinstance];
          YASSERT(ref);
          ref->setProperties(_oldProp);
          ref->setAnonymous(_oldAnon);
          SubjectComponent* subcompo = GuiContext::getCurrent()->_mapOfSubjectComponent[ref];
          subcompo->update(SETVALUE, 0, subcompo);
          return true;
        }
      GuiContext::getCurrent()->_lastErrorMessage = "compoinstance not found: " + _compoinstance;
      return false;
    }
  catch (Exception& ex)
    {
      DEBTRACE("CommandSetComponentInstanceProperties::localReverse() : " << ex.what());
      setErrorMsg(ex);
      return false;
    }
}

References _compoinstance, YACS::HMI::GuiContext::_lastErrorMessage, YACS::HMI::GuiContext::_mapOfSubjectComponent, _oldAnon, _oldProp, YACS::ENGINE::Proc::componentInstanceMap, DEBTRACE, testCppPluginInvokation::ex, YACS::HMI::GuiContext::getCurrent(), YACS::HMI::GuiContext::getProc(), gui.CONNECTOR::ref(), setErrorMsg(), YACS::HMI::SETVALUE, YACS::HMI::Subject::update(), and YASSERT.

Member Data Documentation

_compoinstance

std::string YACS::HMI::CommandSetComponentInstanceProperties::_compoinstance

protected

Definition at line 600 of file commandsProc.hxx.

Referenced by dump(), localExecute(), and localReverse().

_oldAnon

bool YACS::HMI::CommandSetComponentInstanceProperties::_oldAnon

protected

Definition at line 603 of file commandsProc.hxx.

Referenced by localExecute(), and localReverse().

_oldProp

std::map<std::string,std::string> YACS::HMI::CommandSetComponentInstanceProperties::_oldProp

protected

Definition at line 602 of file commandsProc.hxx.

Referenced by CommandSetComponentInstanceProperties(), localExecute(), and localReverse().

_properties

std::map<std::string,std::string> YACS::HMI::CommandSetComponentInstanceProperties::_properties

protected

Definition at line 601 of file commandsProc.hxx.

Referenced by localExecute().

---

The documentation for this class was generated from the following files:

• src/hmi/commandsProc.hxx
• src/hmi/commandsProc.cxx
