YACS::objtypeParser Struct Reference

Class for objref parser. More...

#include <typeParsers.hxx>

Inheritance diagram for YACS::objtypeParser:

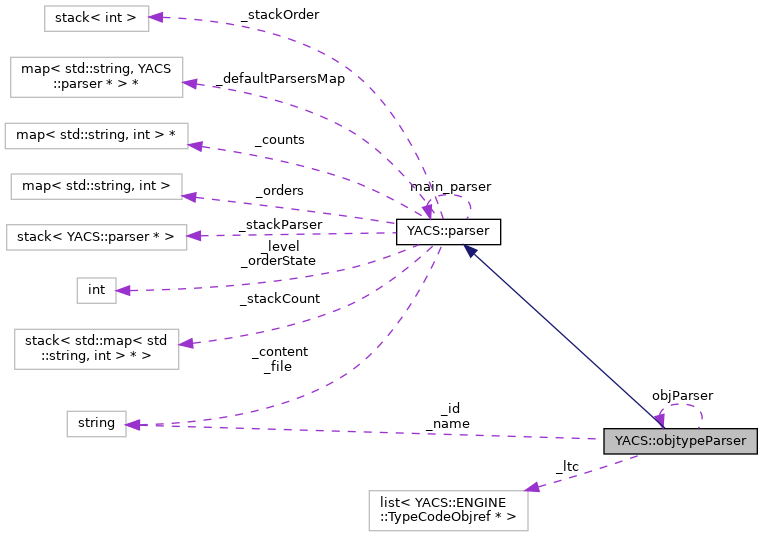

Collaboration diagram for YACS::objtypeParser:

Public Member Functions
virtual void	onStart (const XML_Char *el, const XML_Char **attr)
virtual void	onEnd (const char *el, parser *child)
virtual void	buildAttr (const XML_Char **attr)
virtual void	pre ()
virtual void	name (const std::string &name)
virtual void	id (const std::string &name)
virtual void	base (const std::string &name)
virtual YACS::ENGINE::TypeCode *	post ()
Public Member Functions inherited from YACS::parser
	parser ()
virtual	~parser ()
virtual void	SetUserDataAndPush (parser *pp)
virtual void	charData (const XML_Char *s, int len)
virtual void	endParser ()
virtual void	init ()
virtual void	incrCount (const XML_Char *elem)
virtual void	checkOrder (std::string &el)
virtual void	maxcount (std::string name, int max, std::string &el)
virtual void	mincount (std::string name, int min)
virtual void	maxchoice (std::string *names, int max, std::string &el)
virtual void	minchoice (std::string *names, int min)
virtual void	required (const std::string &name, const XML_Char **attr)
std::stack< parser * > &	getStack ()
template<class T >
T	post ()
void	logError (const std::string &reason)

Public Attributes
std::string	_name
std::string	_id
std::list< YACS::ENGINE::TypeCodeObjref * >	_ltc
Public Attributes inherited from YACS::parser
std::string	_file
std::string	_content
std::map< std::string, int > *	_counts
std::map< std::string, int >	_orders
int	_orderState
int	_level
std::stack< std::map< std::string, int > * >	_stackCount
std::stack< int >	_stackOrder
std::map< std::string, parser * > *	_defaultParsersMap

Static Public Attributes
static objtypeParser	objParser
Static Public Attributes inherited from YACS::parser
static parser	main_parser
static std::stack< parser * >	_stackParser

Additional Inherited Members
Static Public Member Functions inherited from YACS::parser
static void XMLCALL	start_document (void *data)
static void XMLCALL	end_document (void *data)
static void XMLCALL	start_element (void *data, const xmlChar *name, const xmlChar **p)
static void XMLCALL	end_element (void *data, const xmlChar *name)
static void XMLCALL	characters (void *data, const xmlChar *ch, int len)
static void XMLCALL	comment (void *data, const xmlChar *value)
static void XMLCALL	cdata_block (void *data, const xmlChar *value, int len)
static void XMLCALL	warning (void *data, const char *fmt,...)
static void XMLCALL	error (void *data, const char *fmt,...)
static void XMLCALL	fatal_error (void *data, const char *fmt,...)
static void	XML_SetUserData (_xmlParserCtxt *ctxt, parser *par)

Detailed Description

Class for objref parser.

Class used to parse a objref (type) definition (class TypeCodeObjref in implementation)

XML schema is

  <xsd:complexType name="ObjrefType">
    <xsd:sequence>
      <xsd:element name="base" type="xsd:string" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="required"/>
    <xsd:attribute name="id" type="xsd:string" />
  </xsd:complexType>

Definition at line 98 of file typeParsers.hxx.

Member Function Documentation

base()

void YACS::objtypeParser::base ( const std::string &  name )

virtual

Definition at line 176 of file typeParsers.cxx.

    {
      DEBTRACE( "base_name: " << name )
      if(currentProc->typeMap.count(name)==0)
      {
        //Check if the typecode is defined in the runtime
        YACS::ENGINE::TypeCode* t=theRuntime->getTypeCode(name);
        if(t==0)
        {
          std::stringstream msg;
          msg << "Type " << name << " does not exist" << " (" <<__FILE__ << ":" << __LINE__ << ")";
          throw Exception(msg.str());
        }
        else
        {
          currentProc->typeMap[name]=t;
          t->incrRef();
        }
      }
      if(currentProc->typeMap[name]->kind() != ENGINE::Objref)
        {
          std::stringstream msg;
          msg << "Type " << name << " is not an objref" ;
          msg << " (" <<__FILE__ << ":" << __LINE__ << ")";
          throw Exception(msg.str());
        }
      _ltc.push_back((ENGINE::TypeCodeObjref *)currentProc->typeMap[name]);
    }

References _ltc, currentProc, DEBTRACE, YACS::ENGINE::Runtime::getTypeCode(), name(), YACS::ENGINE::Objref, gui.Appli::t, theRuntime, and YACS::ENGINE::Proc::typeMap.

Referenced by onEnd().

buildAttr()

void YACS::objtypeParser::buildAttr ( const XML_Char **  attr )

virtual

Reimplemented from YACS::parser.

Definition at line 150 of file typeParsers.cxx.

    {
      if (!attr)
        return;
      required("name",attr);
      for (int i = 0; attr[i]; i += 2)
        {
          if(std::string(attr[i]) == "name")name(attr[i+1]);
          if(std::string(attr[i]) == "id")id(attr[i+1]);
        }
    }

References yacsorb.CORBAEngineTest::i, id(), name(), and YACS::parser::required().

id()

void YACS::objtypeParser::id ( const std::string &  name )

virtual

Definition at line 171 of file typeParsers.cxx.

    {
      DEBTRACE( "objtype_id: " << name )
      _id=name;
    }

References _id, DEBTRACE, and name().

Referenced by buildAttr().

name()

void YACS::objtypeParser::name ( const std::string &  name )

virtual

Definition at line 166 of file typeParsers.cxx.

    {
      DEBTRACE( "objtype_name: " << name )
      _name=name;
    }

References _name, and DEBTRACE.

Referenced by base(), buildAttr(), and id().

onEnd()

void YACS::objtypeParser::onEnd ( const char *  el, parser *  child  )

virtual

Reimplemented from YACS::parser.

Definition at line 144 of file typeParsers.cxx.

    {
      DEBTRACE( "objtypeParser::onEnd: " << el )
      std::string element(el);
      if(element == "base")base(((stringtypeParser*)child)->post());
    }

References base(), DEBTRACE, and post().

onStart()

void YACS::objtypeParser::onStart ( const XML_Char *  el, const XML_Char **  attr  )

virtual

Reimplemented from YACS::parser.

Definition at line 133 of file typeParsers.cxx.

    {
      DEBTRACE( "objtypeParser::onStart: " << el )
      std::string element(el);
      parser* pp=&parser::main_parser;
      if(element == "base")pp=&stringtypeParser::stringParser;
      SetUserDataAndPush(pp);
      pp->init();
      pp->pre();
      pp->buildAttr(attr);
    }

References YACS::parser::buildAttr(), DEBTRACE, YACS::parser::init(), YACS::parser::main_parser, YACS::parser::pre(), YACS::parser::SetUserDataAndPush(), and YACS::stringtypeParser::stringParser.

post()

ENGINE::TypeCode * YACS::objtypeParser::post ( )

virtual

Definition at line 204 of file typeParsers.cxx.

    {
      DEBTRACE( "objtype_post" )
      ENGINE::TypeCode *t = currentProc->createInterfaceTc(_id,_name,_ltc);
      return t;
    }

References _id, _ltc, _name, YACS::ENGINE::Proc::createInterfaceTc(), currentProc, DEBTRACE, and gui.Appli::t.

Referenced by onEnd().

pre()

void YACS::objtypeParser::pre ( )

virtual

Reimplemented from YACS::parser.

Definition at line 161 of file typeParsers.cxx.

    {
      _id="";
      _ltc.clear();
    }

References _id, and _ltc.

Member Data Documentation

_id

std::string YACS::objtypeParser::_id

Definition at line 110 of file typeParsers.hxx.

Referenced by id(), post(), and pre().

_ltc

std::list<YACS::ENGINE::TypeCodeObjref *> YACS::objtypeParser::_ltc

Definition at line 111 of file typeParsers.hxx.

Referenced by base(), post(), and pre().

_name

std::string YACS::objtypeParser::_name

Definition at line 109 of file typeParsers.hxx.

Referenced by name(), and post().

objParser

objtypeParser YACS::objtypeParser::objParser

static

Definition at line 100 of file typeParsers.hxx.

Referenced by YACS::proctypeParser< T >::onStart().

---

The documentation for this struct was generated from the following files:

• src/yacsloader/typeParsers.hxx
• src/yacsloader/typeParsers.cxx
