#include <SALOME_NamingService_Abstract.hxx>

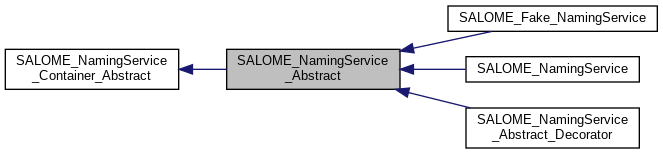

Inheritance diagram for SALOME_NamingService_Abstract:

[legend]

Public Member Functions
SALOME_NamingService_Abstract *	cloneCoVar ()

virtual std::vector< std::string >	repr ()=0

virtual void	Destroy_Directory (const char *Path)=0

virtual bool	Change_Directory (const char *Path)=0

virtual std::vector< std::string >	list_subdirs ()=0

virtual std::vector< std::string >	list_directory ()=0

virtual std::vector< std::string >	list_directory_recurs ()=0

virtual CORBA::Object_ptr	ResolveComponent (const char hostname, const char containerName, const char *componentName, const int nbproc=0)=0

virtual	~SALOME_NamingService_Abstract ()

virtual void	init_orb (CORBA::ORB_ptr orb=0)=0

virtual SALOME_NamingService_Container_Abstract *	clone ()=0

virtual void	Register (CORBA::Object_ptr ObjRef, const char *Path)=0

virtual void	Destroy_FullDirectory (const char *Path)=0

virtual void	Destroy_Name (const char *Path)=0

virtual CORBA::Object_ptr	Resolve (const char *Path)=0

virtual CORBA::Object_ptr	ResolveFirst (const char *Path)=0

virtual bool	IsTrueNS () const =0

Static Public Member Functions
static std::string	ContainerName (const Engines::ContainerParameters &params)
	build a container name, given a ContainerParameters struct. More...

static std::string	ContainerName (const char *ContainerName)
	provide a default container name if empty. More...

static std::string	BuildContainerNameForNS (const char ContainerName, const char hostname)
	build a string representing a container in Naming Service. More...

static std::string	BuildContainerNameForNS (const Engines::ContainerParameters &params, const char *hostname)
	build a string representing a container in Naming Service. More...

static std::string	BuildComponentName (const char hostname, const char containerName, const char *componentName, const int nbproc)

Static Public Attributes
static constexpr char	SEP = '/'

Constructor & Destructor Documentation

◆ ~SALOME_NamingService_Abstract()

virtual SALOME_NamingService_Abstract::~SALOME_NamingService_Abstract ( )

virtual

Member Function Documentation

◆ BuildComponentName()

std::string SALOME_NamingService_Abstract::BuildComponentName	(	const char *	hostname,
		const char *	containerName,
		const char *	componentName,
		const int	nbproc
	)

static

References SALOME_ContainerPy::containerName, test::hostname, and SALOME_NamingService_Container_Abstract::SEP.

Referenced by SALOME_Fake_NamingService::ResolveComponent(), and SALOME_NamingService_Abstract_Decorator::ResolveComponent().

◆ BuildContainerNameForNS() [1/2]

std::string SALOME_NamingService_Abstract::BuildContainerNameForNS	(	const char *	containerName,
		const char *	hostname
	)

static

build a string representing a container in Naming Service.

Build a string representing the absolute pathname of a container in SALOME_NamingService. This form gives a suffixed containerName in case of multi processor machine.

Parameters

containerName	name of the container in which the component is instantiated.
hostname	name of the host of the container, without domain names.

Returns: the path under the form /Containers/hostname/containerName

See also: ContainerName(const Engines::MachineParameters& params)

References SALOME_ContainerPy::containerName, ContainerName(), test::hostname, and TestKernelHelpers::ret.

Referenced by Abstract_Engines_Container_i::Abstract_Engines_Container_i(), Container_proxy_impl_final::Container_proxy_impl_final(), Engines_MPIContainer_i::Engines_MPIContainer_i(), Engines_Parallel_Container_i::Engines_Parallel_Container_i(), SALOME_ContainerManager::FindContainer(), SALOME_ContainerManager::GiveContainer(), main(), NamingServiceTest::testBuildContainerNameForNS(), and NamingServiceTest::testBuildContainerNameForNSParams().

◆ BuildContainerNameForNS() [2/2]

std::string SALOME_NamingService_Abstract::BuildContainerNameForNS	(	const Engines::ContainerParameters &	params,
		const char *	hostname
	)

static

build a string representing a container in Naming Service.

Build a string representing the absolute pathname of a container in SALOME_NamingService.

Parameters

params	used as it is, or replaced by FactoryServer if empty.
hostname	name of the host of the container, without domain names.

Returns: the path under the form /Containers/hostname/containerName

See also: ContainerName(const char *containerName)

References ContainerName(), test::hostname, and TestKernelHelpers::ret.

◆ Change_Directory()

virtual bool SALOME_NamingService_Abstract::Change_Directory ( const char * Path )

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

Referenced by SALOME_ExternalServerLauncher::ListOfExternalServersCpp(), SALOMESDS::DataServerManager::listOfScopesCpp(), SALOME_LifeCycleCORBA::SALOME_LifeCycleCORBA(), and SALOME_ContainerManager::ShutdownContainersGeneric().

◆ clone()

virtual SALOME_NamingService_Container_Abstract* SALOME_NamingService_Container_Abstract::clone ( )

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by Abstract_Engines_Container_i::Abstract_Engines_Container_i(), and cloneCoVar().

◆ cloneCoVar()

SALOME_NamingService_Abstract * SALOME_NamingService_Abstract::cloneCoVar ( )

References SALOME_NamingService_Container_Abstract::clone(), and TestKernelHelpers::ret.

Referenced by SALOMESDS::DataServerManager::DataServerManager(), and SALOMEDS_DriverFactory_i::SALOMEDS_DriverFactory_i().

◆ ContainerName() [1/2]

std::string SALOME_NamingService_Abstract::ContainerName ( const char * containerName )

static

provide a default container name if empty.

the given container name is returned unchanged, unless it is empty.

Parameters

containerName

Returns: container name, where empty input is replaced by "FactoryServer", without the path.

See also: BuildContainerNameForNS(const char *containerName, const char *hostname)

References SALOME_ContainerPy::containerName, and TestKernelHelpers::ret.

◆ ContainerName() [2/2]

std::string SALOME_NamingService_Abstract::ContainerName ( const Engines::ContainerParameters & params )

static

build a container name, given a ContainerParameters struct.

Build a container name with a ContainerParameters struct. In case of multi processor machine, container name is suffixed with number of processors.

Parameters

params struct from which we get container name (may be empty) and number of processors.

Returns: a container name without the path.

See also: BuildContainerNameForNS(const Engines::ContainerParameters& params, const char *hostname)

References Engines::ContainerParameters::container_name, Engines::ContainerParameters::isMPI, Engines::ContainerParameters::nb_proc, and TestKernelHelpers::ret.

Referenced by SALOME_ContainerManager::BuildCommandToLaunchLocalContainer(), SALOME_ContainerManager::BuildCommandToLaunchRemoteContainer(), BuildContainerNameForNS(), SALOME_ContainerManager::BuildTempFileToLaunchRemoteContainer(), SALOME_ContainerManager::LaunchContainer(), NamingServiceTest::testContainerName(), and NamingServiceTest::testContainerNameParams().

◆ Destroy_Directory()

virtual void SALOME_NamingService_Abstract::Destroy_Directory ( const char * Path )

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

◆ Destroy_FullDirectory()

virtual void SALOME_NamingService_Container_Abstract::Destroy_FullDirectory ( const char * Path )

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by Engines_MPIContainer_i::Shutdown(), and Abstract_Engines_Container_i::ShutdownCommonPart().

◆ Destroy_Name()

virtual void SALOME_NamingService_Container_Abstract::Destroy_Name ( const char * Path )

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by SALOMESDS::DataServerManager::cleanScopesInNS(), SALOME_ExternalServerLauncher::cleanServersInNS(), Abstract_Engines_Container_i::createExecutableInstance(), GiveADataScopeCalled(), Abstract_Engines_Container_i::remove_impl(), Engines_MPIContainer_i::remove_impl(), SALOME_ContainerManager::Shutdown(), SALOME_Launcher::Shutdown(), Engines_MPIContainer_i::Shutdown(), SALOME_ResourcesManager::Shutdown(), Abstract_Engines_Container_i::ShutdownCommonPart(), SALOMESDS::DataScopeServerBase::shutdownIfNotHostedByDSM(), and SALOME_LifeCycleCORBA::shutdownServers().

◆ init_orb()

virtual void SALOME_NamingService_Container_Abstract::init_orb ( CORBA::ORB_ptr orb = 0 )

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by Abstract_Engines_Container_i::Abstract_Engines_Container_i(), and Engines_MPIContainer_i::Engines_MPIContainer_i().

◆ IsTrueNS()

virtual bool SALOME_NamingService_Container_Abstract::IsTrueNS ( ) const

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by SALOMEDS_Study_i::~SALOMEDS_Study_i().

◆ list_directory()

virtual std::vector<std::string> SALOME_NamingService_Abstract::list_directory ( )

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

Referenced by SALOME_ExternalServerLauncher::ListOfExternalServersCpp(), and SALOMESDS::DataServerManager::listOfScopesCpp().

◆ list_directory_recurs()

virtual std::vector<std::string> SALOME_NamingService_Abstract::list_directory_recurs ( )

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

Referenced by SALOME_ContainerManager::ShutdownContainersGeneric().

◆ list_subdirs()

virtual std::vector<std::string> SALOME_NamingService_Abstract::list_subdirs ( )

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

◆ Register()

virtual void SALOME_NamingService_Container_Abstract::Register	(	CORBA::Object_ptr	ObjRef,
		const char *	Path
	)

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by Abstract_Engines_Container_i::Abstract_Engines_Container_i(), Abstract_Engines_Container_i::createInstance(), Engines_MPIContainer_i::createMPIInstance(), CreateStudyNSAbstract(), SALOMESDS::DataServerManager::DataServerManager(), Engines_MPIContainer_i::Engines_MPIContainer_i(), SALOME_Launcher::init(), SALOME_ExternalServerLauncher::launchServer(), Engines_MPIContainer_i::Lcreate_component_instance(), Engines_MPIContainer_i::Lload_impl(), SALOMESDS::DataScopeServerBase::registerInNS(), SALOME_ContainerManager::SALOME_ContainerManager(), SALOME_ExternalServerLauncher::SALOME_ExternalServerLauncher(), and SALOME_ResourcesManager::SALOME_ResourcesManager().

◆ repr()

virtual std::vector< std::string > SALOME_NamingService_Abstract::repr ( )

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

◆ Resolve()

virtual CORBA::Object_ptr SALOME_NamingService_Container_Abstract::Resolve ( const char * Path )

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, SALOME_Fake_NamingService, and SALOME_Embedded_NamingService_Client.

Referenced by Connexion(), CreateDataScope(), Abstract_Engines_Container_i::createExecutableInstance(), CreateStudyNSAbstract(), SALOME_ContainerManager::FindContainer(), SALOMEDS_DriverFactory_i::GetDriverByType(), KERNEL::getResourcesManager(), KERNEL::getSalomeLauncher(), KERNEL::getSalomeSession(), SALOMESDS::DataServerManager::GetScopePtrGivenName(), SALOME_ExternalServerLauncher::GetServerHandlerGivenName(), KERNEL::getStudyServant(), SALOME_ContainerManager::GiveContainer(), SALOMEDS_Study_i::Init(), SALOME_ContainerManager::LaunchContainer(), SALOME_NamingService_Abstract_Decorator::ResolveComponent(), SALOME_LifeCycleCORBA::SALOME_LifeCycleCORBA(), SALOME_ResourcesManager_Client::SALOME_ResourcesManager_Client(), SALOMEDS_Study_i::SALOMEDS_Study_i(), SALOMEDS::sendMessageToGUI(), SALOME_ContainerManager::ShutdownContainersGeneric(), SALOMESDS::DataScopeServerBase::shutdownIfNotHostedByDSM(), SALOME_LifeCycleCORBA::shutdownServers(), SALOMEDS_Study_i::URL(), orbmodule.client::waitNS(), and orbmodule.client::waitNSPID().

◆ ResolveComponent()

virtual CORBA::Object_ptr SALOME_NamingService_Abstract::ResolveComponent	(	const char *	hostname,
		const char *	containerName,
		const char *	componentName,
		const int	nbproc = `0`
	)

pure virtual

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_NamingService, and SALOME_Fake_NamingService.

Referenced by SALOME_LifeCycleCORBA::_FindComponent().

◆ ResolveFirst()

virtual CORBA::Object_ptr SALOME_NamingService_Container_Abstract::ResolveFirst ( const char * Path )

pure virtualinherited

Implemented in SALOME_NamingService_Abstract_Decorator, SALOME_Fake_NamingService, SALOME_Embedded_NamingService_Client, and SALOME_NamingService.

Referenced by Abstract_Engines_Container_i::find_or_create_instance().

Field Documentation

◆ SEP

constexpr char SALOME_NamingService_Container_Abstract::SEP = '/'

staticconstexprinherited

Referenced by BuildComponentName(), SALOME_Fake_NamingService::ReprOfContainersIORS_NoThreadSafe(), and SALOME_Fake_NamingService::SplitDir().
