YACS::HMI::EditionInputPort Class Reference

#include <EditionInputPort.hxx>

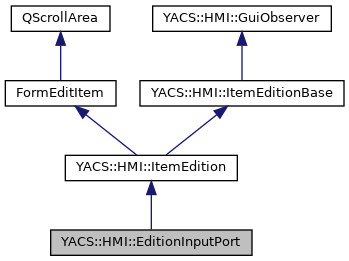

Inheritance diagram for YACS::HMI::EditionInputPort:

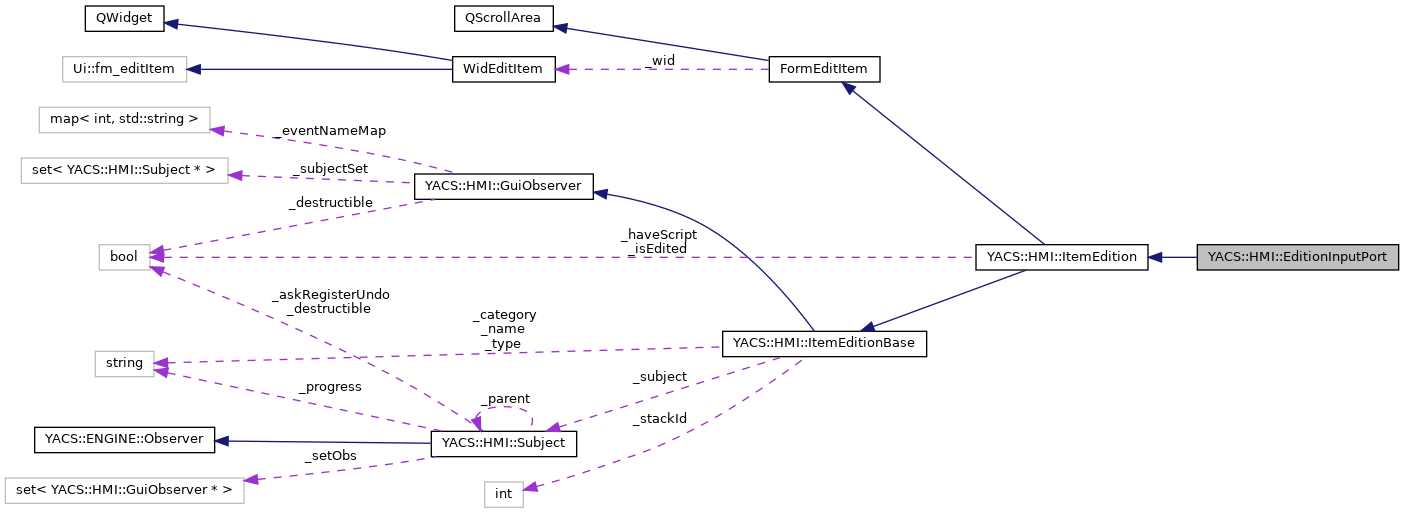

Collaboration diagram for YACS::HMI::EditionInputPort:

Public Member Functions
	EditionInputPort (Subject *subject, QWidget *parent=0, const char *name=0)
virtual	~EditionInputPort ()
virtual void	select (bool isSelected)
Public Member Functions inherited from YACS::HMI::ItemEdition
	ItemEdition (Subject *subject, QWidget *parent=0, const char *name=0)
virtual	~ItemEdition ()
virtual void	synchronize ()
virtual void	select (bool isSelected)
virtual void	setName (std::string name)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual void	setEdited (bool isEdited)
Public Member Functions inherited from FormEditItem
	FormEditItem (QWidget *parent=0)
virtual	~FormEditItem ()
Public Member Functions inherited from YACS::HMI::ItemEditionBase
	ItemEditionBase (Subject *subject)
virtual	~ItemEditionBase ()
virtual void	select (bool isSelected)
virtual void	synchronize ()
virtual void	update (GuiEvent event, int type, Subject *son)
virtual Subject *	getSubject ()
Public Member Functions inherited from YACS::HMI::GuiObserver
	GuiObserver ()
virtual	~GuiObserver ()
virtual void	select (bool isSelected)
virtual void	update (GuiEvent event, int type, Subject *son)
virtual void	incrementSubjects (Subject *subject)
virtual void	decrementSubjects (Subject *subject)
int	getNbSubjects ()
bool	isDestructible ()

Additional Inherited Members
Public Slots inherited from YACS::HMI::ItemEdition
virtual void	onApply ()
virtual void	onCancel ()
virtual void	onModifyName (const QString &text)
Static Public Member Functions inherited from YACS::HMI::ItemEdition
static std::string	filterName (const std::string &name)
Static Public Member Functions inherited from YACS::HMI::GuiObserver
static std::string	eventName (GuiEvent event)
static void	setEventMap ()
Protected Attributes inherited from YACS::HMI::ItemEdition
bool	_isEdited
bool	_haveScript
Protected Attributes inherited from FormEditItem
WidEditItem *	_wid
Protected Attributes inherited from YACS::HMI::ItemEditionBase
Subject *	_subject
int	_stackId
std::string	_name
std::string	_type
std::string	_category
Protected Attributes inherited from YACS::HMI::GuiObserver
std::set< Subject * >	_subjectSet
bool	_destructible
Static Protected Attributes inherited from YACS::HMI::GuiObserver
static std::map< int, std::string >	_eventNameMap

Detailed Description

Definition at line 30 of file EditionInputPort.hxx.

Constructor & Destructor Documentation

EditionInputPort()

EditionInputPort::EditionInputPort	(	Subject *	subject,
		QWidget *	parent = 0,
		const char *	name = 0
	)

Definition at line 36 of file EditionInputPort.cxx.

  : ItemEdition(subject, parent, name)
{
  if (!QtGuiContext::getQtCurrent()->isEdition())
    return;

  SubjectDataPort *sdp = dynamic_cast<SubjectDataPort*>(_subject);
  Node *parentNode = sdp->getPort()->getNode();
  if (parentNode)
    if (dynamic_cast<DataNode*>(parentNode) || dynamic_cast<InlineNode*>(parentNode))
      _wid->le_name->setReadOnly(false);
}

References YACS::HMI::ItemEditionBase::_subject, FormEditItem::_wid, YACS::ENGINE::Port::getNode(), YACS::HMI::SubjectDataPort::getPort(), and YACS::HMI::QtGuiContext::getQtCurrent().

~EditionInputPort()

EditionInputPort::~EditionInputPort ( )

virtual

Definition at line 51 of file EditionInputPort.cxx.

{
}

Member Function Documentation

select()

void EditionInputPort::select ( bool  isSelected )

virtual

Reimplemented from YACS::HMI::ItemEdition.

Definition at line 55 of file EditionInputPort.cxx.

{
  DEBTRACE("EditionInputPort::select " << isSelected);
  if (isSelected)
    {
      Subject *snode = _subject->getParent();
      if (snode)
        {
          if(QtGuiContext::getQtCurrent()->_mapOfEditionItem.count(snode) == 0)
            {
              //panel is not created. Force its creation
              update(YACS::HMI::ADD,snode->getType(),snode);
            }
          QWidget *widget = QtGuiContext::getQtCurrent()->_mapOfEditionItem[snode];
          ItemEdition *item = dynamic_cast<ItemEdition*>(widget);
          item->synchronize();
          QtGuiContext::getQtCurrent()->getStackedWidget()->setCurrentWidget(widget);
        }
      else
        {
          synchronize();
          QtGuiContext::getQtCurrent()->getStackedWidget()->setCurrentWidget(this);
        }
    }
}

References YACS::HMI::QtGuiContext::_mapOfEditionItem, YACS::HMI::ItemEditionBase::_subject, YACS::HMI::ADD, DEBTRACE, YACS::HMI::Subject::getParent(), YACS::HMI::QtGuiContext::getQtCurrent(), YACS::HMI::QtGuiContext::getStackedWidget(), YACS::HMI::Subject::getType(), YACS::HMI::ItemEdition::synchronize(), and YACS::HMI::ItemEdition::update().

---

The documentation for this class was generated from the following files:

• src/genericgui/EditionInputPort.hxx
• src/genericgui/EditionInputPort.cxx
